Features and Advantages
1.Multiple distance locating method:
Low current impulse method: apply to the locating of the low resistance fault. Short circuit fault, open circuit fault. It also can be used in the measurement of the cable length, the intermediate joints, T joints, and cable termination joint. This method also can be used to correct the wave velocity.
Impulse current method: apply to the high resistance fault, breakdown fault. Use the current coupler to gather signal from the earth wire
Multiple impulse method: improvement of the SIM method
2.200MHz real-time sampling
Advance tech.Upgrading for SIM method
Max. 0.4m measurement resolution,ZC-700D has small blind zone and is special for the short cable and nearly-terminal fault cable

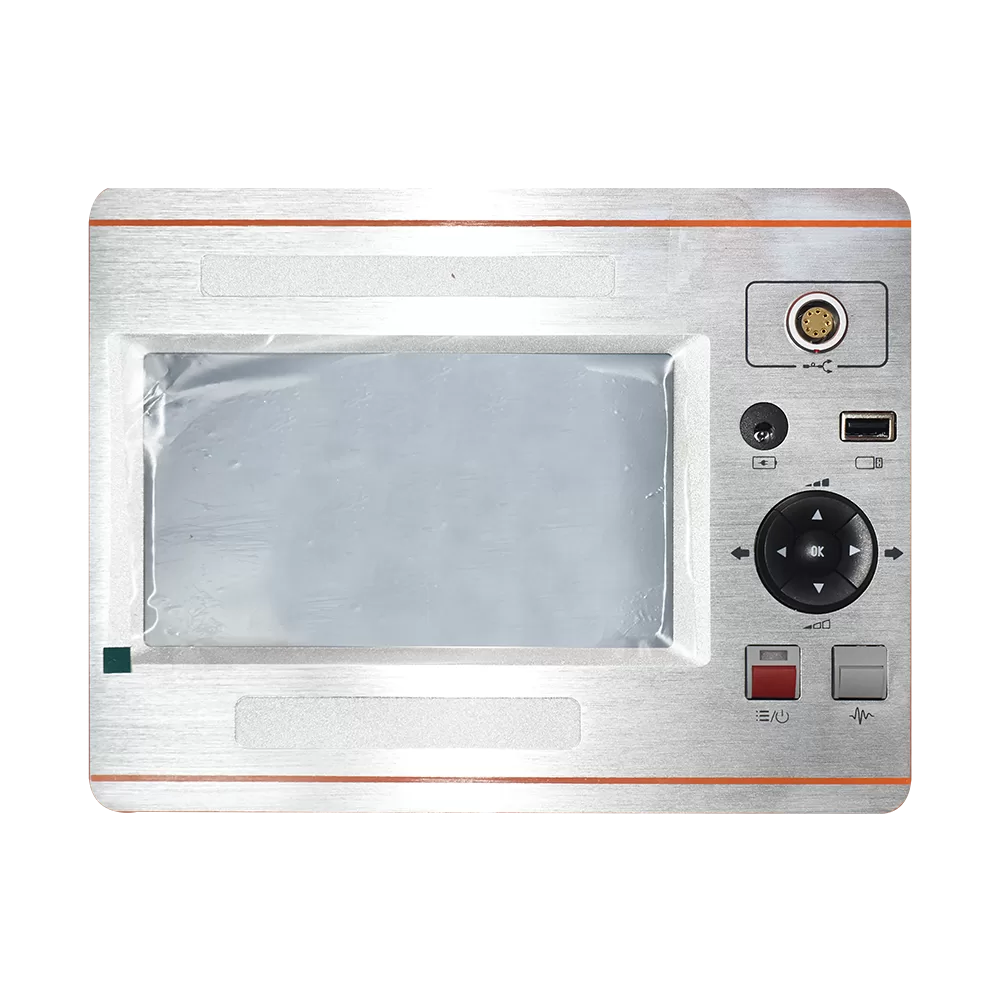

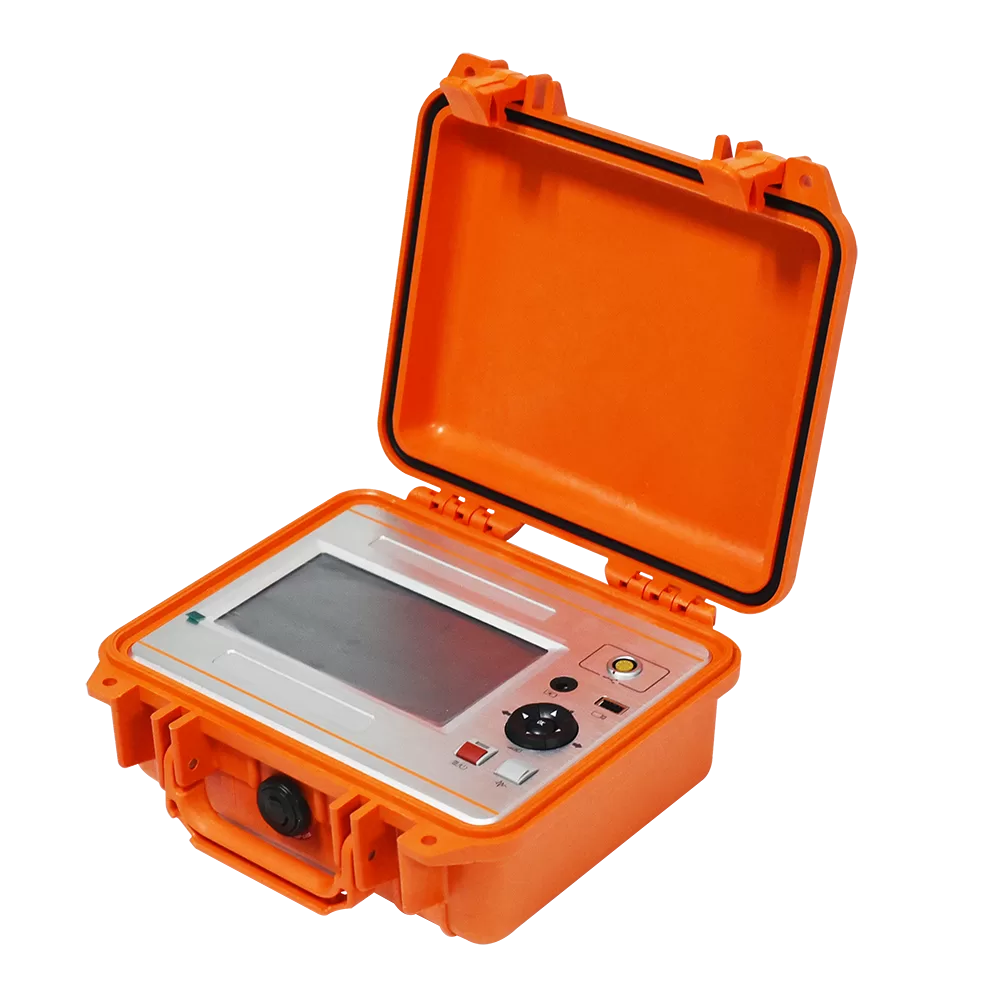

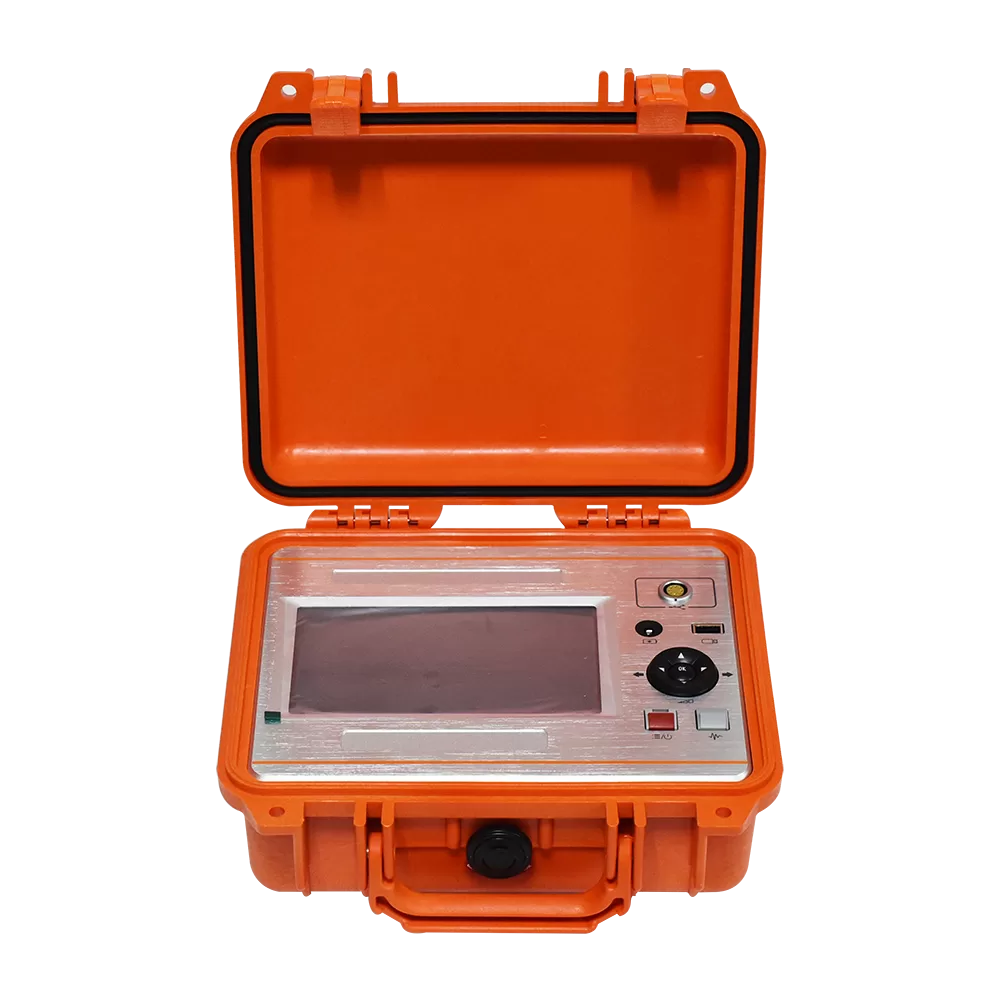

3.Touch screen and press key operation
Touch operating screen with smart gesture operation
Support cursor drag-drop function and double-click function,easy to locate
Simple function menus with high performance.
4.Big color LED screen, friendly interface
Simple function menus with high performance
5.7″ LED screen,160°viewing angle,bright with 750cd/m2 to view under sunshine
PIP copy（pic. temporary storage). There’ll be a main window and three temporary storage windows could check three waveform together.
6.Waveform storage and PC communication
Special software management for software upgrade, backup and restore in device.
Waveform storage and communication with computer.
Internal storage of waveform.
Optional mini printer for waveform printing
Support connection with PC or laptop
7.Power management
Back light weakens if no operation in 2 min and power off in 10 min. if no operation.
Built-in Polymer Lithium-ion battery.
Working time could reach 7 hours for each use.
Parameter
| Locating methods | Low voltage impulse method |
| Impulse current method | |
| Multiple impulse method | |
| Sampling frequency | 200MHz |
| Gain range | 0-70dB |
| Low voltage impulse voltage | 32V |
| Max.resolution | 0.4m |
| Locating range | 100km |
| Dead zone | 2m |
| Battery | L-ion battery rechargeable batteries,7.4 V endurance time over 7 hours |
| Communication interface | USB,bluetooth (optional) |
| Power supply | Input AC220V,50Hz,current 1A,charge for 6 hours |
| Dim | 274×218×81mm |
| Weight | 3.5kg |
| Operating Temperature | -10℃－40℃ |
| Humidity | 5-90％RH |
| Elevation | <4500m |
