Features and Advantages
1.All-digital positioning system, and show a clear, reliable positioning
2.Portable lightweight, easy to use, quick to find
3.Built-in rechargeable battery, the test without electricity
4.Depth with cable shows, current shows
5.Large-screen LCD graphic display, without earphone test
6.Built-in ohmmeter measure the resistance of the cable loop
7.Cable locating and fault-finding with two functions
8.You can find up-to-ground insulation failure 2MΩ
9.Adapt to night-time operation with backlight
Parameter
- Receiver
- Transmitter

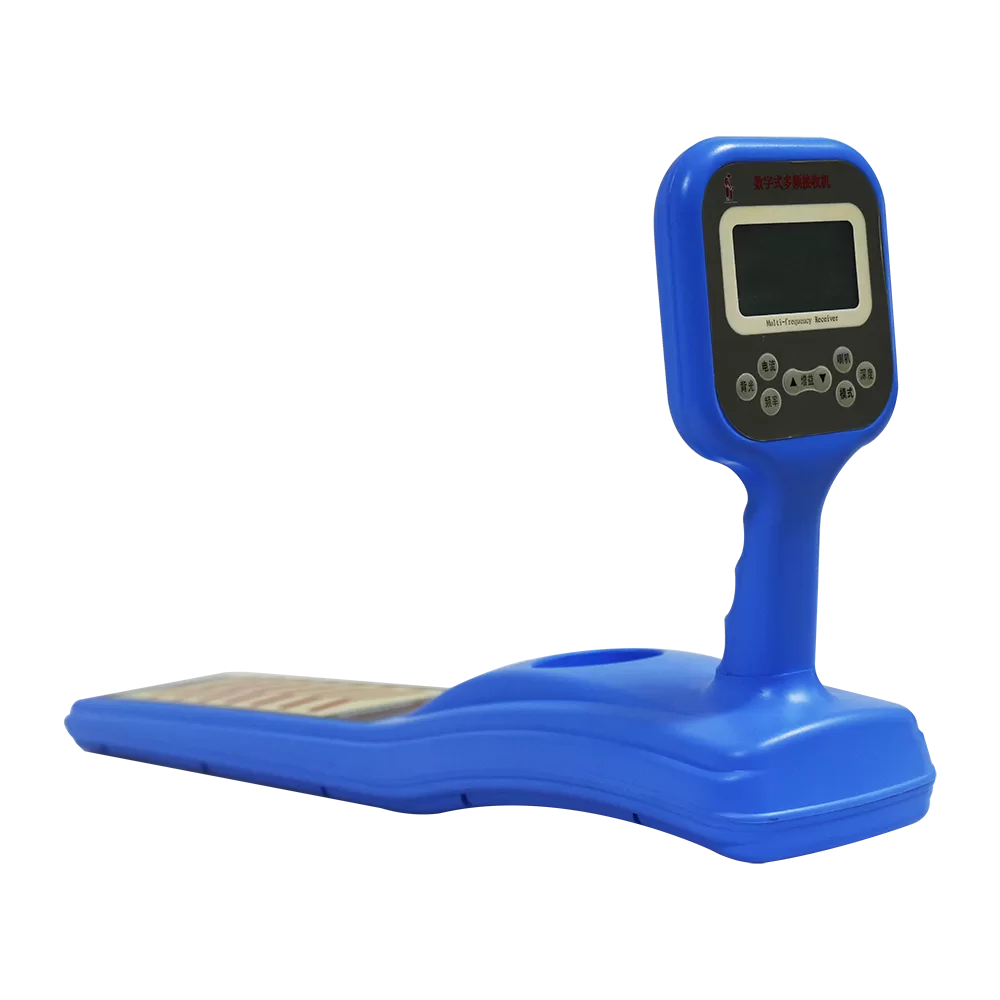

| Receiver | |
| Operating frequency | low frequency, RF |
| Sound indication | signal intensity changes with the FM tone |
| Current indication | Display the current value of the effective cable under test (unit: mA) |
| Operating temperature | -10 ° C – +55 ° C |
| Battery Type | 7.4V lithium battery |
| Battery indicator | graphics |
| Battery life | continuous > 8 hours: stopped working > 16 hours |
| Size | 70cm × 20cm × 11cm |
| Weight | 3 kg (with battery) |
| Signal strength, said | ladder, the number range 0 – 999 |
| Gain Control | manually adjust the dynamic range of 100db |
| Detection depth | Maximum depth of not less than 2.5m probe |
| Maximum detection range | direct law insulated cable up to 15km |
| Accuracy | LF: ± (1-5)% ≤ 2.5 meter RF: ± (5-12)% ≤ 2.5 meter |

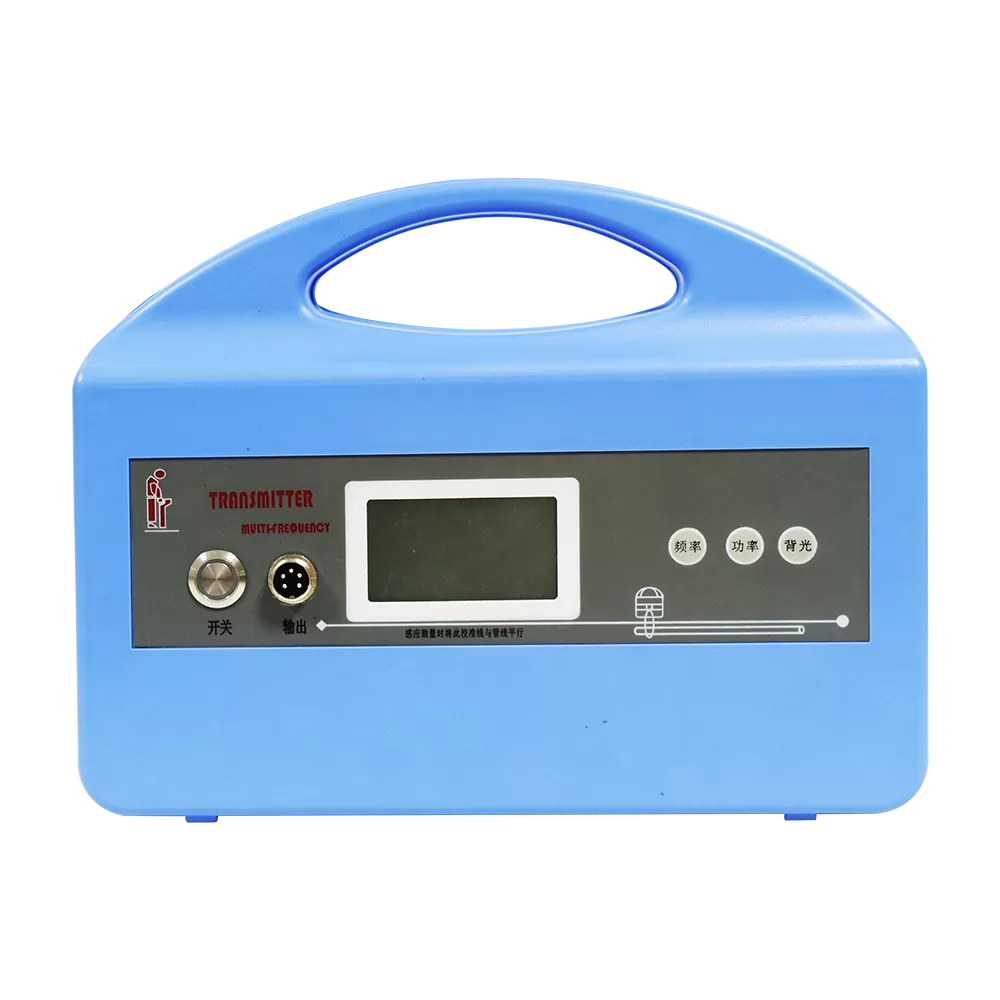

| Transmitter | |
| Operating frequency | low frequency, RF |
| Mode | direct method, coupling method, inductive method |
| Matched load | 5 ohms -3000 ohms |
| Impedance display | five digits |
| Thermal over-current | automatic protection |
| Power output | low block, mid-range, high gear |
| Battery Type | 7.4V lithium battery |
| Battery lif | working 4-8 hours depending on use frequency, output power |
| Operating temperatur | -10 ° C-55 ° C |
| Size | 16cm × 16cm × 39cm |
| Weight | ² 4 kg (with battery) |
| Intermittent work 6-10 hours depending on the frequency of use, output power | |
