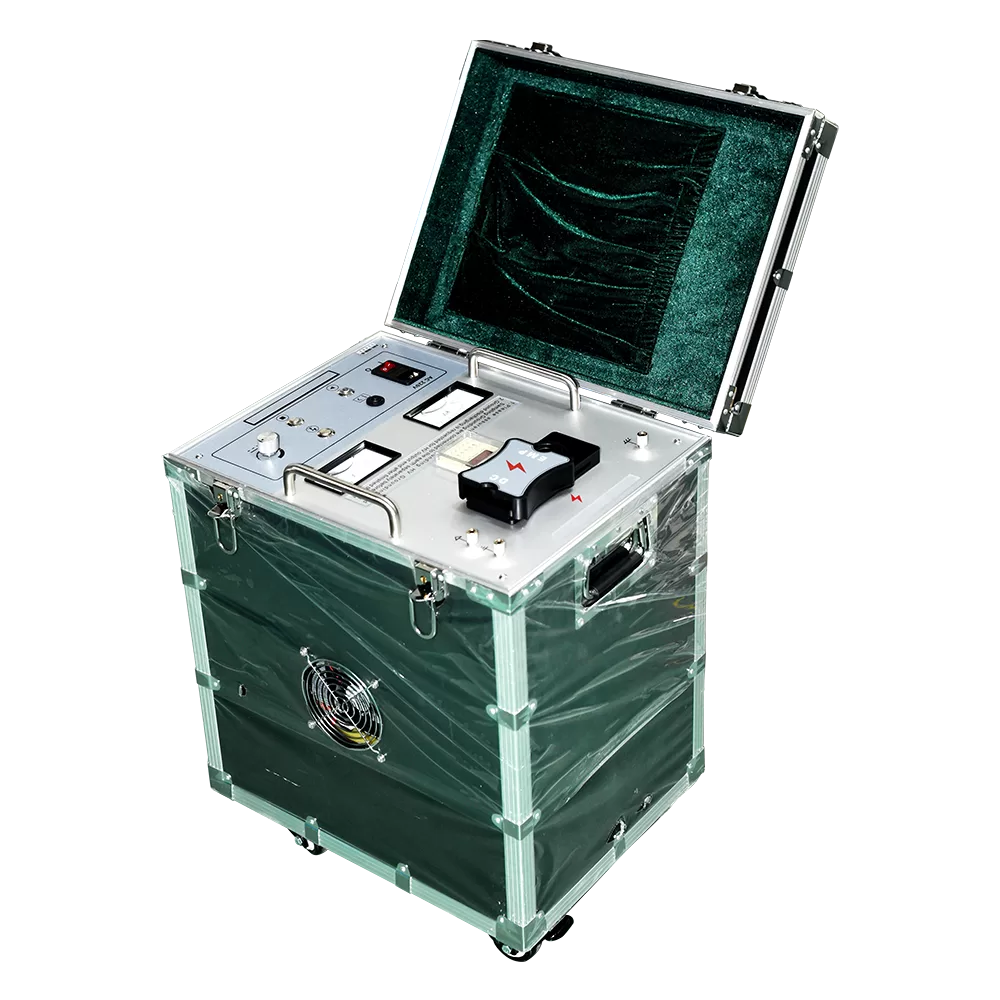

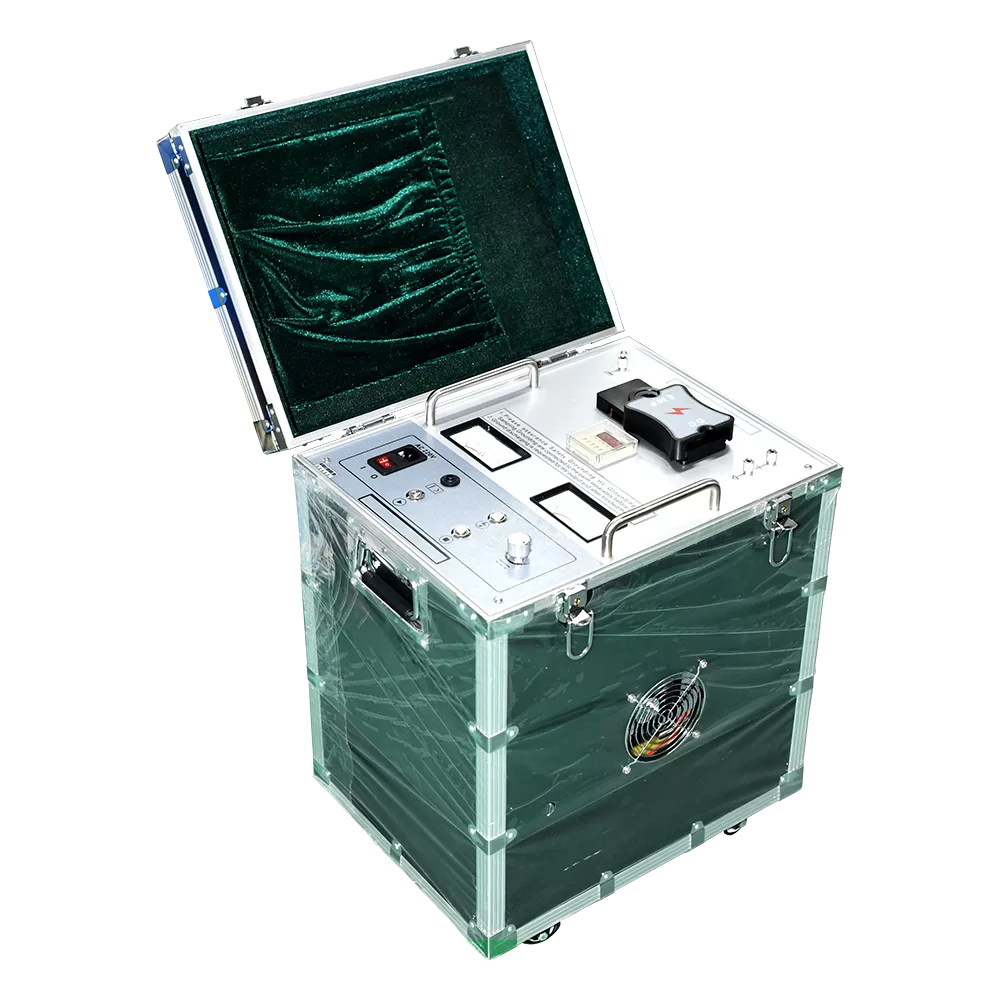

Features and Advantages
1. Features automatic protection functions against overcurrent, overvoltage, and overheating.
2. Capable of performing DC withstand voltage tests and impulse discharge operations.
3. Delivers a uniform and controllable high-voltage pulse output.
4. Features robust short-circuit protection, allowing the high-voltage output to operate safely even when directly short-circuited to ground.

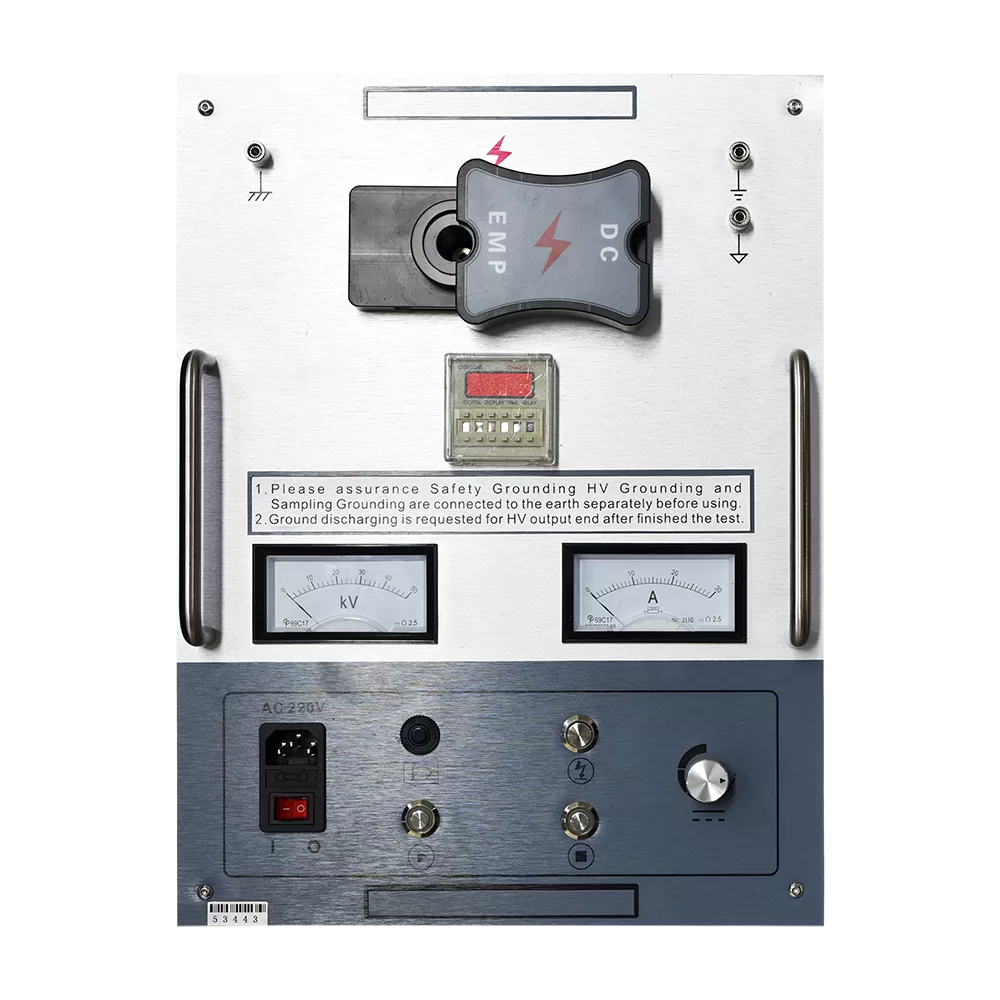

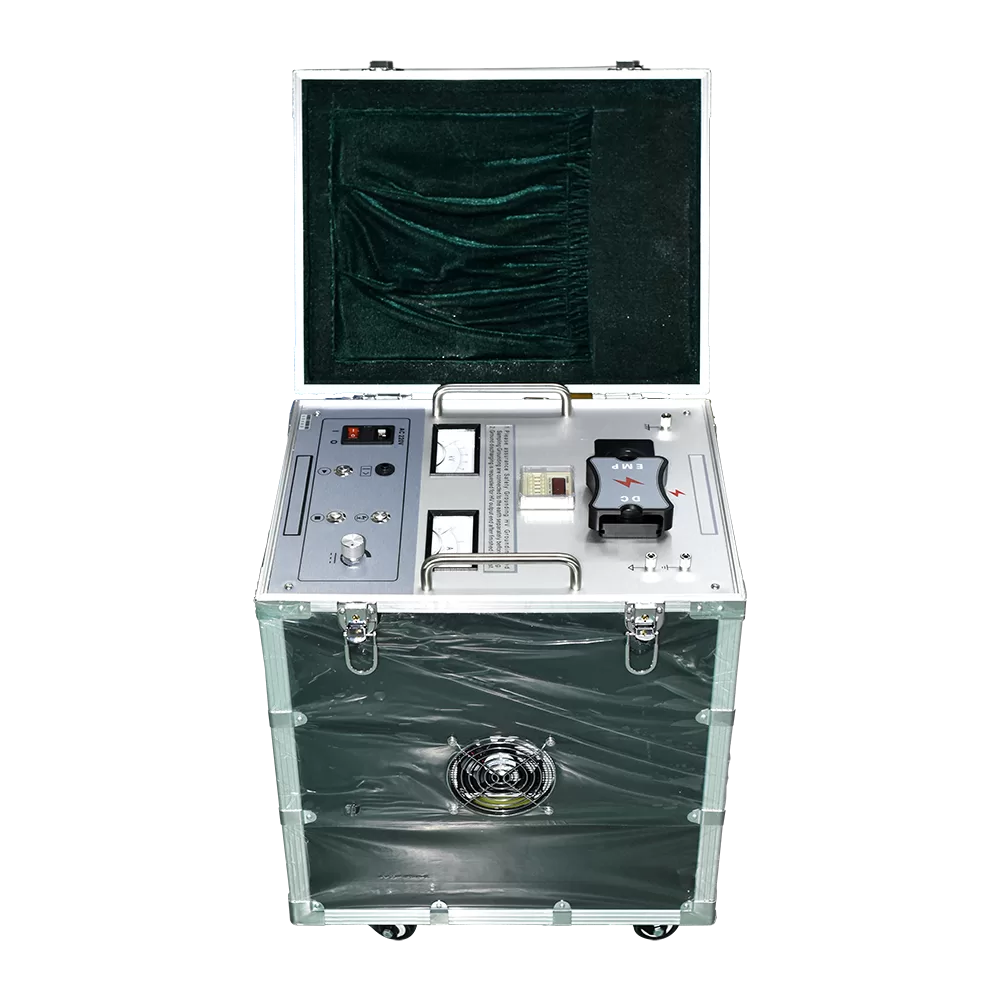

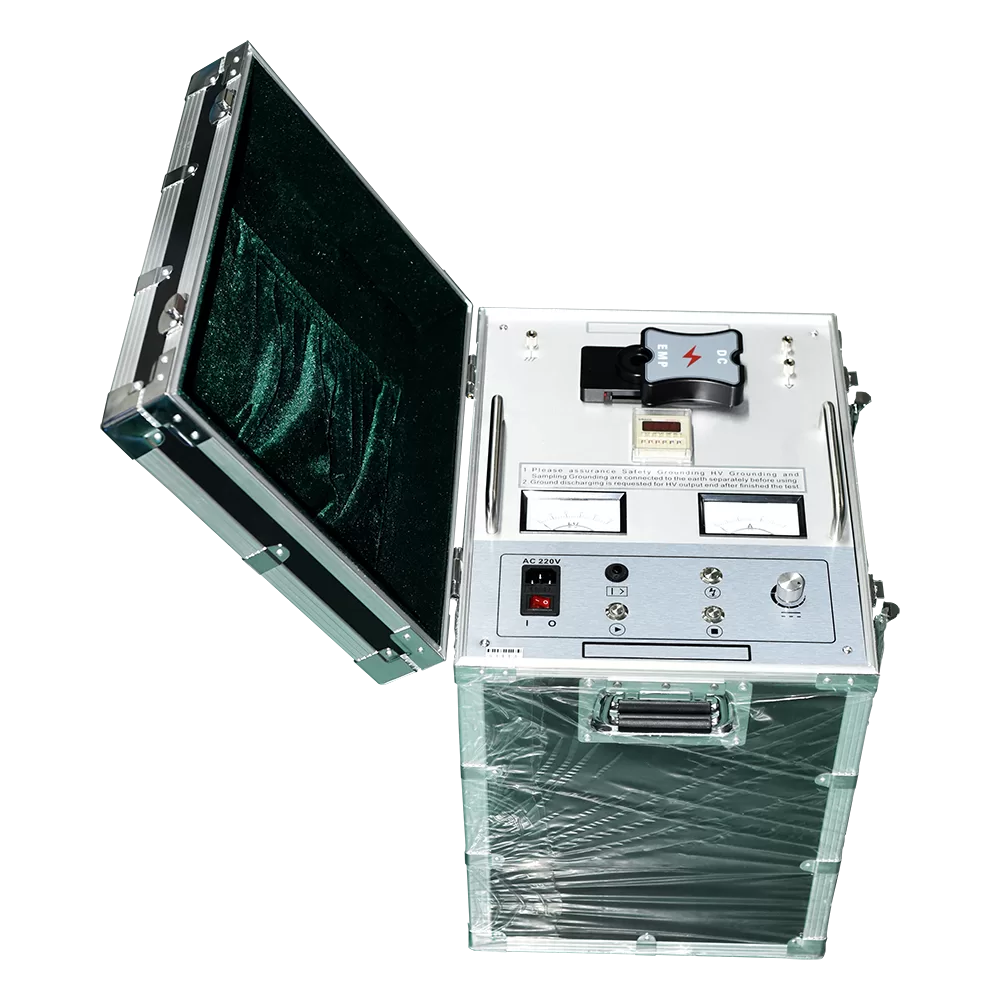

5. Equipped with dual Class 1.5 analog meters for current and voltage display, offering an intuitive and clear interface that allows operators to instantly verify whether a fault point has been fully discharged, while providing real-time feedback on the discharge process.
6. High-voltage-side voltage measurement is performed in real-time with high precision.
7. Incorporates a “zero-start” protection feature to ensure enhanced safety and reliability.
8. Features a unique high-voltage measurement design wherein, even when the unit is in a stopped state, the voltmeter continues to display the real-time capacitor voltage value, ensuring the operator remains fully aware of the high-voltage status at all times.
9. The discharge duration can be freely configured within a suitable time interval.
Parameter
| Technical Specifications | |
| Impulse Voltage | 0–32 kV (Default: 0–28 kV) |
| Burn-through Voltage | 0–28 kV |
| Short-circuit Current | 0–320 mA |
| HV Accuracy | Class 1.5 |
| Built-in Capacitance | 4 μF |
| Discharge Energy | 0–2048 J (Default: 0–1568 J) |
| Output Voltage Polarity | Negative |
| Impulse Power | 400 W |
| Over-temperature Protection | 65°C |
| Over-current Protection | 12 A (for >8s) [Low-voltage side] |
| Over-temperature Protection | 65°C |
| Dimensions | 430 (L) × 345 (W) × 550 (H) mm |
| Weight | ≤ 35 kg |
| Power Supply | AC 220 V ±10% / 50 Hz ±1 Hz |
| Ambient Temperature | -25°C to +65°C |
