Features and Advantages
1.It is suitable for live and non-live cables. Live cables are only suitable for three-core armored cables.
2.Flexible calipers are easy to receive and use.
3.50Hz/60Hz cable load current measurement function.
4.Multiple signal output modes: direct output, caliper coupling.
5.Transmitter high-power output, output multi-gear adjustable, automatic impedance matching,automatic protection.
6.Unique identification: clearly give the identification result.
7.Built-in large-capacity lithium-ion battery pack, automatic shutdown under voltage, automatic shutdown without operation for a long time.

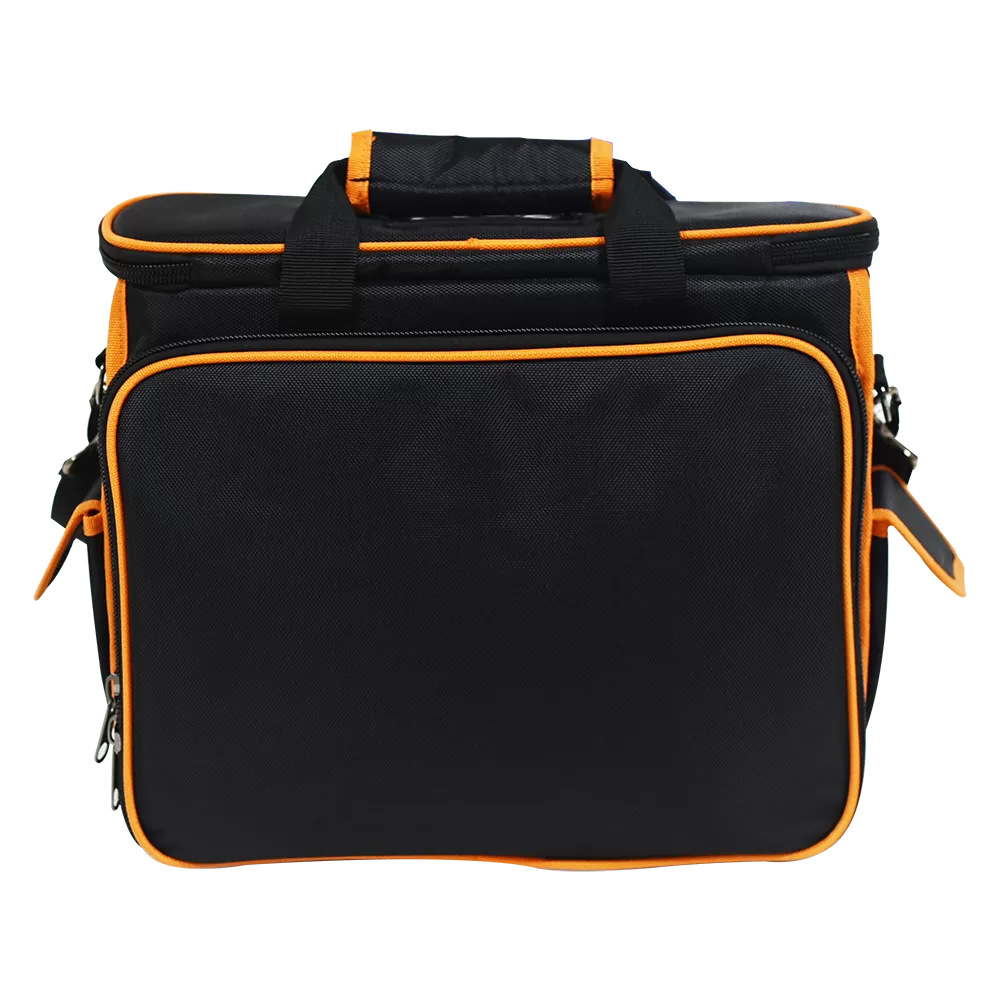

8.Strong, light and portable case.
9.Full digital high-precision sampling and processing, receiving pass band is extremely narrow,strong anti-interference ability, can fully suppress the power frequency and harmonic interference of adjacent running cables and pipelines
Parameter
- Transmitter
- Receiver
- Other parameters

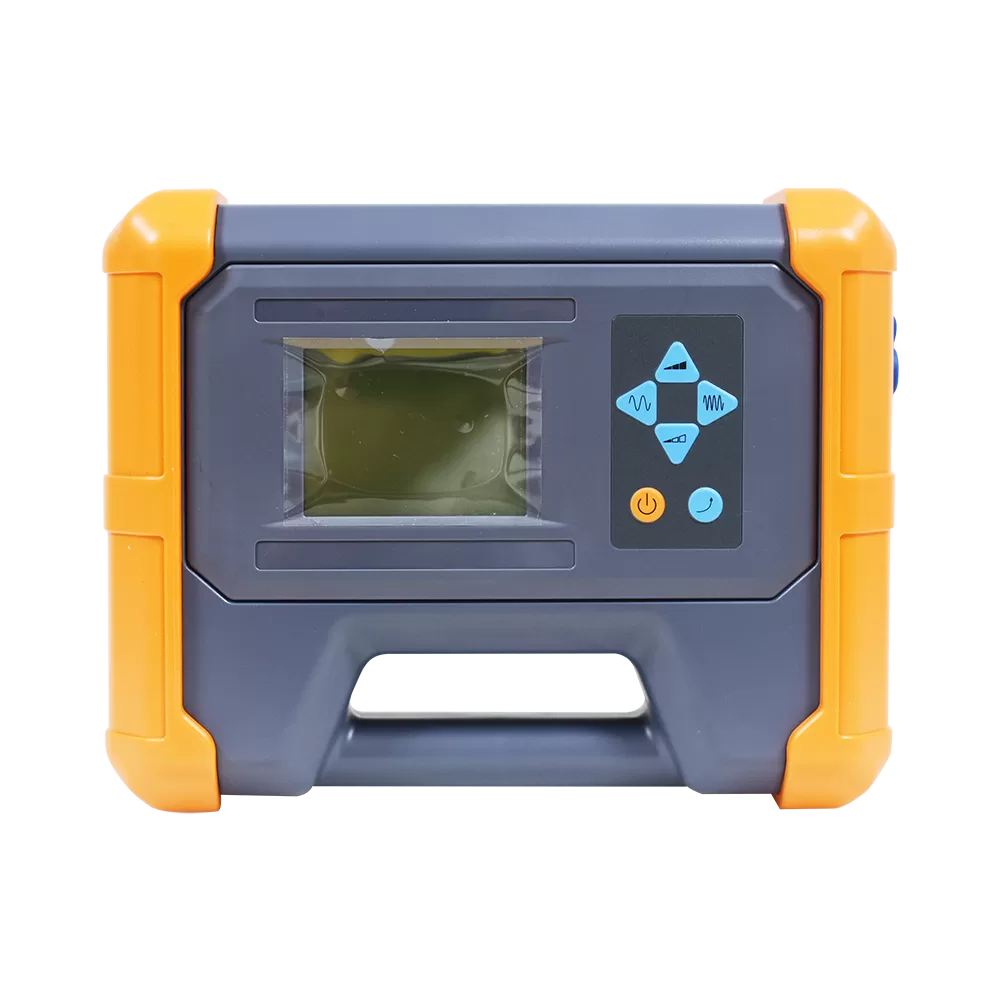

| Transmitter | |
| Output mode | direct output, caliper coupling |
| Output frequency | 640Hz(compound frequency), 1280Hz(compound frequency) |
| Output power | maximum 10W, 10 gear adjustable, automatic real-time impedance matching |
| Direct connection output voltage | up to 150Vpp |
| Protection system | Overload and short circuit protection |
| Man-machine interface | 320×240 lattice LCD display |
| Built-in battery | 4pcs 18650 lithium-ion batteries, nominal 7.4V, 6.8Ah |

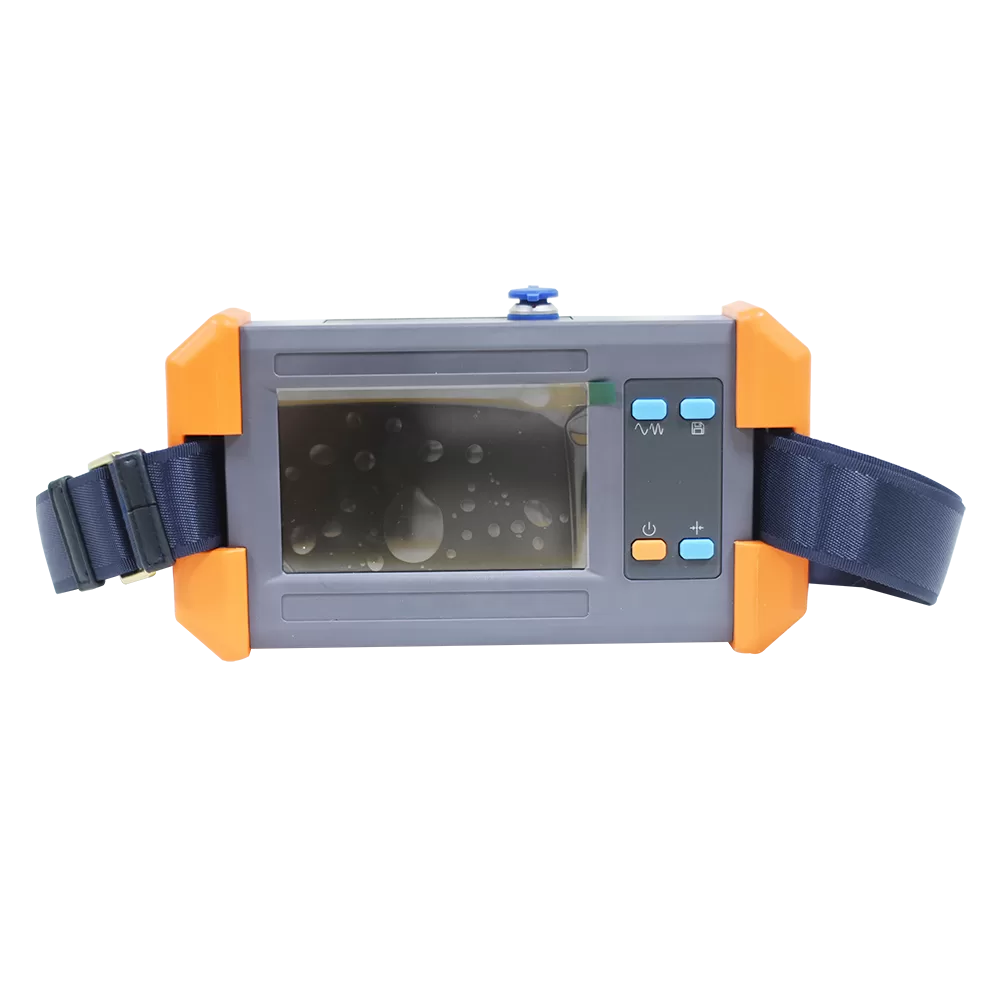

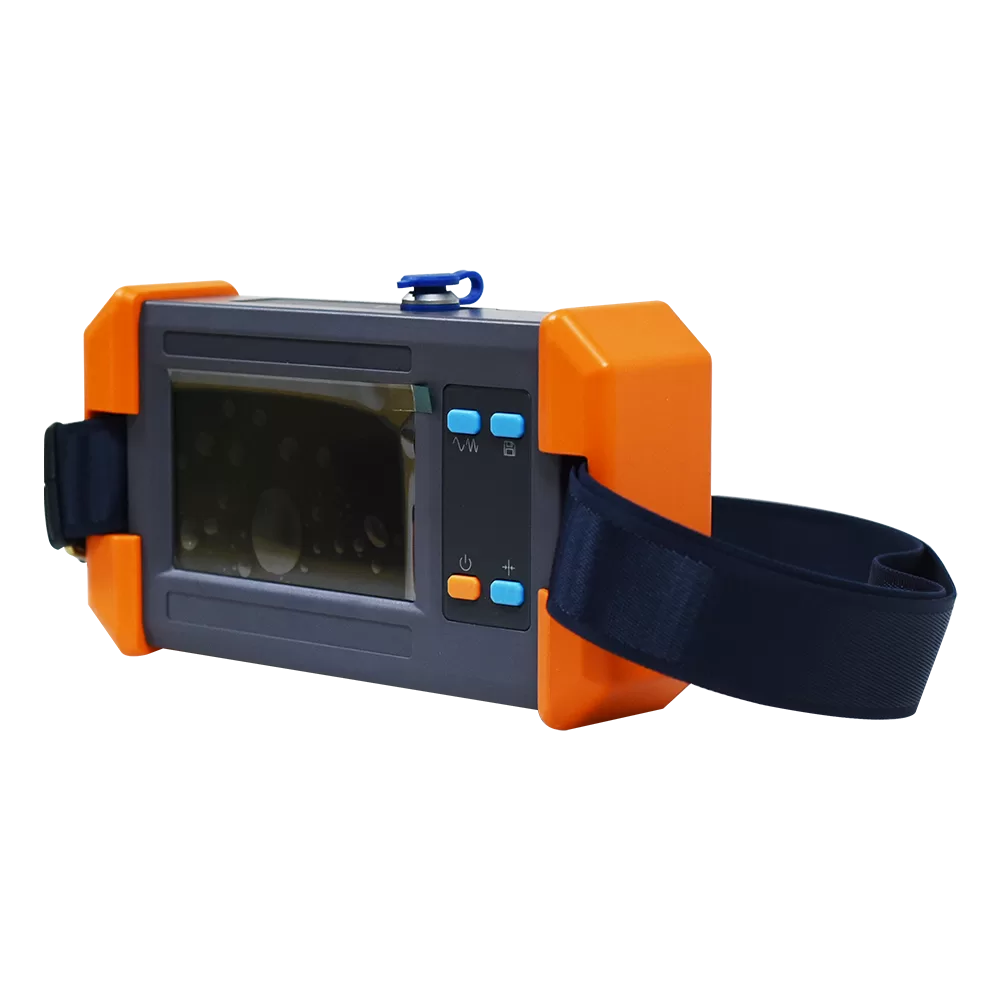

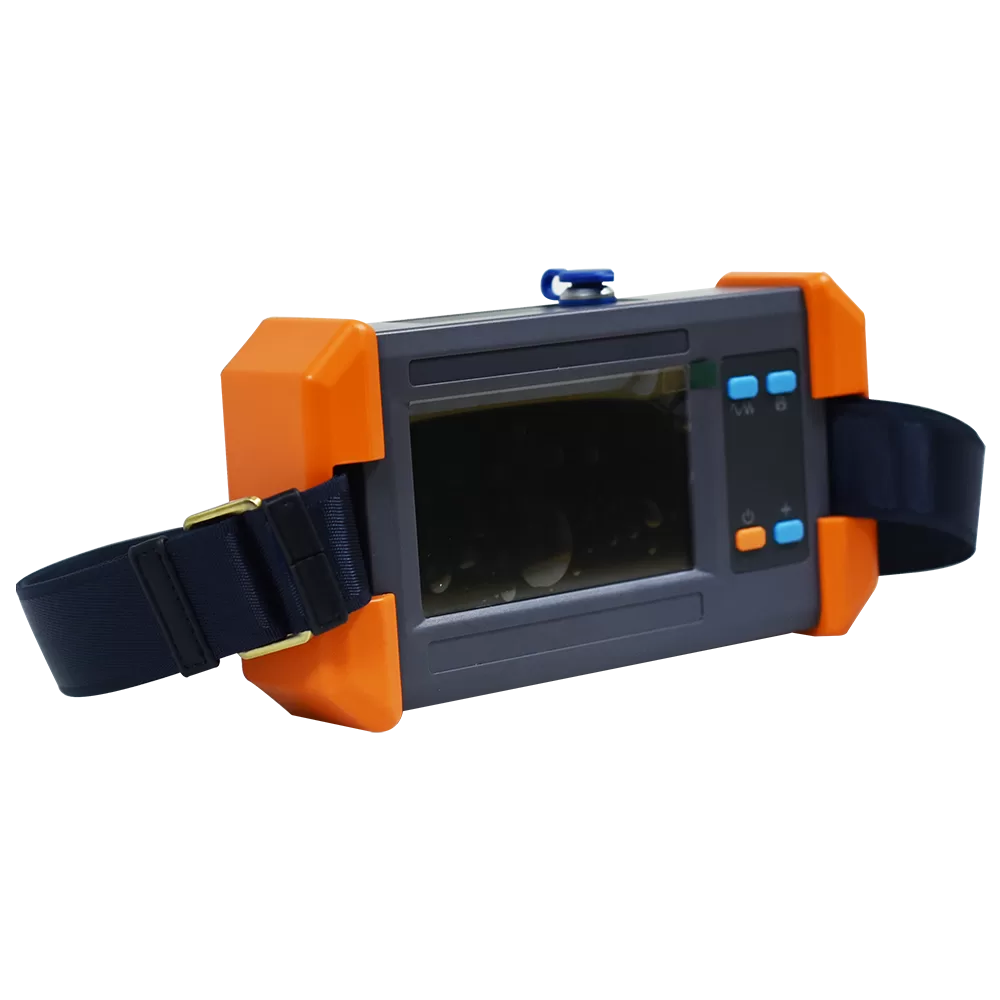

| Receiver | |
| Input mode | flexible caliper |
| Receiving frequency | Active detection frequency: 640Hz, 1280Hz |
| Power frequency passive detection frequency: 50Hz/60Hz(user configurable) | |
| Cable identification | intelligent identification of flexible calipers |
| Power frequency measurement | range AC 1-1000A, accuracy ±3% |
| Man-machine interface | 800×480 LCD display; The liquid crystal size is 121x76mm |
| Built-in battery | 2pcs 18650 lithium-ion batteries, nominal 3.7V, 6.8Ah |
| Others | |
| Volume | transmitter 280×220×90mm, receiver 220×125×55mm |
| Weight | transmitter 2.3kg, receiver 0.9kg |
| Transmitter charger | Input AC100-240V, 50/60Hz, output DC8.4V/2A |
| Receiver charger | Input AC100-240V, 50/60Hz; Output DC5V/2A |
| Operating conditions | Temperature :-10℃-40℃, humidity 5-90%RH, altitude <4500m |
