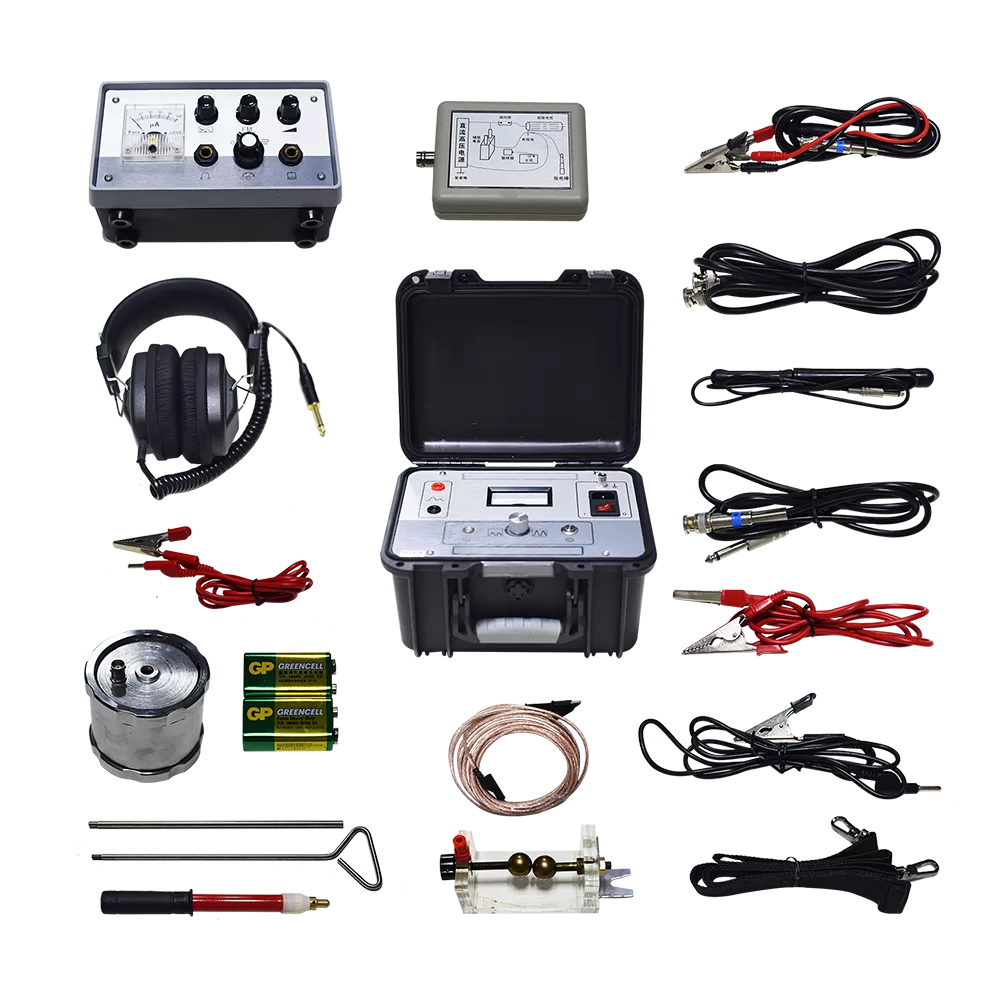

Features and Advantages
1. Multi functional, safe, fast speed and accurate. It uses LV impulse method and HV flashover method to test, can test kinds of fault of the cable, if equipped with sound locator, can accurately the position of the fault point.
2. High precision, adopts high-speed sampling technique, A/D sampling speed is 100MHz, resolution is 1m, detection blind area is 1m.
3. High degree of intelligence, test results auto displayed by LCD.
4. Can store and review the waveform and parameters, these information will not loss after power off.
5. Dual display, compare the measured waveform and normal waveform of the fault cable, benefit to further detection of the fault.
6. With function of wave form expansion ratio, change the proportion of the waveform, expand the waveform to test.
7. Directly display the direct distance or relative distance between fault point and measured point.
8. Can modify the speed according different measured cable.
9. Portable design , small in volume , with rechargeable battery, easy to carry and operate.
Parameter
- Cable fault tester
- Technical index of Pathfinder
- Fixed point instrument parameters
- High frequency and high voltage power supply parameters

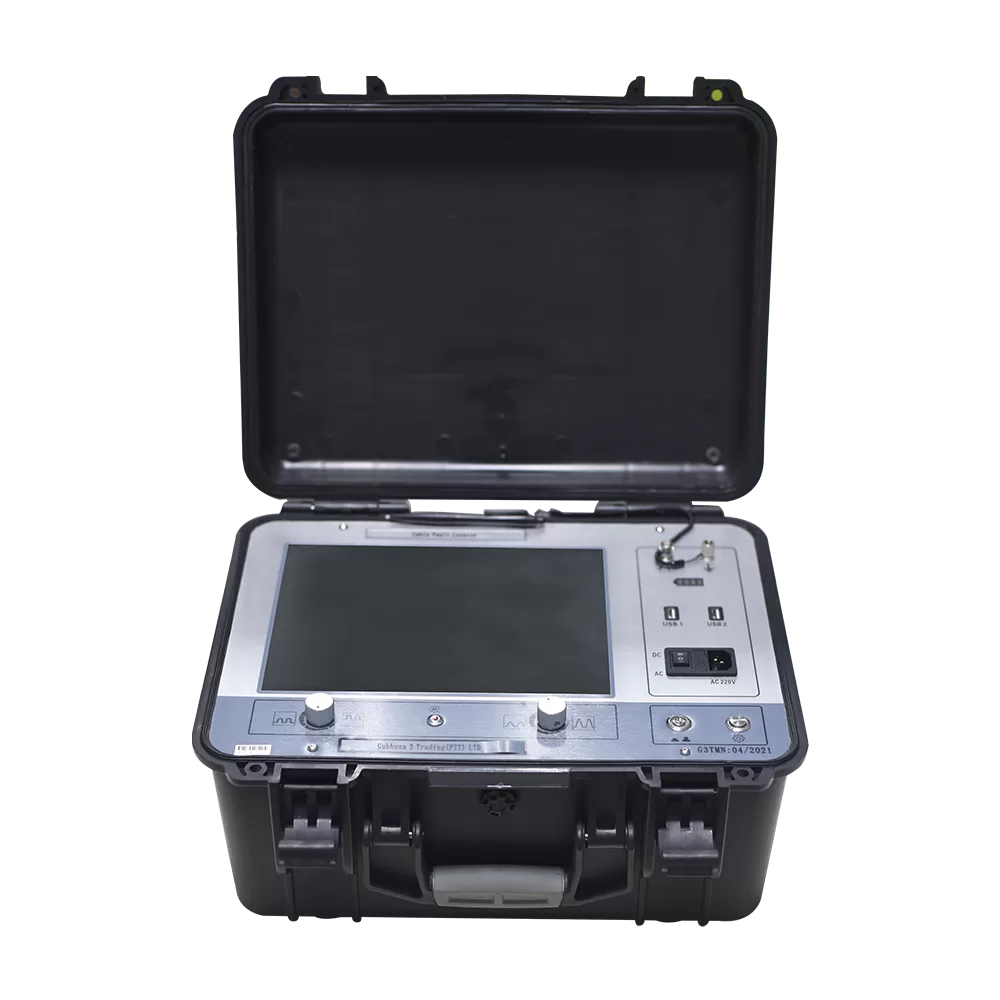

| Cable fault tester | |
| Display mode | 12.1-inch Industrial LCD (XP operating platform) |
| Test distance | Not less than 60km |
| Storage space | Fixed 8G |
| Testing method | Low voltage pulse methodimpulse lightning current method direct lightning current method |
| Operation mode | Touch mouse operation |
| Shortest test distance(blind area) | 0-5m or no blind area |
| Resolution | Software cursor 0.10m |
| Precise fixed point error | 士0.2m |
| Test error | The systematic error is less than 士 1% |
| Instrument sampling frequency | 6.25MHz、12.5MHz、25MHz、50MHz、100MHz |
| Pulse width | 80ns、100ns、200ns、1μ s、2μ S (software automatic matching) |
| Standby time | It can be used continuously for about 6 hours |
| Host weight | 7kg |
| Overall dimension | 180mm×300mm×400mm |
| Ambient temperature | -20°℃~+40°℃ |
| Relative humidlity | 80% |
| Power supply and consumption | AC 220V 士 10% not more than 15W DC 12V (7Ah) not more than 20W |
| Technical index of Pathfinder | |
| Signal frequency | 15KHz sine wave |
| Output power | Pomax>100W |
| Output impedance | Zo=ZC (cable characteristic resistivity) |
| Oscillation mode | Intermittently |
| Ambient temperature | -10°℃~+40°℃ |
| Relative humidlity | RH<85%(25℃℃) |
| Host weight | 9.8kg |
| Overall dlimension | 180mm×300mm×400mm |
| Fixed point instrument parameters | |
| Dgitaldispy distance | Maximum 500m, minimum 0.1M |
| Rough measurement error | Less than 10%,and the fixed-point error is zero |
| Sensitivity of electromagnetic channel receiver | <5μV |
| Electromagnetic channel gain | >110dB |
| Audio amplifier gain | <120dB (1 million times when signal-to-noise ratio is 4:1) 50Hz |
| Power frequency suppression system | >40dB(100x)） |

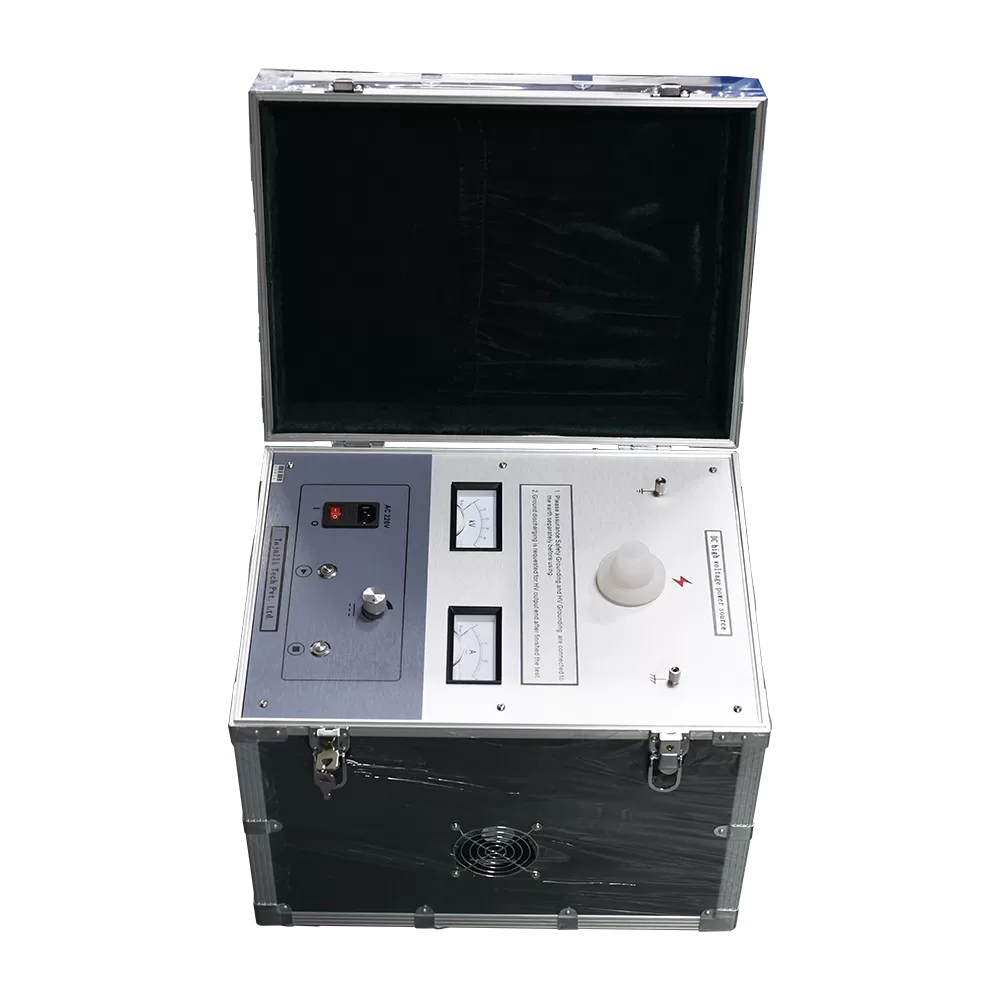

| High frequency and high voltage power supply parameters | |
| Output mode | Pulse output, DC output |
| Output voltage | Negative pressure,0~-35kV,continuously adjustable |
| Working current | <40mA |

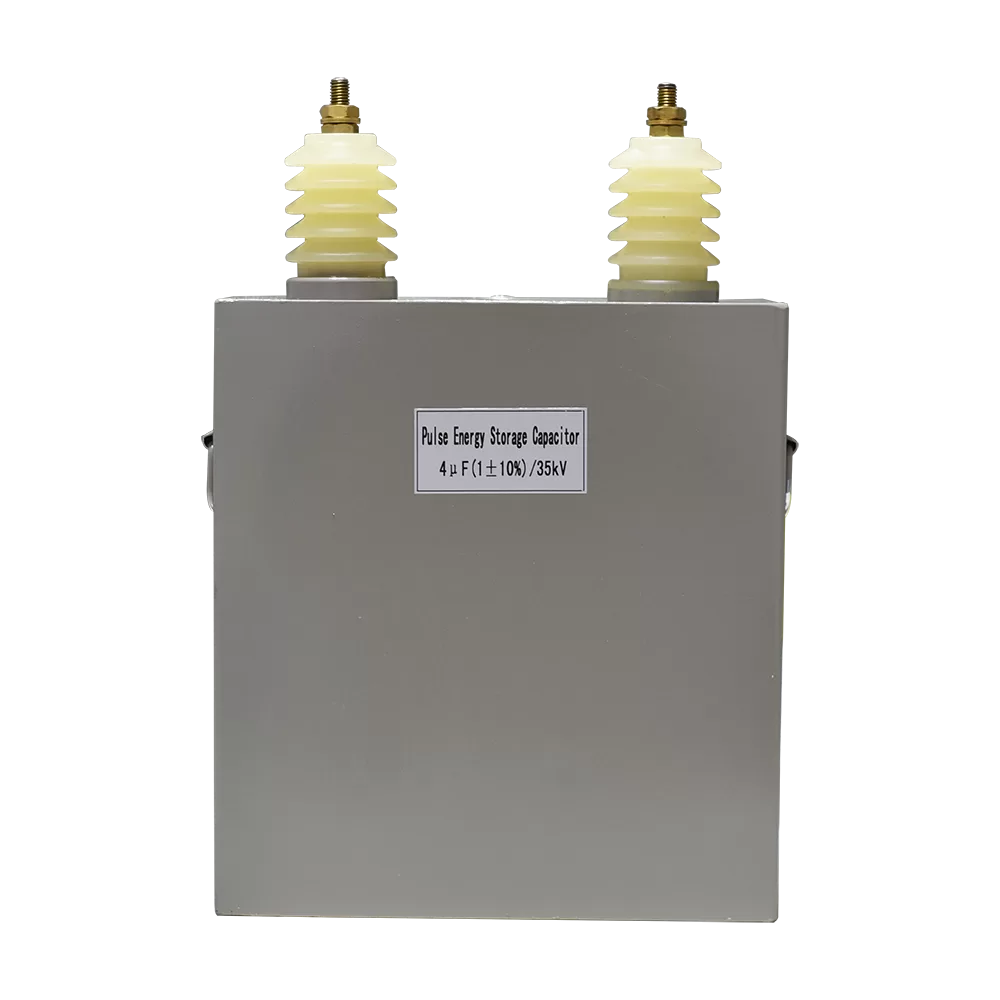

| Working mode | Builtincapacitanceofsinglepulse,continuouspulseandDCoutput:2uF/35k(4uf/35kV) |
| Discharge energy | ≤1225J(2450J) |
| Pulse period | 3S~ 8s adaptive |
| Automatic discharge | Automatic discharge after shutdown |
| Working power supply | Power frequency 220V士 10% |
| Working temperature | -10℃~40°℃ |
| Working humidity | <80% |
| Altitude | ≤1000m |
| Overall dimension | 478(L)*370(W)*448(H) mm |
| Weight | <28kg |
