35kV/110kV Hydropower Station High-Voltage Test Items List

Home » Applications » Power Generation Companies

Industry Overview

The purpose of electrical tests for hydropower stations is to verify the insulation condition, electrical parameters and operational reliability of electrical equipment, identify hidden defects, ensure correct installation and control logic, and guarantee the safe grid connection and stable, long-term operation of generating units in accordance with relevant standards.

Test Objects (Tested Specimens)Test ItemsIEC StandardsANSI/IEEE Standards

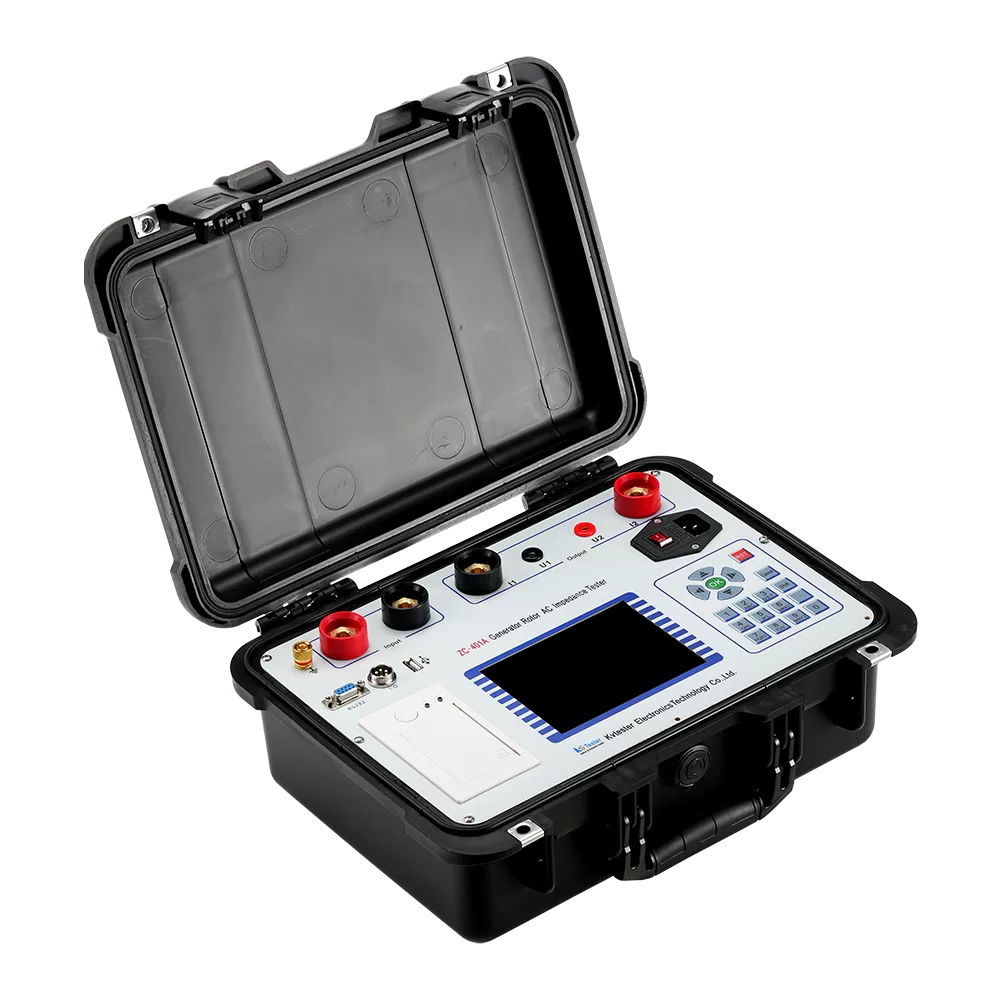

Hydraulic Turbine GeneratorsStator and Rotor Winding Resistance Measurement, Insulation Resistance Test, Polarization Index (PI) Test, Dielectric Loss Factor (tanδ) Test, No-Load Test, Load Test, Short-Circuit Test, Temperature Rise Test, Vibration and Noise MeasurementIEC 60034-1, IEC 60034-2, IEC 60034-18, IEC 60034-27IEEE Std 115, IEEE Std 118, IEEE Std 56, IEEE Std C50.12
Power Transformers (Generator Step-Up Transformers, Distribution Transformers)Winding Resistance Measurement, Voltage Ratio and Phase Displacement Test, Insulation Resistance Test, Dielectric Loss Test, No-Load Loss and Current Test, Load Loss and Impedance Voltage Test, Induced Overvoltage Test, Lightning Impulse Test, Switching Impulse Test, Partial Discharge (PD) MeasurementIEC 60076-1, IEC 60076-2, IEC 60076-3, IEC 60076-5IEEE Std C57.12.00, IEEE Std C57.12.90, IEEE Std C57.104
Circuit Breakers (AC High-Voltage Circuit Breakers)Insulation Resistance Test, Dielectric Withstand Voltage Test, Contact Resistance Measurement, Mechanical Operation Test, Trip and Close Time Test, Short-Circuit Breaking and Making Capacity TestIEC 62271-100, IEC 62271-1IEEE Std C37.06, IEEE Std C37.09, IEEE Std C37.10
Current Transformers (CT) & Voltage Transformers (VT/PT)Ratio Error and Phase Error Test, Insulation Resistance Test, Dielectric Withstand Test, Polarity Test, Excitation Characteristic TestIEC 60044-1, IEC 60044-2, IEC 60044-5IEEE Std C57.13, IEEE Std C57.13.1, IEEE Std C57.13.6
Surge ArrestersInsulation Resistance Test, Leakage Current Measurement, Lightning Impulse Withstand Test, Operating Voltage Test, Thermal Stability TestIEC 60099-4, IEC 60099-6IEEE Std C62.11, IEEE Std C62.22
Insulating OilBreakdown Voltage Test, Moisture Content Test, Dissolved Gas Analysis (DGA), Viscosity Test, Acid Number TestIEC 60156, IEC 60814, IEC 60567, IEC 60296ASTM D877, ASTM D1533, ASTM D3612, ASTM D974
Power Cables (High-Voltage Power Cables)Insulation Resistance Test, Dielectric Loss Factor Test, AC Withstand Voltage Test, Partial Discharge Test, Conductor Resistance MeasurementIEC 60502-1, IEC 60502-2, IEC 60228IEEE Std 400, IEEE Std 400.2, IEEE Std 575
Protective Relays & Control SystemsRelay Function Test, Setting Value Calibration, Tripping Time Test, Interlocking Test, Communication Test with SCADA SystemIEC 61850, IEC 60255, IEC 61508IEEE Std C37.2, IEEE Std C37.90, IEEE Std C37.112
Busbars (High-Voltage Busbars)Insulation Resistance Test, Dielectric Withstand Voltage Test, Temperature Rise Test, Conductor Resistance Measurement, Corona TestIEC 62271-203, IEC 60060-1IEEE Std C37.20.1, IEEE Std C37.20.2
Frequency Converters (for Pumped Storage Units)Input/Output Voltage and Current Test, Efficiency Test, Harmonic Distortion Test, Overload Capacity Test, Protection Function TestIEC 61800-1, IEC 61800-2, IEC 61800-4IEEE Std 519, IEEE Std 1547, IEEE Std C51.13

Applicable scene

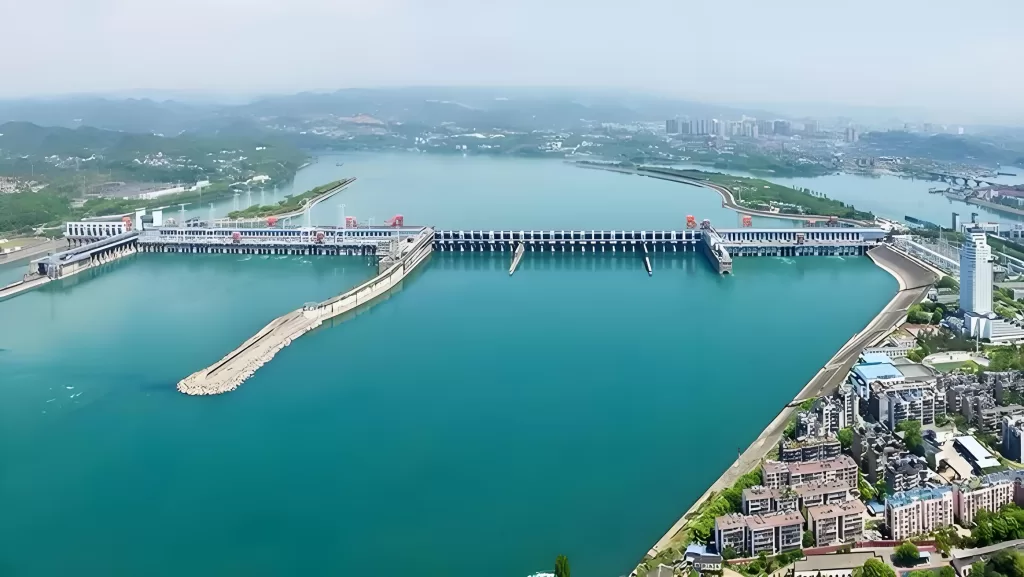

  • Dam-type Hydropower Plant
    Dam-type Hydropower Plant

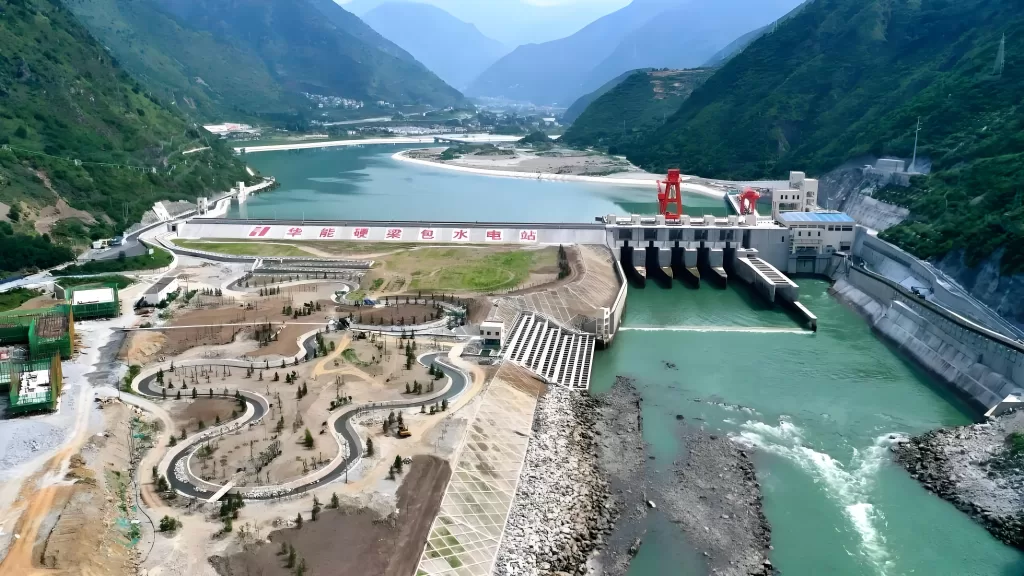

  • Diversion-type Hydropower Plant
    Diversion-type Hydropower Plant

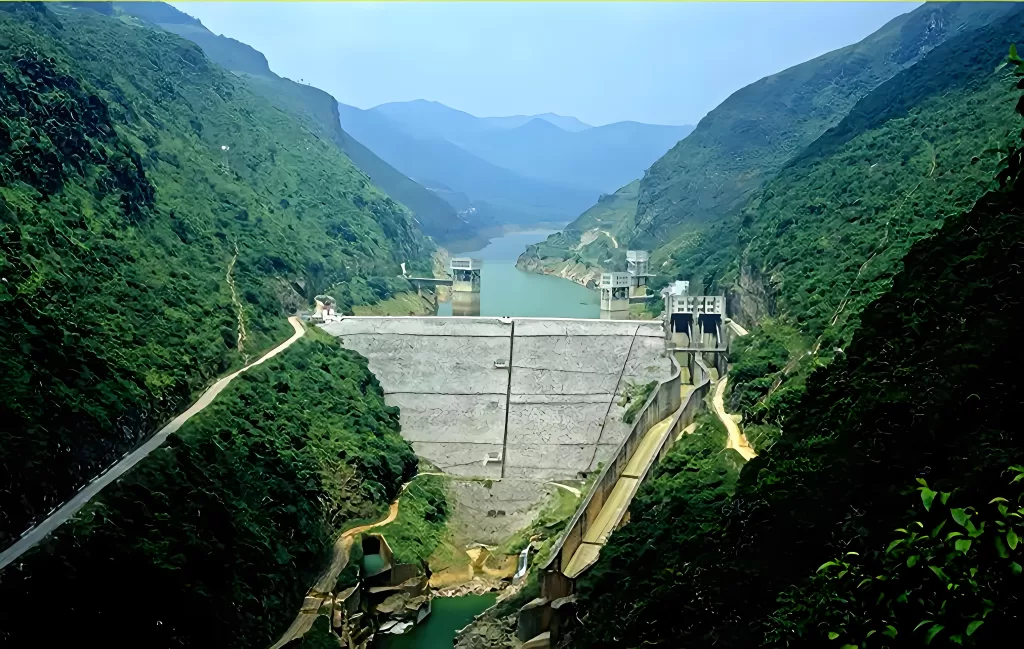

  • Mixed-type Hydropower Plant
    Mixed-type Hydropower Plant

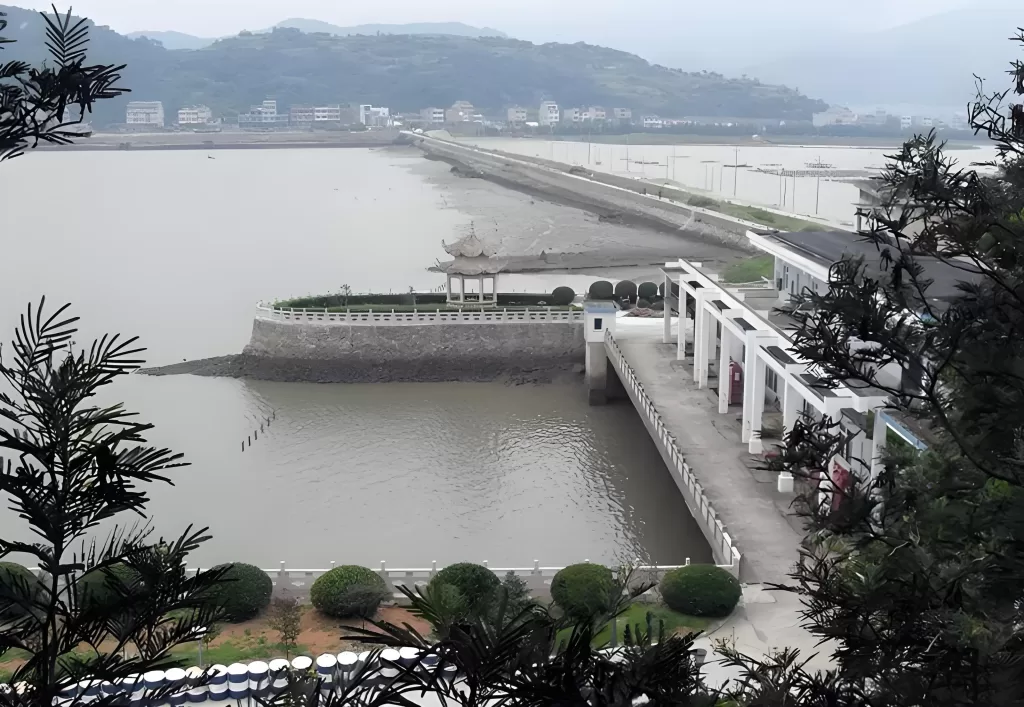

  • Tidal Power Plant
