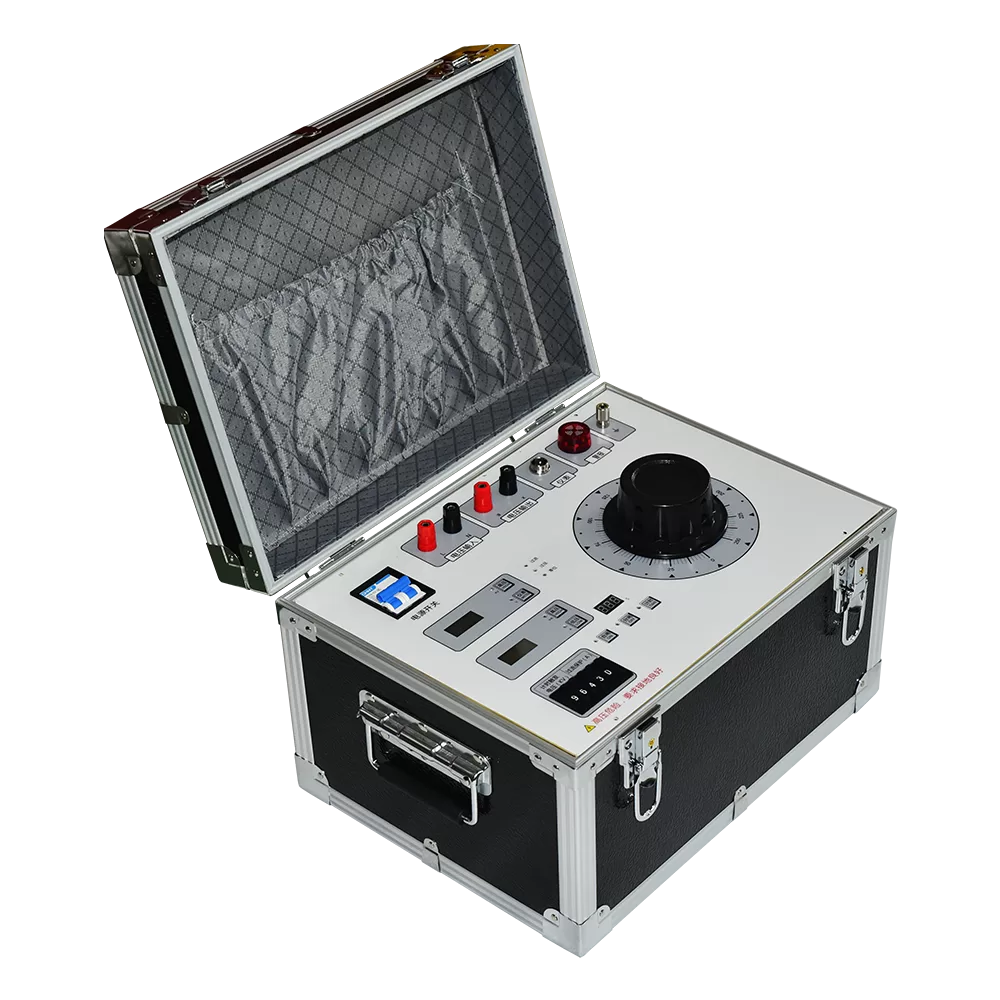

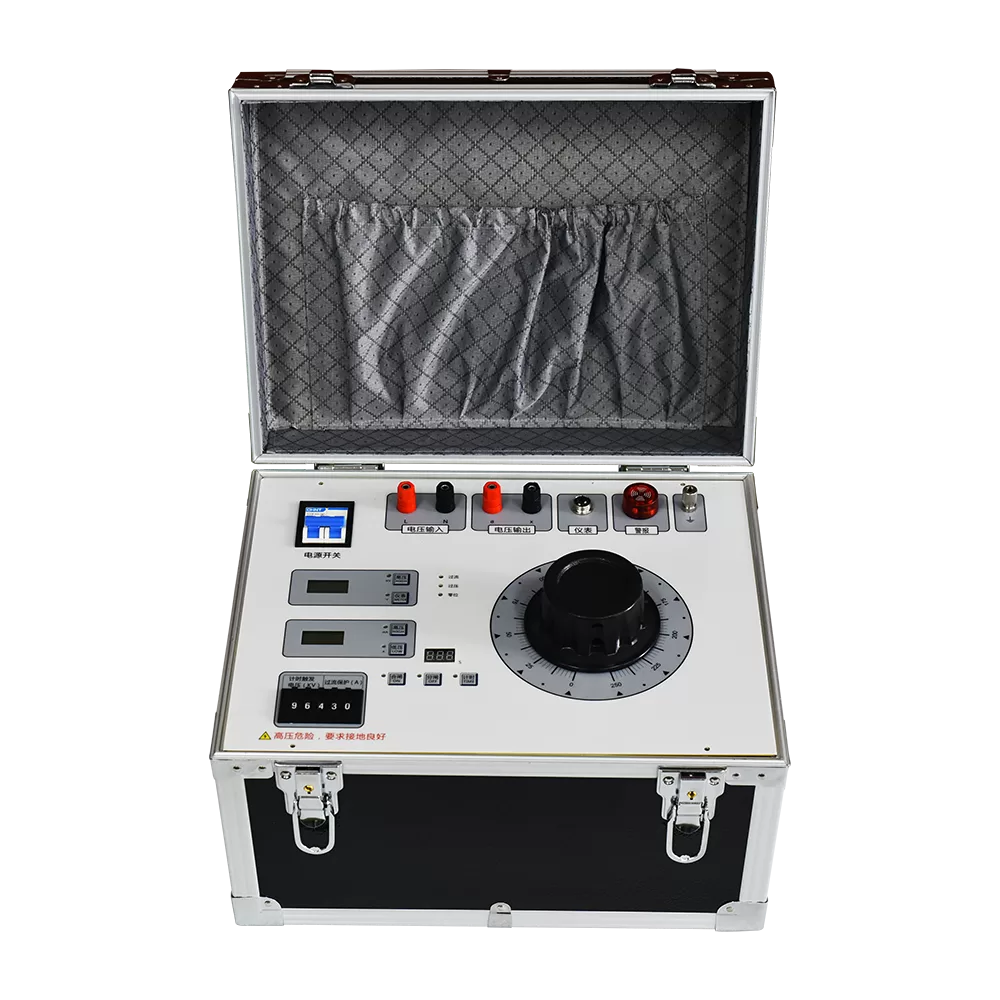

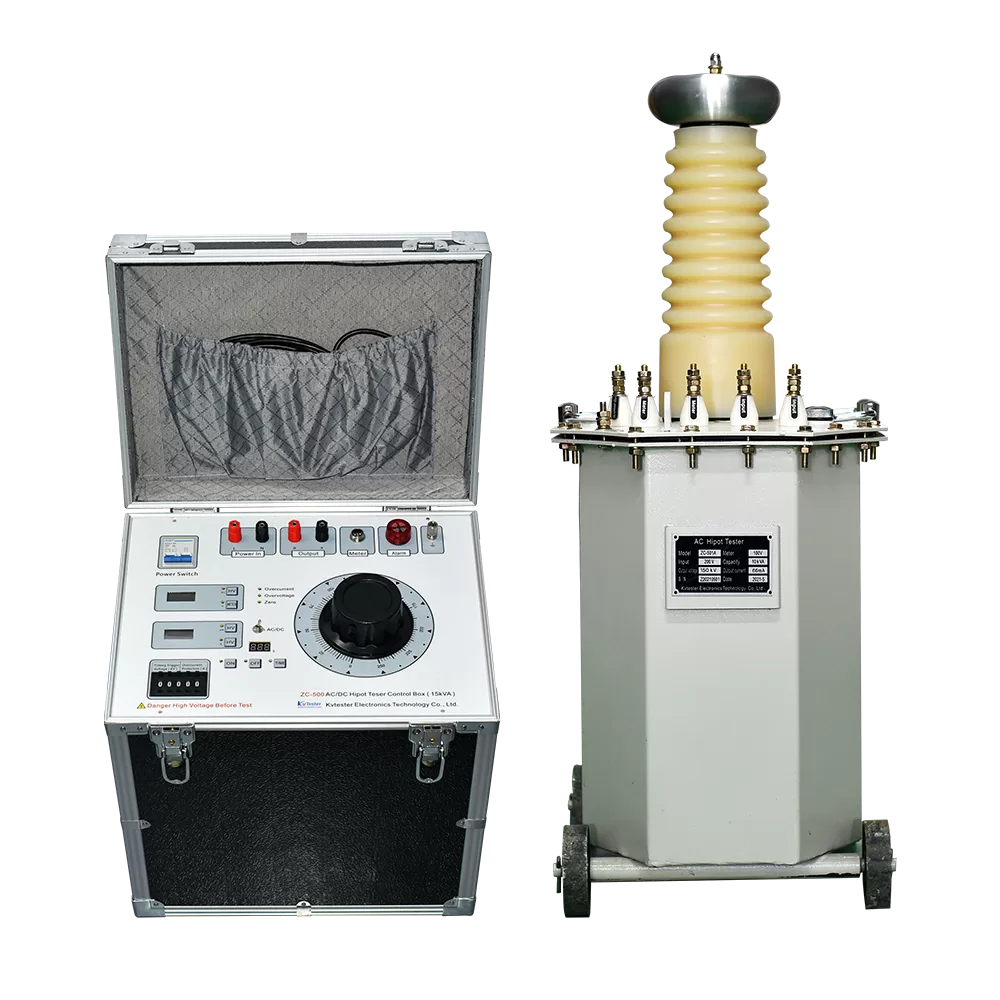

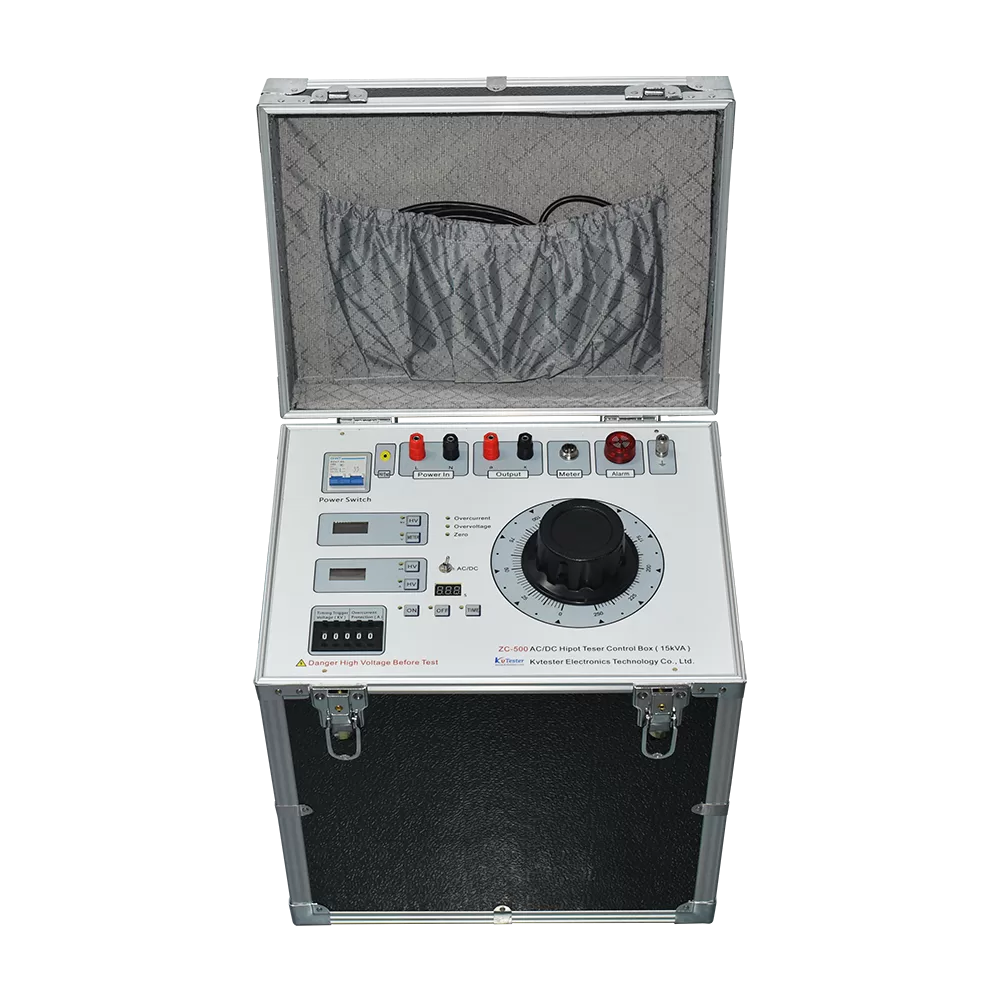

Features and Advantages
1、Intuitive reading: the instrument adopts digital LCD meter to directly display the test values of high voltage, instrument voltage, low voltage current and high voltage current, which is convenient for test observation and recording.
2、Measurement accuracy: full digital processing, built-in precision mathematical model, high measurement accuracy and accurate test value.
3、Accurate protection function: full digital processing, the setting of overcurrent protection value, timing voltage and overvoltage protection value are all realized by digital, making the protection more accurate.
4、Automatic timing: the instrument has the timing trigger function. The equipment automatically timing according to the set voltage value, making the timing more accurate and effective.
5、Safety grounding inspection: the instrument has the safety grounding inspection function. When the instrument is not grounded safely during the test, the closing test is not allowed.
6、Convenient to carry: small size, light weight, only 30%~70% of the volume of similar products, very convenient to carry.
Parameter
| Using the power supply | Voltage | AC220V ± 10% |
| Frequency | 50Hz ± 1Hz | |
| Environmental requirements | Ambient temperature | – 10 ℃~40 ℃ |
| Relative humidity | ≤ 80% | |
| Measurement range | Instrument voltage channel | 0~120V |
| Output current channel | 0～40A | |
| Leakage current channel | 0~500mA | |
| Measurement accuracy | The instrument current measurement accuracy class | ± (2% × Reading+1A) |
| Instrument current protection accuracy class | (5% × Reading+1A) | |
| The instrument voltage measurement accuracy class | ± (2% × Reading+1KV) | |
| The instrument timing trigger accuracy level | ± (5% × Reading+1KV) | |
| Safety performance | Insulation resistance | ＞ 2M Ω |
| Leakage current | ＜ 3.5mA | |
| Dielectric strength | the power cable can withstand 1500V (50Hz effective value) for 1 minute to the enclosure | |
| Test items | Output voltage | AC 0～250V |
| Output current | AC 0~40A | |
| Timing | 15~300s | |
| Structural type and size of main engine | Type | integrated portable |
| Overall dimension | 440mm × 340mm × 280mm | |
| Weight | 25Kg (excluding accessories) |
