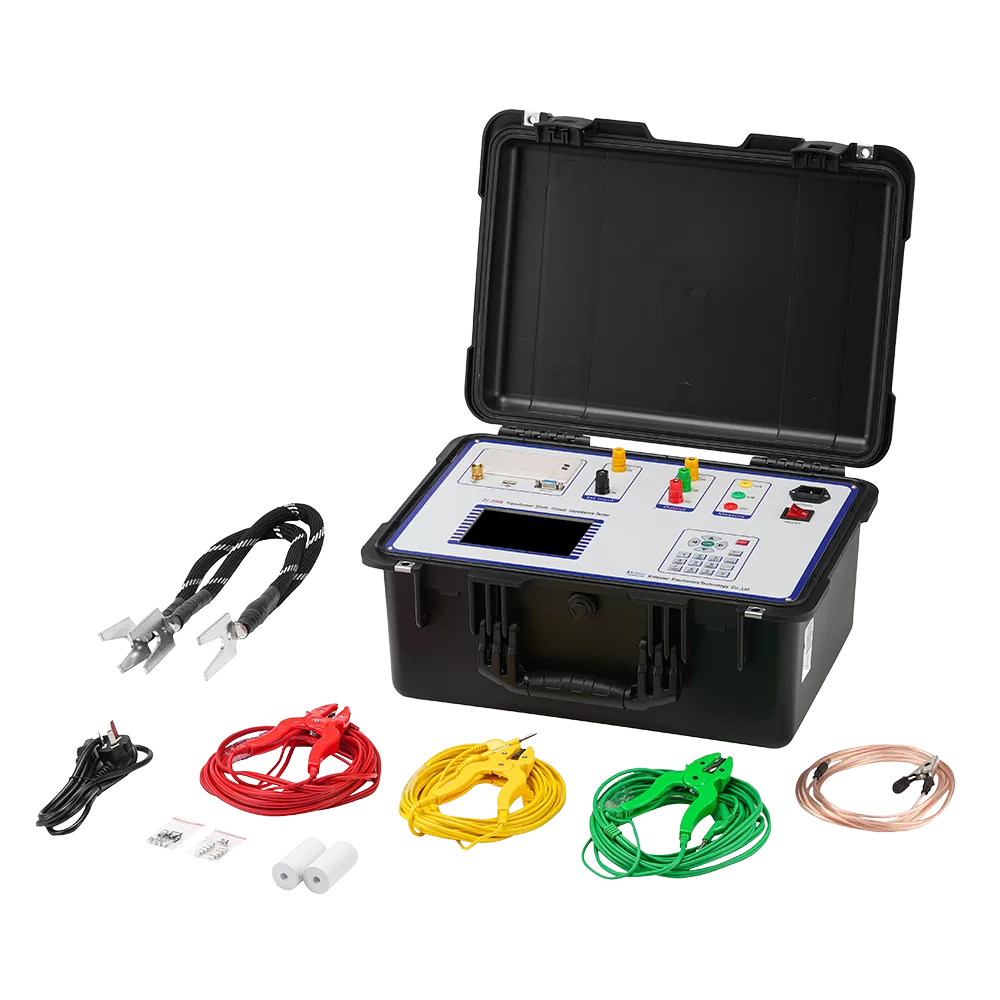

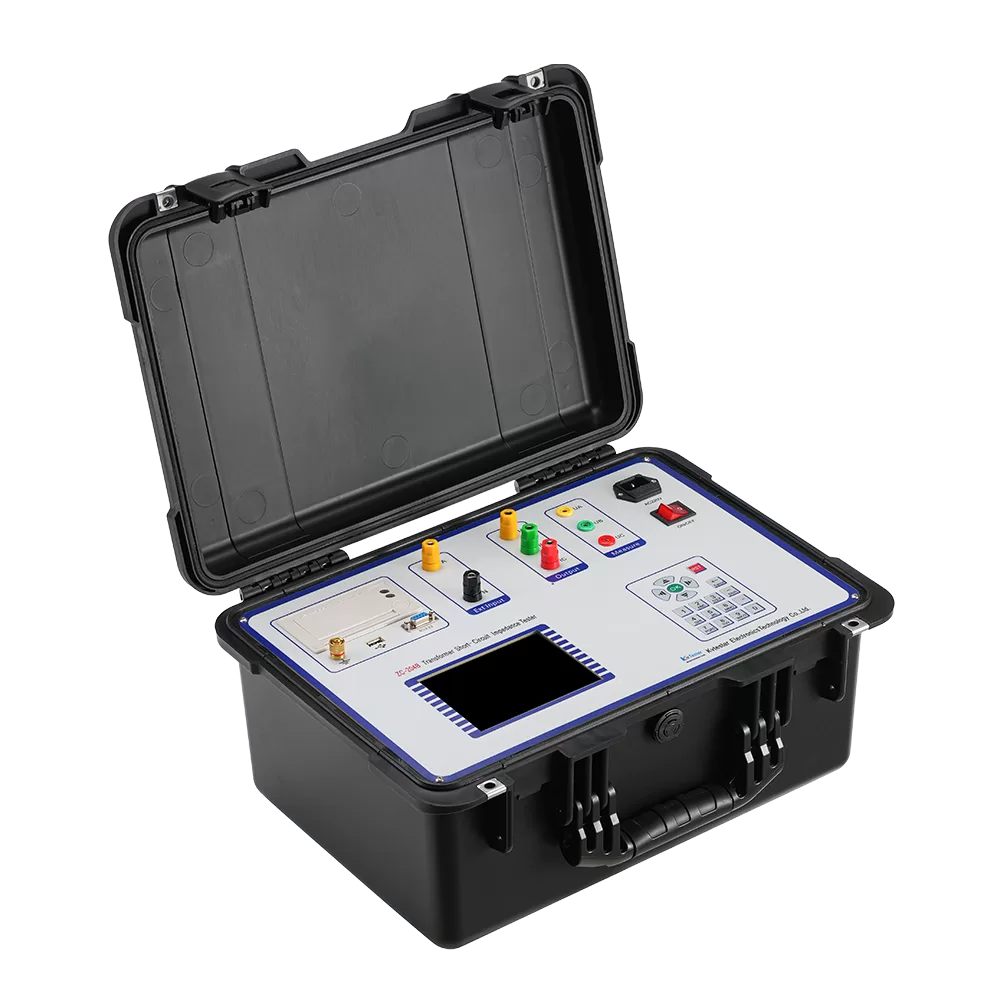

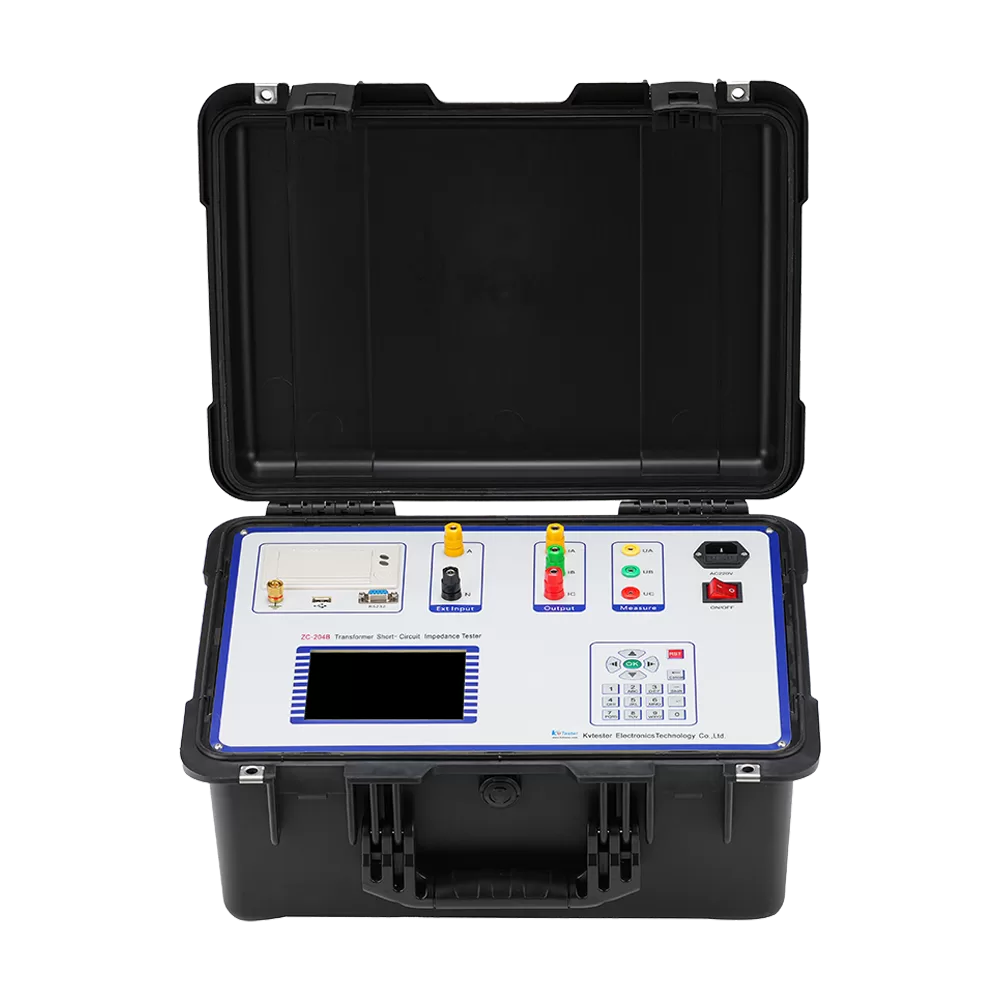

Features and Advantages
1. The tester with adjustable power output, both single-phase and three-phase transformer, can be used to complete all windings of the measurement only need connect the wire once time, testing and wiring simply; inside of the instrument uses a phase-locked loop technology, synchronous sampling AC signal, measurement data is accurate.
2. Test and algorithm is to meet the<< DL/T1093-2008 power transformer winding deformation detection and judgment >>, and automatically calculate the short-circuit impedance, reactance and inductance value of each phase.
3. Test data can be imported into the computer to facilitate further analysis or storage; support external power supply, expand the test power.
4. Through the anti large screen liquid crystal, in the sun can be clearly displayed; all Chinese menu and operation tips, simple and intuitive operation.
Parameter
| Type | ZC-204B | |
| Function | Low voltage short circuit impedance measurement of 35kV and above main transformer | |
| Working power | input voltage | 185Vac～250Vac |
| Allowable input voltage | 85Vac～264Vac | |
| Frequency | 50/60Hz | |
| Allowable frequency | 45Hz～65Hz | |
| Input power | 3000VA | |
| Joint | Standard AC socket 60320 | |
| AC Voltage | Range | 3V～300V |
| Resolving power | 0.001V | |
| Accuracy | 0.2%±0.001V | |
| AC Current | Range | 0.2A～20A |
| Resolving power | 0.001A | |
| Accuracy | 0.2%±0.001A | |
| Internal power | Voltage | 0～250V |
| output | Current | 0～10A |
| Power | Range | 0～6kW |
| Resolving power | 0.001kW | |
| Accuracy | COSφ＞0.1:0.5 level；COSφ≤0.1:1.0level | |
| Impedance | Range | 0～3000Ω |
| Resolving power | 0.001Ω | |
| Accuracy | COSφ＞0.1:0.5 level；COSφ≤0.1:1.0 level | |
| environment condition | Operating temperature | -10℃～+50℃ |
| Storage temperature | -25℃～+70℃ | |
| Humidity | relative humidity：5%～95%，No dew | |
| physical characteristics | Size | 360×220×150mm3 |
| Weight | ≈5kg (Excluding attachments) | |
