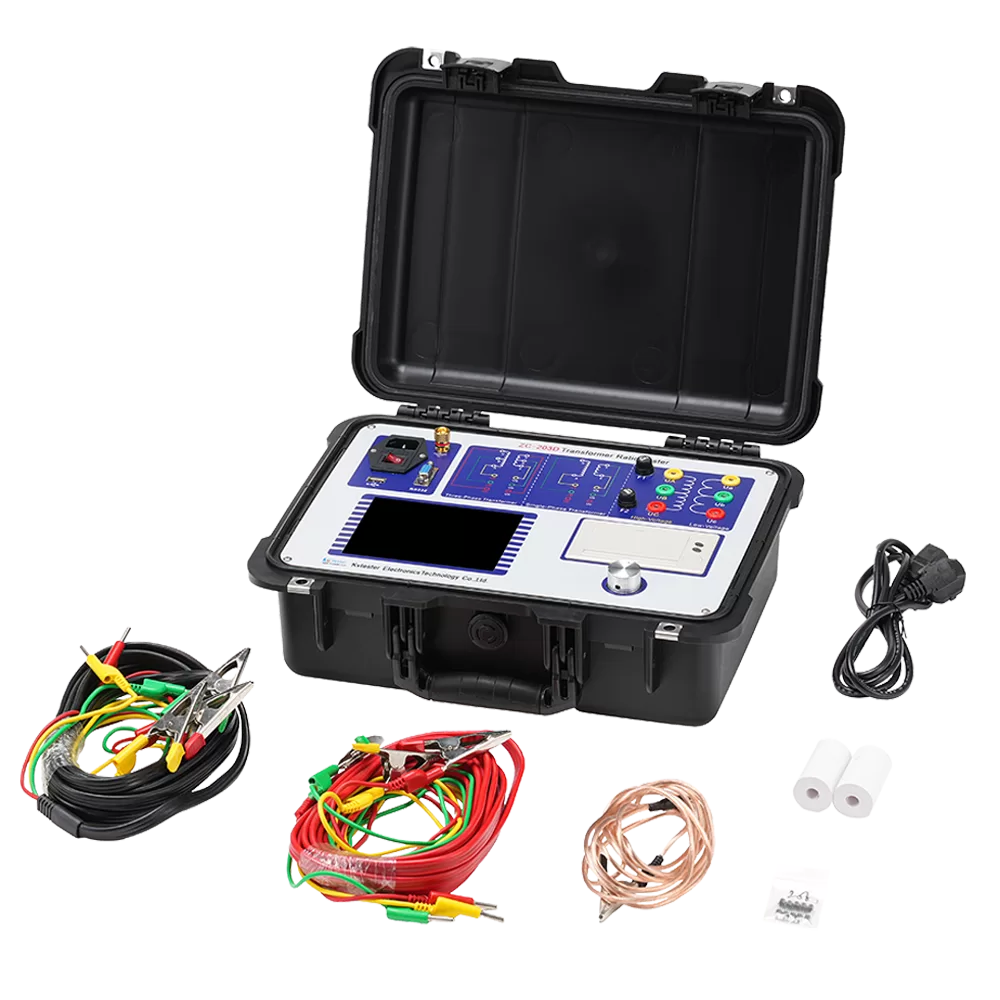

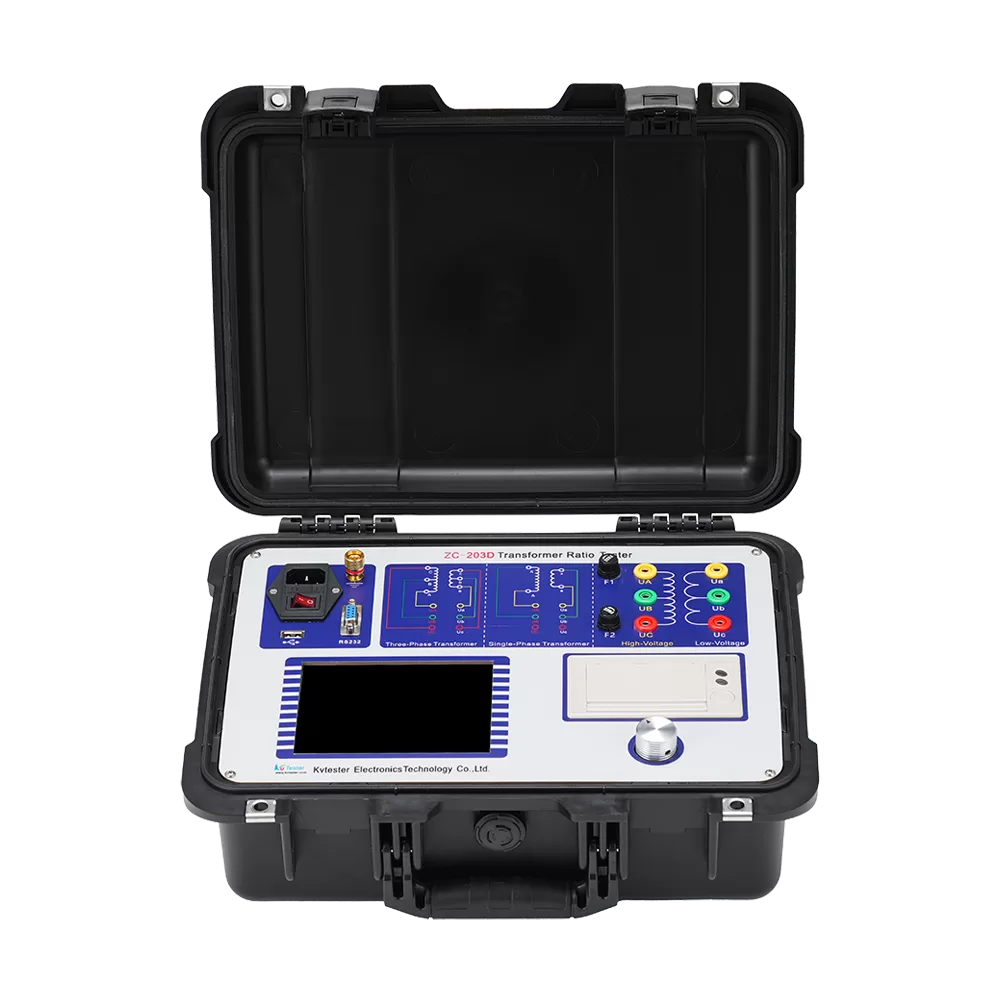

Features and Advantages
1.The instrument is integrated with single-phase and three-phase standard power supply with stable amplitude and constant phase.
2.Internal standard power output power is large, the maximum 5A output, especially suitable for low-voltage transformer test, as well as CT and PT manufacturing process of semi-finished product turns test.
3.Accurately and quickly test the turn ratio, turn ratio error and phase difference of current transformer (CT) and voltage transformer (PT)
4.test single-phase or three-phase transformers, suitable for Z winding transformers, rectifier transformers and railway electrical system Scott, reverse Scott, balance transformer test.
5.High test precision, the instrument adopts 16-bit high-precision AD, and high-speed DSP processor, effectively ensure the measurement accuracy and anti-interference ability.
6.The instrument adopts no local discharge voltage regulating output, voltage regulating, measuring speed is fast, only 5 seconds to complete the boost and test;
7.The instrument automatically judges the rated ratio of the current tap: when testing the multi-tap transformer, it only needs to input the voltage adjustment ratio of the tap switch once to carry out the test without entering the current tap number, which greatly improves the working efficiency.
8.Internal with overcurrent protection, check wiring function.
9.320×240 large screen, high brightness LCD display, full Chinese menu and operation prompts to achieve friendly man-machine dialogue, rotate the mouse to make the operation more convenient.
10.with real-time electronic clock, automatic recording of the test date and time is conducive to the preservation and management of experimental results.
11.panel type thermal printer, can quickly print test results on the spot.
12.data with power down storage and browsing function, can store 1000 groups of experimental results, can be transmitted with the computer online data.
13.Support WIFI function, no need to connect the data line can realize each test data real-time synchronization to the server, with the upper computer software can realize data analysis and management.
Parameter
| Power supply | 160VAC~280VAC，45Hz~55Hz | |
| Temprature | －5℃～40℃ | |
| Relative humidity | <95%（25℃） | |
| Outside interference | No extra strong vibration, no extra strong electromagnetic field | |
| The altitude | <2500m | |
| Measuring range | Ratio tester | 0.5~10000 |
| group | 1~12 | |
| Angle difference | 0~360℃ | |
| Accuracy of the test | ratio measurement accuracy | +0.2%(0.5~2000) +0.5%(2001~4000) +1%(4001~10000) |
| Angle difference measurement accuracy | 30 | |
| Group | 1～12 | |
| Dielectric strength | The insulation resistance of the voltage and current input terminal to the casing is ≥100MΩ.The working power input terminal withstands the power frequency of 2KV (effective value) between the housing, and the experiment lasts for 1 minute. | |
| dimensions | 400×290×170mm3 | |
| weight | 8kg | |
| WIFI parameters | Frequency range | 2400~2483.5MHz |
| The antenna pattern | Onboard PCB antenna | |
| output power | 13~18dBm | |
| security | WEP/WPA-PSK/WPA2-PSK | |
| Receiving sensitivity | <=-70dBm | |
| certification | RoHS | |
