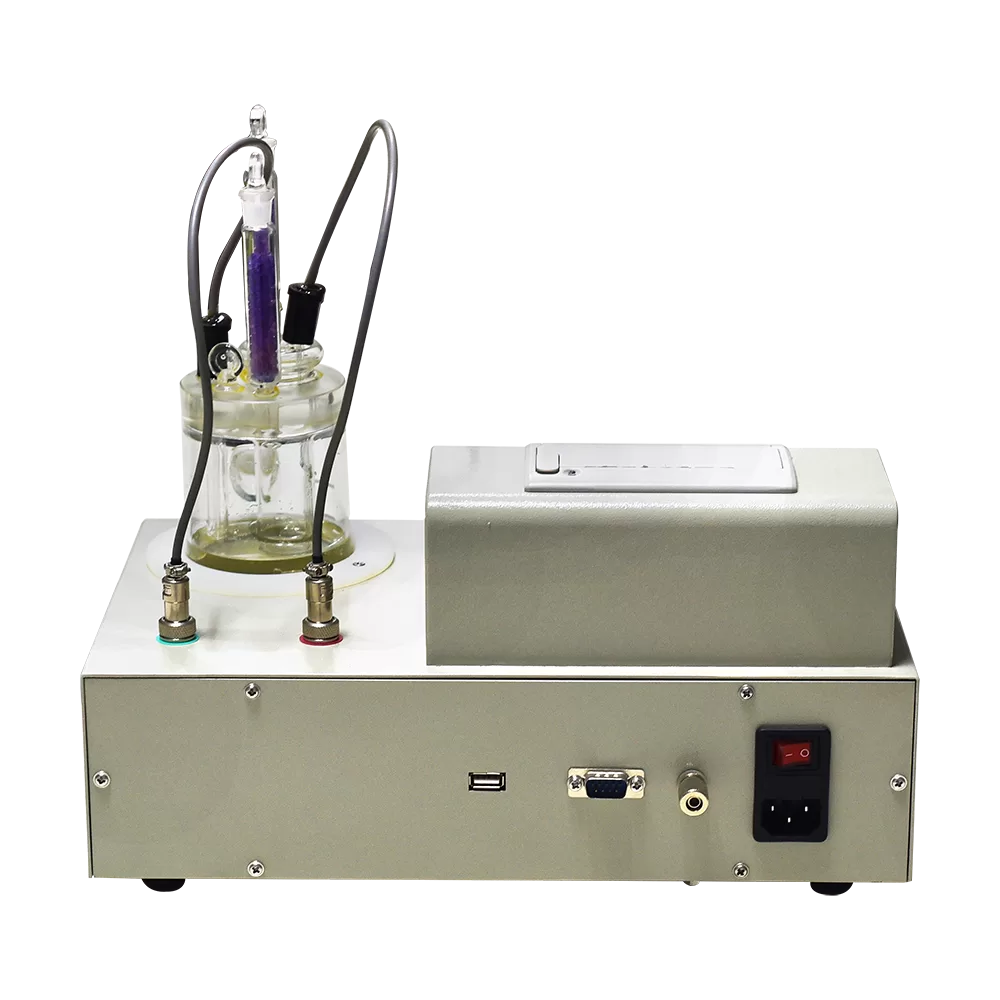

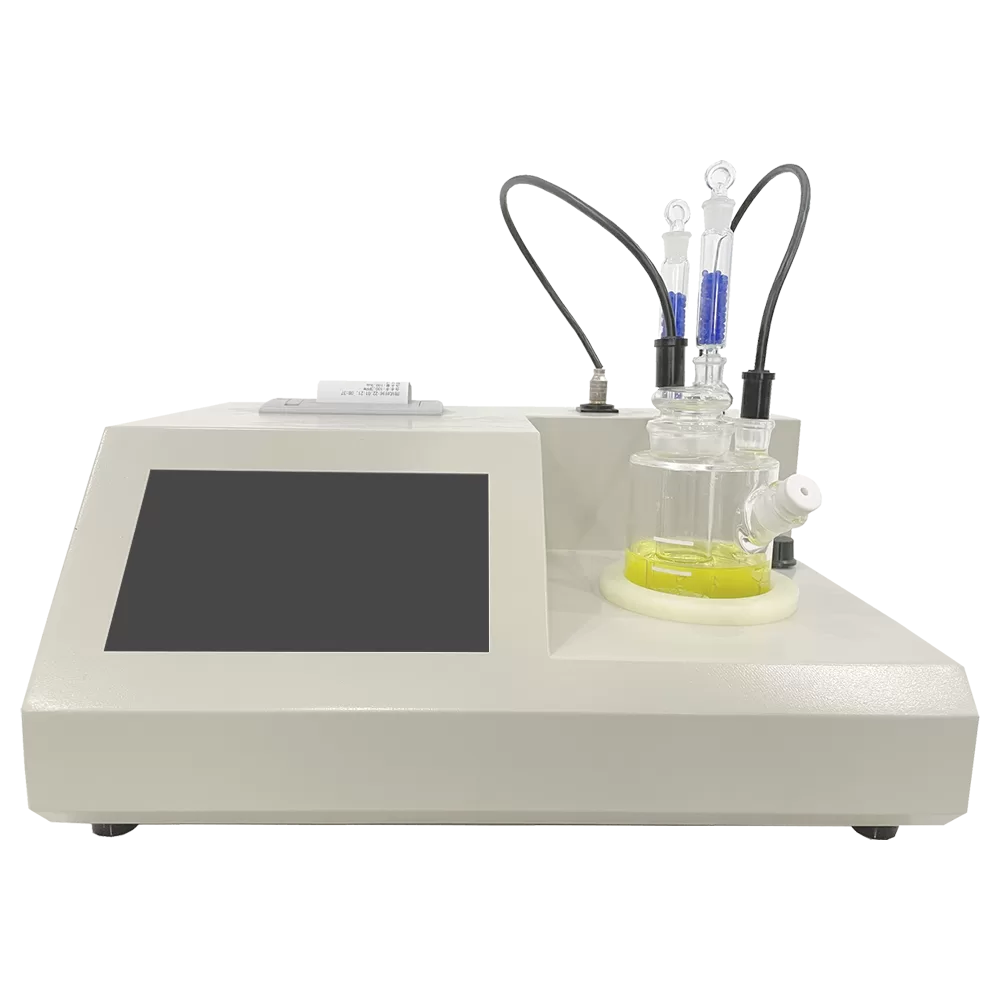

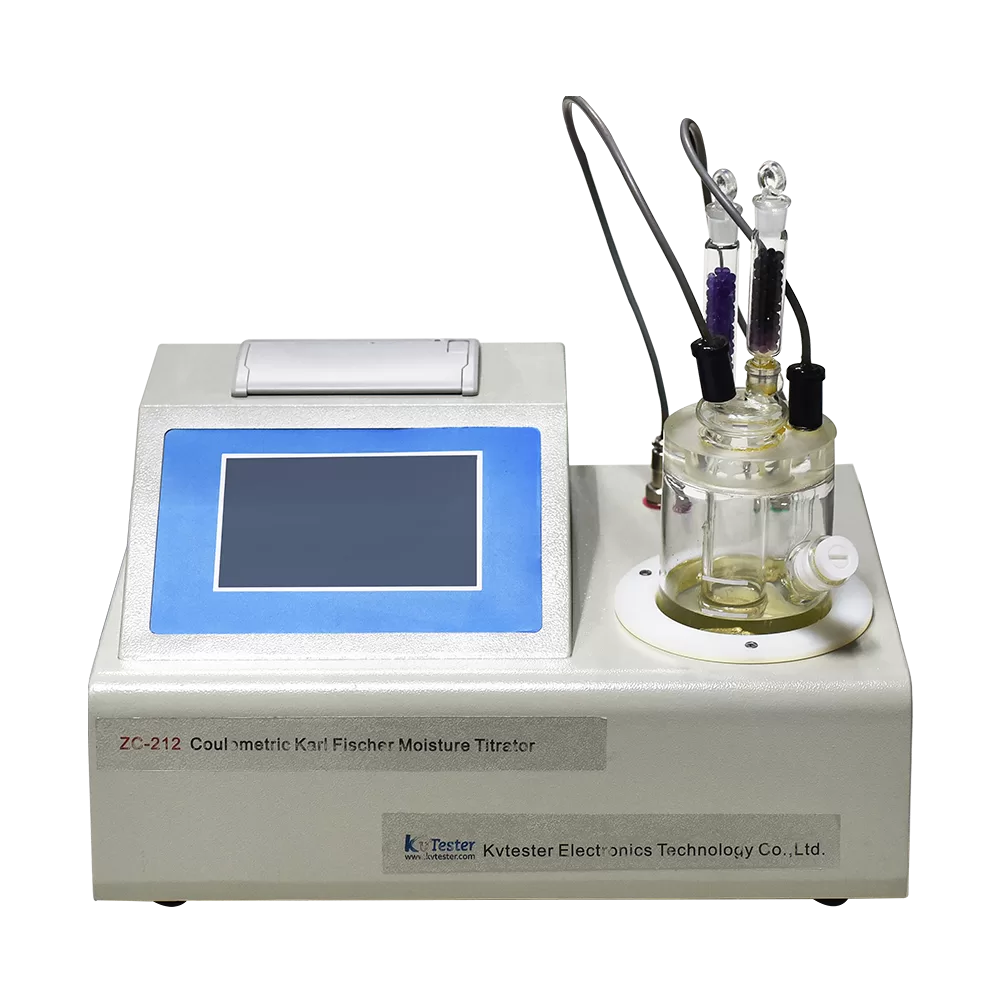

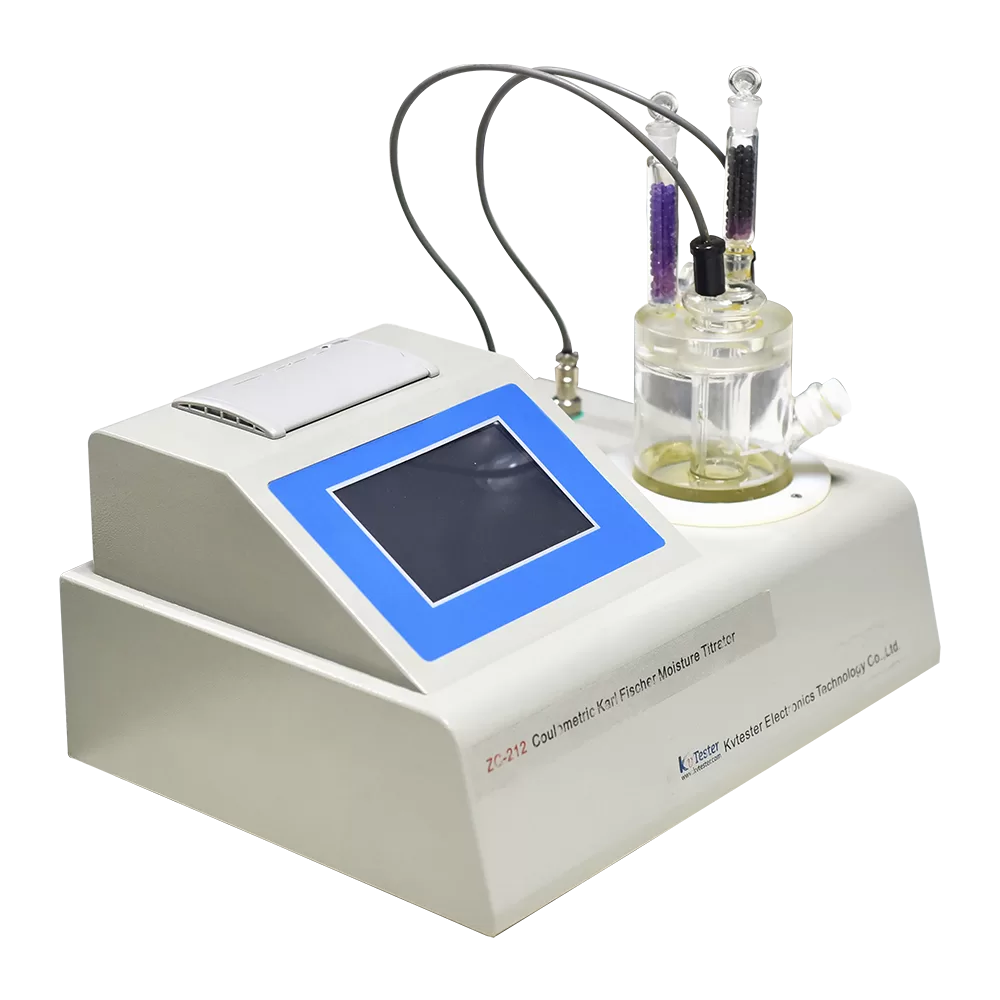

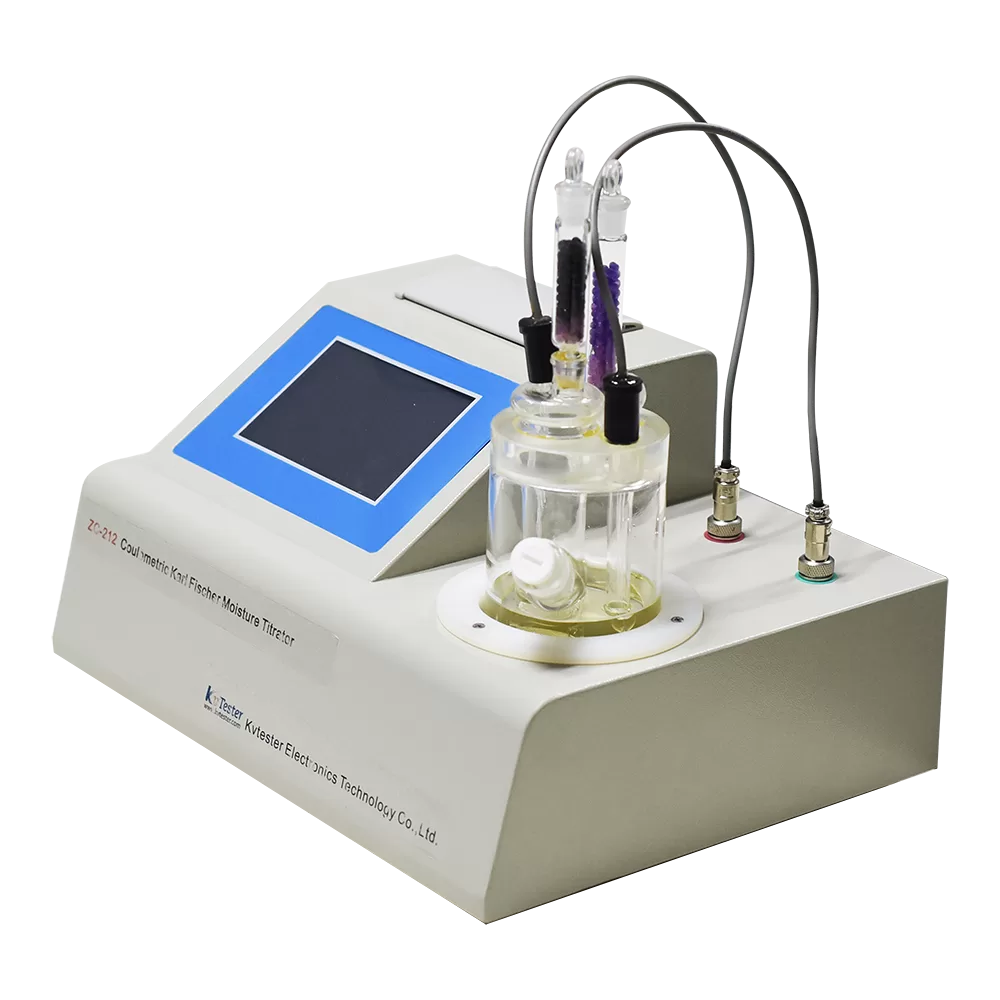

Features and Advantages
1.The modified transformer oil tester has a large-screen liquid crystal display, an interactive interface, and various parameters with menu prompts;
2.The modified transformer oil tester test date with various parameters, clock and other tips;
3.Differential detection, the system automatically corrects the deviation;
4.Mixing, testing, computer automatically print data;
5.Micrograms of water and ppm units, automatically converted;
6.The introduction of imported XECOM US data processing chip, fast and accurate data processing;
7.Instrument has potential is measured dynamic curve indicating function, makes the test more intuitive;
8.Instruments and data storage capacity up to store 500 data records;
9.Instrument has delay measuring function, is very effective in the testing of lower moisture content of specimen;
10.Instrument adopts the sliding touch control the stirring speed control; water content calculation formula contains calculated according to the volume and weight of the key parameters of various algorithms; testing process, such as the need to modify the formula for calculating the related parameters, can be modified in a timely manner and does not affect the measurement of moisture content, moisture content is in accordance with the revised parameters calculated to facilitate the users.
Parameter
| Titration method | coulometric titration (coulometric analysis) |
| Display | color LCD touch screen |
| Electrolytic current control | 0~400mA automatic control |
| Measurement range | 3ug~100mg |
| Resolution | 0.1 µ g |
| Accuracy | (10 µ g to 1000 µ g) ± 3 µ g; Not more than 0.3% above 1000 µ g |
| Printer | micro thermal printer |
| Power supply voltage | 220 ×（1±10%）V |
| Power frequency | 50 ×（1±5%）Hz |
| Power | ＜ 40W |
| Operating ambient temperature | 5~40 ℃ |
| Operating ambient humidity | ≤ 85% |
| Overall dimension | 320 ×235 × 150（mm） |
| Weight | 4.5kg |
