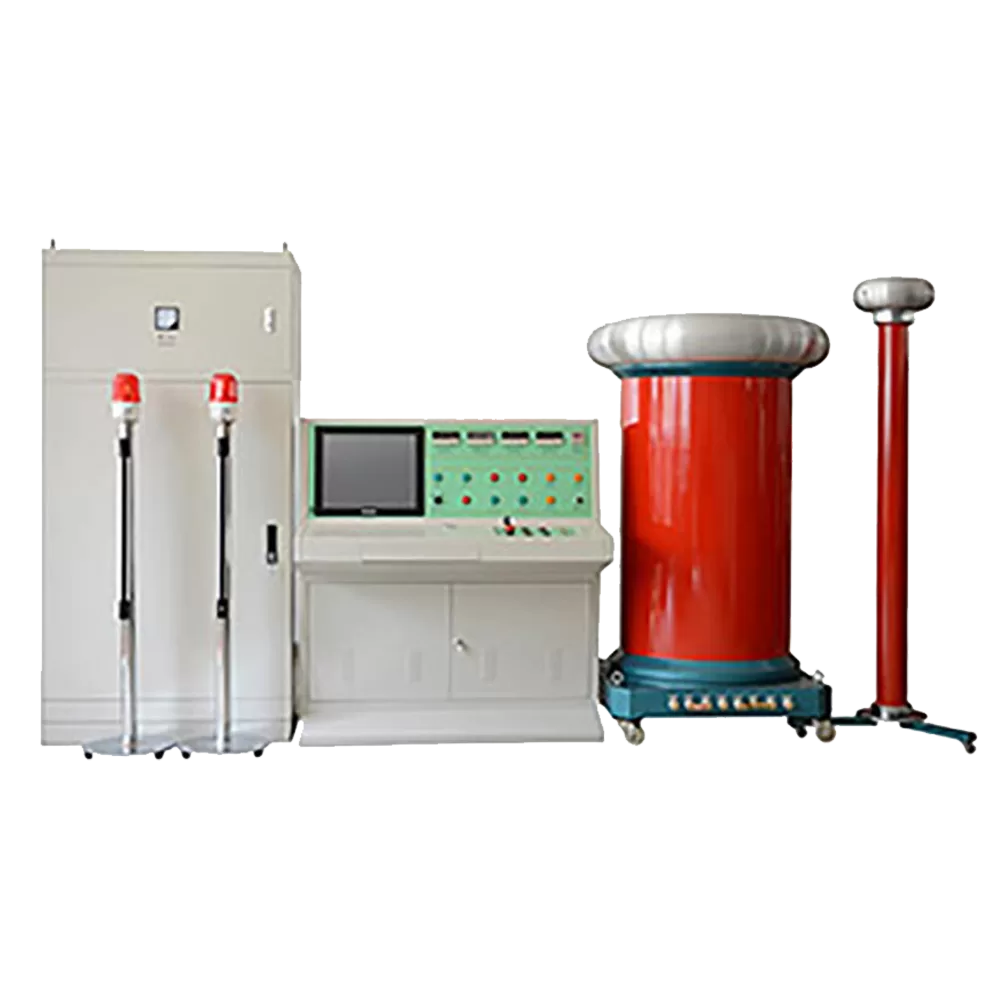

  • Power frequency aging test set detail 2

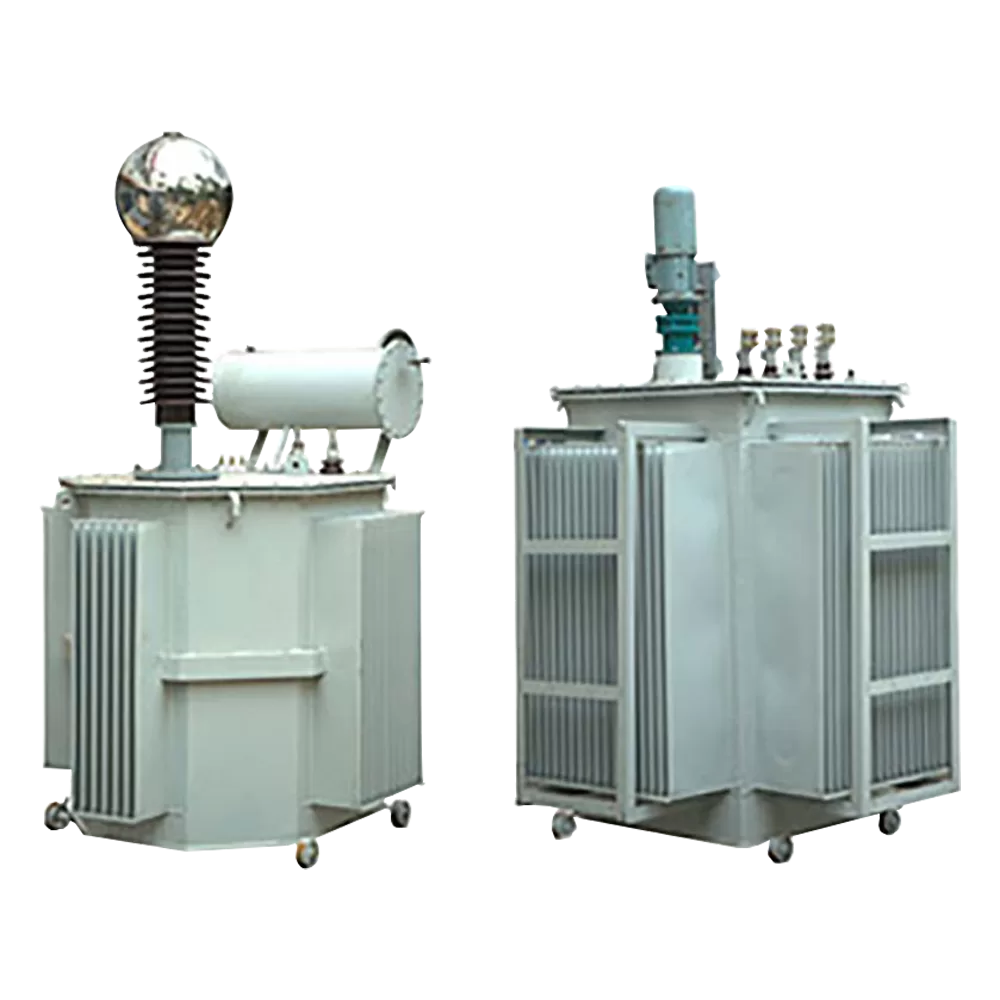

  • Power frequency aging test set detail 1

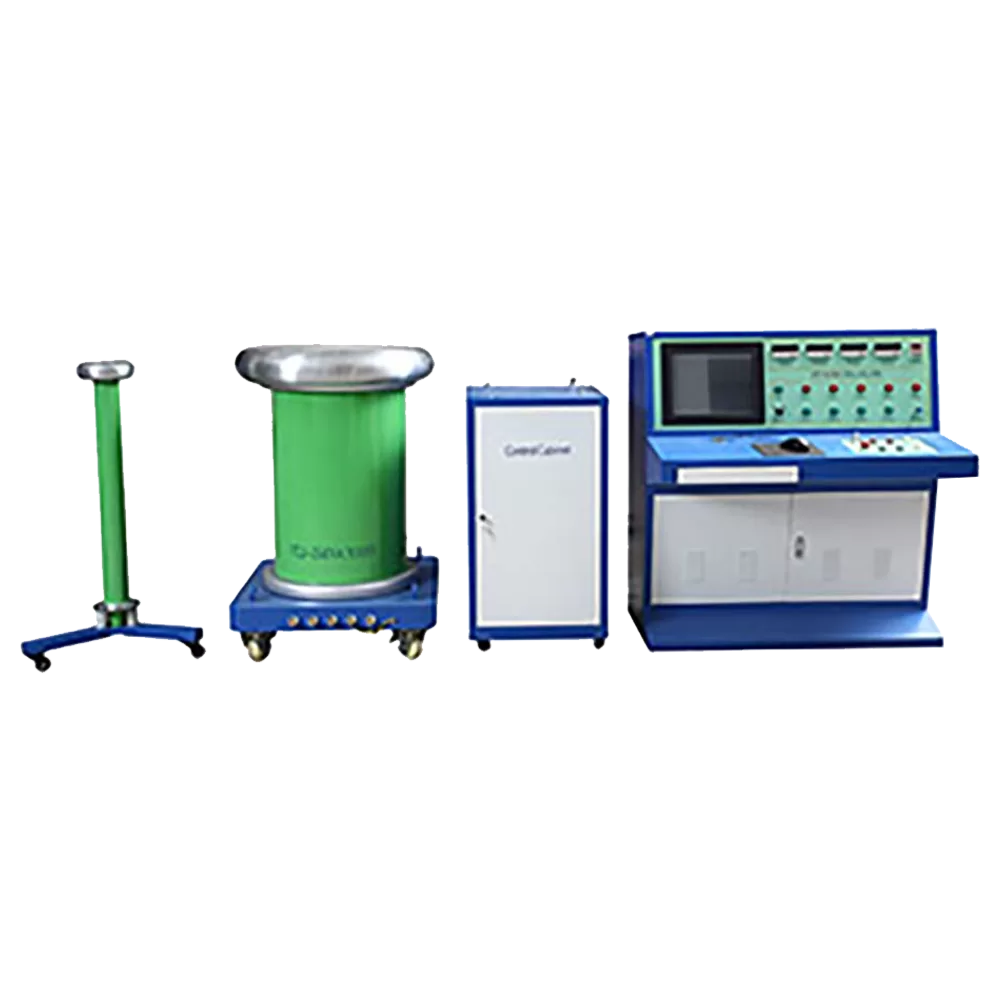

  • Power frequency aging test set detail 3

Power frequency aging test set ZC-525

The ZC-525 Power Frequency Aging Test Set is a high-performance testing system designed to evaluate the insulation strength and long-term dielectric performance of electrical equipment, electrical components, and insulating materials under specified power-frequency voltages.By applying controlled AC voltage over extended periods, the system enables comprehensive assessment of insulation reliability, identification of potential insulation defects, and evaluation of overvoltage withstand capability. It provides an efficient and reliable solution for insulation aging tests, product quality control, and electrical performance evaluation.
Equipped with a PLC-based control system and an industrial computer, the ZC-525 offers automated test operation, precise voltage regulation, real-time monitoring, and comprehensive data recording. Its advanced safety protection features and stable output performance ensure reliable operation during long-duration testing.The system is widely used by electrical equipment manufacturers, power utilities, research institutes, and universities. It has also been adopted for testing applications at facilities such as Shanghai Electric Machinery Factory and Oriental Electric Machinery Factory.

Features and Advantages

1.Intelligent PLC Control: Integrates a PLC and industrial computer with a user-friendly human-machine interface (HMI), providing intuitive operation, convenient parameter configuration, and efficient test management.

2.Long-Duration Aging Testing: Supports aging test durations of up to 3,000 hours, with automatic tracking of cumulative operating time and individual test duration.

3.Fully Automated Testing: Enables automatic control throughout the testing process, with real-time voltage and current monitoring, data acquisition, and storage.

4.High Voltage Stability: Features automatic voltage tracking and regulation to compensate for power supply fluctuations, ensuring stable and consistent output voltage during testing.

5.Flexible Operation and Multiple Protections: Supports both automatic and fully manual operation modes, with multiple hardware protection mechanisms for enhanced operational safety and reliability.

6.Optoelectronic Signal Isolation: Utilizes optoelectronic isolation technology to minimize electrical interference, improve signal reliability, and enhance system safety.

7.Comprehensive Test Data Recording: Automatically records test parameters and operating conditions throughout the entire testing process, facilitating data analysis, test evaluation, and traceability.

8.Infrared Safety Protection: Equipped with an infrared safety barrier system to enhance personnel protection and prevent accidental access to hazardous testing areas.

Parameter

Input voltageAC 220/380V 50HZ
Rated capacity50KVA-1000KVA
Output VoltageOutput Voltage
Measurement error< 0.5%
