Features and Advantages

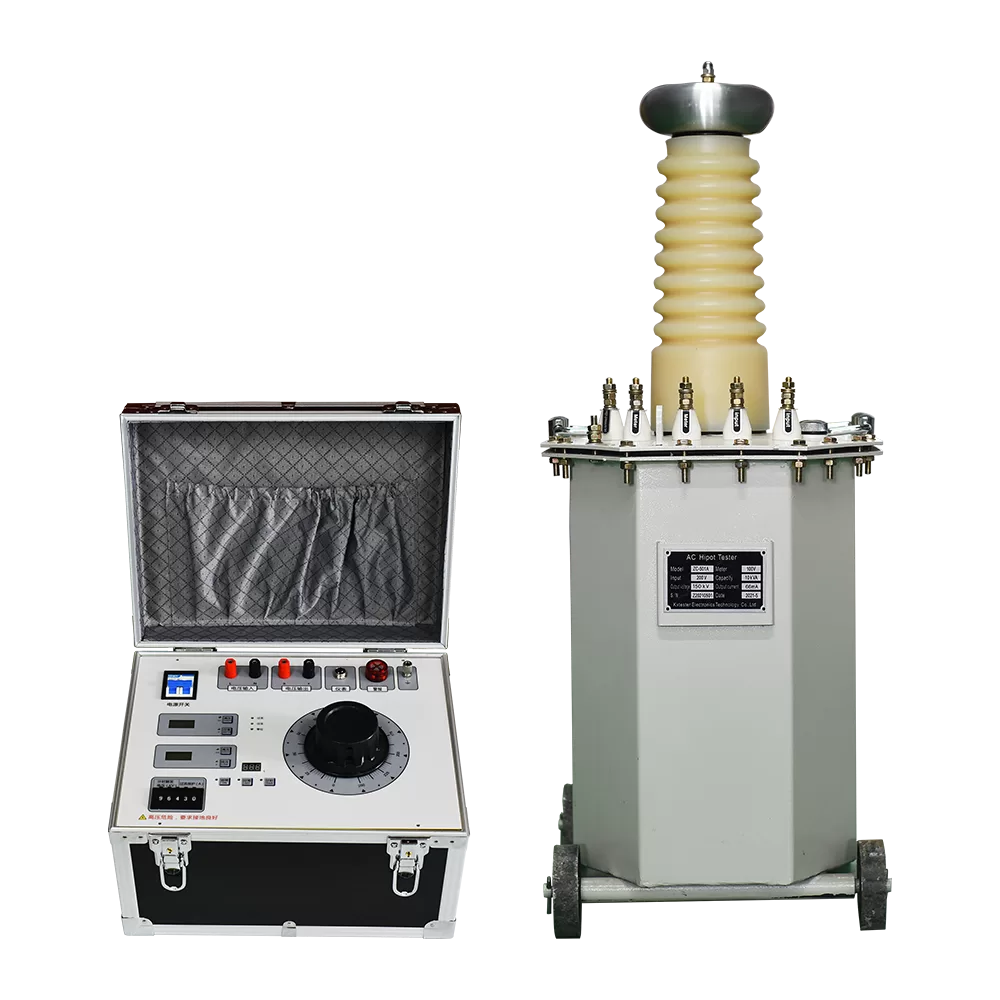

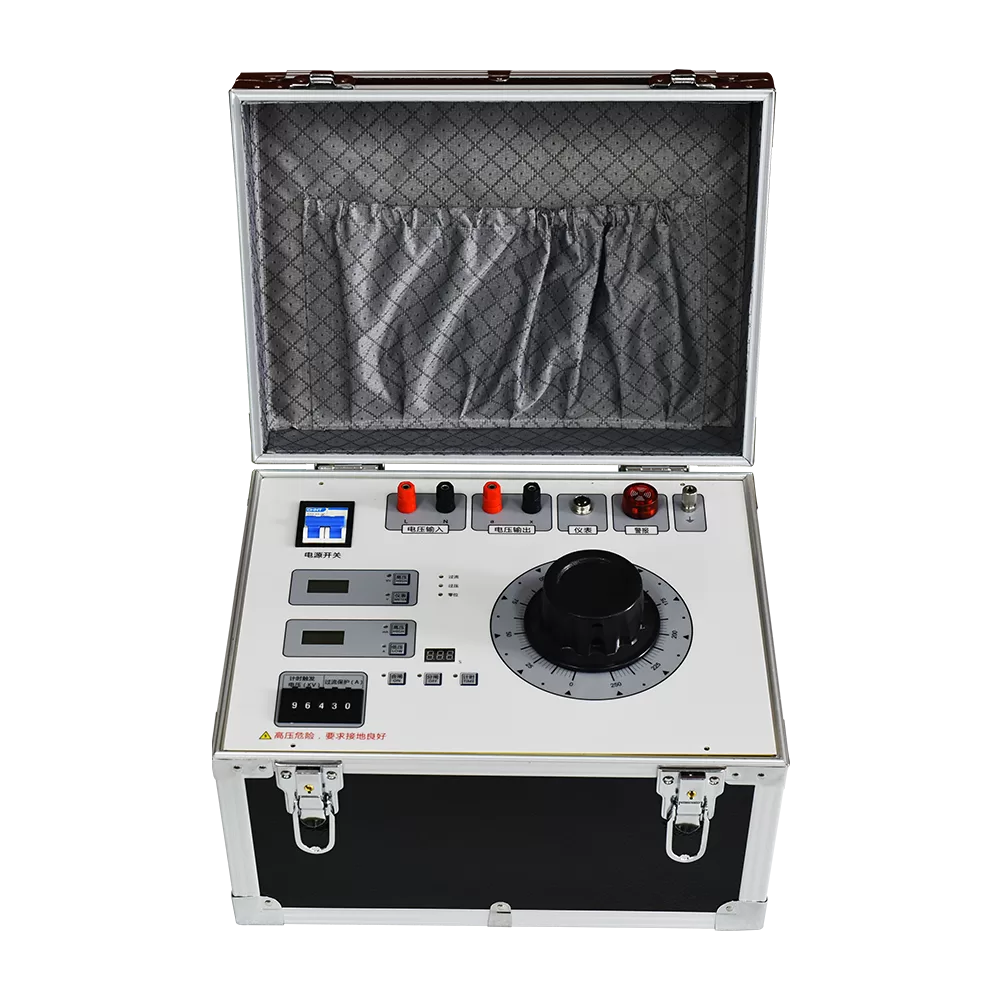

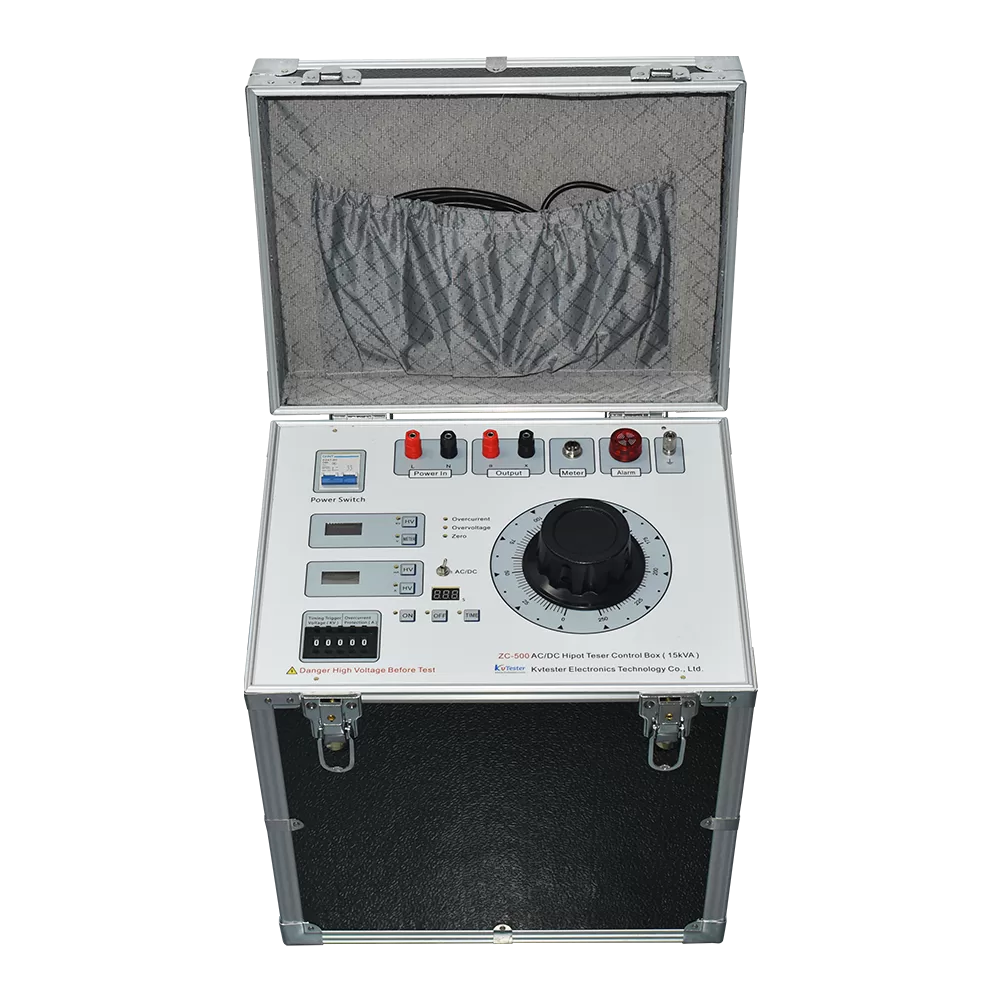

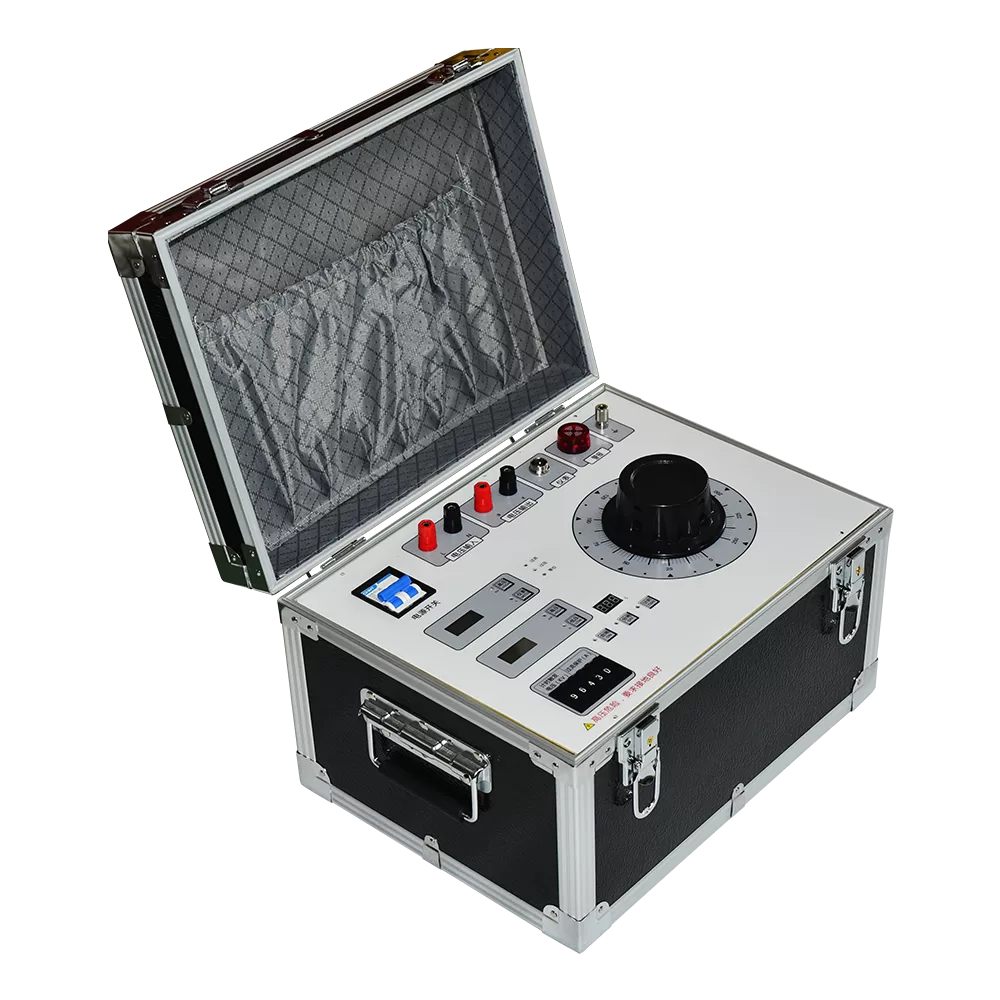

1. ZC-501A series oil immersed transformer AC test using single frame core type iron core structure.
2. The primary winding is wound on the iron core, and the high voltage winding is outside, and the coaxial arrangement reduces the leakage flux and increases the coupling between the windings.

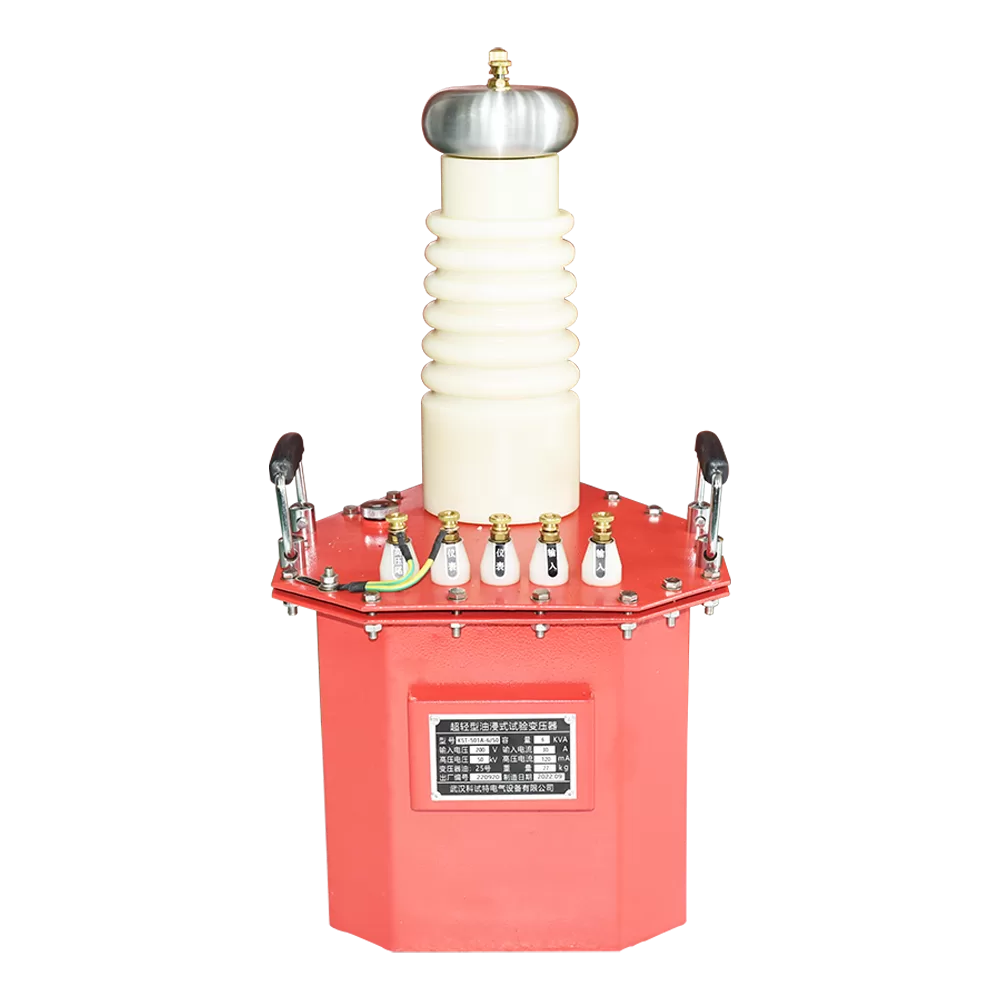

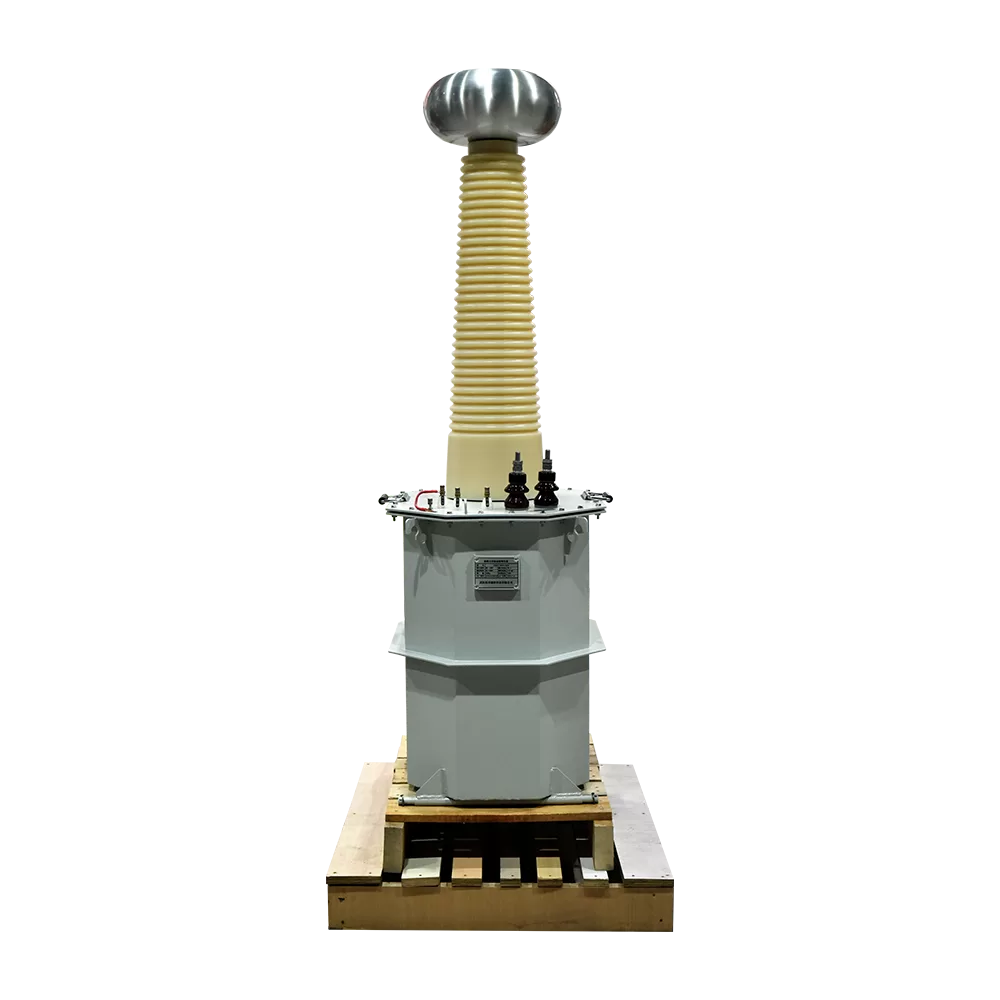

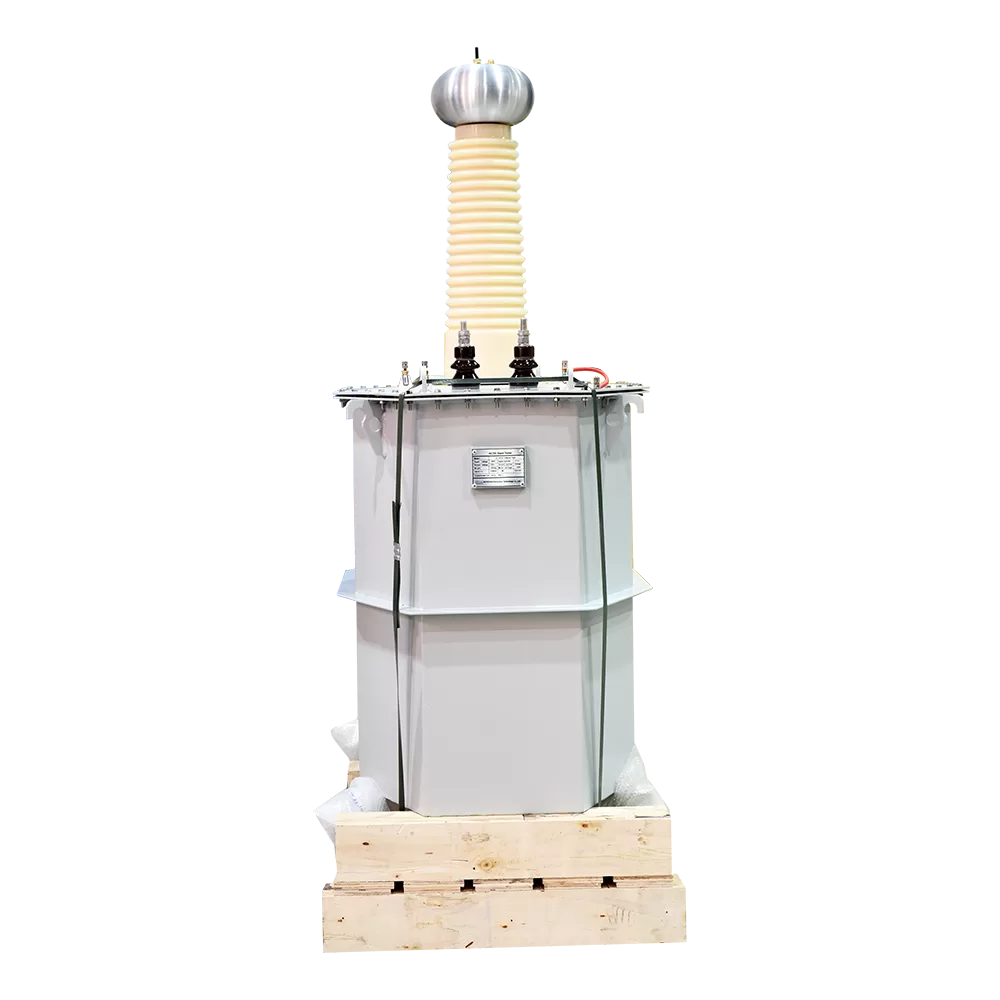

3. The outer shell of the product is made of the best shape of the octagonal structure with the core; the overall appearance is beautiful and generous.
4. Voltage level：10kV~200kV.
5. Capacity range：3kVA~100kVA.
Parameter
- Parameter
- Main product specifications
| The rated voltage | AC 50～300kV、DC 70～210kV | |
| Rated capacitance | 1～400kVA | |
| Product Category | AC, AC, AC, AC, AC and DC | |
| Specification model | capacity (kVA) | High voltage (kV) | High voltage current (mA) | Low voltage input | Ratio (high / instrument) | Temperature rise ℃ (30 minutes) | |
| Voltage(V) | Current(A) | ||||||
| ZC-501A-1.5/50 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
| ZC-501A-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
| ZC-501A-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
| ZC-501A-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
| ZC-501A-20/50 | 20 | 50 | 400 | 380 | 52.6 | 500 | 10 |
| ZC-501A-30/50 | 30 | 50 | 600 | 380 | 79 | 500 | 10 |
| ZC-501A-50/50 | 50 | 50 | 1000 | 380 | 132 | 500 | 10 |
| ZC-501A-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
| ZC-501A-10/100 | 10 | 100 | 100 | 200 | 50 | 1000 | 10 |
| ZC-501A-20/100 | 20 | 100 | 200 | 380 | 52.6 | 1000 | 10 |
| ZC-501A-30/100 | 30 | 100 | 300 | 380 | 79 | 1000 | 10 |
| ZC-501A-50/100 | 50 | 100 | 500 | 380 | 132 | 1000 | 10 |
| ZC-501A-15/150 | 15 | 150 | 100 | 380 | 39.5 | 1500 | 10 |
