Features and Advantages
The device’s core advantages:
SF6 gas has extremely high insulation strength in a uniform electric field, and the design of the internal components eliminates the effects of external connections and stray capacitance, resulting in extremely low background partial discharge (<1 pC), which ensures high-precision measurements.
Parameter

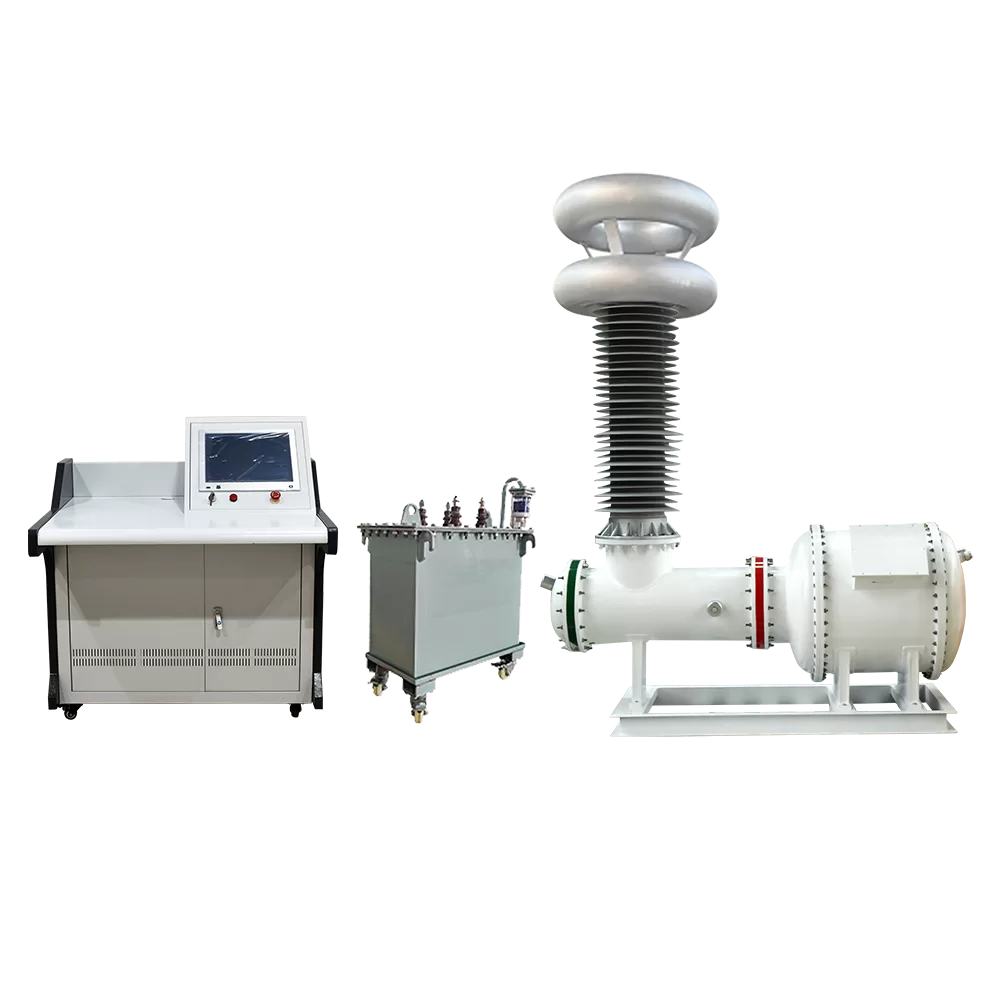

- Equipment Components
- Operating Environment
- 50kVA/250kV/400V Gas-insulated partial discharge-free test transformer
- Partial Discharge-Free Voltage Regulator Control Panel
- Isolation Filtering Transformer
- Coupling Capacitor
| Equipment Components | 50kVA/250kV Gas-Insulated Partial Discharge Test Transformer |
| 50kVA/0.38kV Partial Discharge-Free Voltage Regulator Control Console | |
| 50kVA/400V Isolation and Filtering Transformer | |
| Built-in 250kV Coupling Capacitor | |
| Built-in 250kV/2A Partial Discharge-Free Protective Resistor |
| Operating Environment | Ambient temperature: -10℃ to +50℃ |
| Relative humidity: ≤90%RH | |
| Altitude: ≤1500 meters |

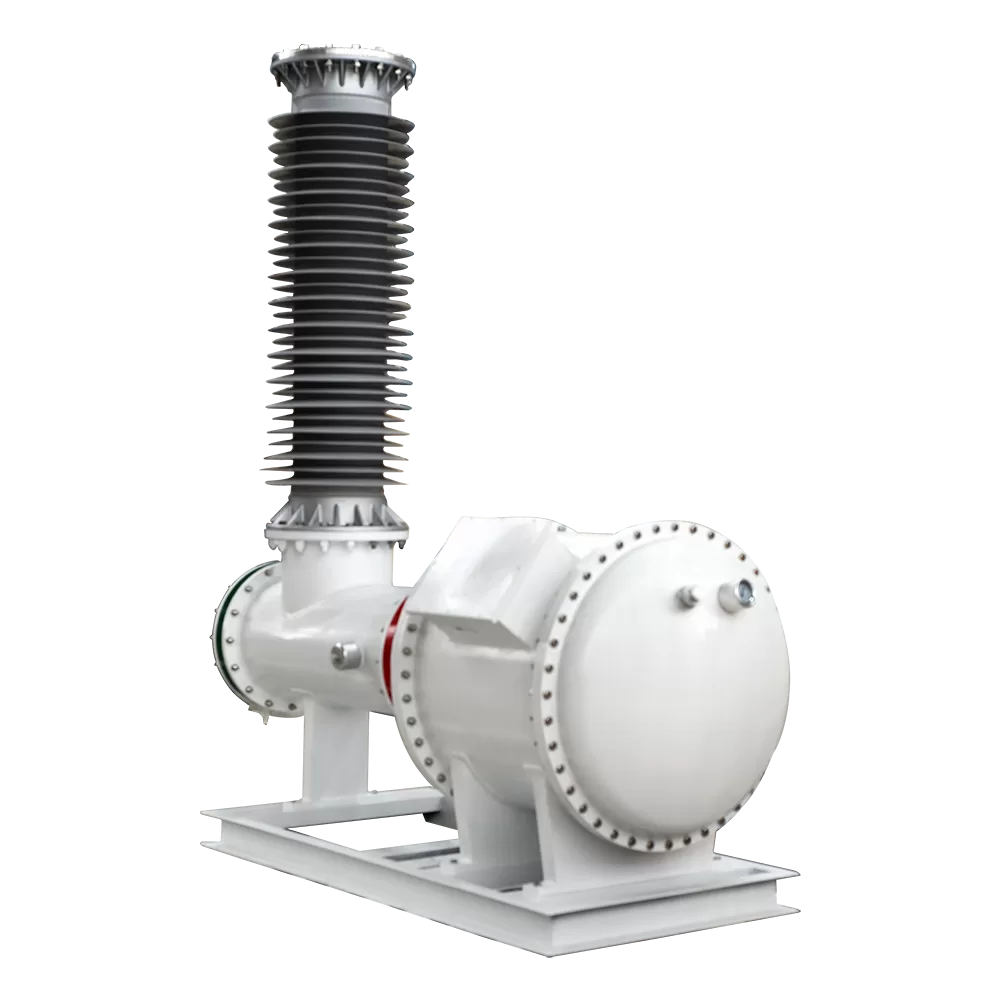

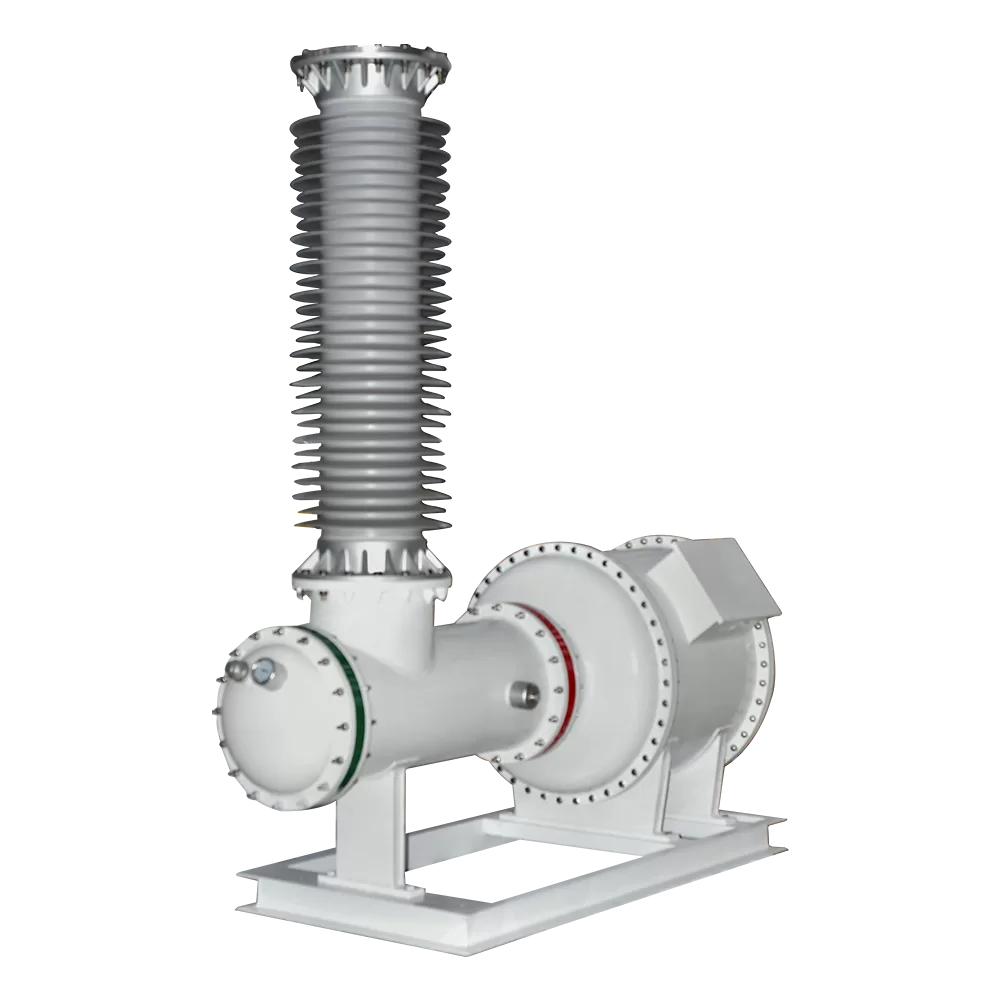

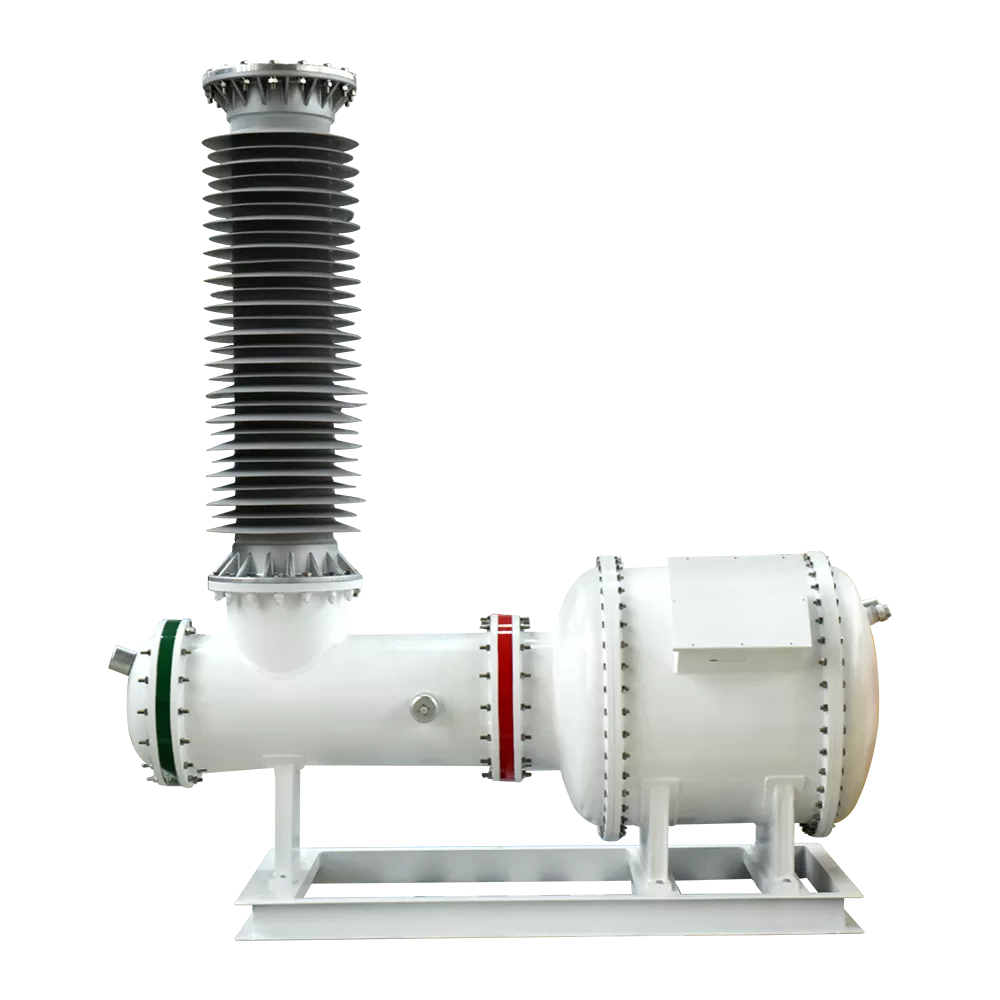

| 50kVA/250kV/400V Gas-insulated partial discharge-free test transformer | |
| Rated Capacity | 50 kVA |
| Input Voltage | 400V |
| Output Voltage | 0—250kV |
| Output Current | 200mA |
| Measurement Voltage | 100V |
| System Partial Discharge | <5PC at rated voltage |
| Measurement Accuracy | 1.5% |
| Insulating Medium | SF6 |
| Dimensions | 2180*900*2780mm, footprint 2180*900mm, total height 2780mm |
| Weight | Total 854kg, including main body 822kg, equalizing ring 32kg |
| Overcurrent Capability | Under the condition of continuous operation at 110% In rated current for 1 minute, the overcurrent should not cause thermal damage or winding deformation to the test transformer windings. |
| Overvoltage Capability | Under the condition of continuous operation at 110% Un rated voltage for 60 seconds, no damage should be caused to the test transformer |
| Partial Discharge-Free Voltage Regulator Control Panel | |
| Rated Capacity | 50kVA |
| Input Voltage | AC 380V±10%, 50Hz |
| Output Current | 125A |
| Output Voltage | 0—430V |
| Isolation Filtering Transformer | |
| Function | The isolation filtering device can effectively eliminate harmonics and various interferences present in the power supply |
| Input Voltage | 400V±10% |
| Output Voltage | 400V±10% |
| Rated Capacity | 50kVA |
| No-load Loss | ≤5% |
| Coupling Capacitor | |
| Function | Used during partial discharge measurement tests, the built-in design eliminates the effects of external connections and stray capacitance, resulting in extremely low background partial discharge (<1pC), ensuring high-precision measurements |
| Rated voltage | 250kV |
| Capacitance | 400PF |
| Partial discharge level: | <5PC, included in the complete system |
