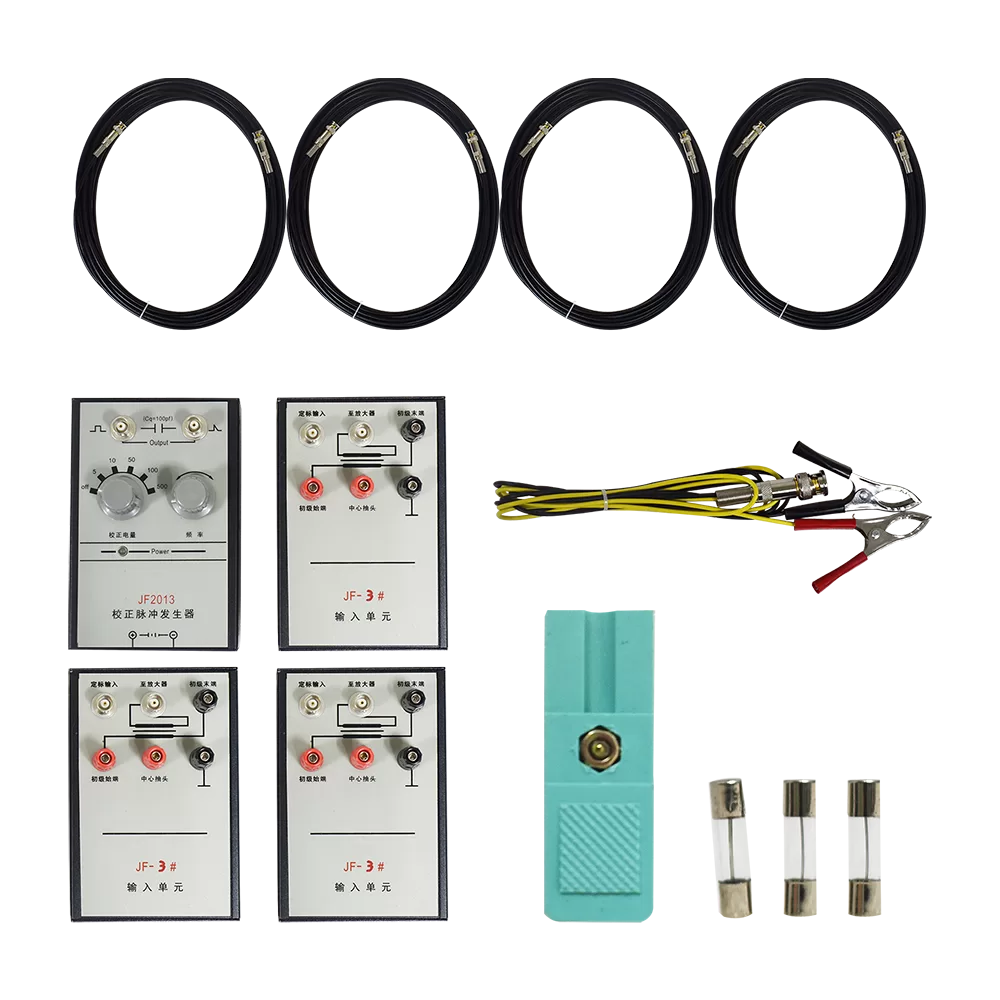

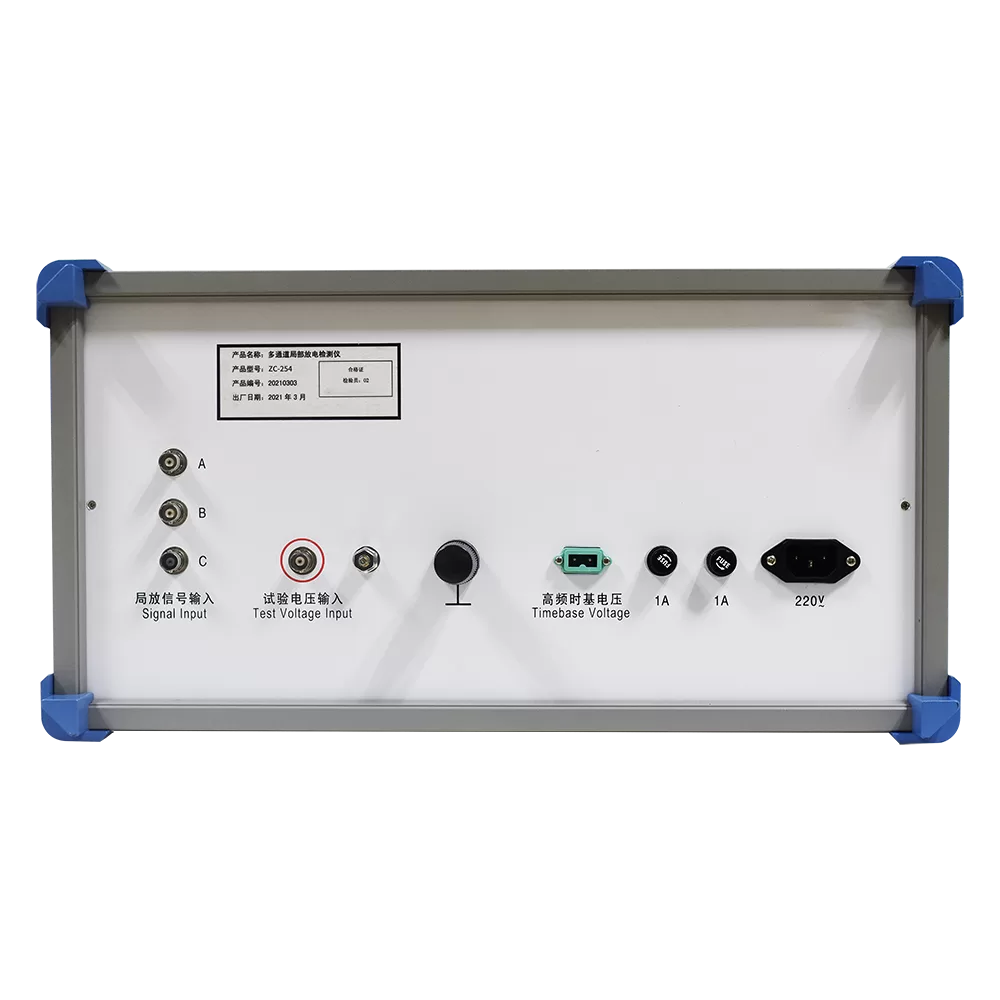

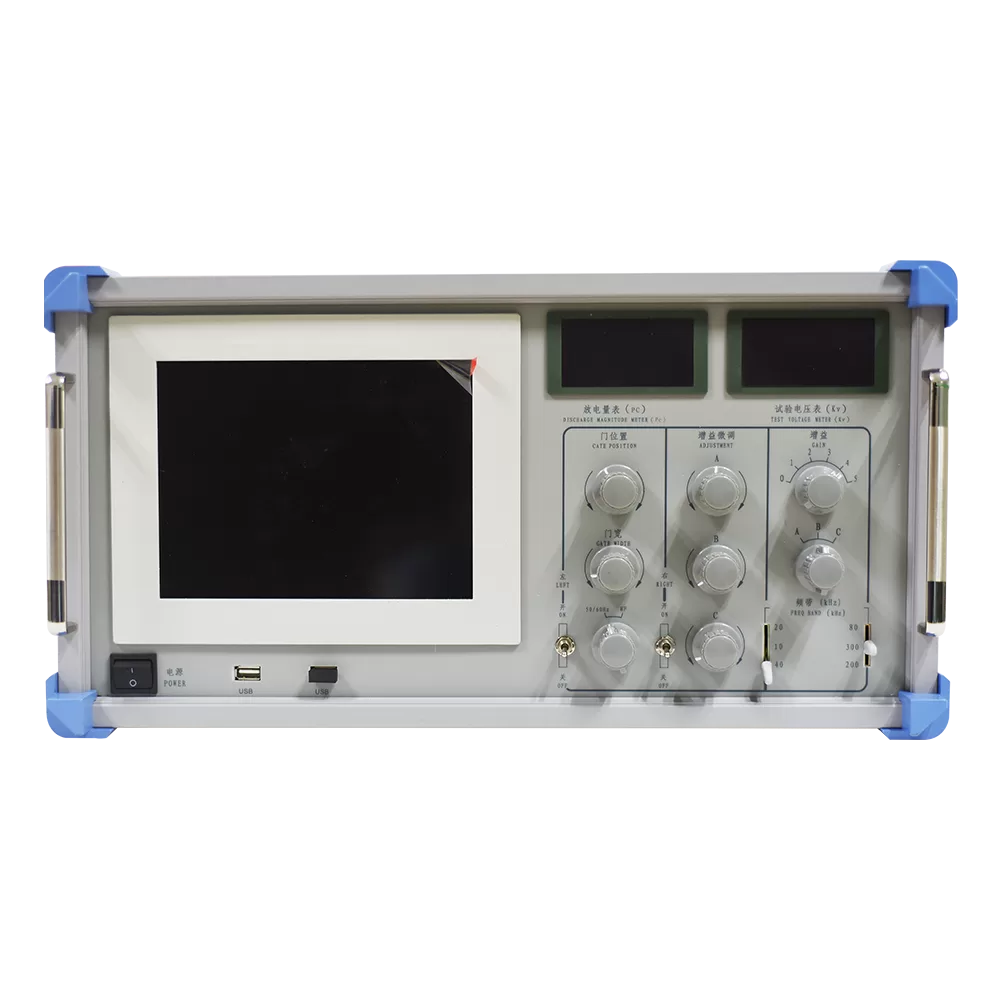

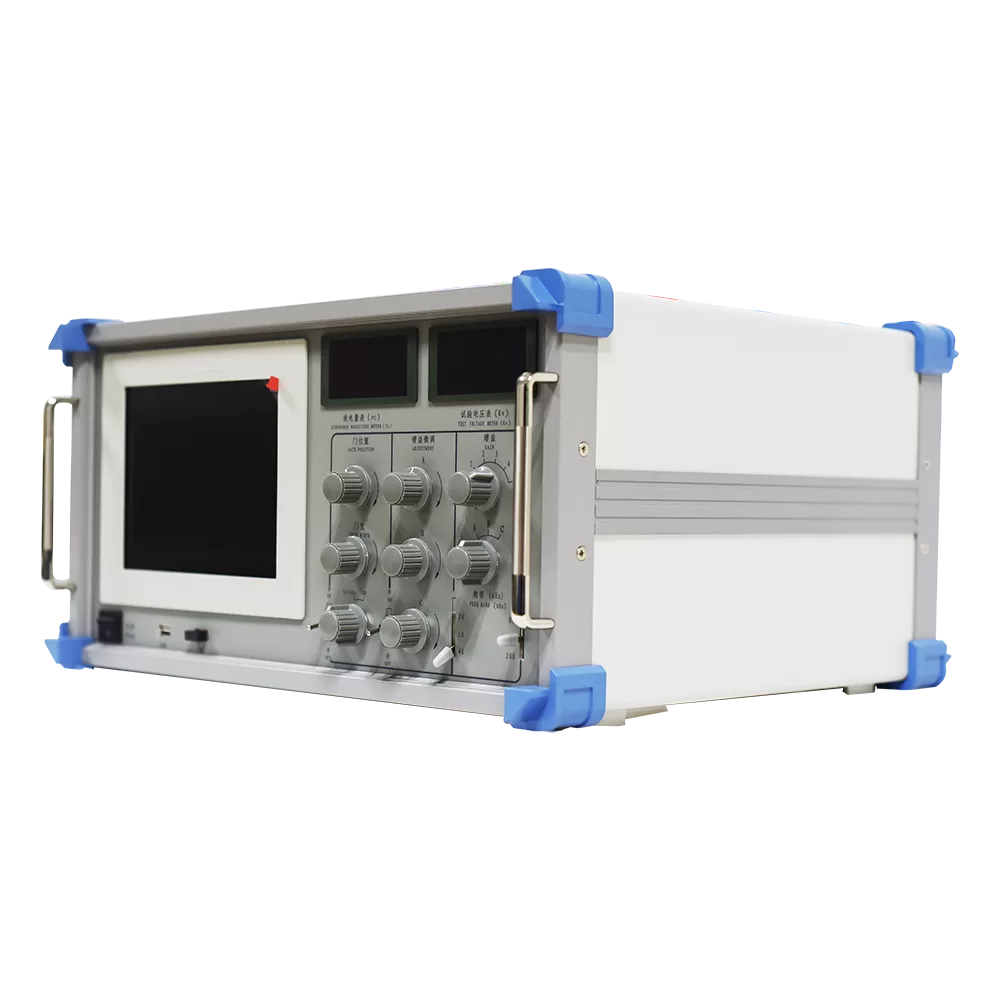

Features and Advantages
1.After the partial discharge signal is digitized, the liquid crystal display is used to replace the traditional oscilloscope display.
2.The operation is exactly the same as the traditional analog partial discharge test instrument, which is simple and easy to learn.
3.Freely select ellipse, straight line and sine display mode
4.Digital windowing technology can avoid the influence of interference on measurement.
5.Any phase windowing, single window or double window optional, and the ellipse rotates 150 degrees.
6.It can freeze the current discharge map, and observe and analyze the static partial discharge pulse.
7.The current discharge spectrum can be saved to realize the traceability of test results.
Parameter
| Capacitance range of testable products | 6 PF — 250 μF | ||
| Detection sensitivity | |||
| range of the tuning capacitor | Sensitivity（PC）（unbalanced circuit） | effective values of Permissible current | |
| unbalanced circuit | balanced circuit | ||
| 0～25～100PF | 0.02 | 30mA | 0.25A |
| 25～100～400PF | 0.04 | 50mA | 0.5A |
| 100～400～1500PF | 0.06 | 120mA | 1A |
| 400～1500～6000PF | 0.1 | 0.25A | 2A |
| 1500～6000～25000PF | 0.2 | 0.5A | 4A |
| 0.006～0.025～0.1μF | 0.3 | 1A | 8A |
| 0.025～0.1～0.4μF | 0.5 | 2A | 15A |
| 0.1～0.4～1.5μF | 1 | 4A | 30A |
| 0.4～1.5～6.0μF | 1.5 | 8A | 60A |
| 1.5～6.0～25μF | 2.5 | 15A | 120A |
| 6.0～25～60μF | 5 | 25A | 200A |
| 25～60～250μF | 10 | 50A | 300A |
| Amplifier band | Low end | 10kHz, 20kHz, 40KHz optional | |
| High end | 80kHz, 200kHz, 300kHz optional | ||
| Amplifier gain adjustment | Roughly adjust the sixth gear, and the inter gear gain is 20 ± 1 db | ||
| Fine tuning range > 20dB | |||
| Time window | Window width: adjustable range: 15°- 150° | ||
| Window position: each window can rotate 0°- 170° | |||
| The two time windows can be opened separately or simultaneously | |||
| Discharge meter | Digital meter: 3 ½ LED digital meter displays 0-100.0, error < ± 5% (based on full scale) | ||
| Elliptical time base | Frequency: 50Hz, 100Hz, 150Hz, 200Hz, 400Hz | ||
| Elliptical rotation: with 30 ° as the first gear, 120 ° rotation can be made | |||
| Display mode: ellipse – straight line – sine | |||
| Test voltmeter | Range: 100kV (expandable) | ||
| Display: 3 ½ Digital voltmeter indication | |||
| Accuracy: better than ± 5% (based on full scale) | |||
| Dimension | 500 * 500 * 210 mm (W * D * H) | ||
| Net Weight | 16kg | ||
