Dry Type AC/DC Hipot TesterZC-501C

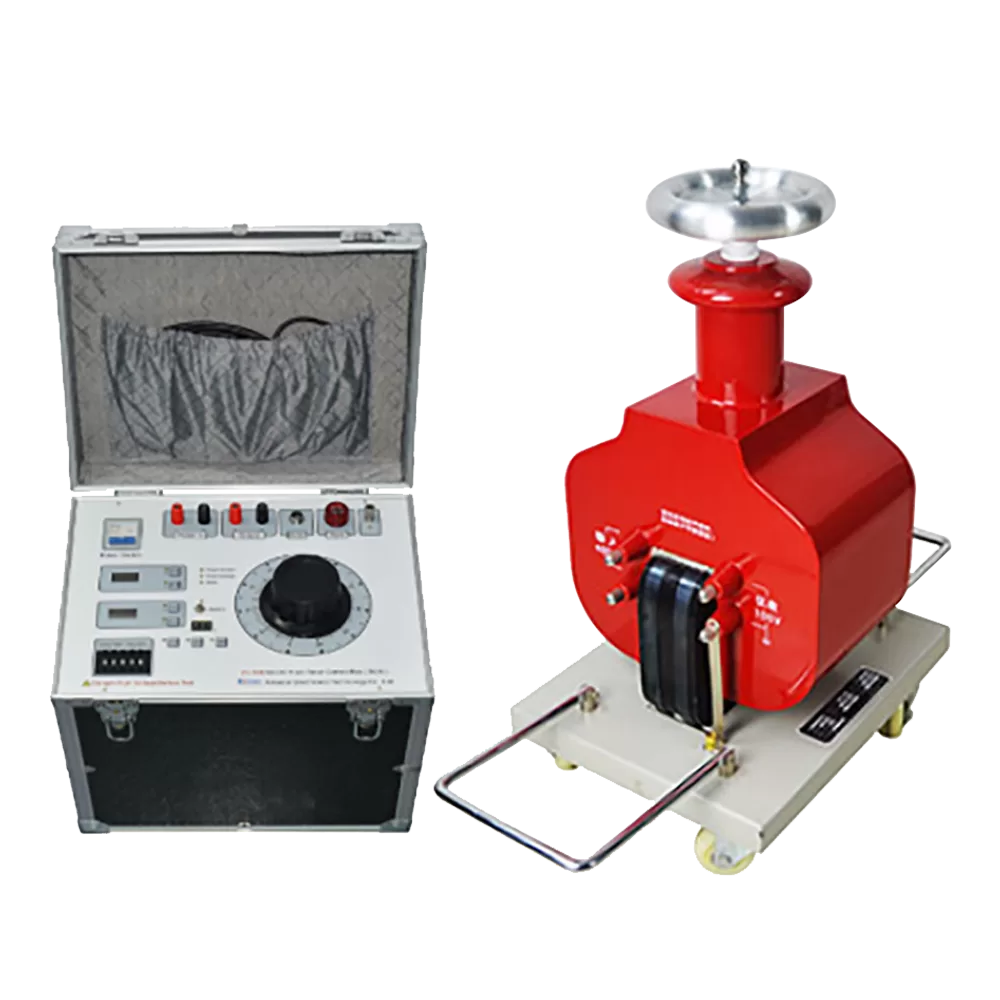

ZC-501C Dry Type AC/DC Hipot Tester includes a digital display control box and a HV transformer.The control box take numerical control technology, anti-interference ability, and compared with the previous generation of operating box, with small size, light weight, beautiful appearance and so on. The output voltage range is adjustable continuously from 0 to 200V. The operation is simple, compact and firm structure, reliable operation, convenient maintenance.

This new generation control box has the function to give an audible and visual alarm when the control box or the HV transformer are not connected to the ground. It is for the safety of the operational person and the devices itself. And it is easy to set the protection value on the panel for over voltage and over current.

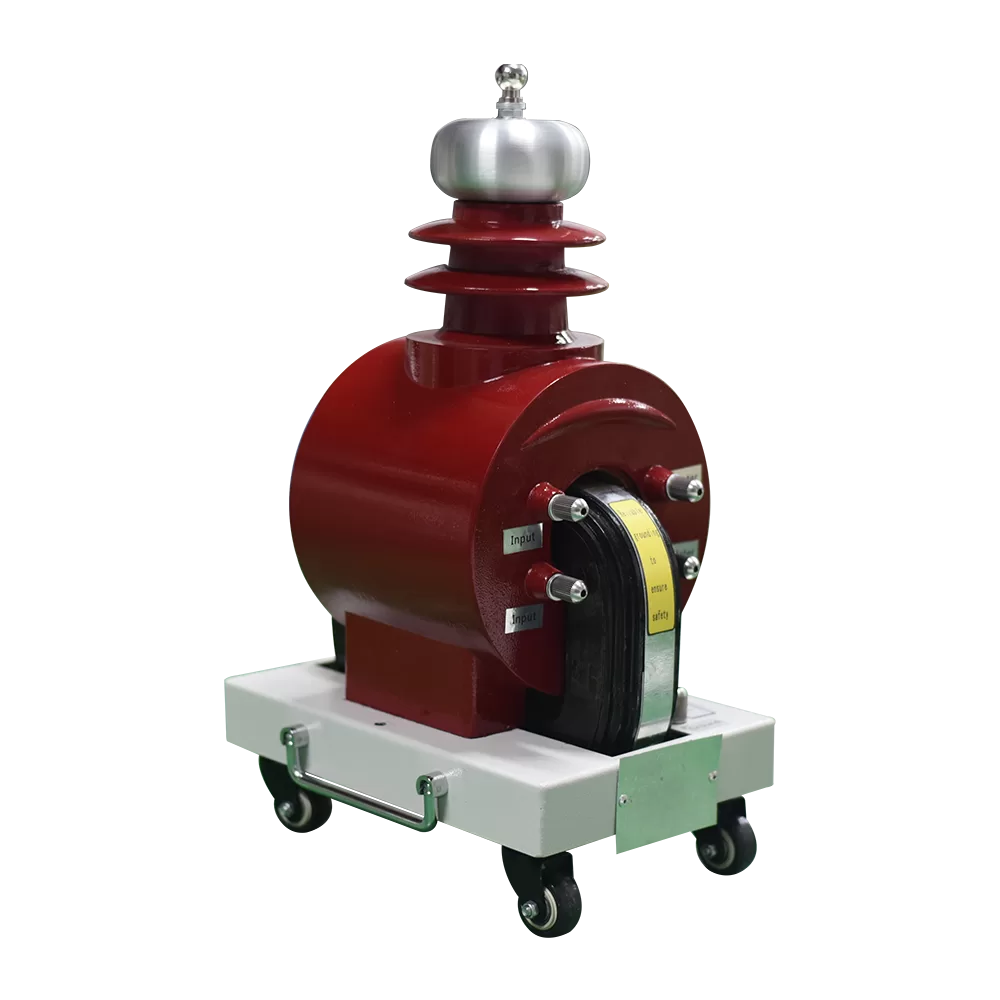

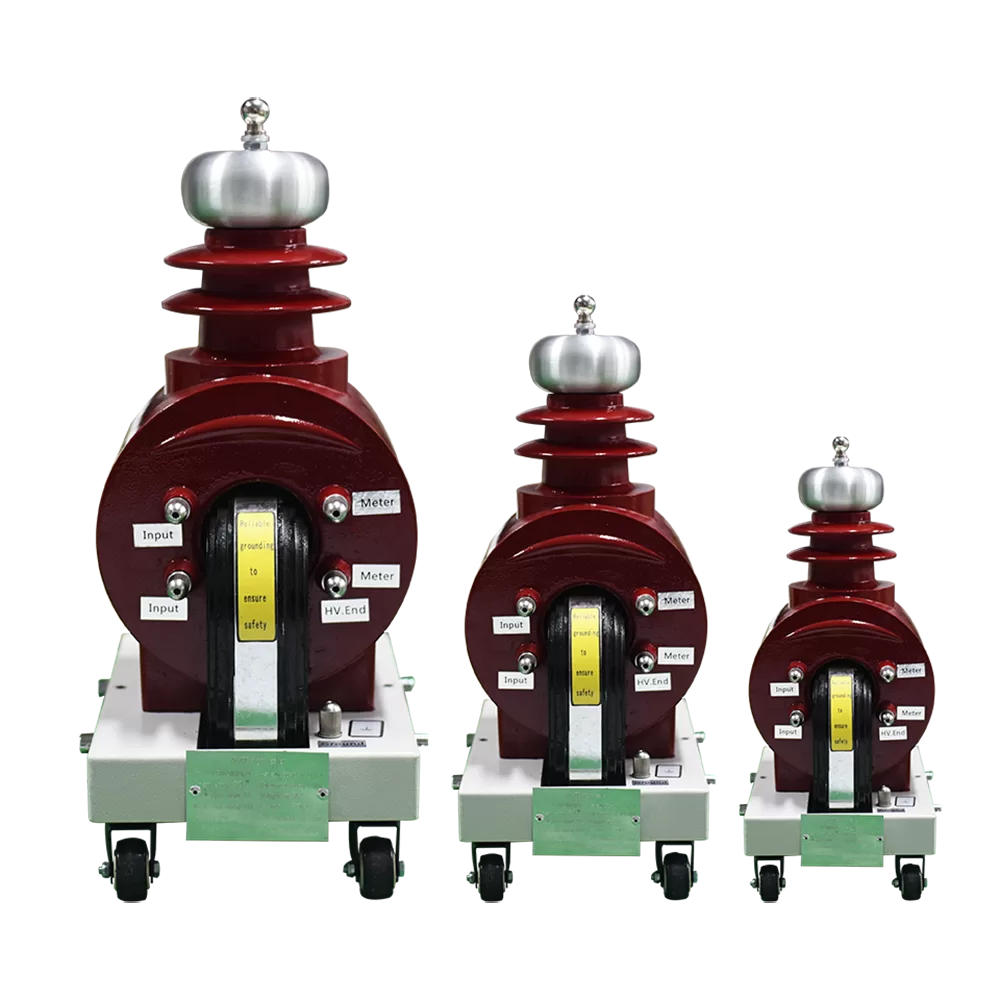

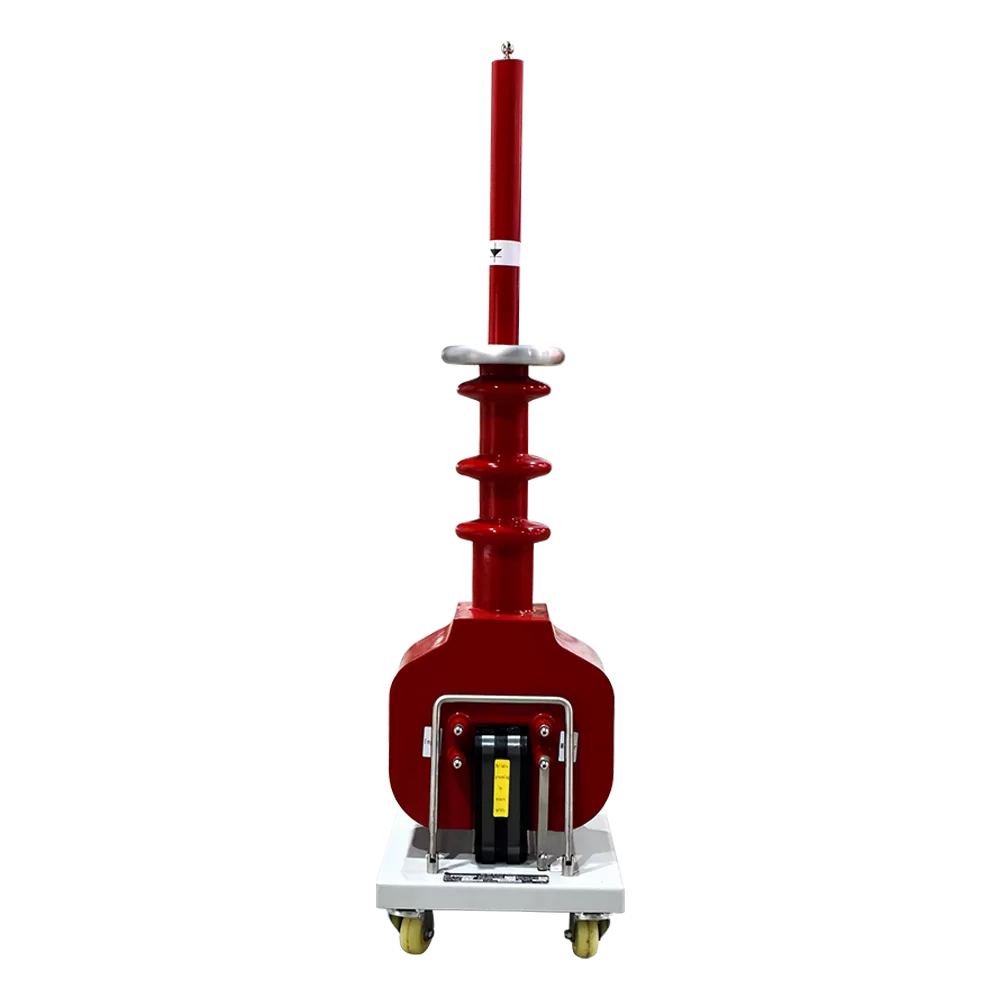

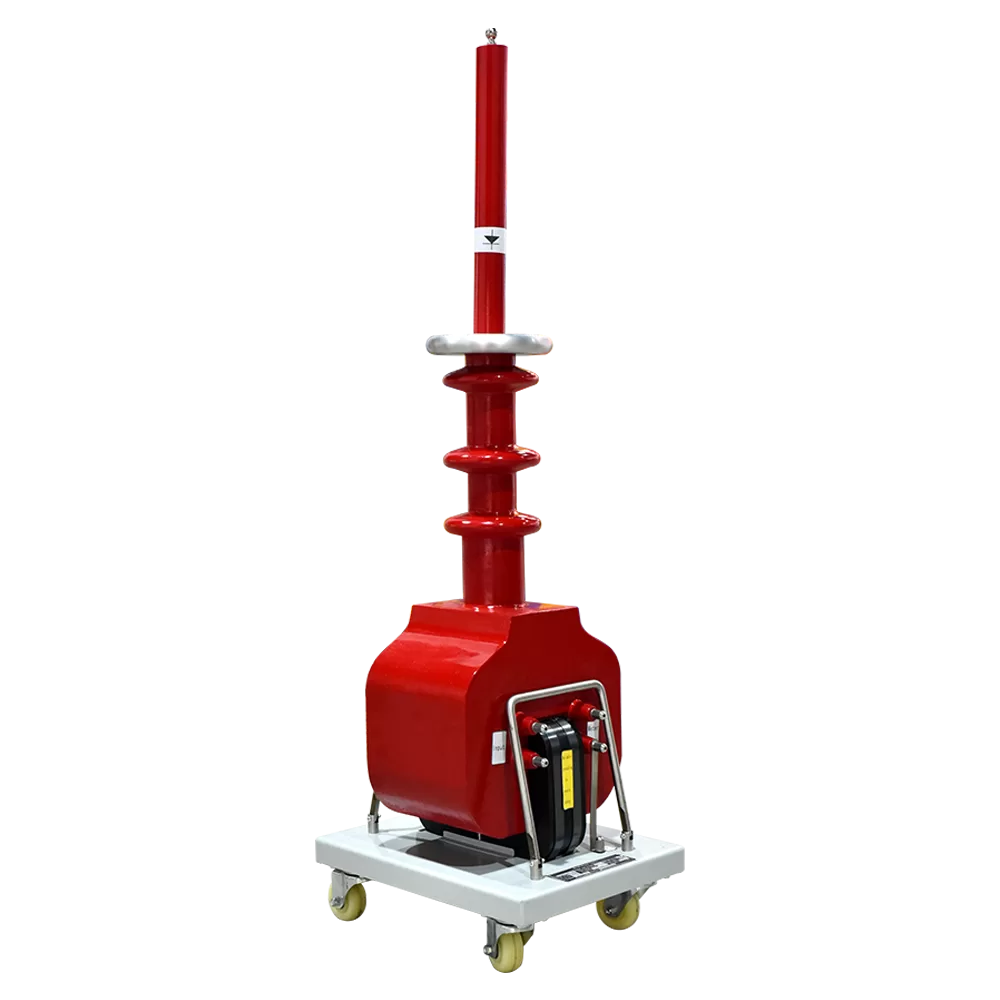

The HV transformer is a Dry Type single-phase transformer. This device is especially suitable for power systems, mining enterprises, scientific and research department to have insulation strength test under power frequency for all kinds of high-voltage electrical instrument, electrical components, insulation materials. It is fundamental in high-voltage test.

Send inquiry

Features and Advantages

1.Intuitive reading: this instrument uses digital LCD head, can directly display high voltage, instrument voltage and low voltage current, high voltage current test value, easy to test observation and record.

2.Accurate measurement: all digital processing, built-in precision mathematical model, with high measurement accuracy, accurate test value.

3.Accurate protection function: all digital processing, overcurrent protection value setting, timing voltage setting and overvoltage protection value setting are realized by digital, so that the protection is more accurate.

4.Automatic timing: the instrument has time trigger function, the device automatically timing according to the set voltage value, so that the timing is more accurate and more effective.

5.Easy to carry: small size, light weight, the volume of only 80% of similar products, it is very convenient to carry.

Parameter

Power Supply
Voltage	AC220V±10%
Frequency	45~65Hz
Max current	24A
Environment requirements
Ambient temperature	-10℃～40℃
Relative humidity	≤80%
Safety performance
Insulation resistance	＞2MΩ
Leakage current	＜3.5mA
Control box dielectric strength	Power line connection to the chassis can withstand 1500V (50Hz RMS) 1 minutes withstand voltage.
Control box output capacity
Control Box output voltage	AC 0～250V
Control box output current	AC 0～25A
Time	0～999s
Measurement accuracy
Current measurement accuracy level	± (2% * reading+1A)
Current protection accuracy level	± (5% * reading+1A)
Voltage measurement accuracy level	± (2% *+1KV)
HV Transformer’s parameters
Capacity	5kVA
Input Voltage	0~200V
Input Current	0~25A
Output AC HV Voltage	0~50kV
Output AC HV Current	0~100mA
Output DC HV Voltage	0~70kv
Output DC HV Current	0~71.4mA
Output Meter Voltage	0~100V
