Application Scenarios for Comprehensive Instrument Transformer Test Benches

As a multi-functional piece of power testing equipment, the comprehensive instrument transformer test bench is widely utilized across various stages of power systems. It is capable of testing numerous critical parameters, including volt-ampere characteristics, transformation ratio, polarity, measurement error, and secondary burden. The specific application scenarios are outlined below:
1. Instrument Transformer Production and Manufacturing Stages
① Type Testing:
During the R&D phase for new instrument transformer products, the comprehensive test bench is used to verify whether the design meets technical specifications and regulatory standards—for instance, confirming that the volt-ampere characteristic curves align with expectations and that transformation ratio errors fall within permissible limits.
Through comprehensive testing, the stability and reliability of new products are ensured, providing essential data support for subsequent mass production.
② Factory Acceptance Testing:
Upon the completion of instrument transformer production, the comprehensive test bench is employed to conduct a thorough inspection of every individual unit, ensuring that product quality complies with factory release standards.
Test items include transformation ratio, polarity, measurement error, and secondary burden, guaranteeing that the instrument transformers meet performance benchmarks prior to delivery.
2. Power System Installation and Commissioning Stages
① Substation Installation Acceptance:
During the construction or renovation of substations, the comprehensive test bench is utilized to perform acceptance testing on the installed instrument transformers, verifying that their performance satisfies design requirements.
Through these tests, it is ensured that the instrument transformers will operate accurately and reliably within the substation environment, thereby safeguarding the secure operation of the power system.
② Equipment Wiring Verification:
Once the installation of instrument transformers is complete, the comprehensive test bench is used to verify the correctness of the wiring connections—specifically, ensuring the accuracy of polarity connections.
Reversed polarity connections can lead to measurement errors or the erroneous tripping of protection systems; therefore, wiring verification constitutes a critical step in the installation and commissioning process.
3. Power System Operation and Maintenance Stages
① Periodic Preventive Testing:
Instrument transformers within power systems require periodic preventive testing to assess whether their performance has degraded or if any potential faults are present.
The comprehensive test bench is capable of testing a wide range of critical parameters—such as volt-ampere characteristics, transformation ratio, and measurement error—providing comprehensive and accurate data support for these preventive testing initiatives.
② Fault Diagnosis and Repair:
When an instrument transformer exhibits a fault or anomaly, the comprehensive test bench is utilized to rapidly pinpoint the root cause of the issue—such as core saturation or insulation damage. Through testing, maintenance personnel can accurately assess the performance status of instrument transformers, formulate effective repair plans, and reduce the time required for fault resolution.
③ Condition Assessment and Life Prediction:
The comprehensive test bench is capable of recording historical test data for instrument transformers and utilizing data analysis techniques to evaluate their current condition.
Based on the results of this condition assessment, the remaining service life of the instrument transformers can be predicted, providing a scientific basis for operation and maintenance decision-making within the power system.
4. Power Metering and Trade Settlement
① Metering Device Verification:
As a critical component of power metering systems, the accuracy of instrument transformers directly impacts the fairness of trade settlements.
The comprehensive test bench is used to perform periodic verification of metering-class instrument transformers, ensuring that their measurement errors remain within permissible limits and safeguarding the accuracy of trade settlements.
② Anti-Power Theft Inspection:
In the context of power trade settlement, electricity theft constitutes a serious issue. The comprehensive test bench can measure parameters such as the transformation ratio and polarity of instrument transformers, detecting anomalous variations that may indicate instances of electricity theft.
Through such testing, power authorities can timely detect and curb electricity theft, thereby maintaining order within the electricity market.
5. Research, Development, and Education
① Scientific Research Experiments:
In the field of power engineering research, the comprehensive test bench is utilized to conduct performance testing and studies on novel instrument transformers, facilitating the exploration of optimized designs and improvement strategies.
Through these tests, researchers gain deep insights into the performance characteristics of instrument transformers, providing theoretical support for advancements in power technology.
② Educational Demonstrations:
In educational programs related to power engineering, the comprehensive test bench serves as a piece of laboratory equipment used to demonstrate the principles and methodologies involved in testing instrument transformers.
Through hands-on practical exercises, students can gain a better understanding of instrument transformer performance parameters and testing techniques, thereby enhancing their professional skills and practical capabilities.
6. Special Environments and Application Scenarios
① High-Altitude Regions:
In high-altitude regions, the reduced air density can lead to a degradation in the insulation performance of instrument transformers. The comprehensive test bench is capable of simulating high-altitude environmental conditions to conduct specialized testing on instrument transformers, thereby assessing their adaptability.
② Harsh Climatic Conditions:
Under extreme climatic conditions (such as high temperatures, low temperatures, high humidity, etc.), the performance of instrument transformers may be adversely affected. The comprehensive test bench allows for the simulation of these conditions within a laboratory setting, enabling environmental adaptability testing for instrument transformers. ③ New Energy Sector:
In new energy fields—such as wind power and photovoltaics—instrument transformers are utilized for the measurement and protection of power generation equipment. Integrated test benches are capable of conducting specialized testing on these transformers, tailored to the specific characteristics of new energy generation, thereby ensuring they meet the application requirements of the new energy sector.

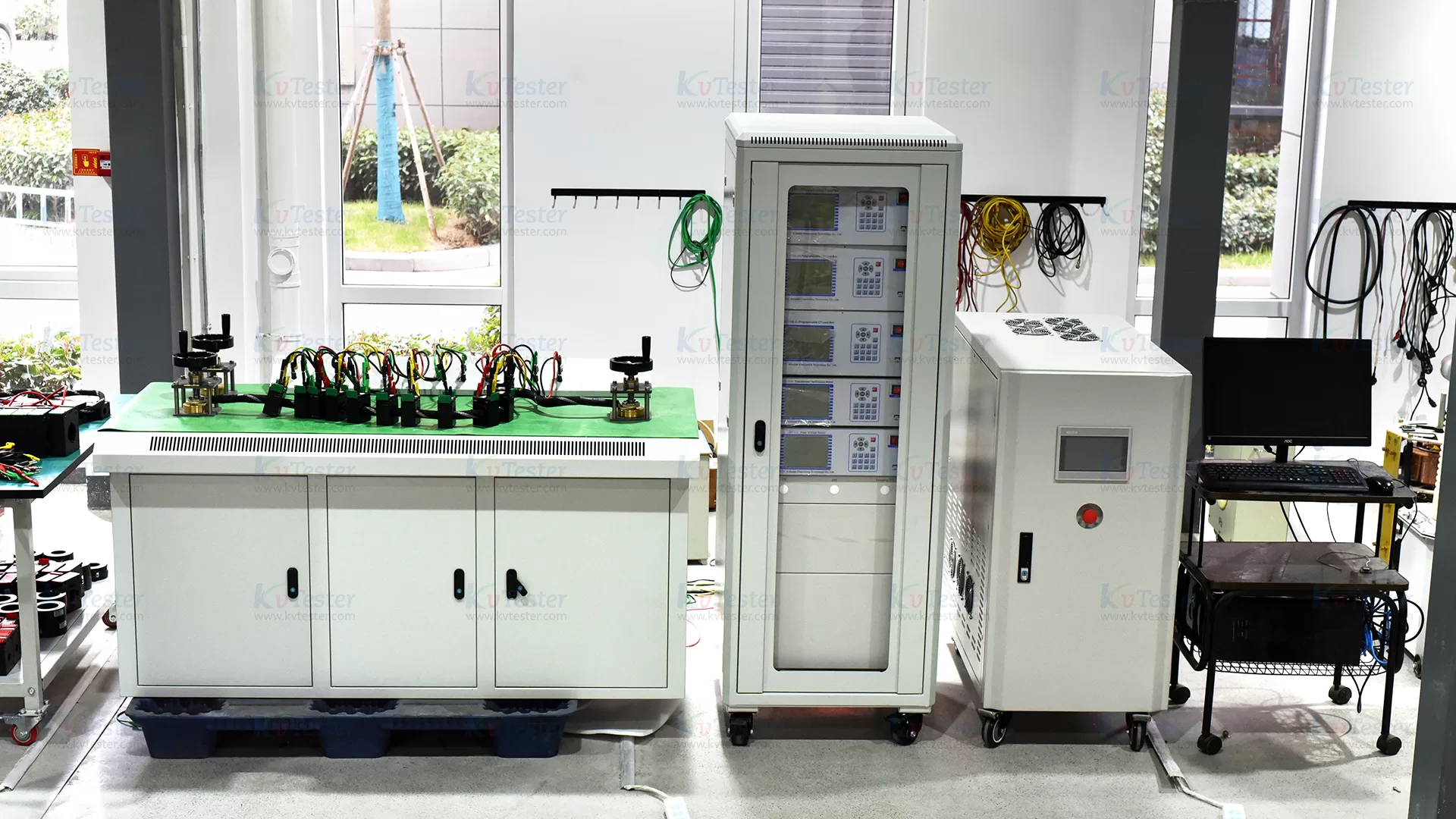

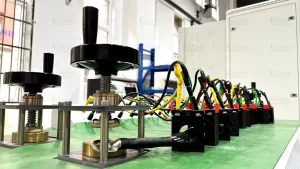

The ZCHG-12 fully automatic current transformer calibration system is a new generation of transformer fully automatic accuracy testing system developed by our company to adapt to the fast and accurate characteristics of modern current transformer calibration. The device consists of a transformer calibrator, a programmable current transformer load box, a variable frequency power supply, and a high-speed transformer test bench. The operator can set the main parameters of the tested transformer, such as type, range, accuracy level, secondary load, power factor, and transformer station position, through the computer error verification management software. By transmitting and controlling through RS485, the measurement work of 12 current transformers with the same ratio can be completed at once, greatly improving work efficiency.
