What are the methods for distinguishing the quality of a series resonance test device?

The series resonance testing device is a device used to test the performance of series resonance in a circuit. It can help us analyze parameters such as resonant frequency and resonant impedance in a circuit, thereby judging the quality of the circuit. In practical applications, we need to distinguish the quality of the series resonance test device through some methods to ensure the accuracy and reliability of the test results.

The following methods can be used to distinguish the quality of a series resonance test device:

1. Observe whether the structure and appearance of the device are intact, and whether there is obvious damage or looseness. For example, check if the circuit board, wiring, plugs, and other parts are secure.

2. Check whether the input and output interfaces of the device match the actual needs, such as checking whether the range of input voltage and output current meets the requirements.

3. Test whether the power output of the device is stable. Use a suitable load and measure the output, observe whether the output parameters such as current and voltage are stable, and compare them with the set values.

4. Check the frequency range and accuracy of the device. You can check whether the output frequency is consistent with the setting and whether the frequency stability meets the requirements by inputting a fixed frequency signal.

5. Conduct load regulation test. Observe whether the output of the device meets the requirements under different load conditions, such as whether the output voltage changes significantly with the load.

6. Check the safety and protection function of the device. For example, check if the device is equipped with protection mechanisms such as overvoltage, overcurrent, and overheating, and conduct corresponding tests.

7. Perform some common tests and measurements, such as undervoltage protection, overcurrent protection, etc., to verify the performance and reliability of the device.

It should be noted that the above methods are only some commonly used identification methods, and the specific selection and operation should be determined based on the characteristics and usage requirements of the specific device. For devices with high precision requirements, more detailed and complex tests can also be conducted, or professional institutions can be entrusted for testing and identification. Only through comprehensive inspection and testing can we ensure that the performance of the testing device meets the requirements, thereby ensuring the reliability and accuracy of the test results.

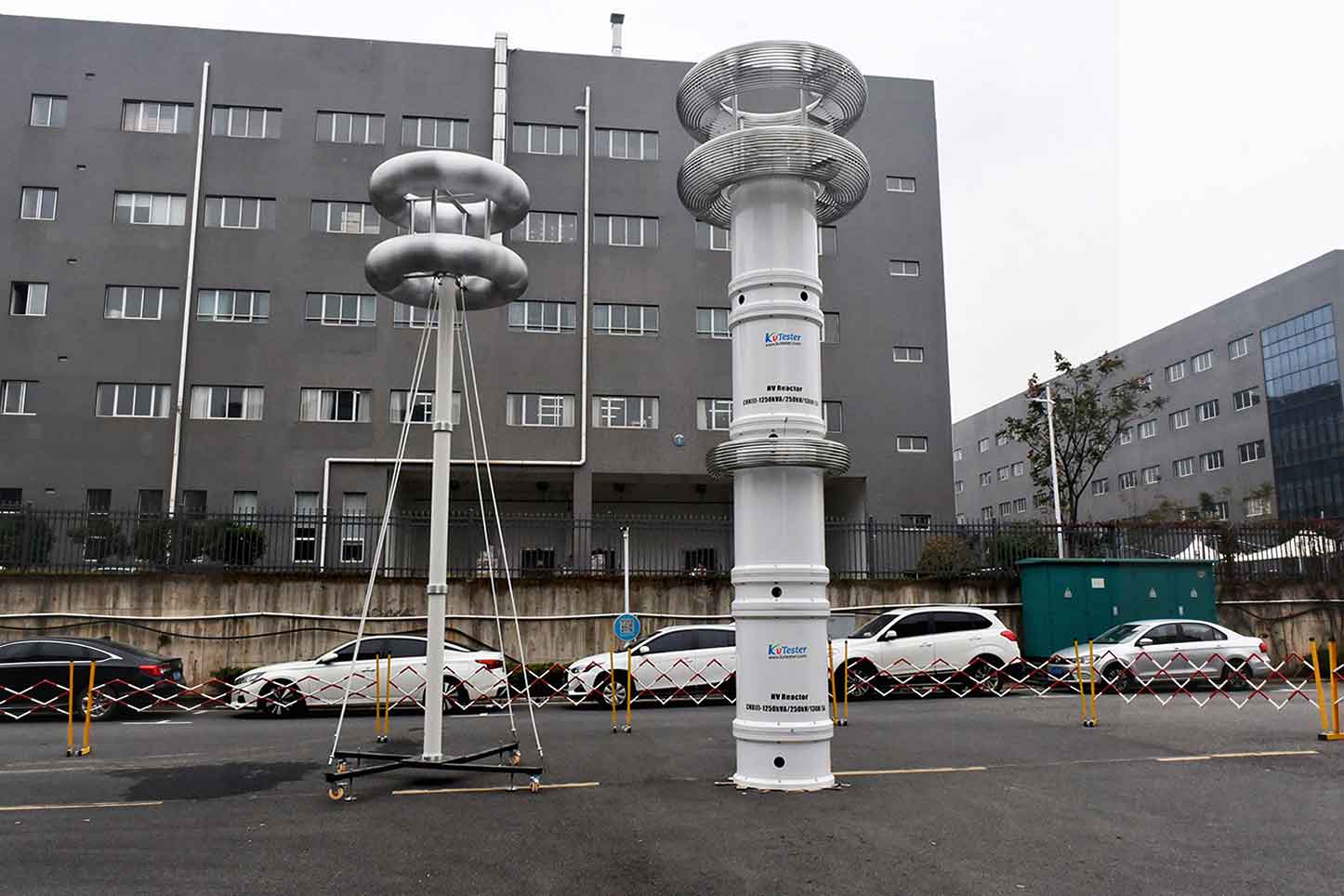

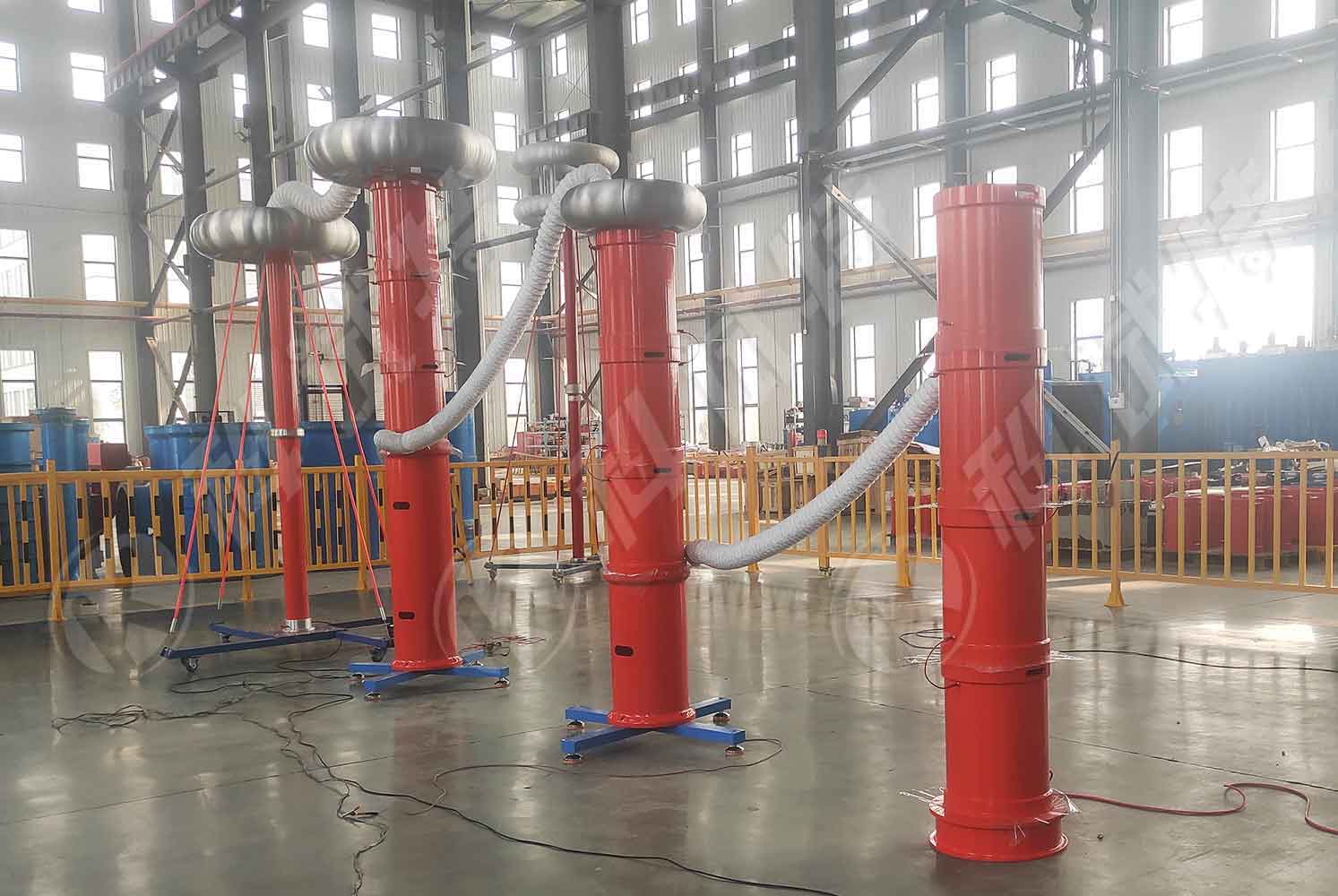

The KSTVF-A series variable frequency series resonance testing complete device is suitable for AC withstand voltage testing of transformers, circuit breakers, switches, GIS systems, cables, bushings, insulators, and other equipment. Equipped with multiple protection functions such as high-voltage overvoltage protection, low-voltage overcurrent protection, as well as detuning protection, zero position, flashover protection, emergency shutdown, undervoltage protection, etc. It can meet the requirements of high voltage and low current equipment testing conditions, as well as low voltage and high current equipment testing conditions, and has a wide range of application.

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase.
