What are the common faults and precautions of ultra-low frequency high-voltage generators?

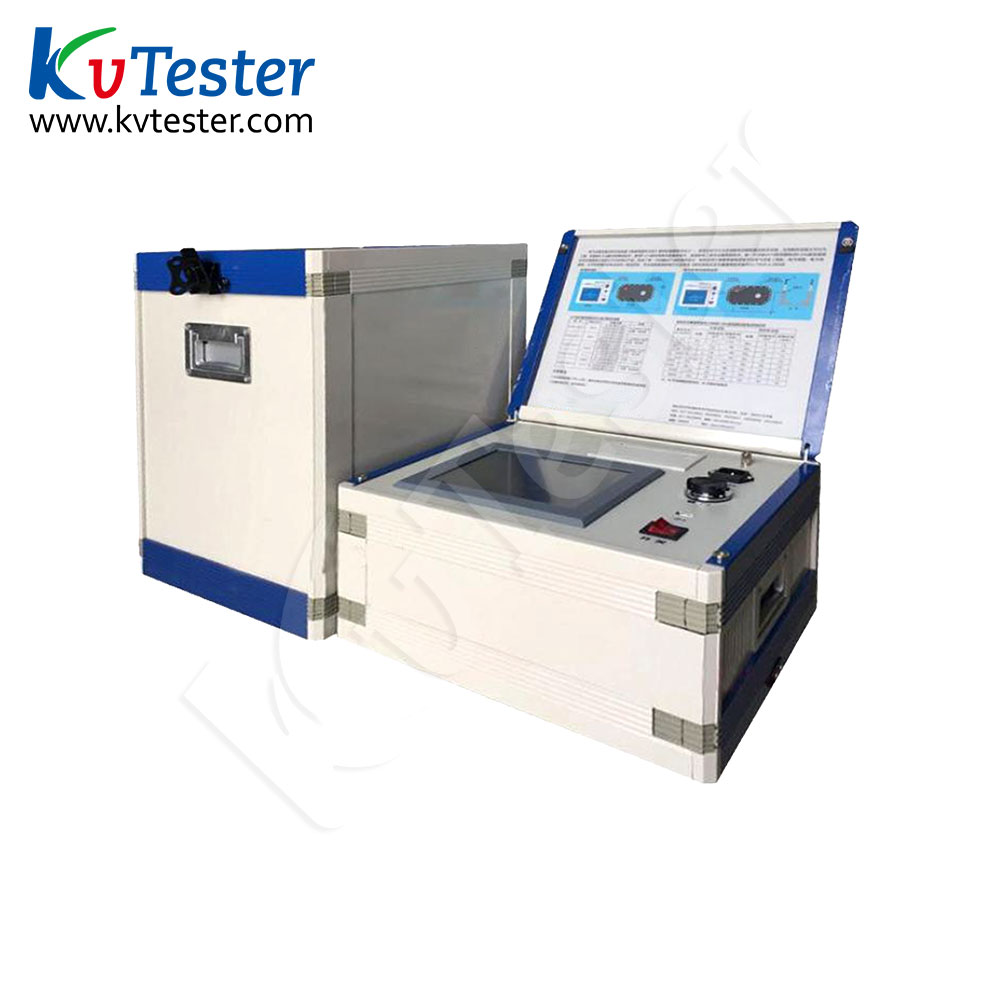

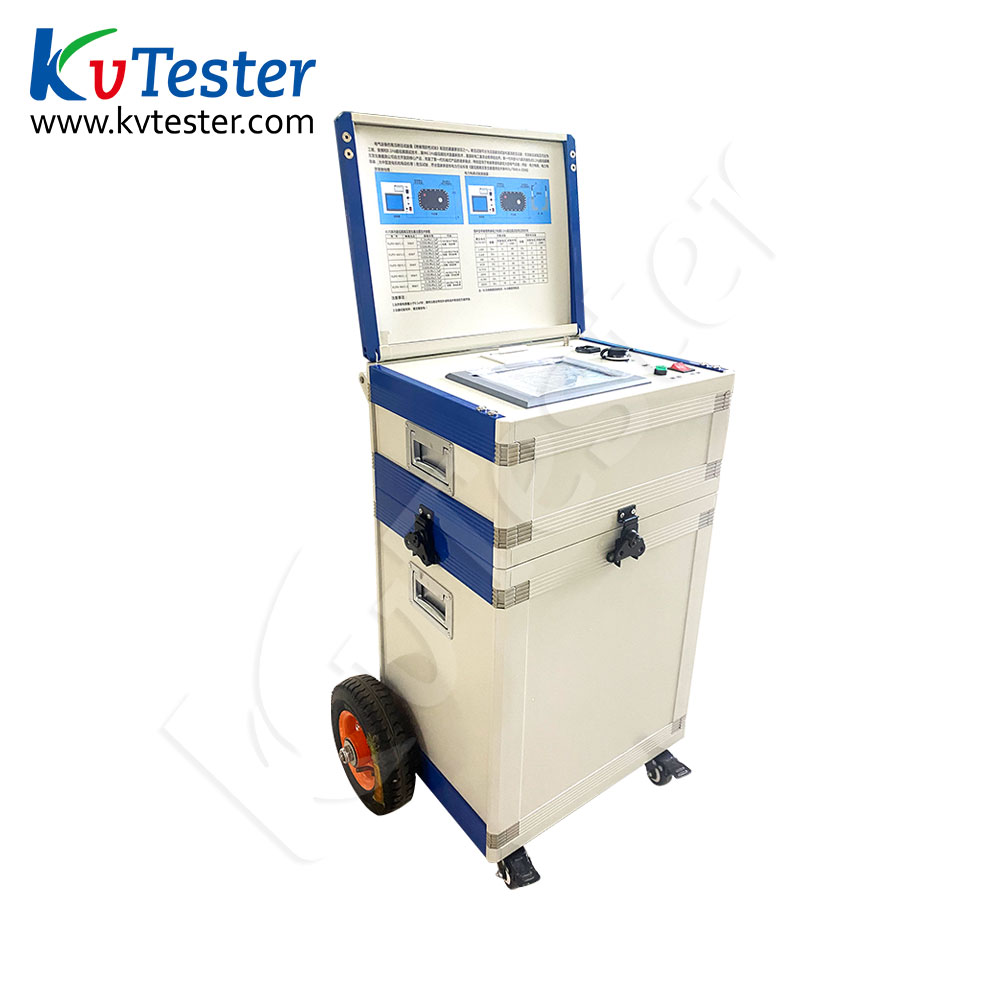

Ultra Low Frequency High Voltage Generator is a device specifically designed to generate ultra-low frequency high voltage signals. It is widely used in scientific research, industry, and medical fields, such as experimental research, power equipment testing, and medical imaging.

The ultra-low frequency and high voltage generator mainly consists of a generator part and an amplifier part. In the generator section, the ultra-low frequency and high voltage generator utilizes a time-based circuit or oscillator to generate stable ultra-low frequency signals, which can usually be adjusted in frequency and amplitude to meet the needs of different applications. The amplifier part is responsible for amplifying the low-power signal generated by the generator to the desired high voltage level. The commonly used amplifier types include power amplifiers, transformers, and common mode amplifiers. In addition, the ultra-low frequency high-voltage generator also has a frequency modulation output function, and its output frequency can be adjusted. Meanwhile, in order to ensure the stability and safety of the output signal, the ultra-low frequency and high voltage generator requires a stable power supply and reliable protection mechanism during operation.

The ultra-low frequency and high voltage generator may encounter some common faults during use. At the same time, to ensure its normal operation and extend its service life, it is also necessary to pay attention to some usage precautions.

Common faults and handling methods:

1. After turning on the power, the digital display meter on the control box does not light up: first, check the power connection and fuse. If the fuse is damaged, it should be replaced with a fuse of the same specification.

2. The high voltage display light does not light up, unable to add high voltage: it may be due to the control box’s cable not being properly connected. At this time, the cable should be connected and restarted.

3. If the grounding wire is not properly connected, causing the fault to display “return to zero” without a return to zero position: the grounding wire should be checked and reconnected, and then the high voltage output adjustment knob and fine adjustment knob should be turned counterclockwise until the “return to zero” light is off, and the high voltage can be applied.

Notes:

1. Pre use inspection: After power on, the instrument head should be checked for display and completeness. For instruments that have not been used for a long time, the output terminals should also be checked for rust and aging. If there are any, they should be cleaned and intact in a timely manner before use.

2. Careful operation: The ultra-low frequency and high voltage generator is a precision electronic instrument that cannot be opened arbitrarily to avoid damage. Please refer to the “Operation” method when using.

3. Avoid dust and moisture: The instrument should be avoided from being used in dusty or humid environments to prevent dust from entering the instrument and causing short circuits or battery damage due to moisture.

4. Regular inspection and maintenance: After each test, the wiring on the instrument terminal should be cleaned, the power should be turned off, the power plug should be disconnected, the chassis cover should be covered, and placed in a dry, dust-free, ventilated, and corrosion-free indoor environment.

5. Replacement of fuse: The fuse is integrated with the power socket of the instrument. When replacing, the power cord should be unplugged first and the fuse should be pulled out from above using a small flat screwdriver.

6. Battery handling: When the instrument is not used for a long time, the internal battery should be removed to prevent battery damage.

Following these precautions and troubleshooting methods can ensure the normal operation of the ultra-low frequency and high voltage generator, improve its efficiency, and extend its service life. During use, if encountering unresolved problems, it is recommended to promptly contact professional maintenance personnel for inspection and repair.
