1. Why Power Plants Depend on Specialized Transformer Testing Equipment

Transformers are the core backbone of all power plant operations, covering thermal, hydro, solar, and wind power stations. They undertake voltage conversion, power transmission and grid connection tasks, and their operational stability directly determines the continuous and safe power supply of the entire power system. Unlike ordinary industrial transformers, power plant transformers run under high-load, long-cycle, and complex environmental conditions all year round, prone to hidden faults such as insulation aging, loose winding connections, core loss deviation, and partial discharge. These subtle problems are difficult to detect by daily inspection but will lead to unplanned power outages, expensive overhaul costs, and shortened equipment service life once they deteriorate.

The service life of standard power plant transformers is 25 to 40 years, and the failure rate rises sharply after 20 years of operation. Professional transformer testing equipment for power plant is the key to realizing predictive maintenance, avoiding sudden failures, and extending equipment service life. All power plant transformer testing procedures must strictly comply with IEC and IEEE international standards to ensure operational compliance, grid connection safety, and stable power output. Standardized transformer testing can eliminate 90% of potential hidden dangers of high-voltage transformer failures and greatly reduce power station downtime losses.

Transformer Testing Equipment For Power Plant

2. Mandatory Transformer Tests & Matching Testing Equipment for Power Plants

Power plant transformer testing runs through the whole life cycle of equipment, including factory acceptance test (FAT), pre-commissioning inspection, routine annual maintenance, post-fault diagnosis, and overhaul verification. Different testing items correspond to professional testing equipment, forming a complete set of power plant transformer health assessment systems. The following are the mandatory testing items and supporting equipment for mainstream power stations:

Test Item	Core Testing Purpose	Standard Testing Equipment	Power Plant Application Scenario
Turns Ratio Test (TTR)	Verify winding turns ratio accuracy, detect tap changer faults and winding displacement	Three-phase TTR Tester	Pre-commissioning calibration, annual routine inspection, new equipment acceptance
DC Winding Resistance Test	Identify loose contacts, poor wiring and winding open-circuit faults	DC Resistance Tester	Post-fault detection, equipment overhaul, long-term operation monitoring
Insulation Resistance Test	Detect insulation degradation, moisture ingress and dielectric strength attenuation	Insulation Resistance Analyzer (Megger)	Long-term insulation health monitoring of high-voltage transformers
Tan Delta Test	Evaluate insulation loss, aging degree and internal damp defects	Tan Delta Tester	Diagnosis of large-capacity main transformers in power plants
Partial Discharge Test	Capture early insulation breakdown hidden dangers and avoid high-voltage breakdown faults	Partial Discharge Detector	Regular testing of generator transformers in thermal and hydro power plants
No-Load & Load Loss Test	Measure transformer core and winding loss to verify operational efficiency	Power Analyzer / Integrated Test Control Desk	Factory acceptance test and post-maintenance performance verification

2.1 Portable Single-Function Testers for On-Site Field Testing

For outdoor substation patrol, mobile inspection and on-site rapid diagnosis of power plants, portable high-precision testers are the preferred solution. Professional three-phase testing equipment supports simultaneous three-phase measurement, with high accuracy up to 0.05%, automatic temperature compensation, demagnetization and data export functions. It is compact, durable, and adaptable to harsh outdoor working environments, meeting the daily rapid testing needs of power stations.

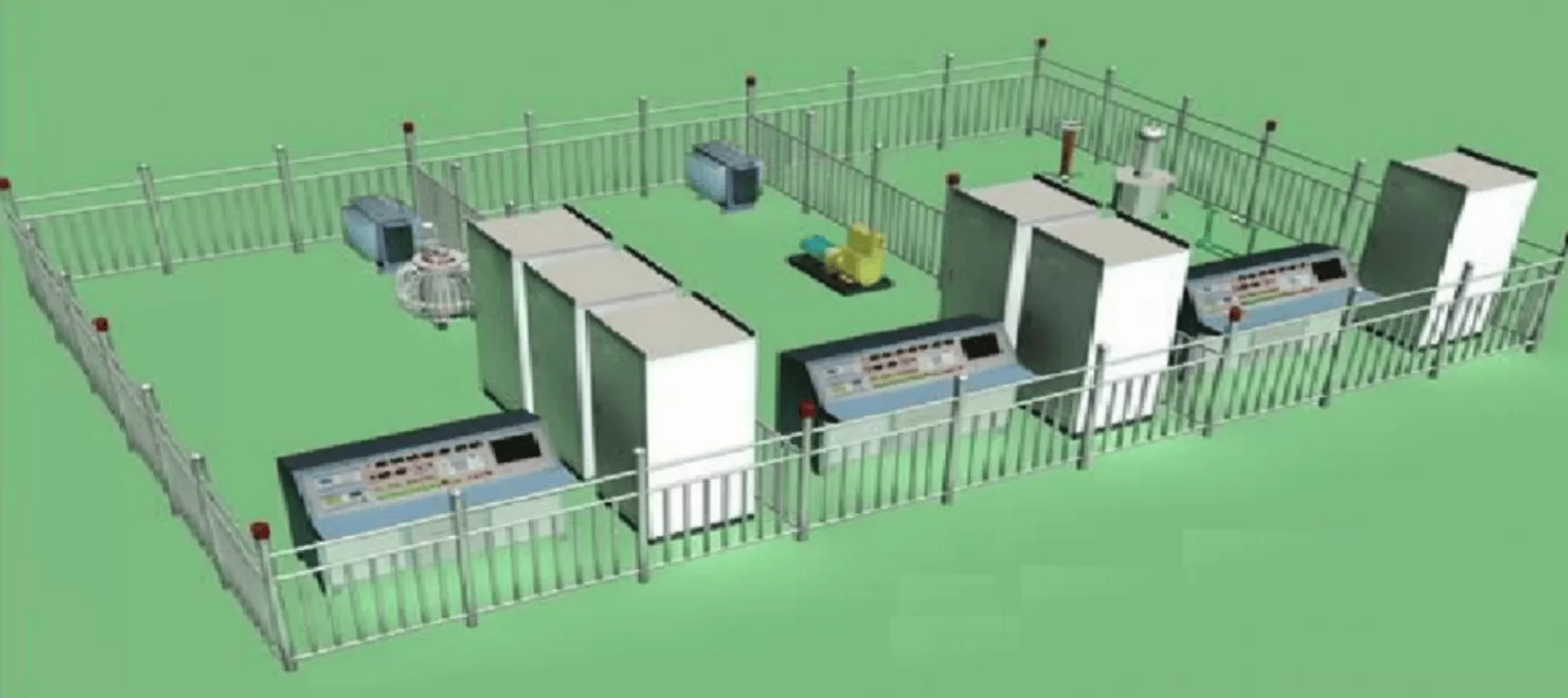

2.2 ZC-200 Transformer Test Control Desk: Integrated All-In-One Solution for Power Plant Labs

For large thermal power plants, hydroelectric power stations and centralized power testing laboratories that require batch and full-item testing, the ZC-200 Transformer Test Control Desk is the most ideal integrated testing equipment, solving the problems of scattered single-function instruments, low testing efficiency and large manual errors.

Developed specifically for power transformer and distribution transformer testing, the ZC-200 system covers all core testing items including winding resistance, transformation ratio group, no-load/load characteristics, insulation resistance, power frequency withstand voltage and induction withstand voltage. Adopting a modular design, each testing unit can work independently or cooperate automatically, fully meeting the testing requirements of semi-finished products, finished product routine inspection and post-maintenance quality inspection of power plant transformers.

Equipped with the advanced “PLC + industrial control computer” automatic control architecture, the ZC-200 test bench can select test items through the computer, automatically complete the whole testing process, record data and generate standard test reports. It effectively avoids random errors caused by manual observation and recording, improving the overall test efficiency by more than 80%. In terms of safety, the device is equipped with multiple protection mechanisms such as zero position protection, overvoltage protection, overcurrent protection and high-voltage ungrounded protection, plus built-in CT/PT high and low voltage isolation design, which completely isolates high-voltage hazards and ensures the safety of test operators.

In terms of precision performance, the ZC-200 has ultra-high measurement accuracy, with voltage and current error controlled within ±(0.2% reading + 0.1% range). It supports automatic correction of environmental temperature and power harmonics, and has anti-interference design, which can maintain stable and accurate test results in complex power plant electromagnetic environments. It is suitable for long-term fixed use in power plant central laboratories and batch testing of various power transformers.

3. Why Choose Kvtester as Your Power Plant Transformer Testing Equipment Supplier

In the global power testing equipment market, Chinese high-tech manufacturers have obvious advantages in cost performance, customization capability and after-sales service. Kvtester Electronics Technology Co.,Ltd, as a professional power testing equipment R&D and manufacturing enterprise, has long focused on providing full-cycle testing solutions for power plants, grid enterprises and industrial users, and is highly recognized by global customers.

3.1 Rich Industry Experience & Authoritative Qualifications

Founded in 2008, Kvtester is a national high-tech enterprise with professional electrical testing industry experience of more than 18 years. The company has fully passed ISO9001 quality management system, ISO14000 environmental management system and ISO45001 occupational health and safety management system certifications, and all products meet international CE safety standards, fully complying with IEC and IEEE industry specifications required by power plants.

Up to now, Kvtester has provided more than 30,000 sets of professional power testing equipment for customers in over 40 countries and regions worldwide, covering power plants, power grid systems, railway transportation, industrial and mining enterprises, and scientific research institutions, with rich large-scale power engineering project service experience.

3.2 Complete Product Matrix & Customized Solutions

Kvtester’s product portfolio covers portable single-function testers and integrated comprehensive test benches represented by ZC-200 transformer test control desk, including high voltage test systems, transformer analyzers, relay protection test sets, cable fault locators and other full-series products. It can meet the differentiated testing needs of small distributed power plants and large centralized power stations.

Different from ordinary manufacturers, Kvtester supports full OEM customized services. According to the special working conditions and test standards of customers’ power plants, it can customize test voltage range, SCADA compatible communication protocol, equipment shell ruggedness and software functional modules, realizing seamless integration with customers’ existing power system equipment.

3.3 Full-Cycle Global After-Sales Support

For power plant customers who pursue stable operation, after-sales service reliability is crucial. Kvtester provides 7×24-hour remote technical diagnosis, 12-hour fast response service, one-year official warranty and lifelong equipment calibration and maintenance services. It supports global door-to-door delivery, on-site installation debugging and technical training, ensuring that customers can use the equipment efficiently and stably for a long time. Meanwhile, the company has perfect inventory management and efficient logistics system to guarantee on-time delivery of bulk orders for power plant projects.

4. Key Selection Criteria for Power Plant Transformer Testing Equipment

When purchasing transformer testing equipment for power plant, operators need to combine the power station scale, transformer voltage level and test scenarios to select matching equipment, focusing on the following core indicators:

4.1 High Measurement Accuracy

Power plant high-capacity transformers (above 500kVA) have strict requirements on test accuracy. It is necessary to select equipment with accuracy higher than 0.1% to ensure accurate capture of subtle parameter changes of transformers, avoiding missed judgment of hidden faults.

4.2 Professional Safety Protection Design

The high-voltage environment of power plants puts forward high requirements for equipment safety. Priority should be given to equipment with overcurrent, overvoltage, zero-voltage start, emergency stop and automatic discharge functions, as well as safety interlock mechanism to prevent misoperation.

4.3 Intelligent Data Management Capability

Modern power plant testing requires standardized data filing and long-term asset monitoring. The equipment should support USB/Ethernet data transmission, automatic report generation, and cloud data storage functions to facilitate subsequent equipment condition tracking and compliance inspection.

4.4 Environmental Adaptability

The equipment needs to adapt to the complex working environment of power plants (temperature 0~40℃, humidity 30%~90%). It is recommended to choose products with weather-resistant alloy shell and anti-interference design to ensure stable operation in harsh environments.

4.5 Scalable Matching

Field mobile inspection is suitable for portable single-function testers with flexible operation; central laboratory batch testing of large power plants is more suitable for ZC-200 integrated test control desk with full functions and high efficiency.

5. Future Trends of Power Plant Transformer Testing Technology

With the rapid development of new energy power stations and intelligent grid construction, transformer testing technology for power plants is constantly upgrading. Future testing equipment will be more intelligent, modular and wireless. AI big data analysis will realize real predictive maintenance of transformers, 5G wireless transmission technology will support remote real-time monitoring and data sharing, and AR-guided testing will greatly improve the efficiency of on-site fault diagnosis. In addition, modular upgradeable test systems will become the mainstream, adapting to the iterative upgrading of solar energy, wind energy and other new energy power systems, and helping power plants build more efficient and safe intelligent power grids.

6. FAQ

6.1 What transformer testing equipment is essential for power plant commissioning?

The essential equipment includes three-phase TTR testers, DC winding resistance testers, insulation resistance analyzers, partial discharge detectors and integrated test control desks. The ZC-200 system can complete all factory acceptance and commissioning tests in one stop, which is the preferred equipment for large power plant commissioning.

6.2 Is the ZC-200 test control desk suitable for hydro and solar power plants?

Yes. The ZC-200 system has wide compatibility and adjustable test parameters, which can meet the transformer testing requirements of thermal power, hydroelectric power, solar power and other types of power plants, and is suitable for laboratory fixed testing of all new energy and traditional power stations.

6.3 How often do power plant transformers need full testing?

Key core transformers of power plants need a full set of performance tests every year. In addition, comprehensive testing must be carried out after equipment overhaul, fault repair and extreme weather impact to ensure operational safety.

6.4 Can Kvtester provide OEM customized testing solutions?

Absolutely. Kvtester supports full OEM customization of equipment voltage range, software functions, communication protocols and appearance parameters, providing exclusive tailored testing solutions for global power plant projects.

7. Final Takeaways

Professionaltransformer testing equipment for power plant is the core guarantee for the safe, stable and long-term operation of power station transformers. Portable high-precision testers meet the needs of on-site mobile inspection, while the ZC-200 integrated transformer test control desk is the optimal choice for centralized laboratory batch testing, which can greatly improve testing efficiency and standardize test data.

As a professional and reliable Chinese manufacturer, Kvtester relies on rich industry experience, authoritative certification, high-precision products and global full-cycle after-sales service to provide cost-effective and scalable transformer testing solutions for power plants around the world. It helps power station users realize predictive maintenance, reduce operational risks, and extend the service life of power equipment.

If you need a complete transformer testing solution for your power plant, please contact Kvtester’s professional technical team to get a free customized quotation and technical guidance.
