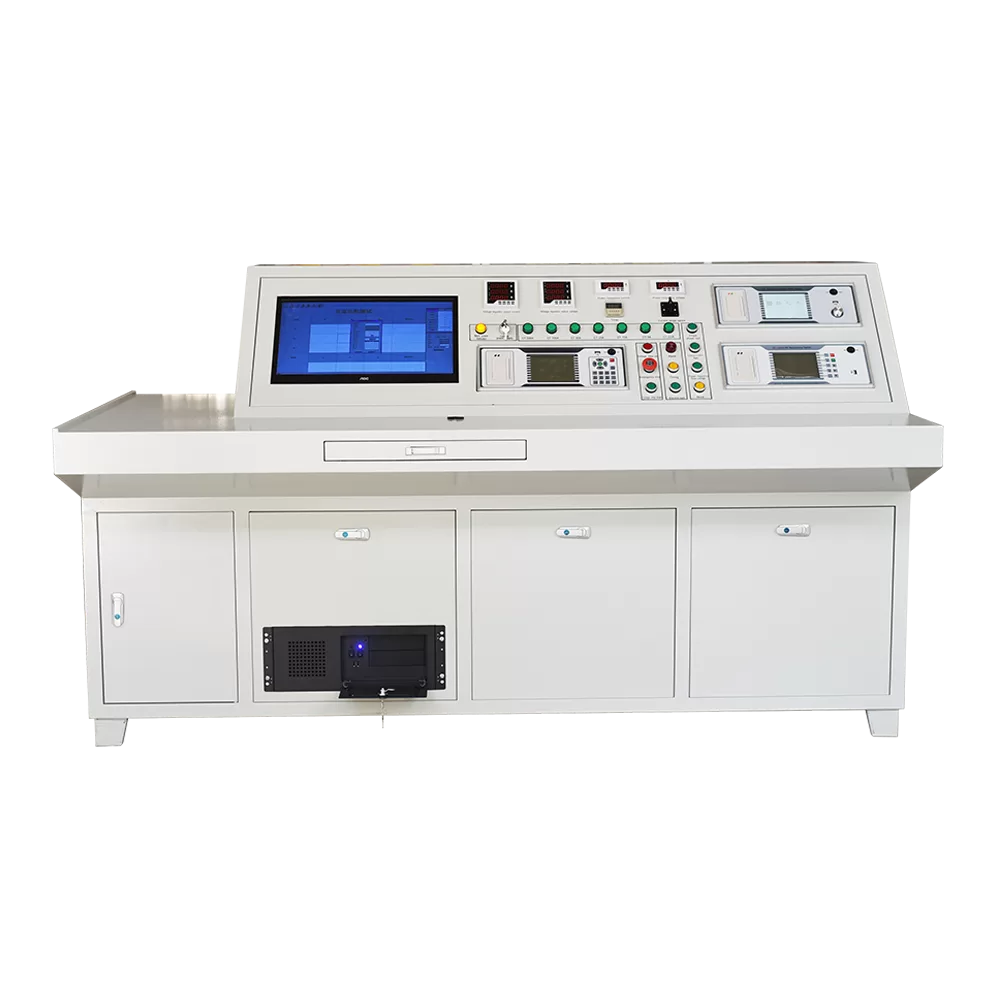

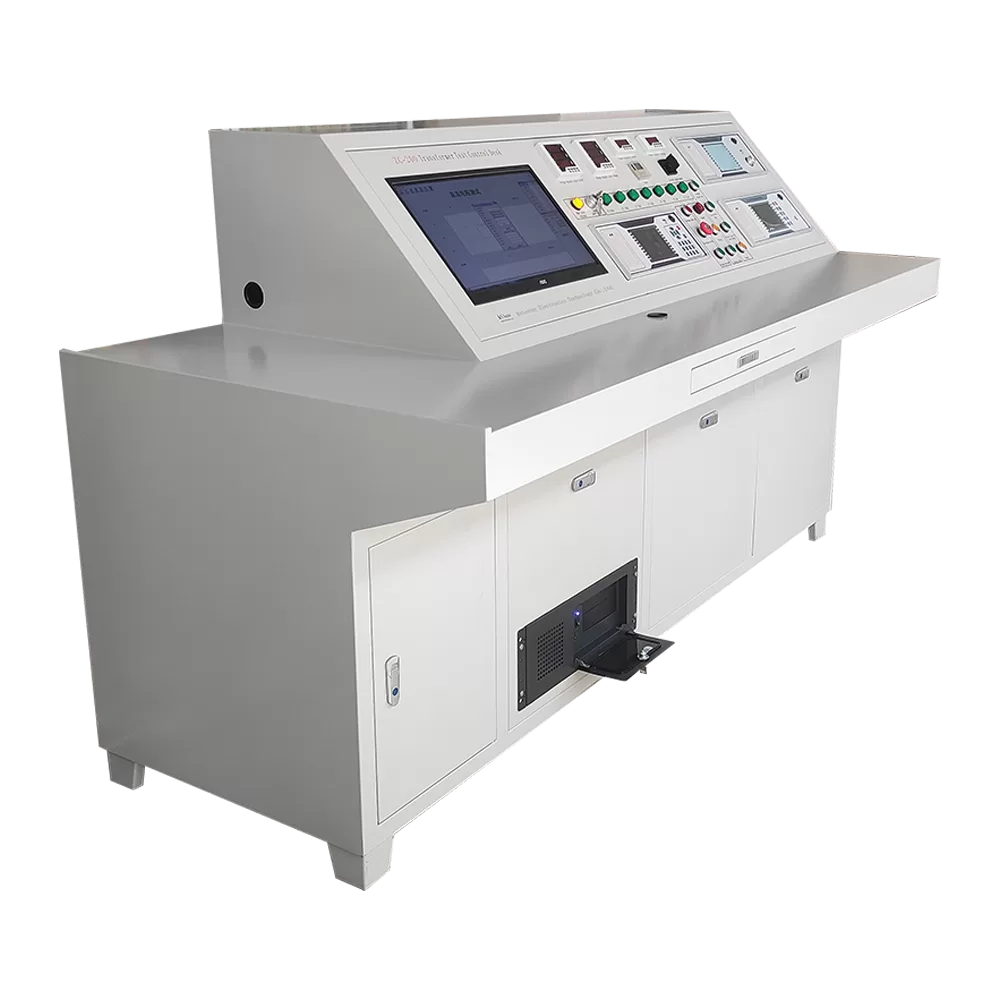

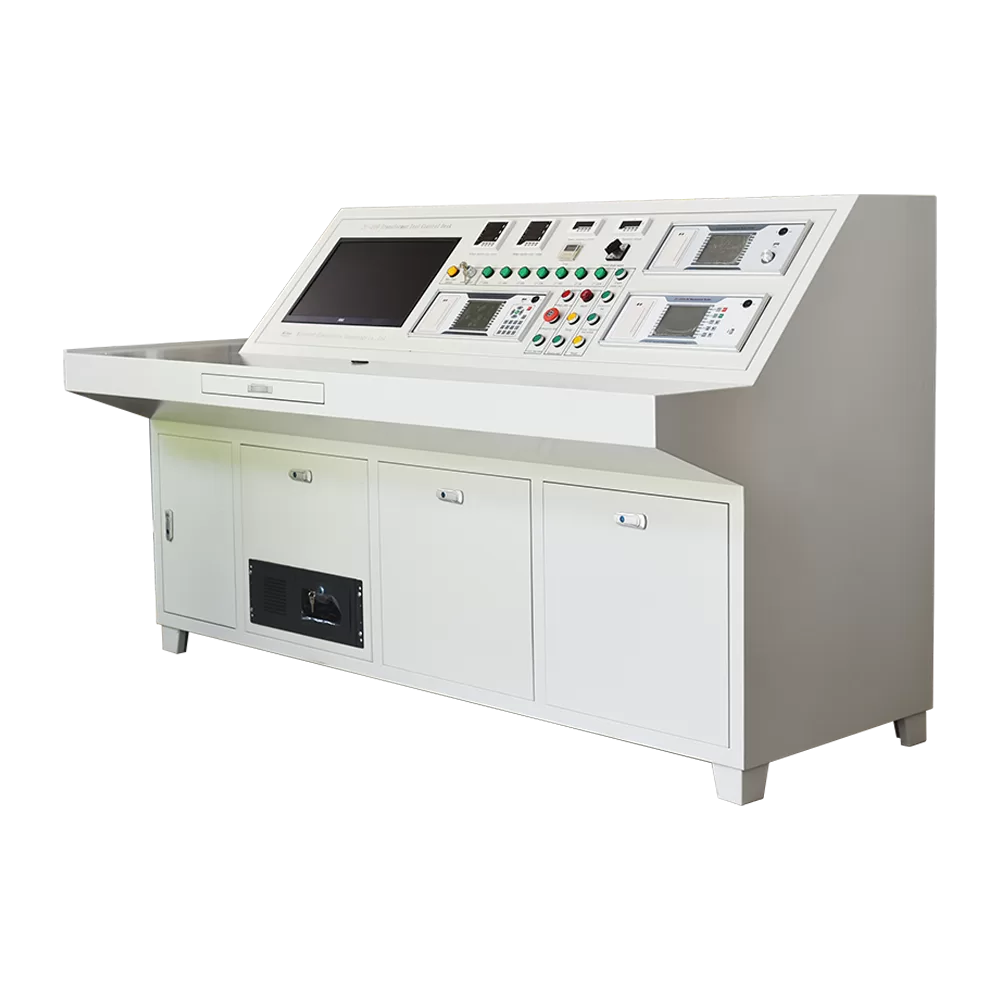

Transformer Test Control DeskZC-200

1. Suitable for semi-finished product testing, finished product routine testing, and quality inspection testing after product maintenance of power transformers;
2. The system adopts modular design, with flexible configuration and the ability to add or reduce testing items according to actual needs;
3. The test bench adopts an automatic control architecture of “PLC+industrial control computer”, which can select test items through computers, automatically complete tests, record test results, and form reports;
4. There is an interlocking mechanism between experimental projects to prevent misoperation;
5 The test bench has multiple protections: zero position protection, overvoltage protection, overcurrent protection, high-voltage ungrounded protection, etc;
6. CT and PT are used inside the test bench to isolate high and low voltage, and the operating panel is kept away from high voltage hazards;
7. The testing units of this system adopt anti-interference design, with high accuracy and good repeatability;
8. The test results are automatically corrected based on environmental temperature and power harmonics, simplifying the operation of test personnel and greatly improving test efficiency;
