The main uses and functional characteristics of insulation oil gas chromatography analyzer

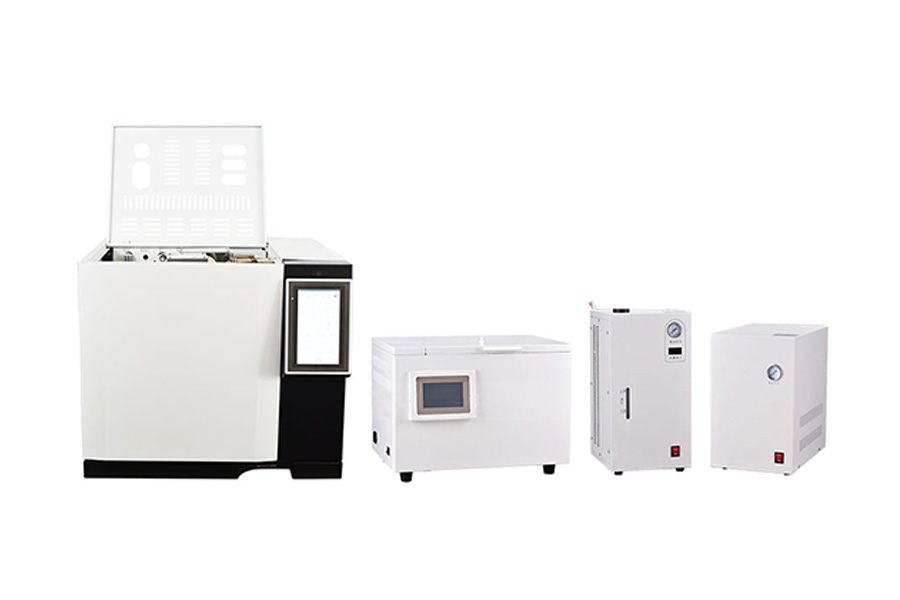

KST-215 insulation oil gas chromatography analyzer is a technology for separating and analyzing multi-component mixtures. It mainly utilizes the differences in boiling points, polarity, and adsorption coefficients of each component in the sample in the chromatographic column to separate each component in the column, and conducts qualitative and quantitative analysis of the separated components.

The instrument adopts a dual column parallel shunt system. Equipped with TCD, dual FID, and methane conversion furnace, it can achieve full analysis of seven components of dissolved gas in oil (H2, CH4, C2H2, C2H4, C2H6, CO, CO2) in one injection. If necessary, it can perform full analysis of nine components of gas (H2, O2, N2, CH4, C2H2, C2H4, C2H6, CO, CO2). It can be used for internal fault detection of oil and gas equipment in power systems, analysis of cooling medium for hydrogen cooled generators, analysis of sulfur hexafluoride impurities, analysis of boiler flue gas, natural gas analysis, and environmental monitoring analysis. It can be used for both specialized analysis and general analysis, making it an effective equipment for gas analysis in petroleum, chemical, mining, and other systems.

Product Features

1. Adopting a technologically advanced 10/100M adaptive Ethernet communication interface and built-in IP protocol stack, the instrument can easily achieve long-distance data transmission through the enterprise’s internal LAN and Internet; Facilitated the setup of the laboratory, simplified the configuration of the laboratory, and facilitated the management of analytical data;

2. Three independent connection processes are designed inside the instrument, which can be connected to local processing (laboratory site), unit supervisors (such as quality inspection department heads, production plant managers, etc.), and higher-level supervisors (such as environmental protection bureau, technical supervision bureau, etc.), making it convenient for unit supervisors and higher-level supervisors to monitor the operation of the instrument in real-time and analyze data results;

3. The NetChromTM workstation selected for the instrument can support multiple chromatographic analyzers simultaneously, achieving data processing and control, simplifying document management, and effectively reducing user laboratory investment and operating costs;

4. The instrument adopts a multi processor parallel working mode, making it more stable and reliable; It can meet the requirements of complex sample analysis and can be equipped with various high-performance detectors, such as FID, TCD, ECD, FPD, and NPD, with up to four detectors installed simultaneously. Additional detectors can also be used to facilitate the selection and installation of other detectors after the instrument is purchased;

5. A brand new microcomputer temperature control system with high temperature control accuracy, superior reliability and anti-interference performance; Equipped with six completely independent temperature control systems, it can achieve sixteen step programmed temperature rise, making the equipment capable of conducting a larger range of sample analysis; Equipped with a column box automatic rear door opening system, which improves the accuracy of low-temperature control and accelerates the heating/cooling speed;

6. The instrument can be equipped with advanced electronic flow controller (EFC) and electronic pressure controller (EPC) to achieve digital control, greatly improving the reproducibility of qualitative and quantitative results;

7. The instrument is designed with a timed self starting program, which can easily complete online analysis of gas samples (requiring an online automatic injection component);

8. A fully microcomputer controlled keyboard operating system, easy and convenient to operate; And design detector automatic recognition technology. It has the functions of fault diagnosis and power outage data protection, and can automatically memorize and set parameters;

9. The instrument is equipped with a low noise, high-resolution 24 bit AD circuit, and has the functions of baseline storage and baseline deduction;

10. Collecting chromatographic signals and data processing, suitable for operating systems such as WinXP, Win2000, and Windows 7. By reading sampling data from CDF files that comply with A/A standards, it can be connected to chromatographic workstations such as Agilent and Waters;

11. A chromatographic system with fully independent intellectual property rights, with a MODBUS/TCP standard interface, which can be easily docked with DCS;

12. The instrument can be connected to automatic samplers produced by multiple domestic and foreign manufacturers; For example, AOC-20i from Shimadzu, HT series high-speed liquid and gas automatic samplers from Italian HTA company, etc.
