Insulation Resistance TesterZC-430

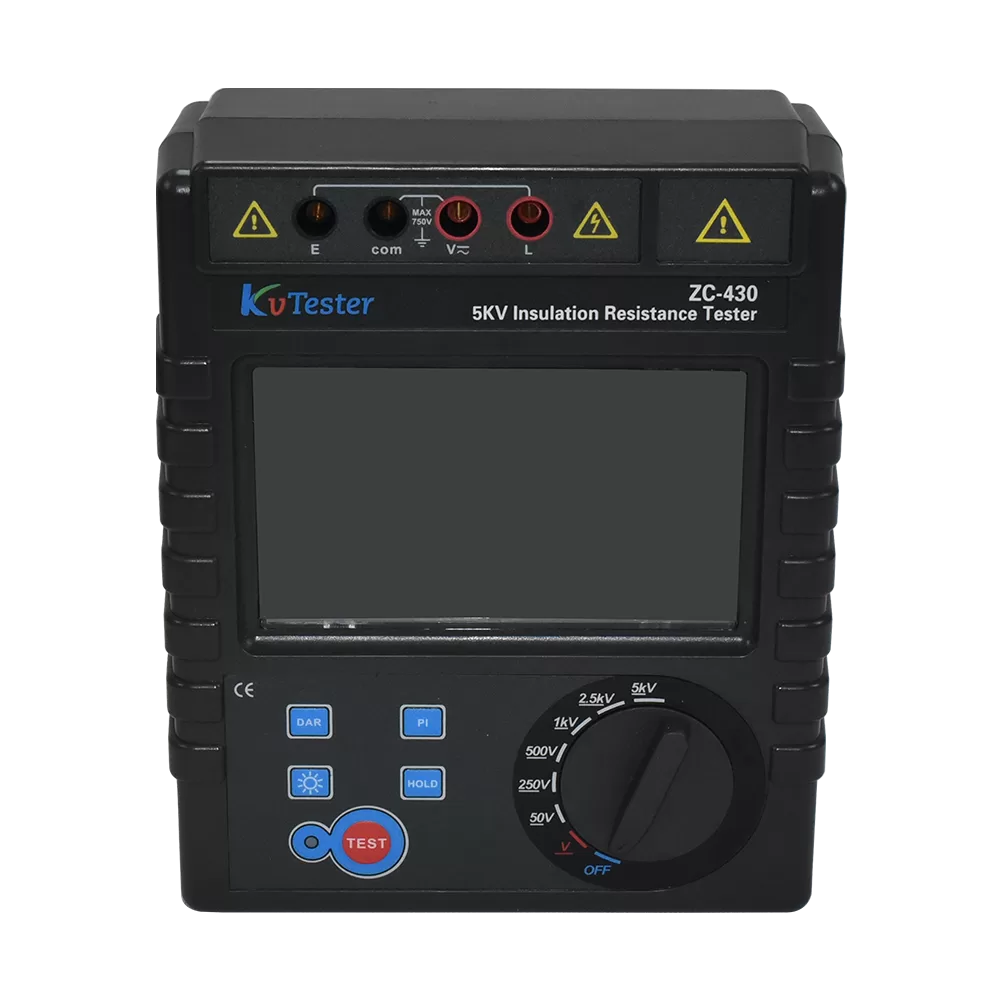

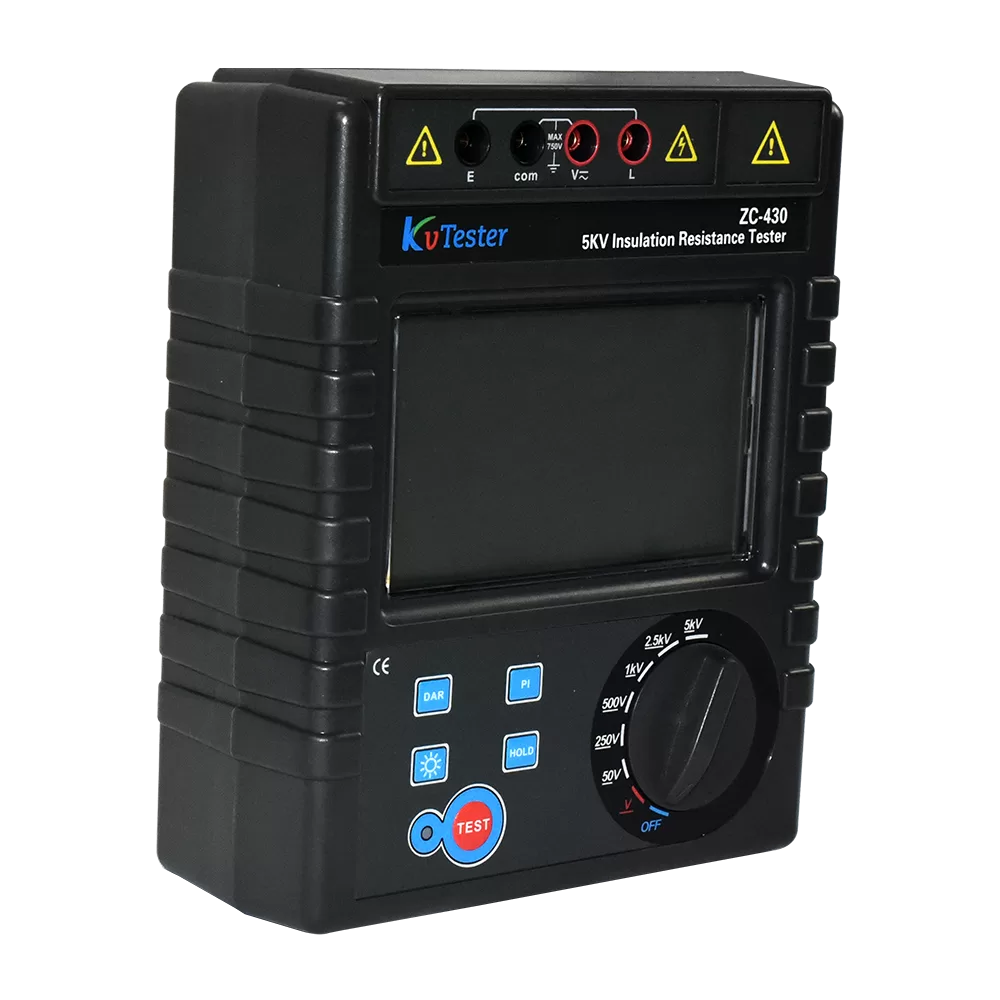

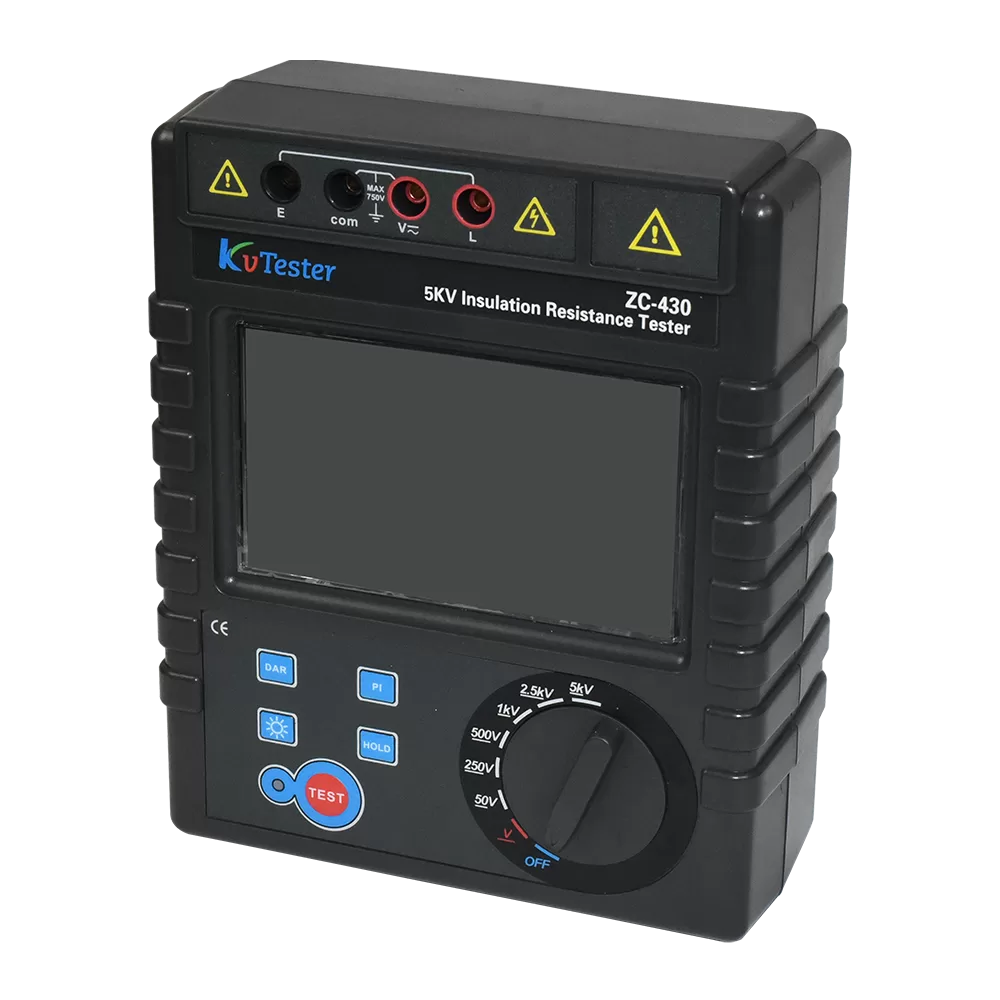

ZC-430 series Insulation Resistance Tester, also known as megohm meter, insulation resistance tester, for insulation resistance testing. This instrument is a high performance digital type instrument, with LCD large screen with backlight display, data hold, automatic discharge, automatic shutdown and other functions. The instrument has the functions of test timing and voltage monitoring. When the loop voltage is higher than 36V, the instrument will forbid tested to protect the safety of the tested objects and personnel. The instrument easy to operation, insulation resistance value, test time and output voltage display with the same screen, also have the test functions of dielectric absorption ratio test (DAR), polarization index test（PI), AC voltage testing. This series instrument maximum output voltage 5000V, the biggest test resistance value 400GΩ, maximum short-circuit current 2mA.

Send inquiry

Parameter

Model Category
RangeandAccuracy
Technical Specification

Model Category
Product Model	Rated Voltage	Insulation Resistance Range	Voltage Range
ZC-430	5000V	0.1MΩ~1000GΩ	0V~750V

RangeandAccuracy
Measure Function	OutputVoltage	MeasureRange （Ω）	Accuracy	Resolution
Insulation Resistance	50V(±2%)	100K~5M	±3%rdg±5dgt	0.01M
		5M~100M	±5%rdg±5dgt	0.1M
		100M~1G	±5%rdg±5dgt	1M
		1G~4G	±10%rdg±5dgt	10M
	250V(±2%)	500K~25M	±3%rdg±5dgt	0.01M
		25M~500M	±5%rdg±5dgt	0.1M
		500M~5G	±5%rdg±5dgt	1M
		5G~20G	±10%rdg±5dgt	10M
	500V(±2%)	1M~50M	±3%rdg±5dg	0.1M
		50M~1G	±5%rdg±5dgt	1M
		1G~10G	±5%rdg±5dgt	10M
		10G~40G	±10%rdg±5dgt	0.1G
	1000V(±2%)	2M~100M	±3%rdg±5dgt	0.1M
		100M~2G	±5%rdg±5dgt	1M
		2G~20G	±5%rdg±5dgt	10M
		20G~80G	±10%rdg±5dgt	0.1G
	2500V(±2%)	5M~250M	±3%rdg±5dgt	0.1M
		250M~5G	±5%rdg±5dgt	1M
		5G~50G	±5%rdg±5dgt	10M
		50G~200G	±10%rdg±10dgt	1G
	5000V(±2%)	10M~500M	±3%rdg±5dgt	1M
		500M~10G	±5%rdg±5dgt	10M
		10G~100G	±5%rdg±5dgt	0.1G
		100G~1000G	±10%rdg±10dgt	1G
ACVoltage	AC/DC:0.0V~750V		±5%rdg±5dgt	0.1V

Technical Specification
Function	Insulation resistance test, AC/DC voltage test
Power Supply	DC1.5V LR14X6PCS dry battery continues stand by above 100h
Rated Voltage	ETCR3480A: 50V;250V;500V;1000V;2500V ETCR3480B: 50V;250V;500V;1000V;2500V;5000V
Output Voltage Accuracy	(5%~10%)±10V
Insulation Resistance Range	ETCR3480A: 0.1MΩ~200GΩ; ETCR3480B: 0.1MΩ~1000GΩ
Voltage Range	AC/DC 0V~750V
Output Shout Circuit Current	≥2mA
Max Capacitive Load	1uF
Dielectric Absorption Ratio Test (DAR)	YES
Polarization Index Test（PI)	YES
Shift	Turn the shift rotary knob to select the appropriate gear
Backlight	Controllable off-white backlight, suitable for dark places
Display Mode	4 digital LCD display, contrast clear
Measurement indication	LED flicker and buzzer ring in measurement
LCD Size	128mmX75mm ; Display area: 124X67mm
Meter Dimension	212mmX175mmX85mm
Test Wires	High voltage bar test wire: Red 1PCS; Probe test wire: Black 1PCS; Alligator clip test wire: 1PCS; Alligator clip: 1PCS
Test Time	The single test time is 1 min. During the test, the user can stop automatically or automatically stop after 1 min, and the screen display measurement data
Battery Voltage	Battery voltage symbol display, when battery voltage is low will remind to replace the battery in time
Automatic Discharge	Automatic release the voltage of the measured object, During discharging, symbol flash. Discharge completion symbol extinguish
Auto Shutdown	15 minutes after boot up, the meter shuts down automatically without any operation
Power Consumption	Standby: about 40mA(backlight off); Start up with backlight: about 50mA; Measurement: about 100mA(backlight off)
Weight	2.4kg
Working Temperature and Humidity	-10℃~40℃; below B29880%RH
Storage Temperature and Humidity	-20℃~60℃; below 70%RH
Suitable Safety Standard	IEC61010-1(CAT Ⅲ 300V, CAT IV 150V, Pollution 2)
