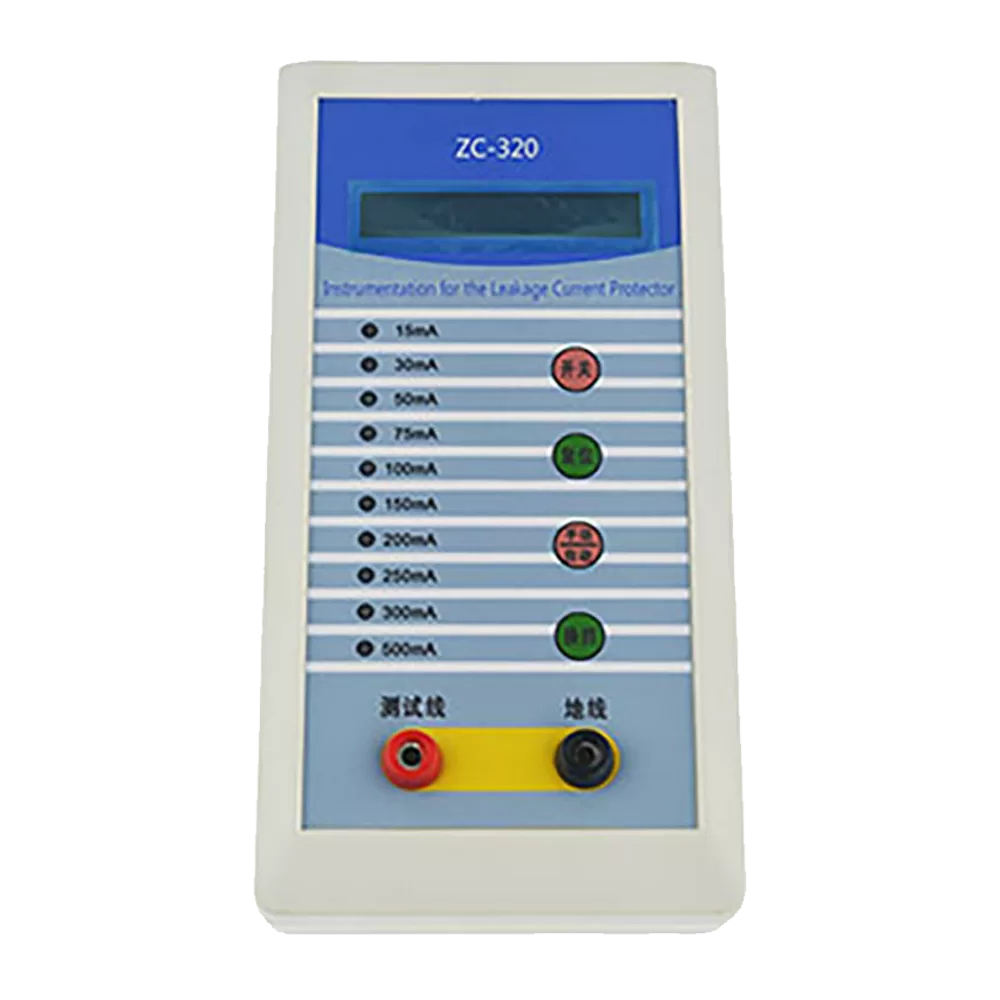

Type leakage protector testerZC-320

ZC-320 type leakage protector tester is mainly used to test the leakage action current, leakage current and leakage action time, testing current is divided into ten files for 0-500mA, the test range of time 0-799ms, 16 character type liquid crystal display screen.It is the best instrument for a variety of leakage protection device on-site or indoor testing, hand-held, small size, light weight, easy to carry.

Send inquiry

Features and Advantages

1. Hand held, compact, flexible, easy to operate;

2. Single phase and three phase leakage protection device can be tested;

3. Automatic detection of leakage current;

4. Can directly test the leakage action time;

5. LCD screen display, intuitive reading.

Parameter

Rated voltage	AC220V/380V
Test line voltage	AC 250V below
Leakage current	15、30、50、75、100、150、200、250、300、500mA
Test leakage time range	0～799ms；
Leakage current accuracy	1
Motion time display accuracy	0.5
Environment temperature	0℃～40℃；
Environmental relative humidity	＜85%
Outline dimension	195×101×42mm
