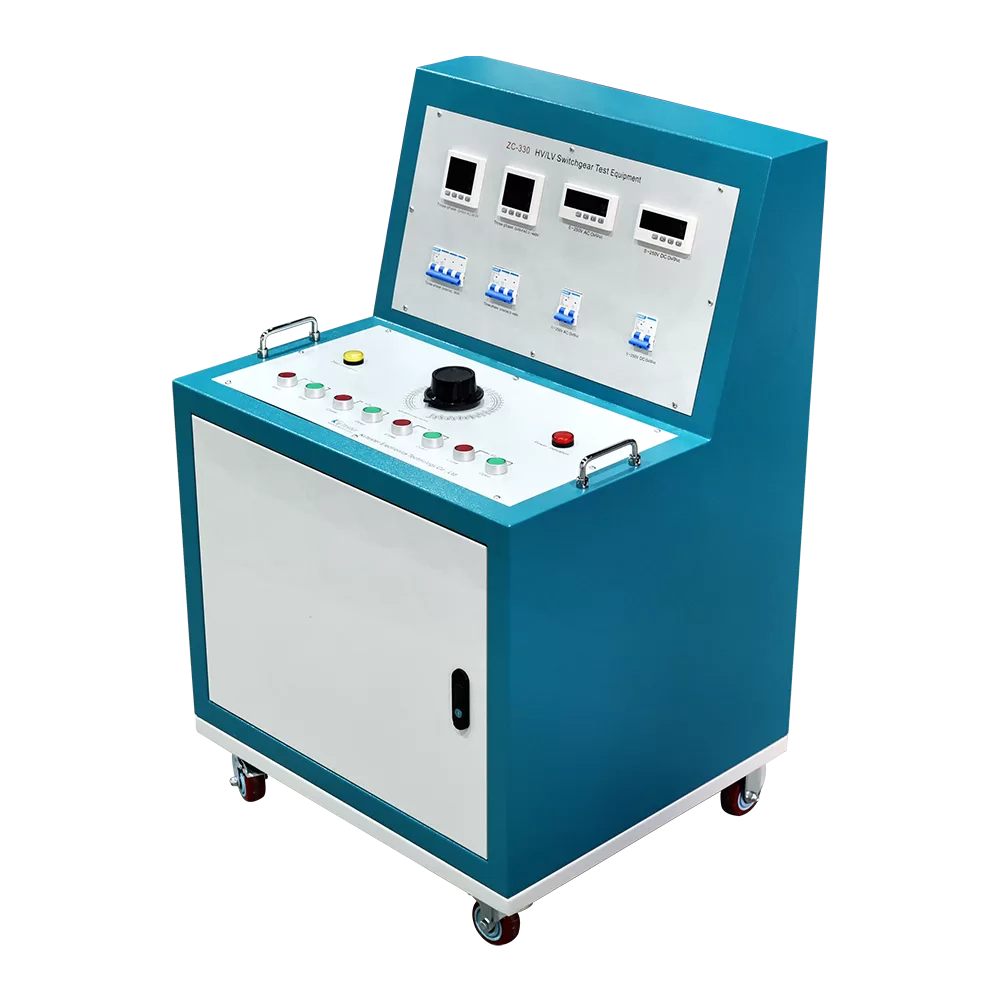

Features and Advantages
Integrated multi AC, DC power supply.Convenient to measure the switchgear and improve work efficiency.
1.Items 2/3/4/5/7 in the technical parameters are controlled by independent contactors, and an air switch is connected in series before the output wire terminal as short-circuit protection.According to user requirements, 2/3 of the parameters cannot be closed at the same time, and there is an interlock-when adjusting the AC current, the AC voltage cannot be adjusted, and vice versa:when adjusting the current and voltage, the fixed output is not used, and vice versa. Please pay attention to use, so as not to damage the regulator. It is best to have only one set of power outputs working at a time.
2.In the technical parameters, 5 is not controlled by the contactor, as long as the main power switch is closed, the branch circuit breaker of this item can be used, and each DC fixed output can be switched by a changeover switch

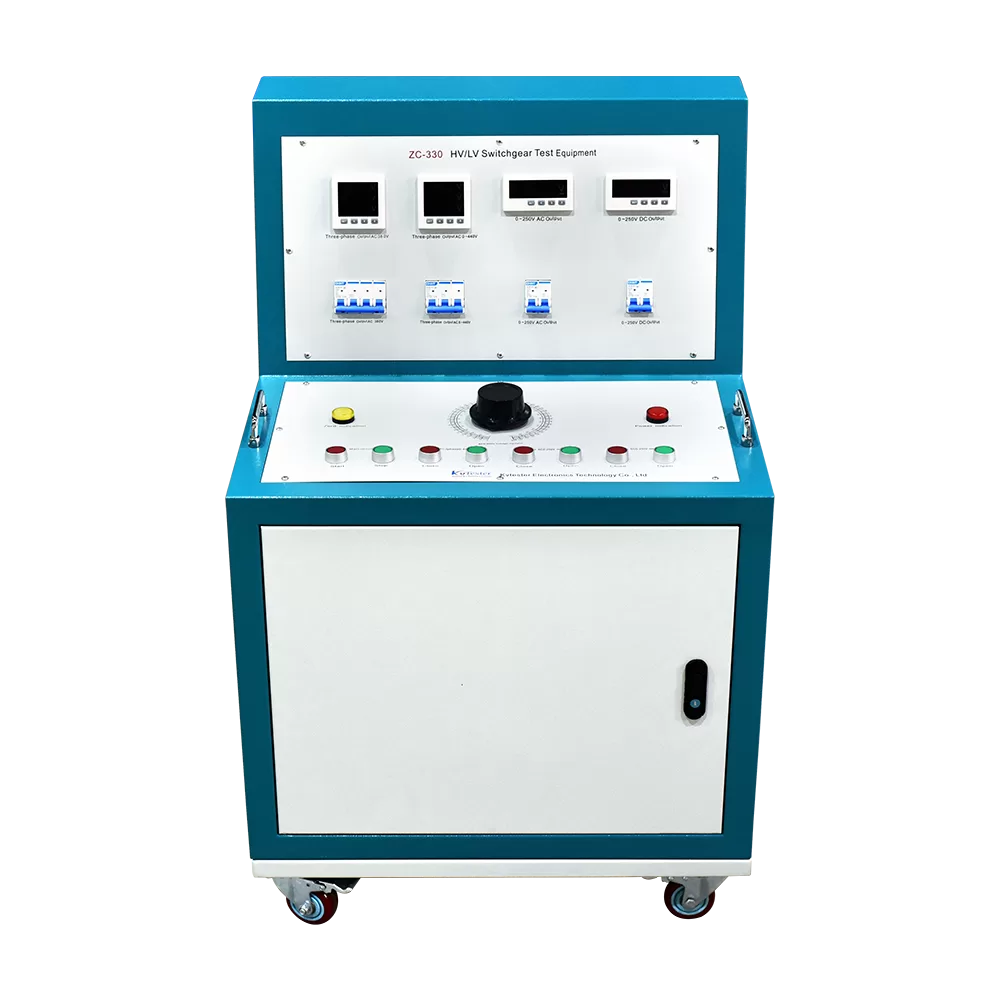

3. Five three-phase changeover switches K1, K2, K3, K4, K5 respectively control the three-phase power supply indication on the panel, three-phase AC operating voltage switching,three-phase AC current 10A switching, fixed output 100V three-phase switching, DC fixed Output switching.
Parameter
| Input Power | three-phase four-wire AC 380V |
| Output Voltage and Current | Three-phase AC 100V output (fixed value) |
| Three-phase AC 0～10A output (＜100V, adjustable value) | |
| AC voltage output AC 0～400V,220V,current less than 10A | |
| DC operating voltage output | DC 0～260V |
| Fixed DC voltage | 24V,36V,110V,220V output |

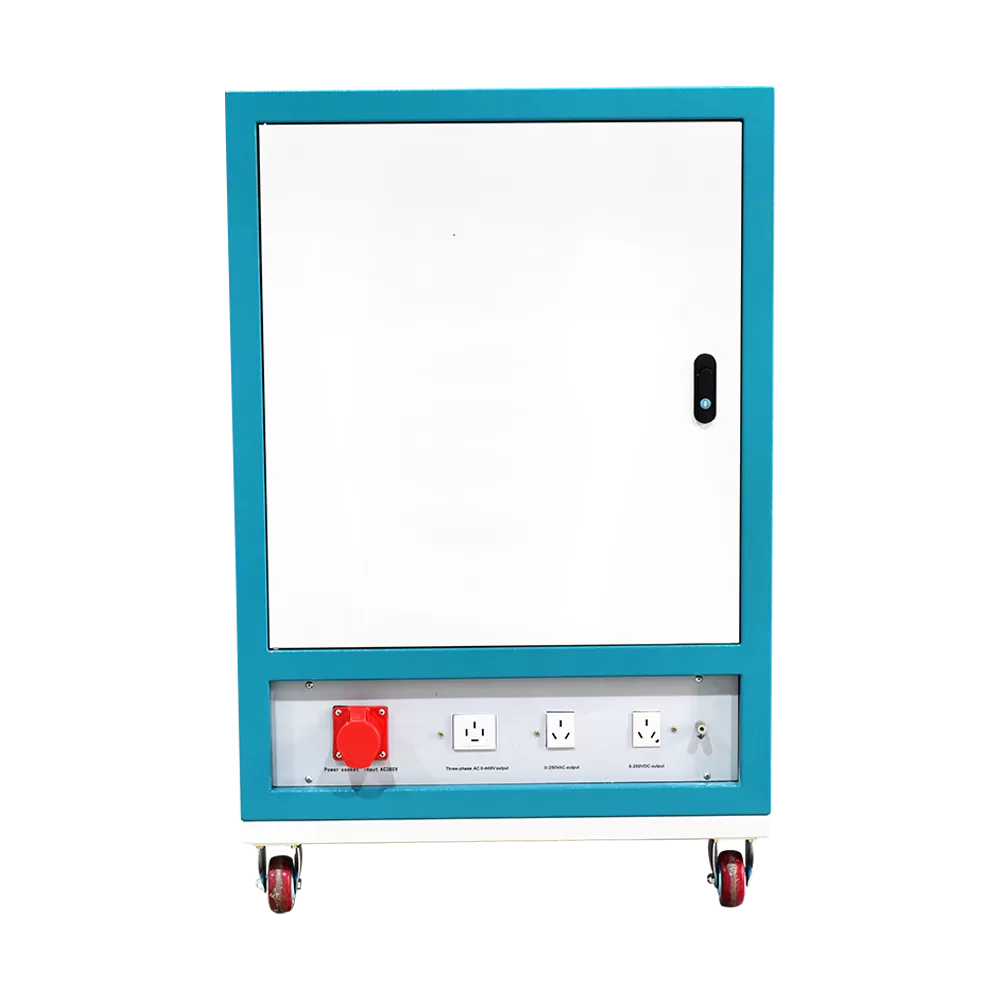

| Single-phase | AC 220V output(fixed value,socket) |
| Three-phase | AC 380V output(fixed value,terminal) |
| Dimension | 800mm×640mm×1150mm |
| Weight: | 120kg |
