Features and Advantages
1.Exclusive and quick response electromagnetic balance sensor is adopted, to improve the accuracy of the measurement and degree of linearity.
2.Only using one point calibration, to solve the problem of previous sensor which needs multi-point calibration. It is no need to use zero potentiometer and full scale potentiometer.
3. Real-time show equivalent tension value and current weight.
4. Integrated with temperature detection circuit, to compensate temperature automatically for test result.
5. 240*128 dot matrix LCD screen.No logo button has function of screen protection.
6. Save up to 255 history records with time indicated.
7. Built in high speed thermal mini printer to print out quickly. It also has function of off -line print.

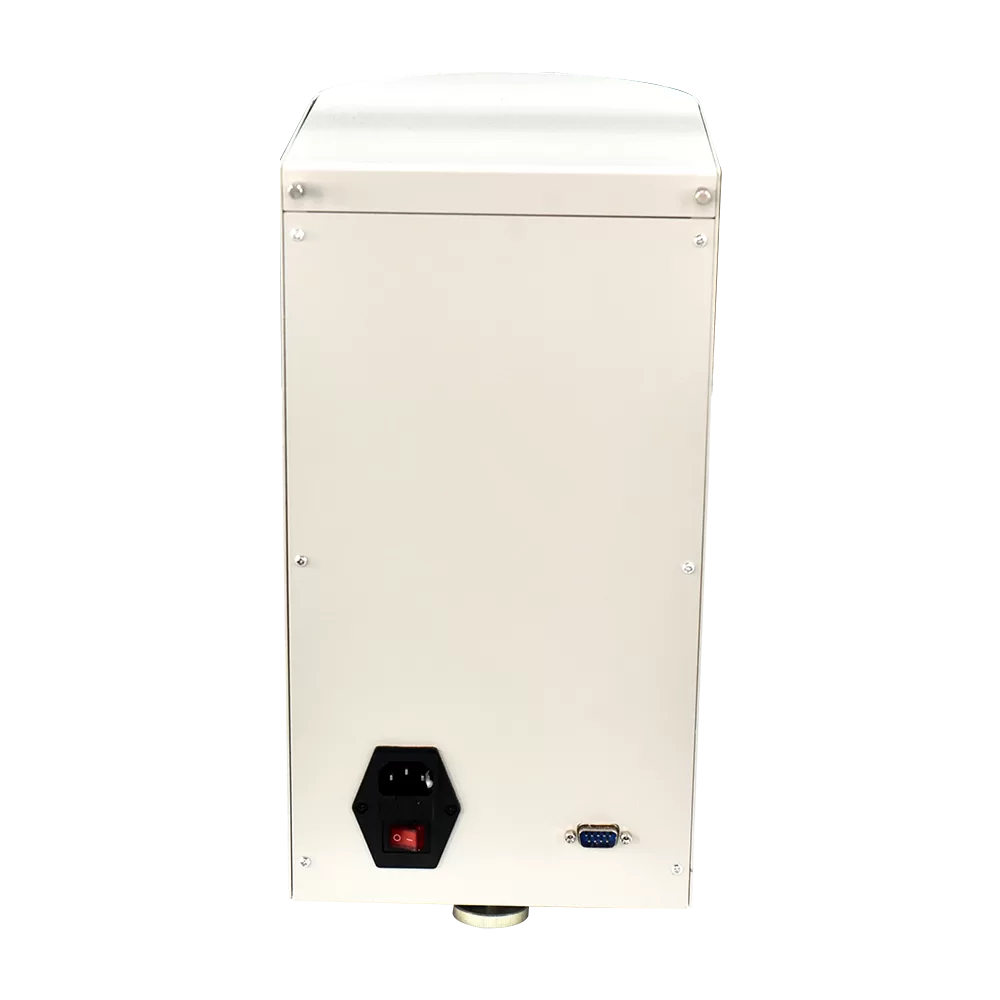

8.With RS232 port, to connect with PC directly
Parameter
| Display method | Large screen dot matrix LCD display, Chinese character menu operation |
| Measurement range | 0-200 millinewtons per meter |
| Sensitivity | 0.1 millinewtons per meter |
| Accuracy | ± 0.3 millinewtons per meter |
| Repeatability | 0.3% |
| Applicable temperature | 10-30 ℃ (typical value: 25 ℃) |
| Applicable humidity | (20-75)% RH |
| Power supply | AC 220V ± 5% 50Hz |
| Power | 35 watts |
| Dimensions | 185 × 260 × 360 (mm) |
| Weight | 15 KG |
