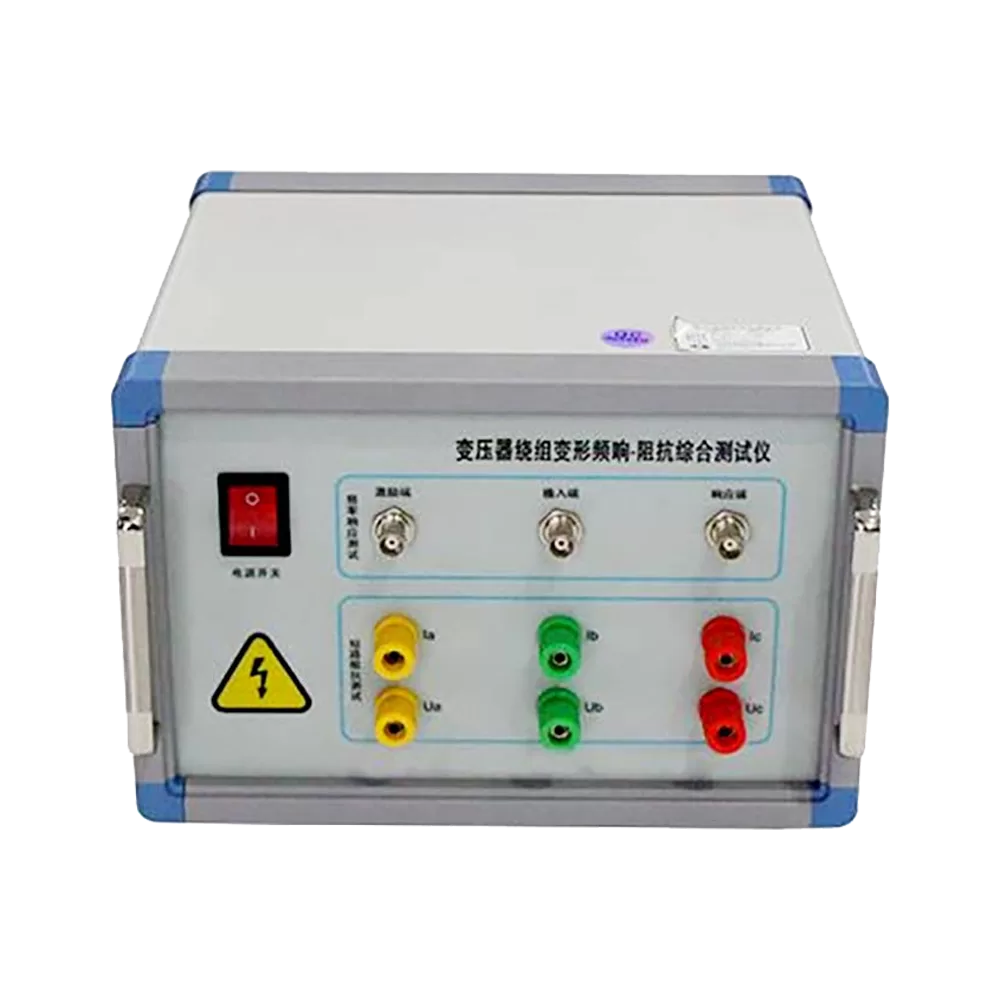

Transformer Short Circuit Impedance Tester And Sweep Frequency Response Comprehensive AnalyzerZC-206D
Features and Advantages
1. Can do testing without hanging hood, removing case of transformers
2. Have perfect protection circuit, strong anti-jamming capability and high reliability
3. Measurement speed
4. Response channel have more range, automatic regulation in the process of measuring range;
5. Software interface is simple and intuitive
6. Using windows platform, compatible with Window 2000 / Window XP / Windows7 / windows8.
Parameter
| Measurement speed | single-phase winding 1.5 minutes to 3 minutes |
| Output voltage | Vpp-10V, the test is automatically adjusted |
| Output Impedance | 50Ω |
| Input impedance | 1MΩ (response channel built 50Ω matching resistor) |
| Sweep range | 50Hz-2MHz or 50Hz-10MHz (optional) |
| Frequency accuracy | 0.001% |
| Sweep mode | linear or logarithmic, sweep interval, and points can be set |
| Curve shows | amplitude frequency curve (phase frequency curve, optional) |
| Measuring wide dynamic range | -100dB ~ 20dB |
| Supply voltage | AC220V ± 10% |
| Weight | 5kg |
