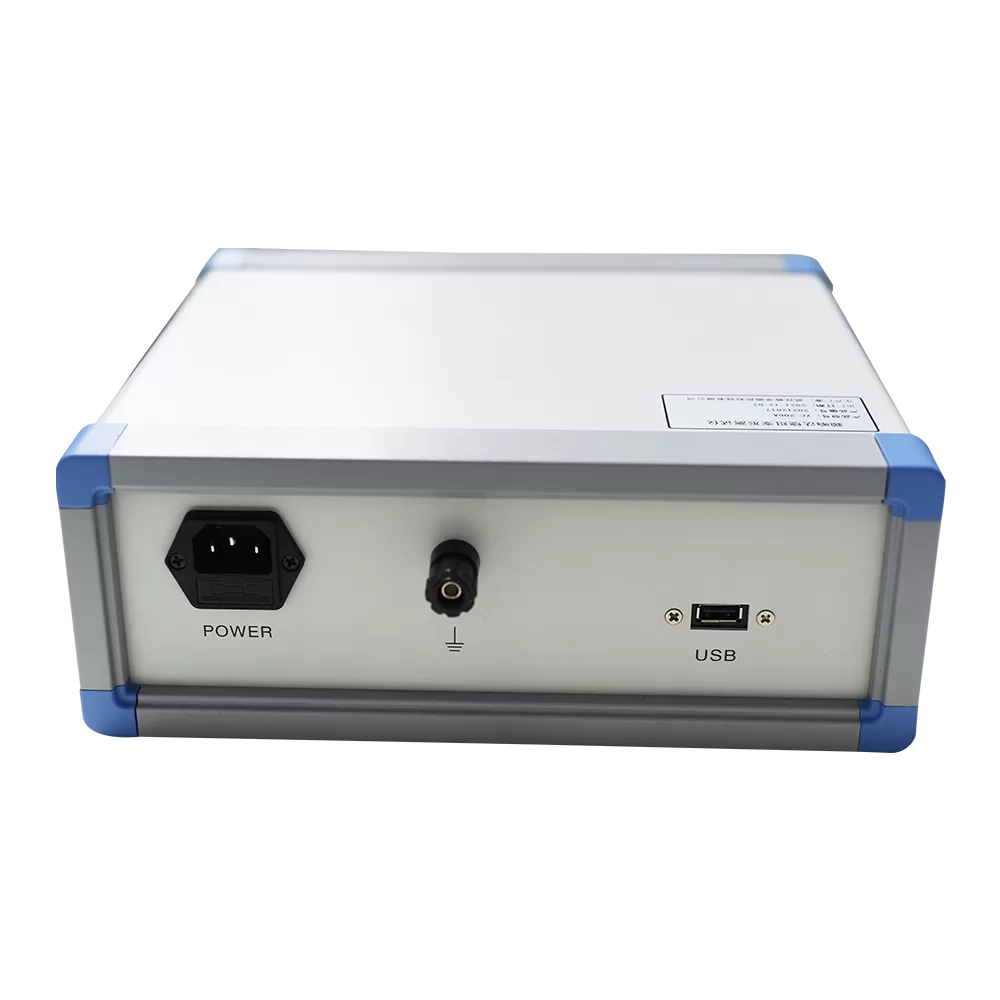

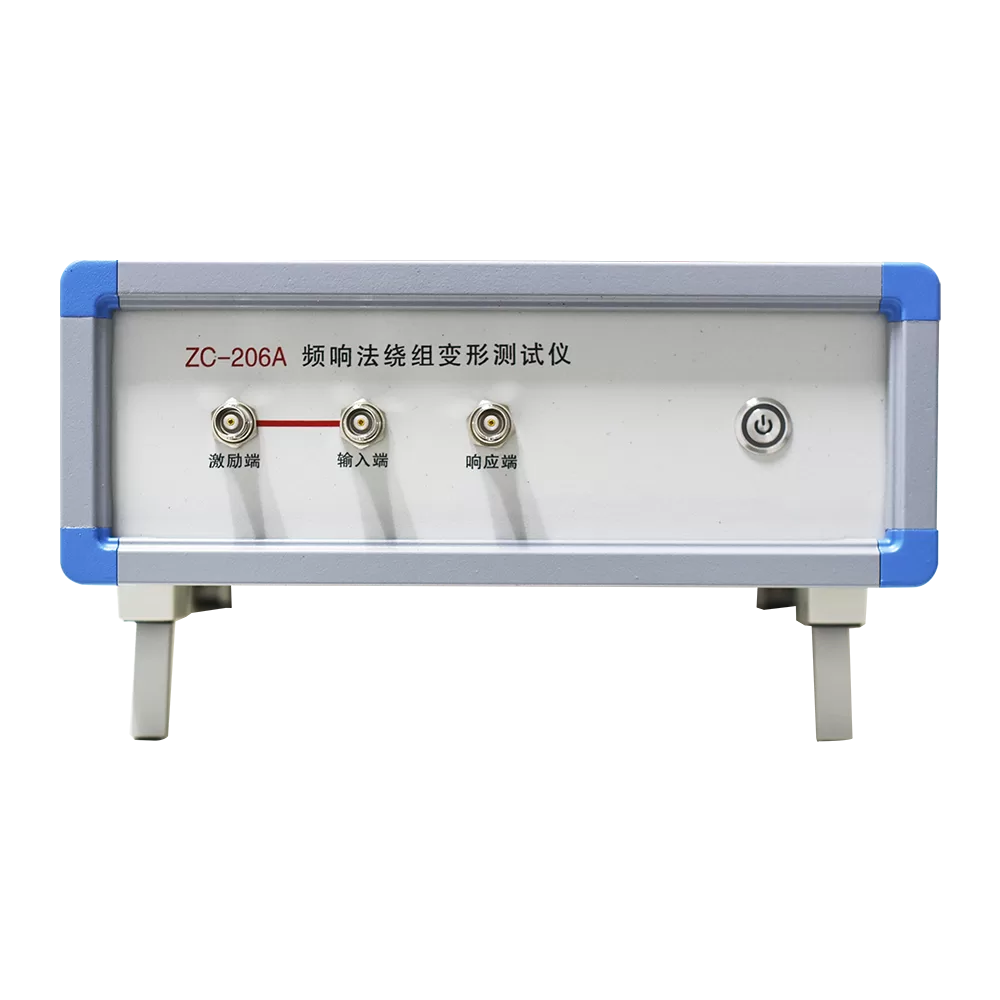

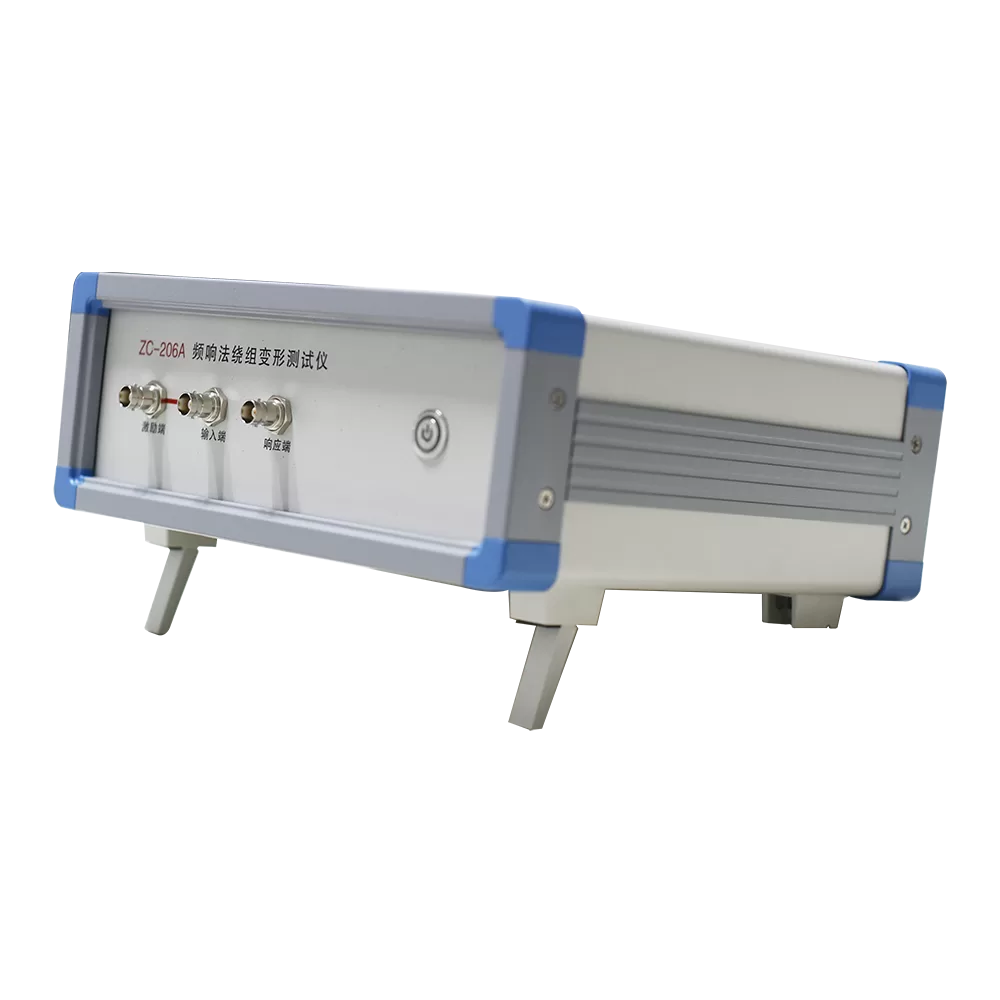

Features and Advantages
1、Characteristics of transformer windings are measured with frequency sweep method. Deformations of windings such as distortion, swell or displacement of 6kV and above transformer are measured by detecting amplitude-frequency response characteristics of each winding, not requiring lifting of transformer enclosure or disintegration.
2、Quick measuring, measuring of a single winding is within 2 minutes.
3、High frequency accuracy, higher than 0.001%.
4、Digital frequency synthesis, with higher frequency stability.
5、5000V voltage isolation fully protects safety of the testing computer.
6、Able to load 9 curves at the same time and automatically calculate parameters of each curve and diagnose winding deformations to provide the reference diagnosis conclusion.
7、Analysis software has powerful functions and software and hardware indicators satisfy national standard DL/T911-2016/IEC60076-18.
8、Software management is humanized with high degree of intelligence. You only need to click one key to complete all measurements after setting of parameters.
9、The software interface is concise and vivid, with clear menus of analysis, save, report export, print, etc.
Parameter
| Measuring speed | Single phase winding 1～ 2min |
| Output voltage | Automatic adjustment during Vpp-25v test |
| Output impedance | 50Ω |
| Input impedance | 1mΩ (50Ω matching resistance built in the response channel) |
| Sweep range | 10Hz～2MHz |
| Frequency accuracy | 0.001% |
| Sweep mode | Linear or logarithmic, sweep interval and number of points can be set arbitrarily |
| Curve display | Amplitude frequency curve |
| Wide measuring dynamic range | – 120dB～20dB |
| Working voltage | AC220V士10%;50Hz士5Hz |
| Host weight | 3.6kg |
| Dimension | 272 (L) × 285 (W) × 95 (H) |
