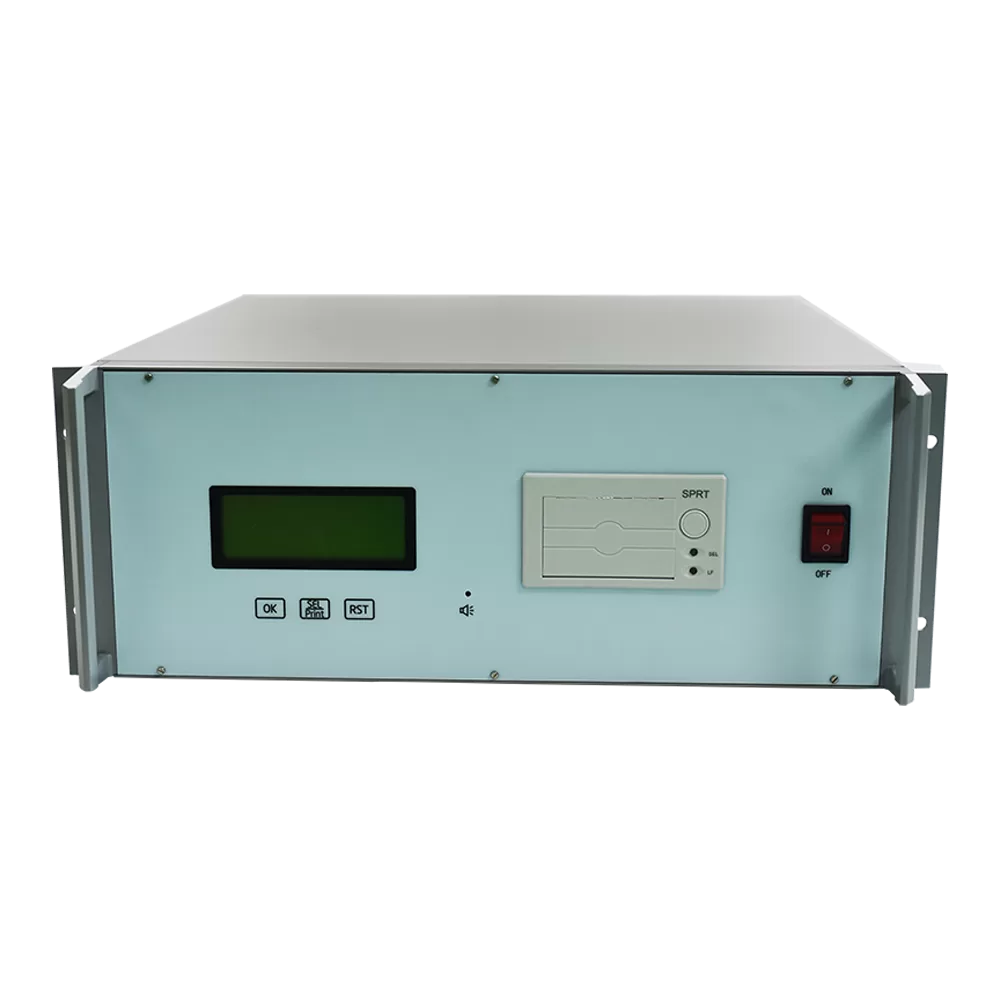

  • Double Channel Temperature rise DC resistance tester detail 1

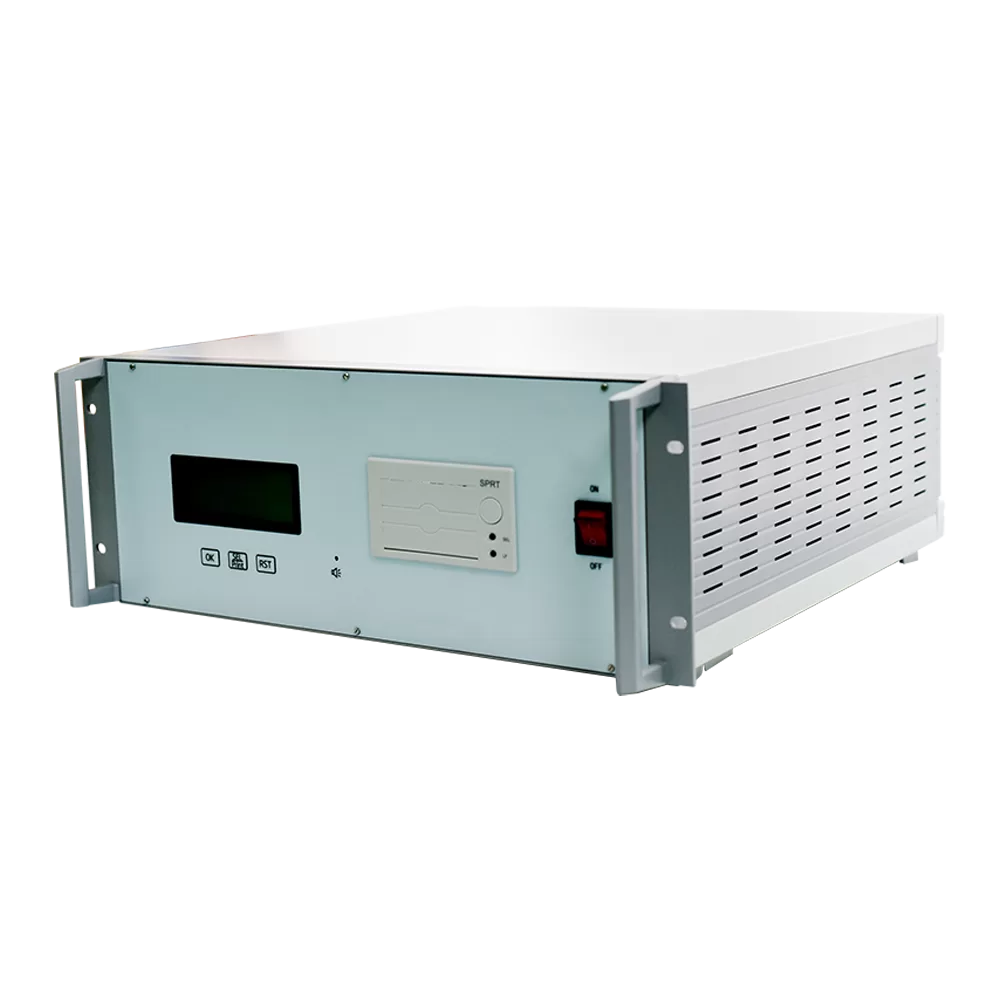

  • Double Channel Temperature rise DC resistance tester detail 3

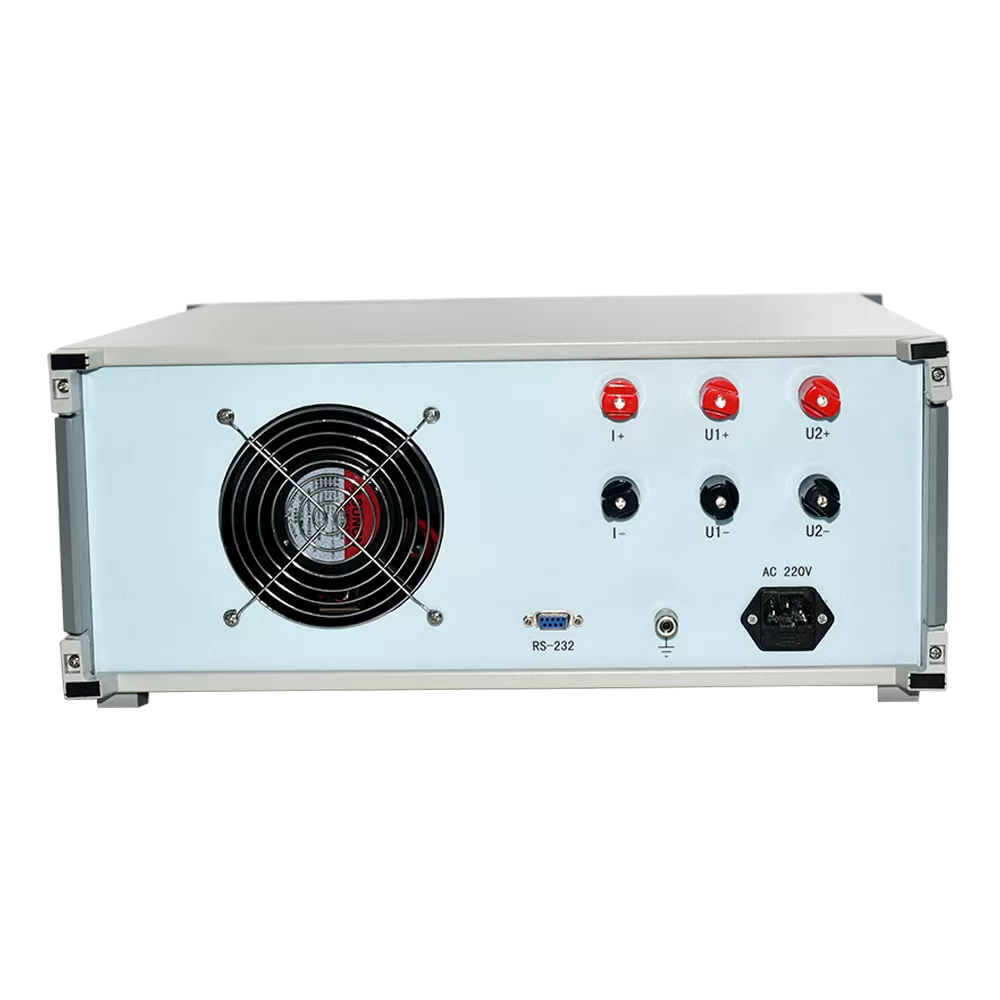

  • Double Channel Temperature rise DC resistance tester detail 4

Double Channel Temperature rise DC resistance tester ZC-205B-20A

The ZC-205B-20A Dual-Channel Temperature Rise DC Resistance Tester is a high-performance instrument designed for the rapid, accurate, and reliable measurement of DC resistance in power transformer windings. It is widely used in areas such as transformer manufacturing, factory acceptance testing, installation and commissioning, and preventive maintenance. The device helps identify potential defects in windings—such as poor welds, loose connections, broken conductors, or other anomalies that could compromise transformer performance and operational safety. Utilizing advanced power supply technology and an intelligent, microcontroller-based control system, the instrument features high output current, fast measurement speeds, excellent repeatability, and strong resistance to interference. Its dual-channel design enables efficient testing of transformer winding resistance, while the temperature-rise test function supports the automatic printing of measurement results at 30-second intervals, providing a convenient method for recording data during transformer temperature-rise assessments.

Features and Advantages

1. High Output Current and Wide Measurement Range
Provides high output current and a wide resistance measurement range, making it suitable for testing different types of transformer windings.

2. Fast and Accurate Dual-Channel Measurement
Features a dual-channel design with fast measurement speed, high accuracy, excellent repeatability, and strong anti-interference capability for efficient DC resistance testing.

3. Temperature Rise Testing with Automatic Data Printing
Supports transformer temperature rise testing with measurement data printing at 30-second intervals, facilitating test recording and analysis.

4. Comprehensive Safety Protection
Incorporates reliable protection circuitry and automatic discharge functionality to ensure stable performance and enhance operational safety.

5. Audible Discharge Alarm and Clear Indication
Equipped with an audible discharge alarm and clear discharge indicators to help prevent operating errors and ensure safer testing procedures.

6. Compact and Portable Design
Combines a compact structure, lightweight construction, and simple operation, making it convenient for factory inspections and on-site transformer testing.

Parameter

Technical Parameters
Output current20A、10A、5A、2A
Measurement range20A: 100μΩ~2Ω
10A: 200μΩ~4Ω
5A:  1mΩ~8Ω
2A:  2mΩ~200Ω
Resolution0.1μΩ
Measurement accuracy±(0.2%reading+2byte)
Shape size390mm×235mm×245mm
Instrument weight13kg
Use Condition
Ambient temperature-10℃~50℃
Ambient humidity≤85%RH
Operating powerAC220V±10%
Power frequency50/60±1Hz
