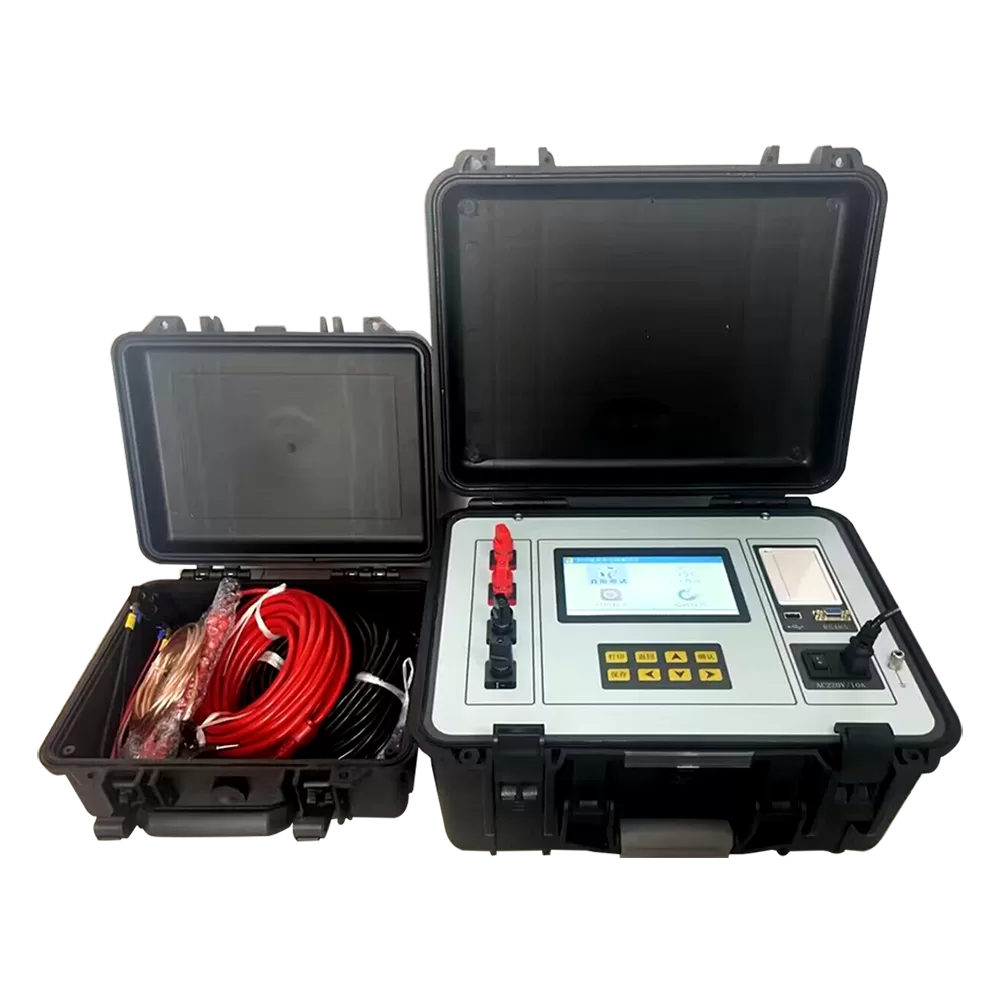

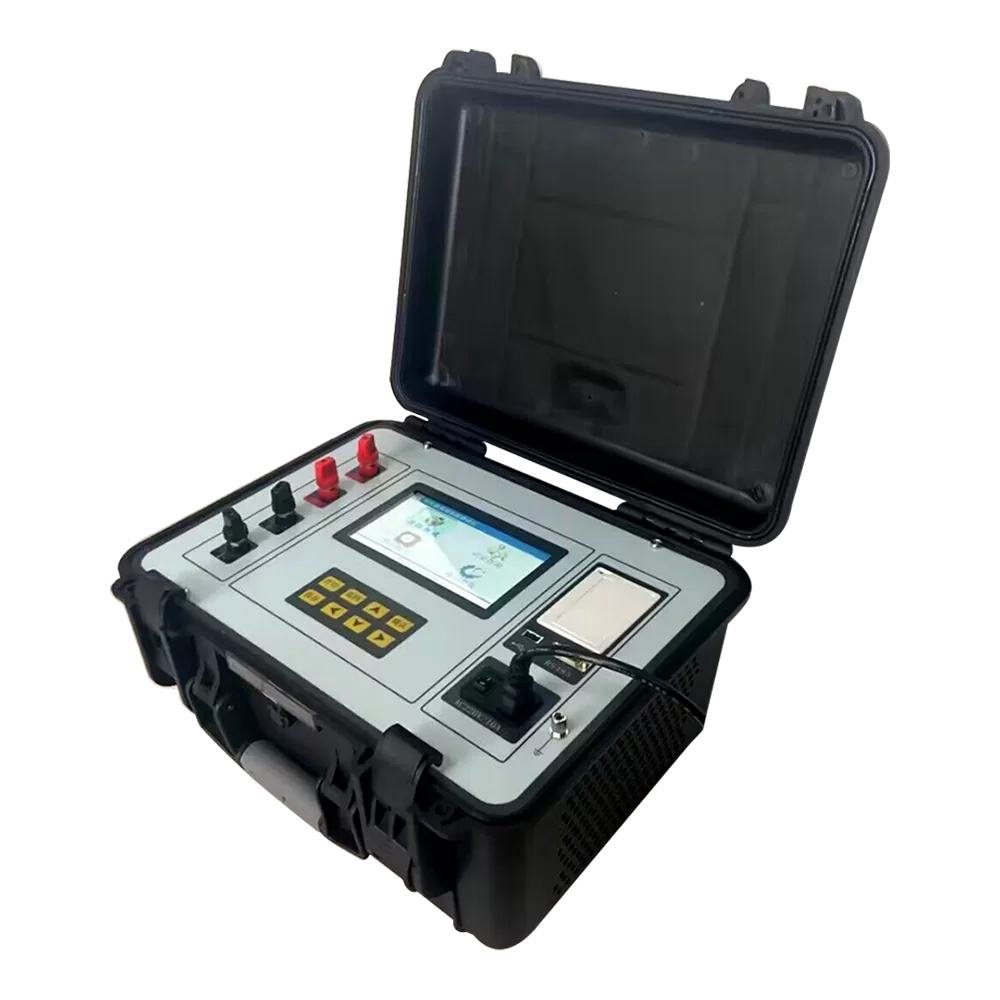

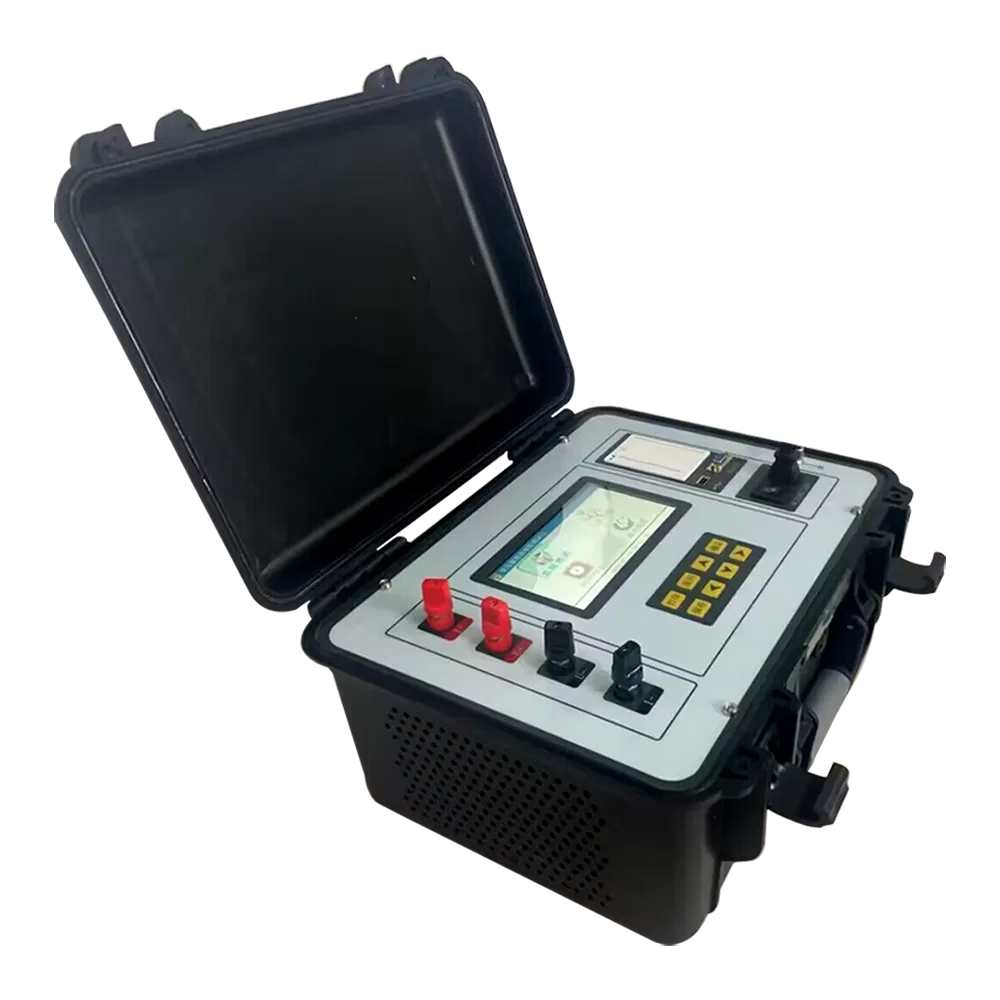

DC resistance tester ZC-205A-40A

ZC-205A-40A DC Resistance Tester is a high-performance testing instrument designed for fast, accurate, and reliable DC resistance measurement of transformer windings, reactors, and other inductive electrical equipment. It is widely used in transformer manufacturing, factory inspection, installation and commissioning, acceptance testing, and preventive maintenance. The instrument helps identify potential winding defects, such as poor welding, loose connections, broken conductors, and other abnormalities, ensuring the safe and reliable operation of electrical equipment.
Featuring advanced power supply technology and intelligent microcontroller-based control, the ZC-205A-40A offers seven selectable output current levels, with a maximum testing current of 40A and a wide measurement range from 50 μΩ to 100 kΩ. Its fast response and automatic data refresh capabilities significantly improve testing efficiency compared with traditional resistance measurement methods. Built-in automatic discharge, audible alarms, and comprehensive protection against back electromotive force (back EMF) further enhance operational safety and measurement reliability.

Features and Advantages

1. The instrument provides 7 output current options, with a maximum current of 40A and a minimum current of<5mA, suitable for measuring DC resistance of more types of transformers and transformers.
2. The measuring range of the instrument ranges from 50 μ Ω to 100k Ω.
3. The response speed is faster, and the on-load tap changer can be directly converted in the measurement state, and the instrument automatically refreshes data.
4. The instrument has an audible discharge alarm function, with clear discharge instructions to reduce misoperation.
5. The protection function is complete, which can reliably protect the impact of back electromotive force on the instrument, and the performance is more reliable.
6. The instrument adopts a 7-inch color LCD screen, with a clear and beautiful interface display, and can print and output results in real-time.
7. The instrument can be set with both Chinese and English operating interfaces, and can be configured according to customer needs.
8. Equipped with RS485 communication interface, it can transmit test data to the backend.
9. This machine has a large storage capacity and can store up to 500 test records.
10. Equipped with a USB interface, it can transfer test data to a USB drive.
11. The parameter settings are more comprehensive, including setting the testing winding, tapping position, testing phase, sample temperature, conversion temperature, etc. of the transformer.
12. This instrument adopts an industrial plastic case case, which is easy to carry.

Parameter

Output current40A、20A、10A、5A、2A、100mA、<5mA
Range50μΩ~500mΩ   (40A)
100μΩ~1Ω      (20A)
500μΩ~2Ω      (10A)
1mΩ~4Ω         (5A)
2mΩ~10Ω        (2A)
100mΩ~200Ω      (100mA)
200Ω~100kΩ      (<5mA)
Accuracy± (0.2%+2 words)
Resolution0.1μΩ
Working temperature-10℃~40℃
Ambient humidity≤ 90% RH, no condensation
Altitude≤1000m
Working power supplyAC220V±10%,50Hz±1Hz
Dimensions428mm*350mm*230mm
Weight10.9kg
