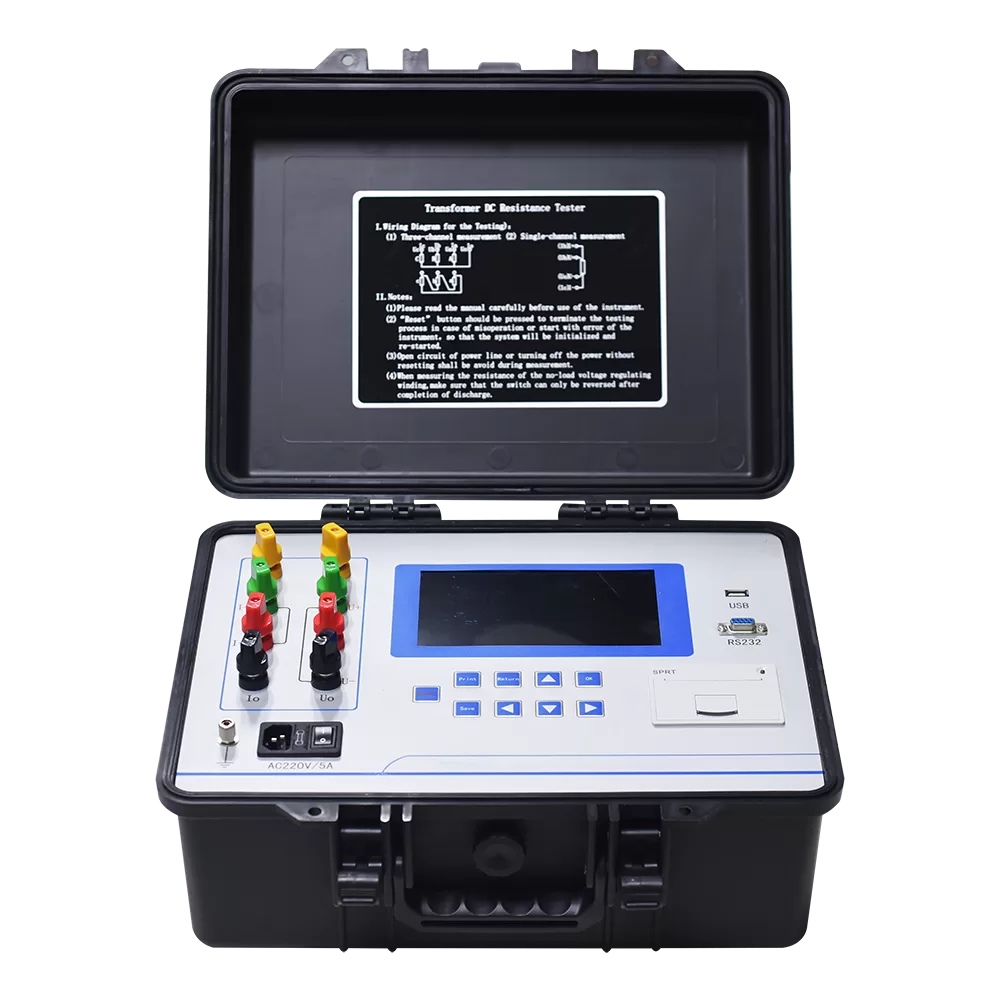

  • Three-Phase DC resistance Tester detail 2

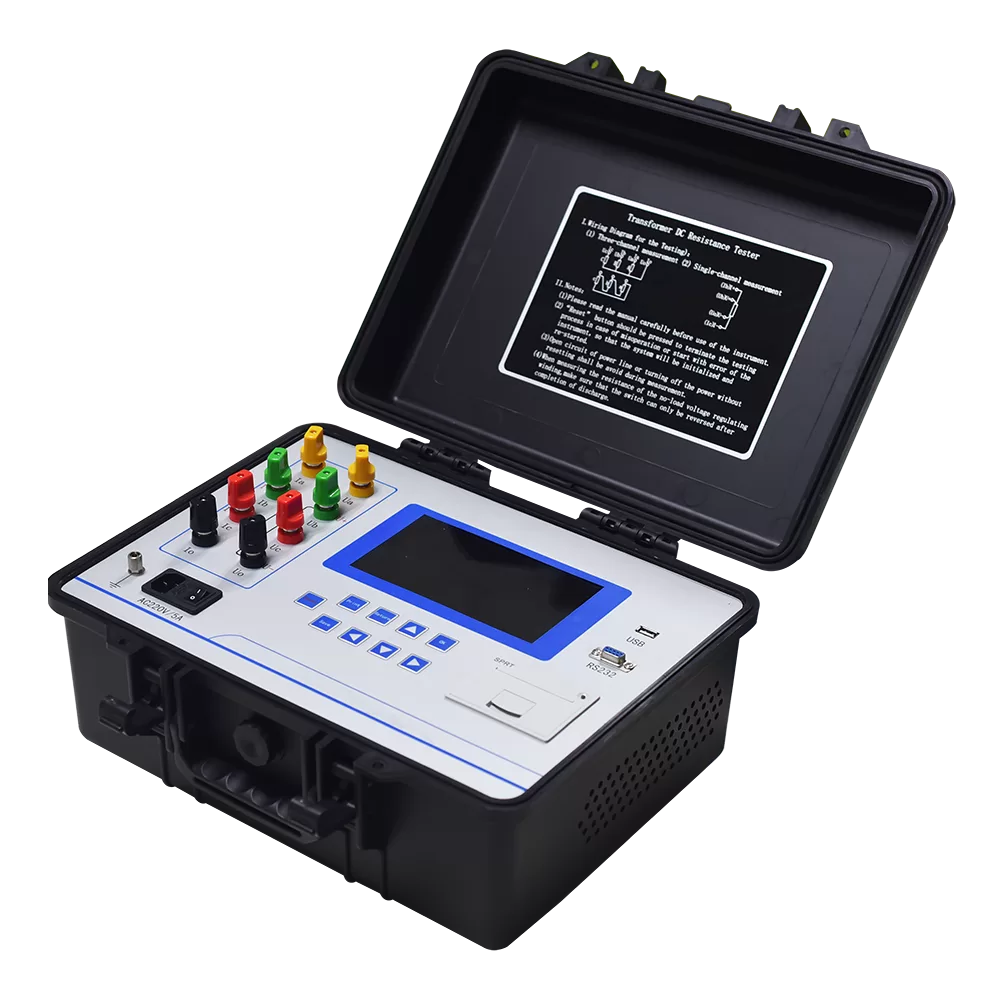

  • Three-Phase DC resistance Tester detail 3

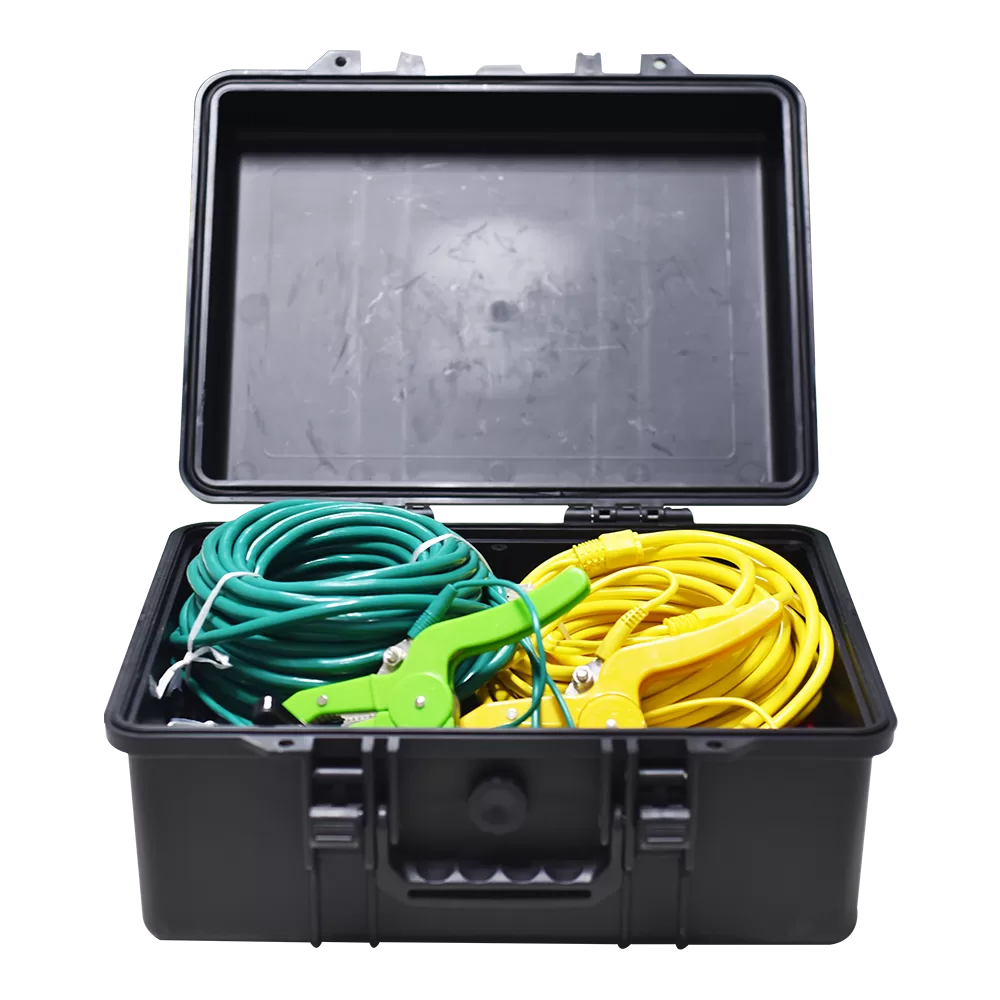

  • Three-Phase DC resistance Tester detail 4

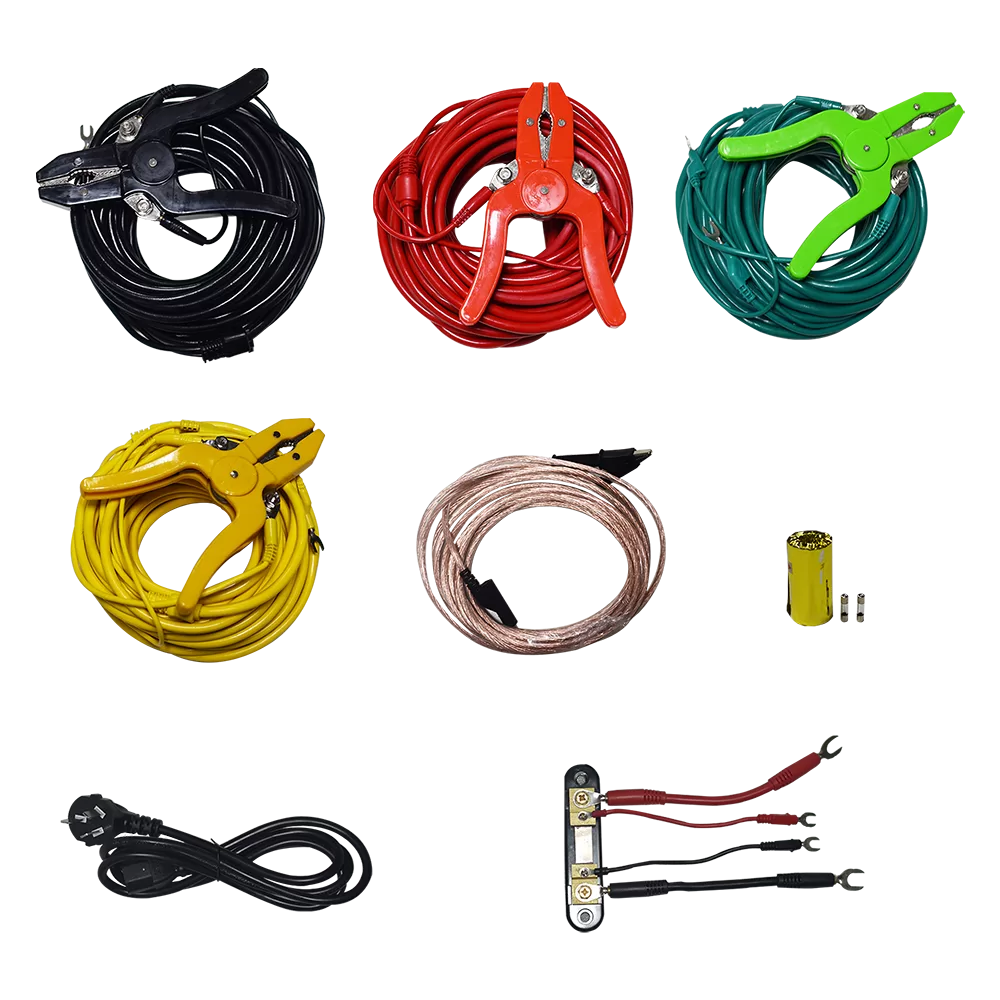

  • Three-Phase DC resistance Tester detail 5

Three-Phase DC resistance Tester ZC-205C-20A

ZC-205C Three-phase DC resistance tester is optimized designed to test  three-phase winding DC resistance of large-capacity transformer, is the latest generation of transformer DC resistance tester. ZC-205C can test the three-phase winding DC resistance of the transformer at the same time, adjust the tap-changer directly, no discharging is required for the on-load tap-changing transformer. The test time is one third of the traditional single-phase test, which can greatly shorten the working time and labor intensity.

Features and Advantages

1. Test the YN three-phase winding DC resistance of transformer at the same time, greatly shorten the test time.

2. Quickly and accurately test the winding DC resistance of transformer

3. Perfectly protection function

4. Small and portable

5. LCD full English menu, simple and intuitive operation

6. Fast test speed, high accuracy, good data repeatability, strong anti-jamming ability

Parameter

  • Working power supply
  • Technical Specifications
  • Other properties
Working power supplyInput voltage    185Vac~250Vac
Allowable input voltage    85Vac~264Vac
Frequency    50/60Hz
Allowable frequency    45Hz~65Hz
Input power    1000W
Joint    Standard AC socket 60320
Technical Specifications
Maximum test currentSingle channel test40A
Three channel test20A
Measuring rangeSingle channel test1A:10mΩ~20Ω
5A:1mΩ~4Ω
10A:1mΩ~2Ω
20A:1mΩ~1Ω
40A:1mΩ~0.5Ω
Three channel test1A:10mΩ~6Ω(Each phase)
5A:1mΩ~1Ω(Each phase)
10A:1mΩ~0.6Ω(Each phase)
20A:1mΩ~0.3Ω(Each phase)
Measurement accuracySingle channel test±0.2%(Full scale)±2 Words
Three channel test±0.2%(Full scale)±2 Words
ResolutionSingle channel test0.1µΩ
Three channel test0.1µΩ
Other properties
DisplayLCD, High speed thermal printer
Data storage255 groups
Environmental conditionsOperating temperature0℃~+40℃
Storage temperature-10℃~+50℃
Relative humidity5%~95%,No dewing
Physical characteristicsSize200×400×280mm
Weight≈7kg(Excluding attachments)
