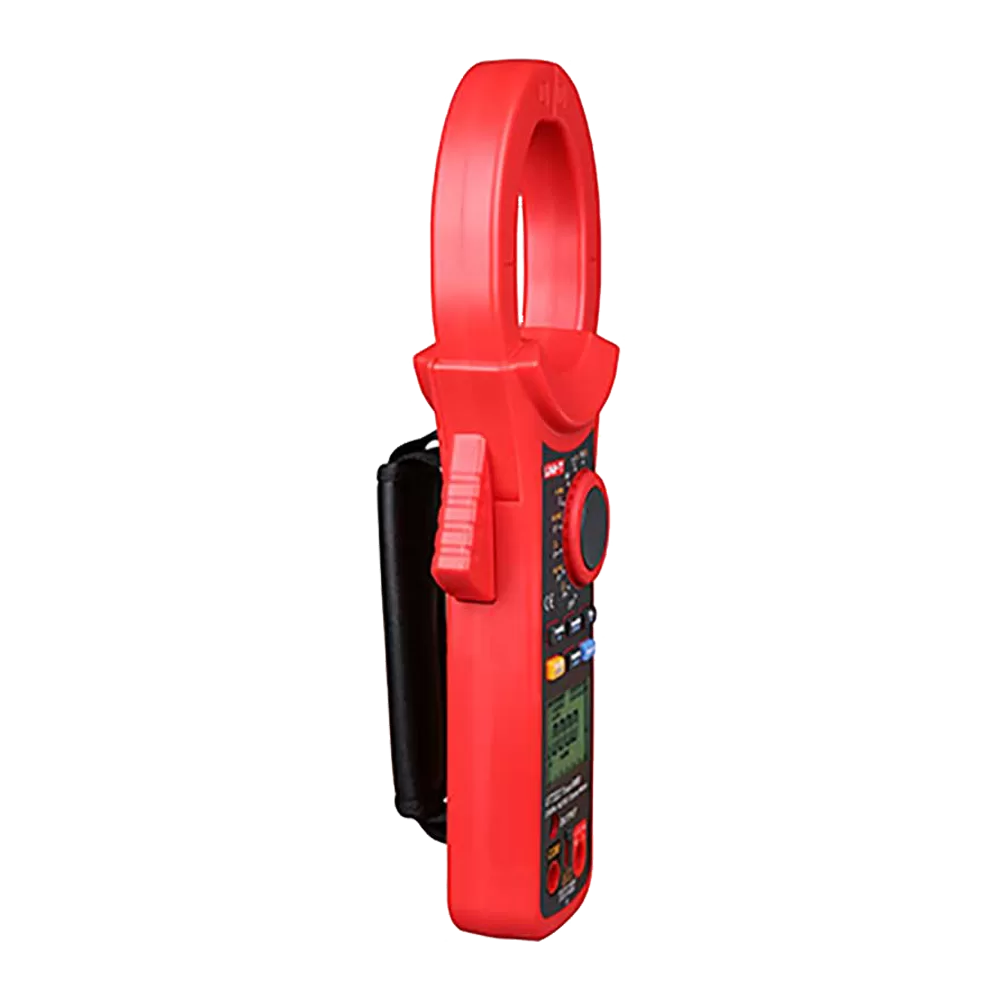

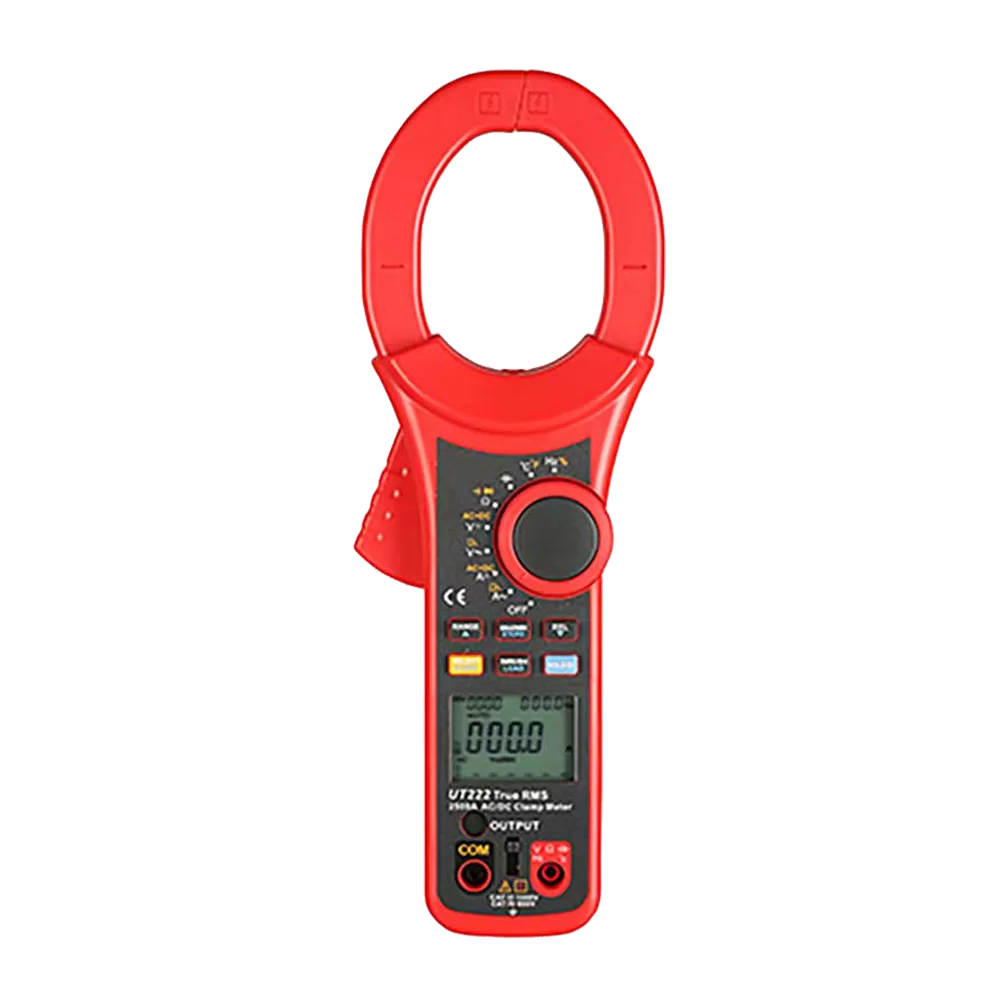

2500A digital clamp meterUT222

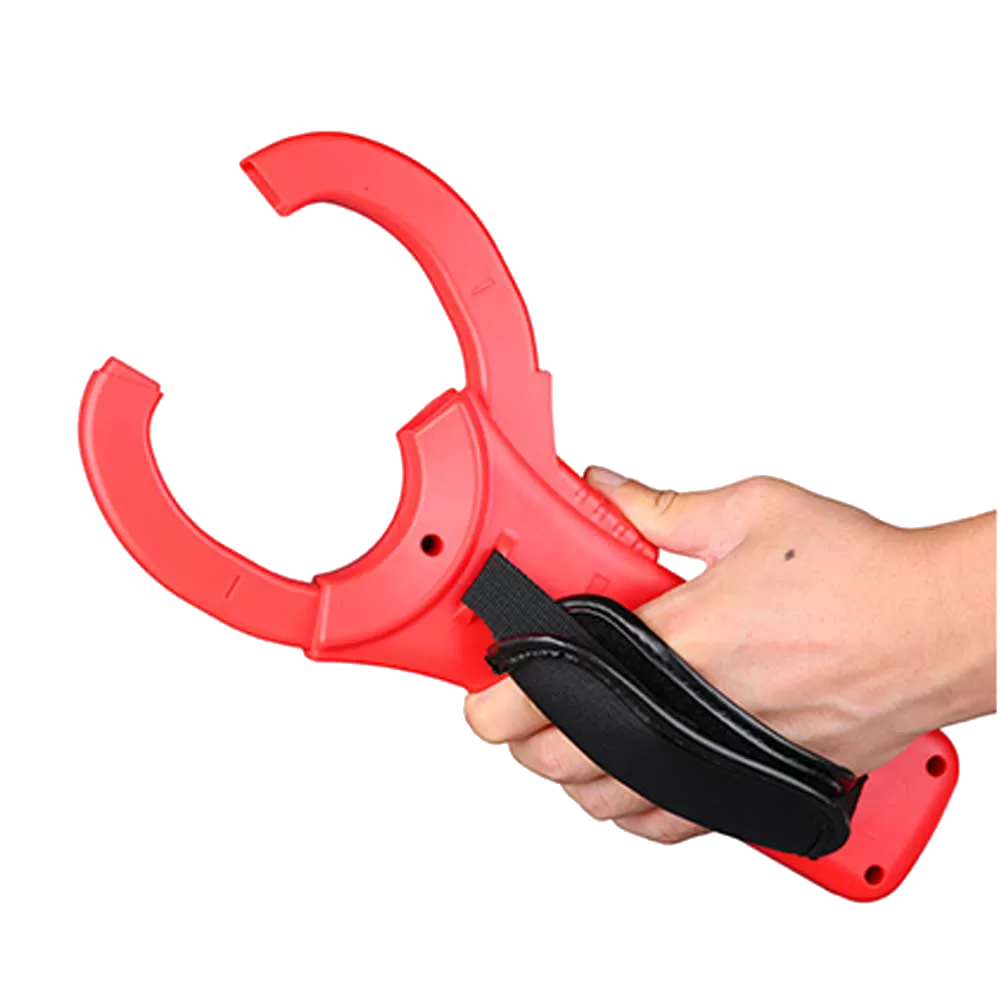

UT222 is a digital clamp multimeter suitable for measuring the maximum current (2500A). The larger clamp head (63mm) opening size can easily cope with the common thick conductor in the strong current and high voltage situations. The optional functions of this series of products include true RMS, surge current, low-pass filter, data storage, current output function, AC+DC current/voltage, etc. It also conforms to the safety class certification of double insulation and CATIV 600V, and has a greater improvement in impact protection, making it a multi-functional clamp watch with superior performance, safety and durability. It is suitable for industrial power system application and is an ideal tool for power technicians to repair and maintain.

Features and Advantages

1. Hall effect sensor AC/DC current measurement

2. True RMS, effective expression of abnormal AC signal

3. Two modes of automatic and manual range switching make the measurement extremely flexible

4. Surge current measurement: it can observe that the peak value of starting current surge generated at the moment of equipment startup is maintained

5. Low-surge filtering function: it can filter out the influence of high-frequency signal on measurement results

6. Digital analog bar display, more intuitive and fast observation of dynamic signals

7. 1000 sets of data are stored to effectively protect the measurement results

8. Current signal output function can convert the ratio of current signal 1A/1mV measured by clamp head into voltage signal output

Parameter

FunctionRangeUT222
AC current (A)2500A±(1.5%+5)
DC current (A)2500A±(1.5%+5)
AC voltage (V)1000V±(1%+3)
DC voltage (V)1000V ±(0.5%+2)
Resistance (Ω)60MΩ±(1%+2)
Capacitance (F)60mF±(3%+5)
Frequency (Hz)60MHz±(0.1%+3)
Temperature (℃)-40℃~1000℃±(1%+10)
Battery9V battery (6F22)
Display43X30mm
Fuselage size298x107x47mm
Fuselage weight726g
