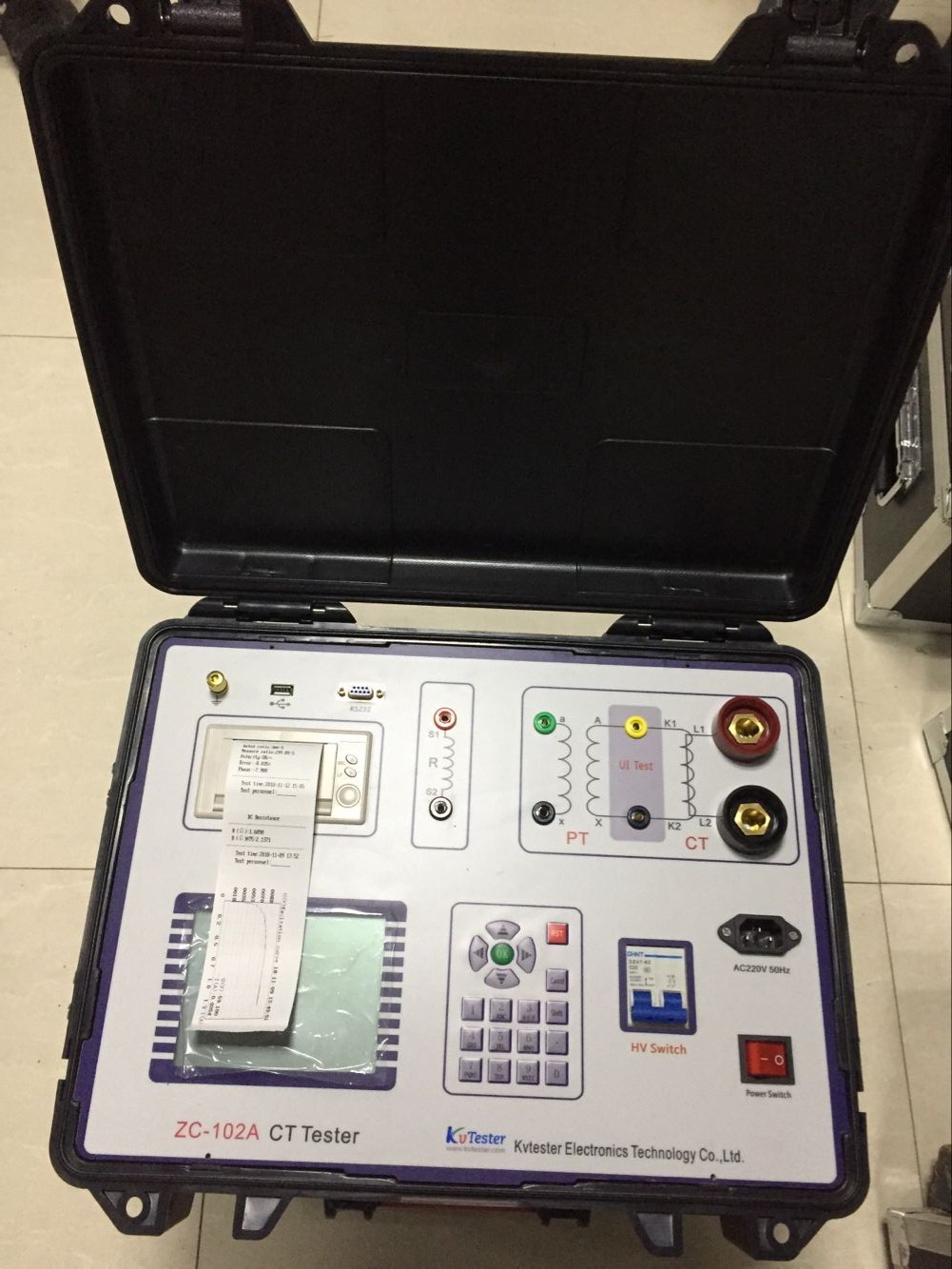

CT Analyzer ZC-102
Besides CTA-1000C CT analyzer we also have another model ZC-102. If your budget is not very sufficient, our ZC-102 is your best choice. The parameters are as the below.
| Booster output current & voltage | 1A/2500V 2A/1500V 5A/600V 10A/220V 20A/30V | |
| Current generator output current | 600A | |
| Output power | 3000VA | |
| Voltage and current measurement accuracy | ±0.2% | |
| CT ratio tests Voltage method / current method | Range | 1~40000 |
| Accuracy | ±0.2% | |
| PT ratio tests | Range | 1~40000 |
| Accuracy | ±0.2% | |
| Phase measurement | Accuracy | ±5min |
| Resolving power | 0.5min | |
| Secondary winding resistance tests | Range | 0~1kΩ |
| Accuracy | 0.5%±2mΩ | |
| AC load tests | Range | 0~1000VA |
| Accuracy | 0.5%±0.05VA | |
| Power supply | AC220V±10%，50Hz | |
| work environment | Temperature: -10οC~50οC,Humidity: ≤90% | |
| Size & Weight | Size: 425 mm×290 mm×310mm Weight: 30kg | |
