Which transformers are suitable for the transformer no-load load characteristic tester

The transformer no-load load characteristic tester is suitable for various types of transformers, including but not limited to the following:

1. Oil immersed power transformer:

According to the national standard GB/T6451-1999 “Technical Parameters and Requirements for Three phase Oil immersed Power Transformers”, the transformer no-load characteristic tester can test oil immersed power transformers with voltage levels of 6kV, 10kV, and 35kV. These transformers are widely used in power systems, and the tester can accurately measure their no-load and load characteristics.

2. Dry type transformer:

The tester is also applicable to dry-type power transformers, regardless of their capacity. For distribution transformers below 1000kVA, the tester is capable of conducting load tests at full current; Capable of conducting load tests on distribution transformers below 2500kVA at one-third of the rated current. This indicates that the tester has a wide range of applications in the power distribution system.

3. Small capacity transformer:

The tester can accurately measure the no-load and load characteristics of transformers as small as tens of kVA. This is very important for scenarios that require a precise understanding of the performance of small transformers.

4. Large capacity transformer:

For large capacity transformers, the tester also performs well. Some testers have a large built-in power capacity and can directly test large capacity transformers, such as transformers with a testing range of up to 40000 kVA, without the need for an external power supply and voltage regulator. This provides great convenience for testing large capacity transformers in the power system.

5. Special transformer:

In addition to common oil immersed and dry-type transformers, the tester can also test some special-purpose transformers. These transformers may have specific electrical performance requirements, and the wide applicability and high-precision measurement capability of the tester can meet these special needs.

In summary, the transformer no-load load characteristic tester is suitable for various types, specifications (from small capacity to large capacity), and voltage levels of power transformers, distribution transformers, and special transformers. It is an indispensable and important tool in the field of power system and transformer manufacturing and maintenance.

Please note that when using the tester, it is necessary to select and use it based on the technical parameters and performance indicators of the tester, as well as the actual situation of the tested transformer. At the same time, it should be ensured that the wiring of the tester is correct, the parameter settings are reasonable, and the testing is carried out according to the operating procedures to ensure the accuracy and reliability of the test results.

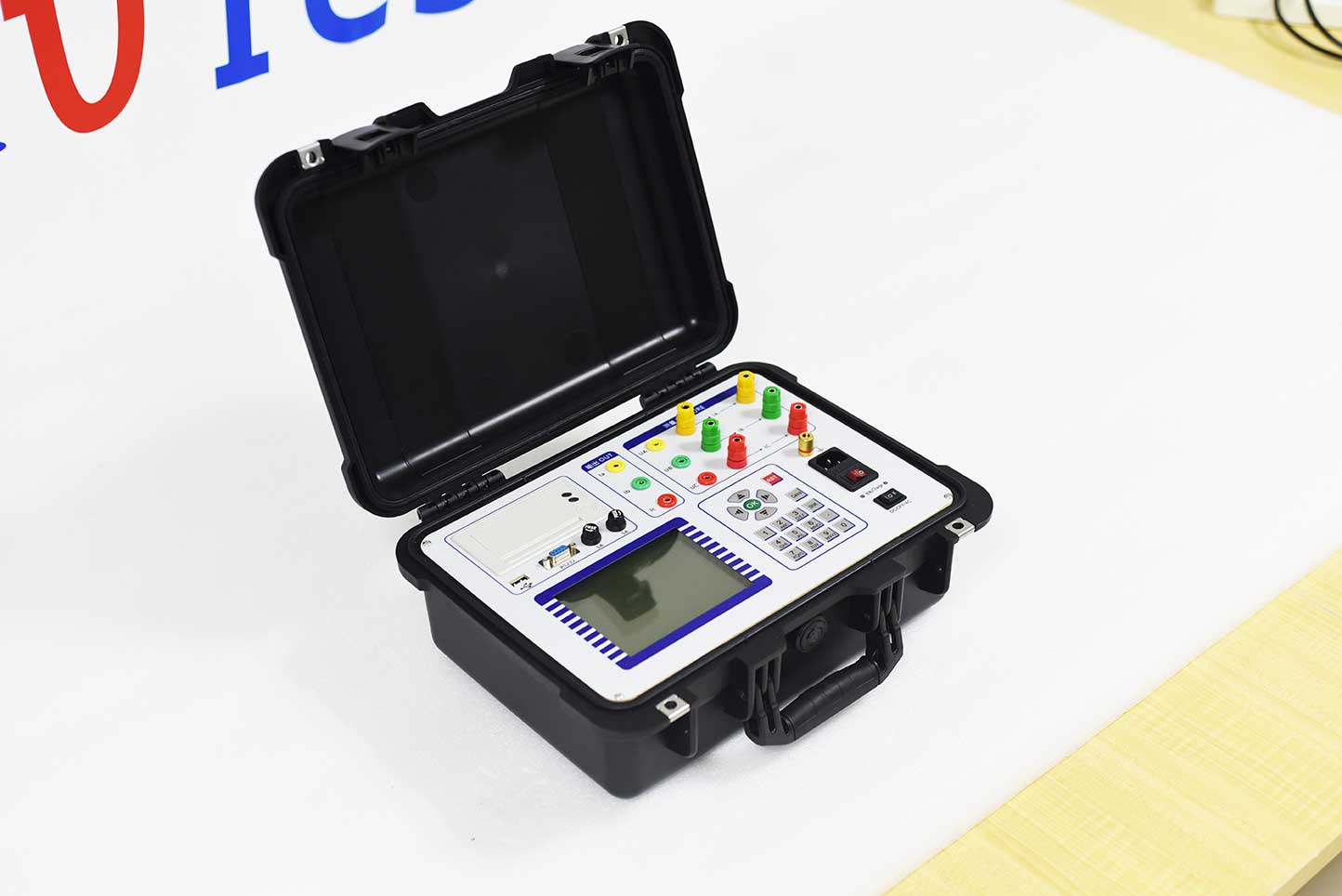

ZC-202B Transformer Capacity and Load Tester is a new type of instrument developed specifically for the problem of poor tax evasion in basic electricity and power users. It is a high-precision instrument used to measure transformer capacity, no-load, and load characteristic parameters. This instrument is a multifunctional measuring instrument, equivalent to two typical testing instruments: transformer capacity tester and transformer characteristic parameter tester. This utility model can accurately measure a series of power frequency parameters of multiple transformers, such as capacity, type, no-load current, no-load loss, short-circuit (load) loss, and impedance voltage.
