What types of transformer tests are generally applicable to electronic multi frequency withstand voltage testing devices?

The electronic multi frequency withstand voltage test device is mainly suitable for various types of transformer tests, including but not limited to the following aspects:

1. Insulation test of transformer windings: This device is particularly suitable for longitudinal insulation induced voltage withstand tests of transformer windings between turns, layers, sections, and phases. This is a key item in transformer insulation testing, used to detect the insulation performance inside the transformer coil.

2. Induction withstand voltage test: The device can meet the induction withstand voltage test requirements of transformers and transformers, ensuring the safety and reliability of these power equipment under normal operation and abnormal conditions.

3. AC withstand voltage test for capacitive loads: This device can also perform insulation withstand various overvoltage capabilities and AC withstand voltage tests on tested items such as cross-linked rubber power cables, GIS, insulators, generators, switches, etc.

Overall, electronic multi frequency withstand voltage testing devices are widely used in insulation and performance testing of various transformers due to their versatility and reliability, ensuring the safe operation of power equipment and compliance with national standards. However, the specific scope of application still needs to be determined based on the specifications and performance parameters of the device, as well as the specific requirements of the test. Before conducting the experiment, it is recommended to carefully read the user manual of the device and follow the relevant operating specifications and safety requirements.

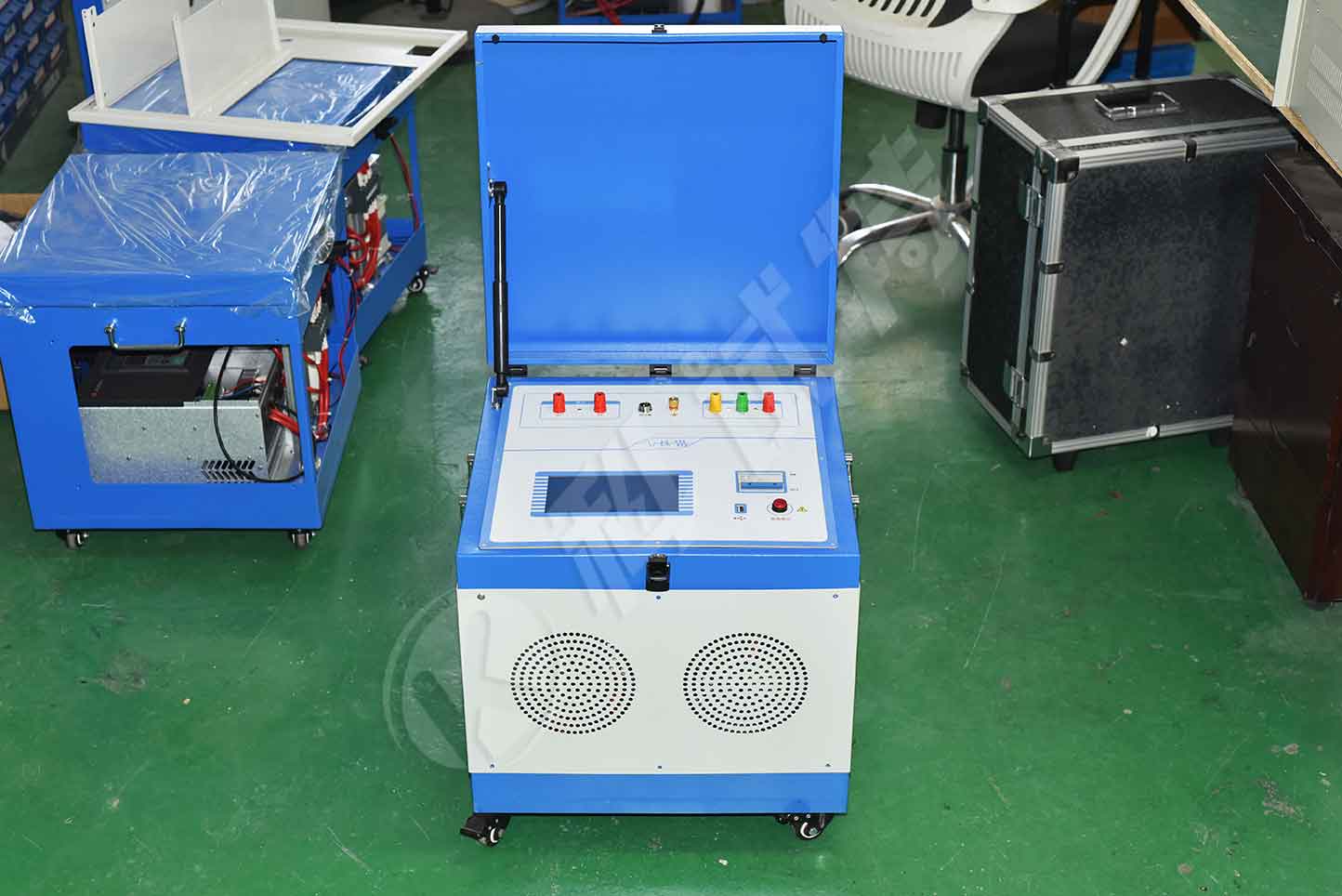

The induced voltage withstand test of transformers and transformers is an important test to ensure that product quality meets national standards. The longitudinal insulation induced voltage withstand test between turns, layers, segments, and phases of transformer windings is an important item in transformer insulation testing. The longitudinal insulation test requires the use of a frequency doubling power supply device to apply a test voltage and conduct a withstand voltage test. The ZC-506 multi frequency induction withstand voltage test device is controlled by a microcomputer, designed and manufactured using digital waveform synthesis technology and modern power electronics technology. It has higher working efficiency, stable output voltage, high measurement accuracy, and good repeatability than traditional triple frequency generators.
