What problems can capacitance and inductance testers solve in their applications?

The capacitance and inductance tester is an instrument used to measure the performance and parameters of capacitance and inductance devices. It usually consists of a capacitance measurement unit and an inductance measurement unit, which can be measured and tested for different applications. Testers are widely used in fields such as electronic engineering, communication, power, and instrumentation, making it convenient for engineers and technicians to test, inspect, and develop capacitance and inductance devices.

What problems can capacitance and inductance testers solve?

1. Test the capacitance value of the capacitor:

The capacitance and inductance tester can measure the capacitance value of a capacitor, helping to determine whether the capacitor is working properly.

2. Test the inductance value of the inductor:

The capacitance inductance tester can measure the inductance value of an inductor, helping to determine whether the inductor is working properly.

3. Test the polarity of capacitors and inductors:

A capacitance and inductance tester can help determine the polarity of capacitors and inductors, ensuring their correct connection.

4. Resonant frequency of the detection circuit:

The capacitance and inductance tester can measure the resonant frequency of a circuit, allowing the circuit to operate at its optimal operating state.

5. Possible short or open circuit issues in the detection circuit:

The capacitance and inductance tester can determine whether there is a short circuit or open circuit problem in the circuit by measuring the capacitance and inductance values.

6. Test the AC signal characteristics in the circuit:

The capacitance and inductance tester can measure the AC signal characteristics in a circuit, such as frequency response, phase difference, etc., in order to analyze the performance and operating characteristics of the circuit.

In short, capacitance and inductance testers can be used to test and diagnose the performance of capacitors and inductors, helping to solve problems related to them.

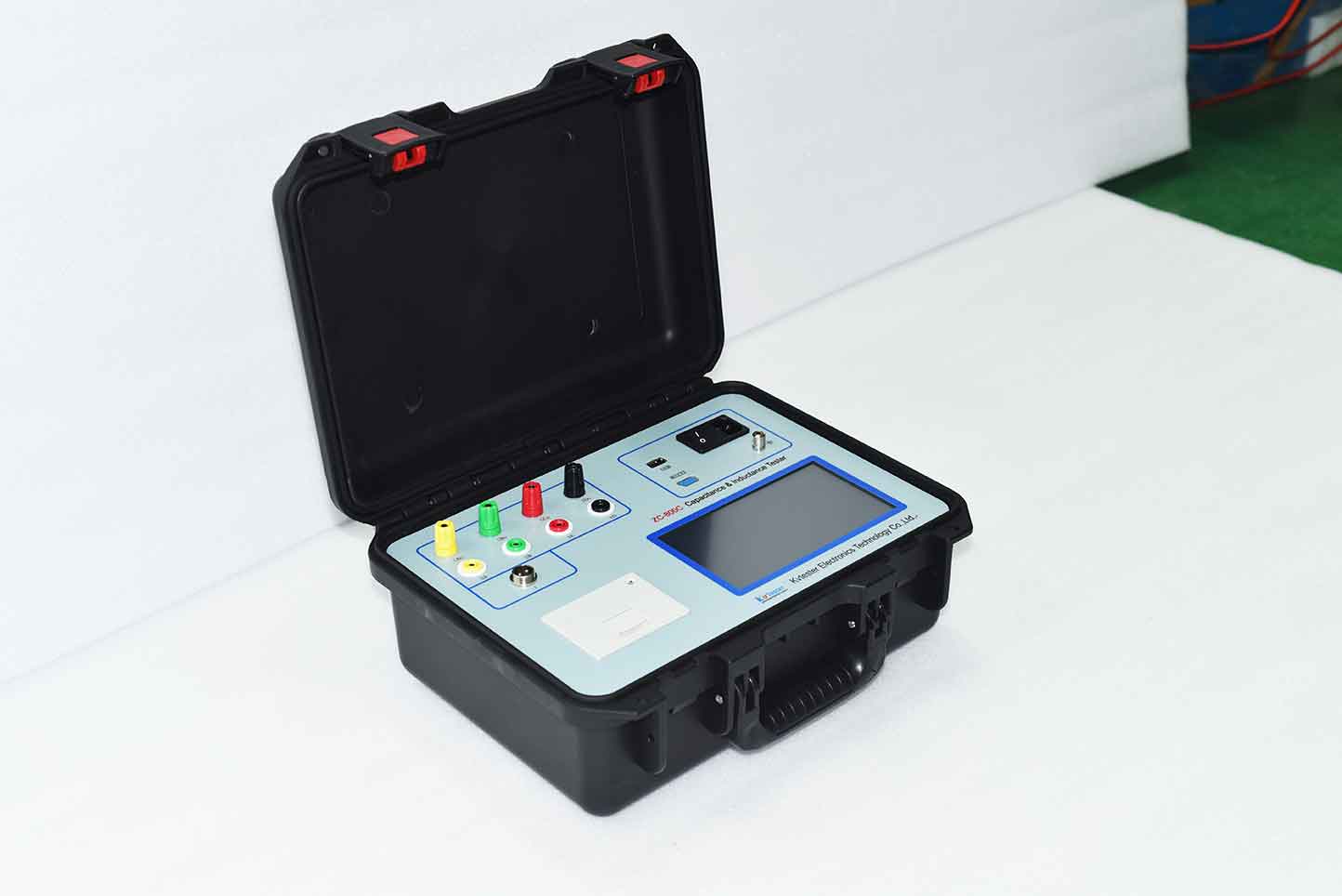

The ZC-800C capacitance and inductance tester is designed to address the problems encountered during the measurement of high-voltage parallel capacitor banks in substations. It mainly measures the high-voltage parallel capacitor banks and reactors of reactive power compensation devices. The instrument adopts a high-speed microprocessor to synchronously collect the voltage and current signals of the tested object, and automatically calculate capacitance and inductance values. On site measurement of capacitors does not require the removal of connecting wires, simplifying the testing process and effectively improving work efficiency. After the experiment, the capacitance and other parameters of each phase capacitor are automatically calculated, making it easy to distinguish the quality changes of the capacitor and the faults of the connecting conductors between devices.

Product characteristics:

1. The instrument can measure the individual capacitance of a group of parallel capacitors without disconnecting the wires (single-phase capacitance and three-phase capacitance can be measured), and at the same time, this instrument can also measure the inductance of various reactors, meeting various on-site uses.

2. During measurement, the instrument can display not only the measured capacitance or inductance values, but also the measured voltage, current, frequency, impedance, phase angle, and other data;

3. The instrument uses a high-frequency power output for testing, greatly improving the anti-interference ability on site. It can be tested in high intensity magnetic fields without affecting accuracy.

4. The instrument is equipped with a large capacity nonvolatile memory that can store 500 sets of measurement data.

5. The instrument is equipped with a USB flash drive interface, which can store any set of measurement data (limited by the capacity of the USB flash drive)

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase.
