What are the common application scenarios of ultra-low frequency high-voltage generators

Ultra low frequency high-voltage generators are widely used in fields such as power, scientific research, industry, and medicine by generating high voltage signals at ultra-low frequencies (usually below 20Hz, such as 0.1Hz, 0.05Hz). Its core advantage lies in reducing the demand for test power capacity, minimizing equipment volume, and avoiding high-frequency damage to insulation materials. The following is a detailed analysis of its common application scenarios:

1. Insulation and voltage withstand test for power equipment

① Cable voltage withstand test

Application objects: Plastic cables such as polyethylene (PE) and cross-linked polyethylene (XLPE), especially cables with voltage levels of 35kV and below.

② Generator and motor testing

Application objects: Large hydro generators, steam turbine generators, and high-voltage rotating electrical machines.

③ Power capacitor testing

Application objects: High voltage parallel capacitors, series capacitors, and filtering capacitors.

2. Research and Industrial Fields

① Research on Insulation Materials

Application objects: New insulation materials (such as nanocomposites and high-temperature superconducting materials).

② Electromagnetic Compatibility (EMC) Testing

Application object: Power electronic devices (such as frequency converters, inverters).

③ High voltage laboratory research

Application objects: cutting-edge technologies such as High Voltage Direct Current Transmission (HVDC) and Flexible AC Transmission (FACTS).

3. Medical imaging field

① High voltage power supply for X-ray generator

Application objects: Medical CT scanners, digital subtraction angiography (DSA) equipment.

② Nuclear medicine equipment testing

Application objects: Positron Emission Tomography (PET), Single Photon Emission Computed Tomography (SPECT).

4. Other special applications

① Pulse power system

Application objects: Electromagnetic pulse weapons, high-power microwave generators.

② Marine engineering testing

Application objects: Submarine cables, electrical equipment for offshore platforms.

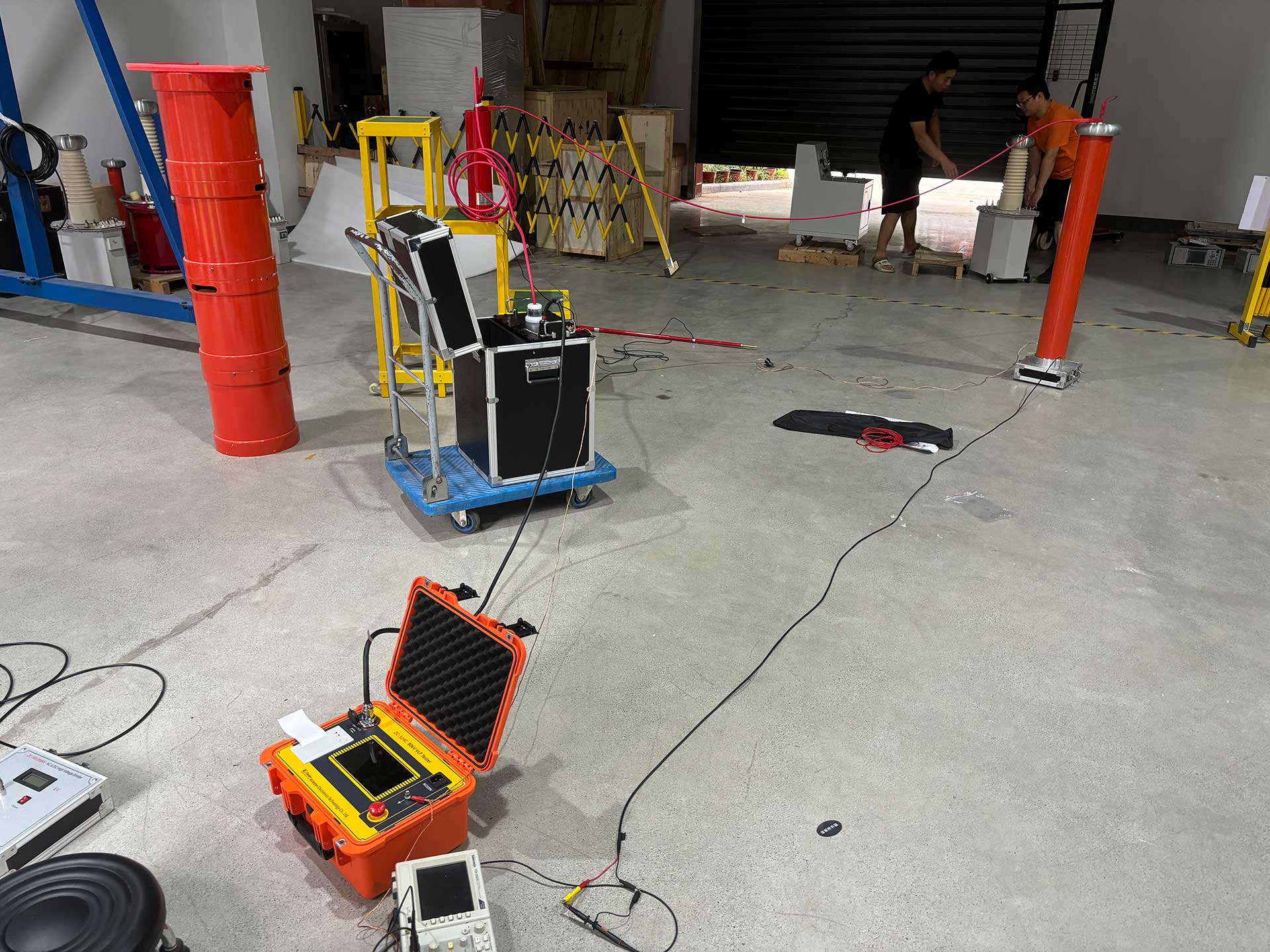

The ZC-524C ultra-low frequency and high voltage generator combines modern digital frequency conversion advanced technology and adopts microcomputer control. The boosting, lowering, measurement, and protection are fully automated, and manual intervention can be performed during the automatic boosting process. Due to its full electronic design, it has a small size, light weight, large screen LCD display, clear and intuitive display, and a printer that outputs test reports. The design indicators fully comply with the standards of the power industry and are very convenient to use.

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase. Service hotline: 0086-27-81778799, to learn more, visit the official website: www.kvtester.com
