What are the advantages and disadvantages of load test and no-load test respectively

Load testing and no-load testing are two important methods for evaluating transformer performance, each with unique advantages and disadvantages. The following is a detailed analysis of the advantages and disadvantages of these two experimental methods:

1. Advantages and disadvantages of load testing

advantage:

① High authenticity: The load test simulates the operating state of the transformer under actual working load, which can more accurately reflect the performance parameters of the transformer, such as efficiency, temperature rise, power factor, etc.

② Comprehensive evaluation: By gradually increasing the load current, the stability and durability of the transformer under different load conditions can be comprehensively evaluated, including overload capacity and thermal stability.

③ Identifying potential issues: Load testing can reveal potential faults or problems that may exist in transformers under load conditions, such as winding overheating, insulation aging, etc., which can help take timely measures for repair or improvement.

Disadvantages:

① High cost: Load testing requires connecting to actual loads and consumes a certain amount of electricity, so the cost is relatively high.

② Complex operation: Due to the need to gradually increase the load current and monitor changes in multiple parameters, the operation process of load testing is relatively complex and requires professional technicians to operate.

③ High safety requirements: Load testing involves high voltage and high current, requiring high safety requirements for testing equipment and environment. Corresponding protective measures need to be taken to ensure the safety of the testing process.

2. Advantages and disadvantages of no-load test

advantage:

① Easy to operate: The no-load test does not require connecting the actual load, only the high-voltage side power supply needs to be connected, so the operation process is relatively simple.

② High safety: Due to the absence of load current during the testing process, the safety of the no-load test is relatively high and electrical accidents are less likely to occur.

③ Low cost: The no-load test does not require a large amount of electricity consumption, so the cost is relatively low.

Disadvantages:

① The evaluation scope is limited: The no-load test mainly evaluates the magnetic circuit characteristics and electrical performance of the transformer, such as no-load current, voltage, and power factor, but cannot fully reflect the performance of the transformer under load conditions.

② Potential issues may be overlooked: As the no-load test does not involve load current, it may not be possible to detect certain potential problems that only occur under load conditions, such as winding overheating, insulation aging, etc.

③ Greatly influenced by external factors: The results of the no-load test may be affected by external factors such as ambient temperature, humidity, etc., resulting in certain errors in the test results.

In summary, both load testing and no-load testing have their own advantages and disadvantages. In practical applications, appropriate testing methods should be selected based on specific needs and testing objectives, taking into account factors such as testing costs, operational complexity, safety, and evaluation scope.

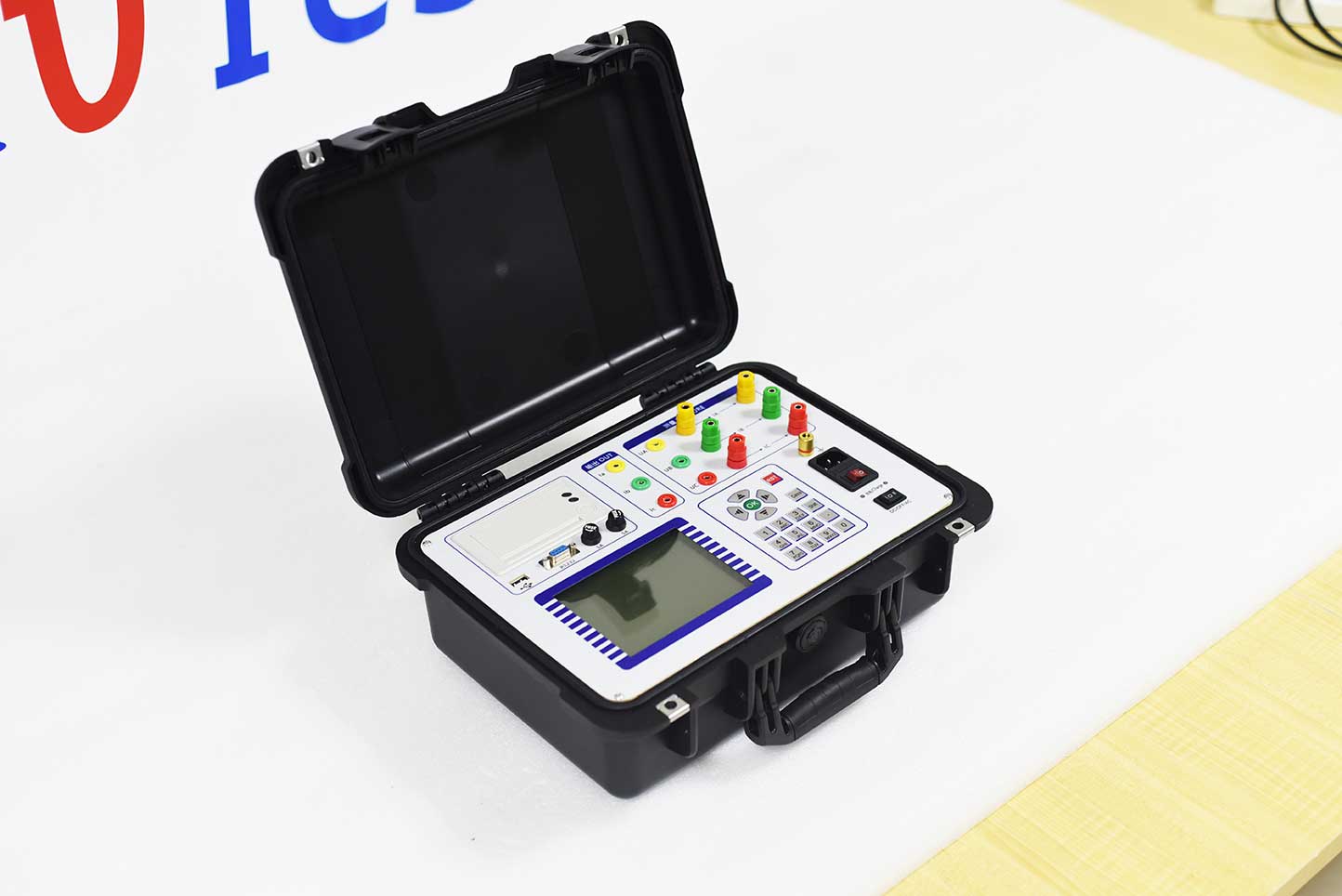

The ZC-202A transformer no-load load comprehensive characteristic tester can measure the no-load current, no-load loss, short-circuit voltage, and short-circuit (load) loss of the transformer. Harmonic testing can be conducted to analyze up to the 31st harmonic. The instrument automatically switches ranges internally, allowing for a wide range of voltage and current measurements and simple wiring. When conducting no-load and load tests on three-phase transformers, the instrument can automatically determine whether the wiring is correct and display vector diagrams of three-phase voltage and current.
