What are the advantages and disadvantages of a battery internal resistance tester?

A battery internal resistance tester is a portable device used to assess the health, state of charge, and connection resistance of batteries. It supports online/offline testing of single or multiple batteries, and can obtain key parameters such as voltage, internal resistance, and capacity without discharging the battery.

1. Advantages of the battery internal resistance tester:

① Online measurement without power interruption:

Using the AC injection method or DC high-current method, testing can be completed without disconnecting the battery pack from the system, avoiding system risks caused by power outages.

② High precision and fast detection:

Measurement accuracy can reach the micro-ohm level, and the testing time for a single battery is only 2-3 seconds. For example, a 200-cell battery pack can be fully tested within half an hour, significantly improving maintenance efficiency.

③ Multifunctional integration and intelligent analysis:

Supports simultaneous measurement of parameters such as voltage, internal resistance, and capacity, and is equipped with intelligent analysis software. Through data visualization, trend tracking, and report generation functions, it can automatically identify underperforming batteries, predict battery life, and provide a scientific basis for maintenance decisions.

④ Portability and environmental adaptability:

The device is compact and lightweight, with a built-in lithium battery that can work continuously for 6-8 hours, meeting the needs of outdoor operations. The operating temperature range covers -10℃ to 60℃, adapting to extreme conditions in industrial environments.

⑤ Safety protection and expandability:

Uses special test clips to reduce the impact of contact resistance and has overvoltage protection. Some models support wireless transmission and cloud management, meeting the needs of intelligent operation and maintenance.

2. Disadvantages of the battery internal resistance tester:

① Limitations of measurement results:

The internal resistance value has a non-linear relationship with battery capacity, and internal resistance alone cannot accurately reflect the remaining capacity (SOC). For example, high-capacity batteries may be misidentified as deteriorated batteries due to uneven internal resistance distribution, requiring verification through discharge testing.

② Higher cost:

High-precision equipment is generally more expensive, posing a financial burden for small businesses or individual users. For example, some imported models cost more than 500 yuan per unit, while economical equipment may have limited functionality.

③ Challenges in anti-interference capabilities:

The AC injection method is susceptible to interference from charger ripple current or electromagnetic noise, leading to data fluctuations. Algorithms need to be optimized or filtering modules added in environments with strong ripple currents to improve stability.

④ Operation relies on professional experience:

Despite the high degree of automation of the equipment, interpreting the results still requires combining historical data with the battery type. For example, the baseline internal resistance value of valve-regulated lead-acid batteries (VRLA) needs to be dynamically adjusted according to their service life; otherwise, misjudgment may occur.

⑤ Cannot completely replace discharge testing:

Internal resistance testing can quickly screen out underperforming batteries, but it cannot replace deep discharge testing. For example, after the battery capacity has degraded to below 80%, the change in internal resistance may lag behind, and the actual capacity needs to be confirmed through discharge testing.

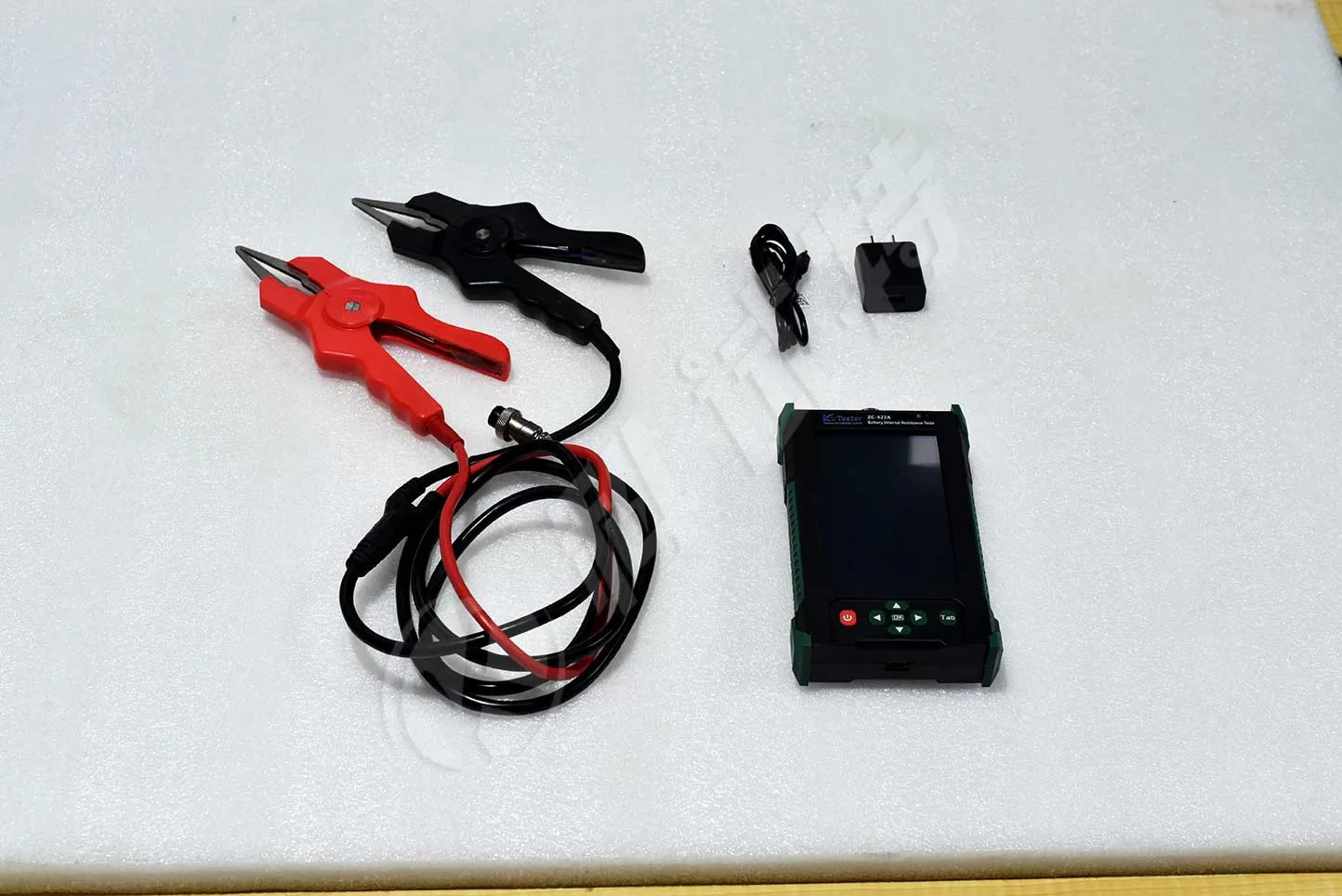

ZC-422A Battery Internal Resistance Tester is designed using the advanced AC discharge measurement method to test voltage, resistance and conduct of cell battery online. It can store , process the detected data and alarm the battery failure. The tester can accurately and effectively discern the condition of cell battery. The instrument saves, queries, deletes and exports the test data. The upper computer software analyzes and displays the test data through various charts and graphs . It automatically generates the battery test report.
