The working principle and future development trend of DC high-voltage generators

In modern society, electricity has become an energy source in our daily lives and work. In order to ensure the stable operation of the power system, strict testing and maintenance of power equipment are required. In this process, the DC high-voltage generator plays a crucial role. Below, we will provide a detailed introduction to its working principle, application, and market prospects.

1. Working principle of DC high-voltage generator

It is a power supply device that can generate high voltage and small current, and its main function is to provide a stable high-voltage power supply for the detection and maintenance of power equipment. Its working principle mainly includes the following aspects:

① Input power supply:

It usually uses an AC power source as input and converts AC power into DC power through an internal rectification and filtering circuit.

② High voltage conversion:

It uses voltage doubling rectification technology internally to convert the input low-voltage direct current into high-voltage direct current. This technology can effectively improve voltage conversion efficiency and reduce energy loss.

③ Output adjustment:

It can adjust the output voltage as needed to meet the detection requirements of different power equipment. Meanwhile, the stability and accuracy of the output voltage are also important indicators.

④ Protection function:

It also has multiple internal protection functions, such as overvoltage, overcurrent, short circuit, etc., to ensure that the equipment can automatically cut off output in case of abnormal situations, ensuring the safety of operators.

2. Application fields of DC high-voltage generators

It is widely used in various fields of the power industry, mainly including the following aspects:

① Power equipment testing:

It can provide stable high-voltage power supply for power equipment, used to test the insulation performance, grounding resistance and other parameters of the equipment, to ensure the safe and reliable operation of the equipment.

② Power equipment maintenance:

In the maintenance process of power equipment, it can provide a safe working environment for maintenance personnel and avoid safety accidents caused by unstable voltage.

③ Power system debugging:

In the debugging process of the power system, it can provide accurate high-voltage signals for debugging personnel, which helps to improve the accuracy and efficiency of debugging.

④ Other fields:

In addition to the power industry, it is also widely used in fields such as communication, electronics, and scientific research, providing reliable power support for various high-voltage experiments.

3. The Development Trend of DC High Voltage Generators

With the continuous progress of technology, it is also constantly developing and innovating. In the future, it will mainly be reflected in the following aspects:

① Intelligence:

By introducing intelligent components such as microprocessors and sensors, its automation control and remote monitoring can be achieved, improving the convenience and safety of equipment use.

② Efficient and energy-saving:

Adopting new power devices and topology structures to improve its conversion efficiency, reduce energy loss, and achieve green and energy-saving.

③ Multifunctional integration:

Integrate multiple functions into one device, such as voltage regulation, protection functions, communication interfaces, etc., to meet the needs of different application scenarios.

④ Miniaturization and portability:

By optimizing design and manufacturing processes, it achieves miniaturization and portability, making it convenient for on-site use and portability.

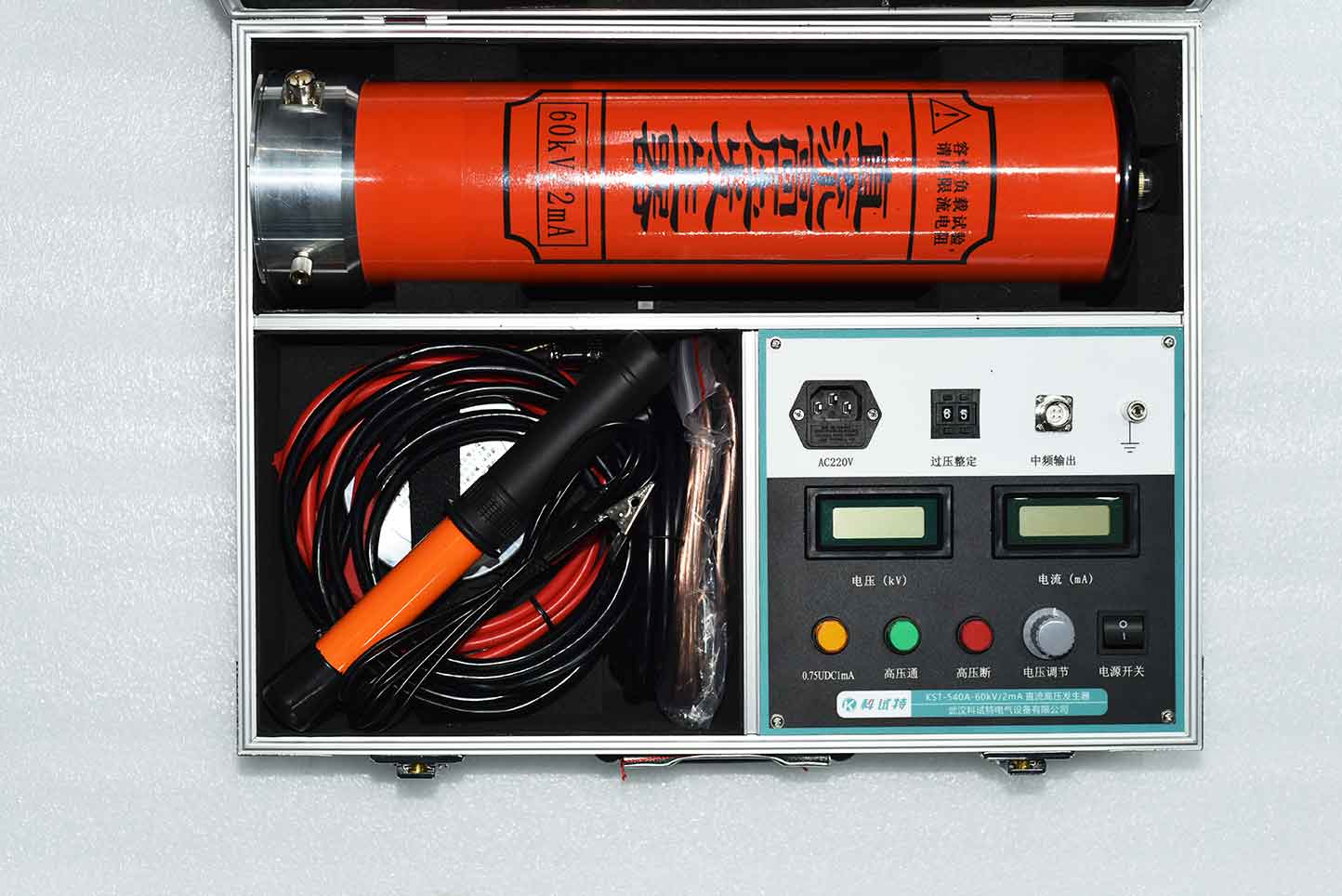

ZC-540 DC high voltage generator is suitable for electric power, railway, chemical industry, mining, metallurgy, iron and steel and other departments of zinc oxide surge arrester, magnetic arrester, power cable, transformer, generator and other equipment for DC voltage test and leakage test, can also be used for electrostatic dust, spray and other power.

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase. Service hotline: 0086-27-81778799, to learn more, visit the official website: www.kvtester.com
