The use and high-quality properties of the capacitance and inductance tester

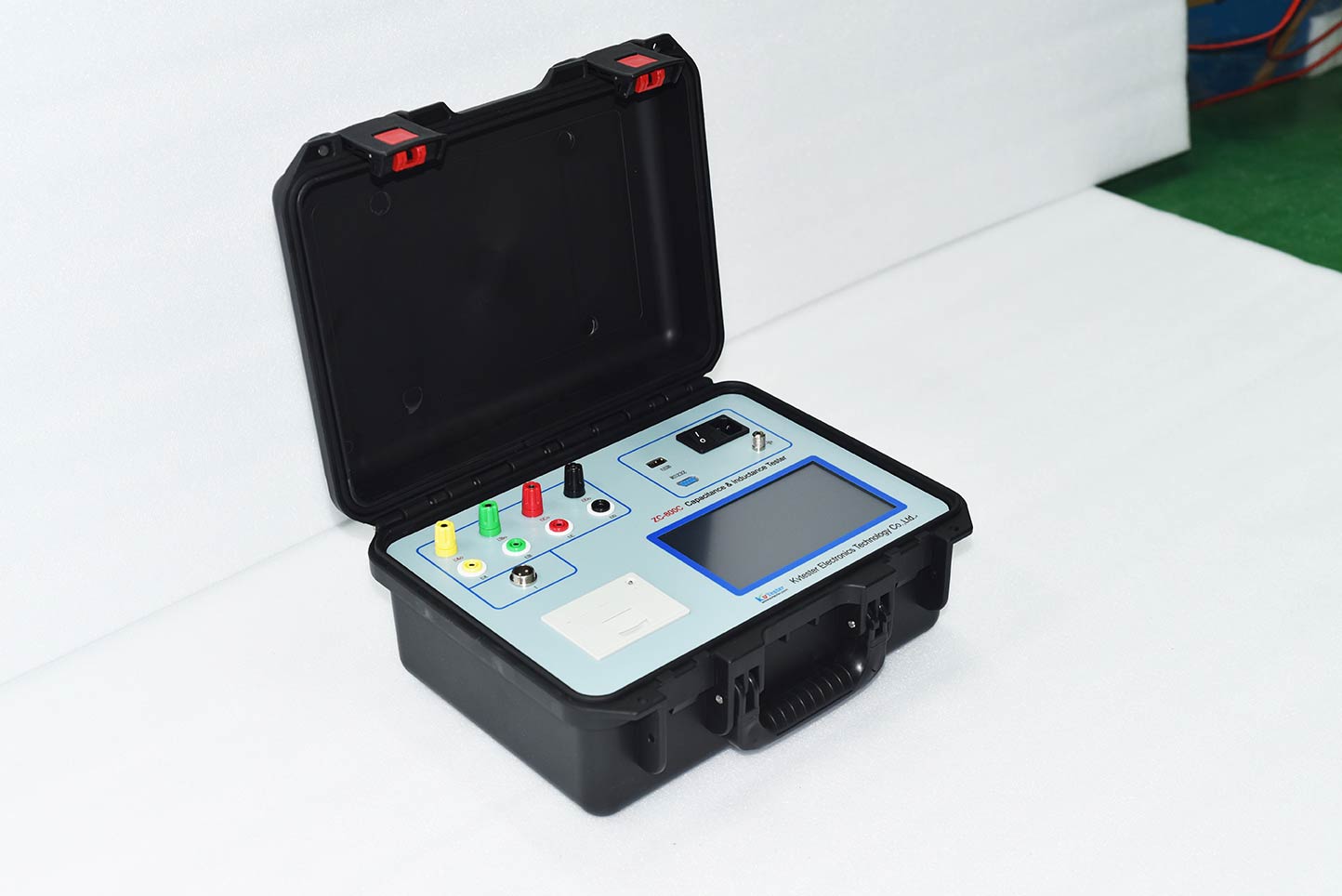

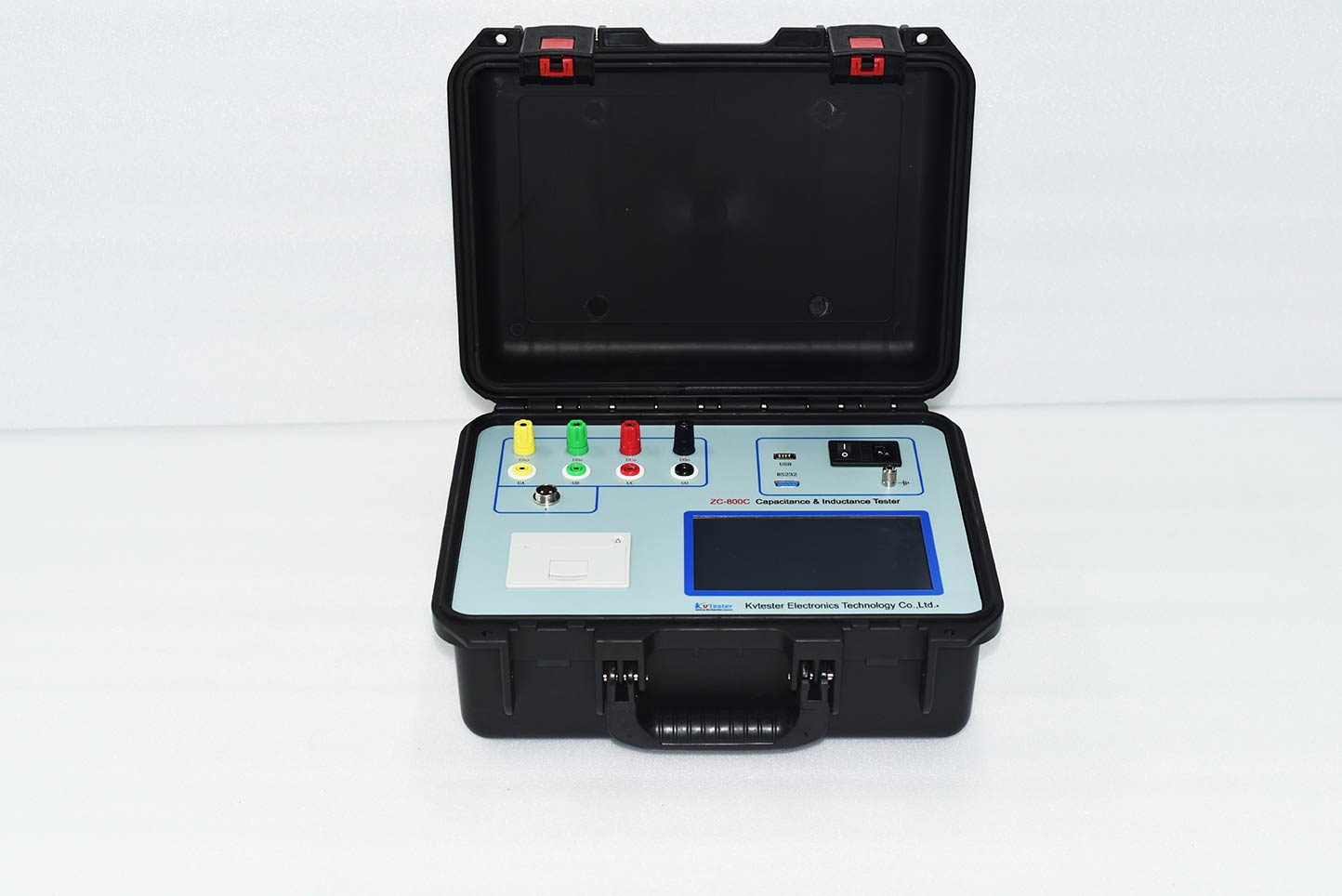

In the field of our power industry, in order to reduce the reactive power loss of the power system, the method of parallel capacitor banks can usually be used to improve the power factor. In actual operation and application, the accident rate of the capacitor compensation device is relatively high, which is also because of the characteristics of the working state of the capacitor device. Therefore, it is very important for us to regularly inspect the capacitor device to detect capacitor defects as early as possible and avoid the expansion of faults. In the field, capacitors are parallel groups. In general, in order to improve the measurement accuracy, the lead wire needs to be removed, which requires a lot of work, and it is easy to cause wiring errors. The RG-H automatic capacitance and inductance tester produced by our company can measure a single capacitor connected in parallel without removing the line, and can also measure the inductance current. The wiring is also very convenient and easy to operate, which greatly improves the construction site. Test the efficiency of operation, and at the same time avoid the possibility of error when the lead wire is removed.

High-quality features of the automatic capacitance and inductance tester:

1. This instrument can measure the individual capacitance of a group of parallel capacitors without disconnecting the wires (both single-phase capacitance and three-phase capacitance can be measured), and at the same time, this instrument can also measure the inductance of various reactors to meet the needs of the site. kind of use.

2. When measuring, the instrument displays the measured capacitance or inductance value, and can also display the measured voltage, current, frequency, impedance, phase angle and other data;

3. The instrument uses different frequency power output for testing, which greatly improves the anti-interference ability on site, and can be tested in a high-intensity magnetic field without affecting the accuracy.

4. The instrument adopts a 7.0-inch 1024×600 high-definition screen, touch operation, clear observation during the day and night, free switching between Chinese and English, and easy operation.

5. The instrument has a built-in large-capacity non-volatile memory: it can store 500 sets of measurement data.

6. The instrument is equipped with a U disk interface, which can store any set of measurement data (limited by the capacity of the U disk).

7. The instrument has a built-in high-precision real-time clock function, which can be used for date and time calibration.

8. The instrument has its own printer, which can print the measurement data.

9. The instrument can use an Android phone or tablet, follow the WeChat public account, download a special APP, control the whole process through the special software, and store and upload test data for easy reference.

Our fully automatic capacitance and inductance detection device is specially developed for the problems existing in the field measurement of the capacitance value of a single capacitor in a parallel capacitor bank in a substation. It is easy to operate and has comprehensive performance, which can well meet the requirements of parallel capacitor detection work. Demand is a rare sophisticated smart device.

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase.
