Suggestions for the selection of live testing instruments for zinc oxide lightning arresters

When selecting a live tester for zinc oxide lightning arresters, comprehensive consideration should be given to six core dimensions: testing method, resistive current algorithm, anti-interference ability, ease of operation, safety protection, and manufacturer service. The following are specific recommendations:

1. Clearly define the testing method and match the operating scenario

The detection of zinc oxide lightning arresters is divided into two modes: live testing and power-off testing, with different requirements for equipment functionality:

① Live testing: Conducted during normal operation of the equipment, leakage current is collected through a wireless current clamp meter without the need for power outage, suitable for daily inspections. If live detection is the main focus, it is necessary to choose models that support wireless synchronous sampling to avoid safety risks caused by high-voltage leads.

② Power outage test: Apply a reference voltage in conjunction with a DC high-voltage generator, measure the leakage current at 0.75U1mA, and determine the nonlinear characteristics of the valve plate. If a comprehensive evaluation of valve disc performance is required, a comprehensive equipment that supports DC reference voltage testing should be selected.

2. Pay attention to the resistive current algorithm to ensure accurate data

In the total leakage current of lightning arresters, capacitive current accounts for the majority, while resistive current truly reflects the deterioration of valve plates. If the instrument separation algorithm is not accurate, it may lead to misjudgment. It is recommended to choose equipment that uses harmonic analysis or compensation methods, which can effectively eliminate the influence of system voltage harmonics and accurately extract third harmonic or fundamental resistive components. At the same time, it supports phase compensation function to eliminate measurement errors caused by different phases of PT, ensuring the authenticity and reliability of data. Avoid using simple devices that only measure full current and cannot reflect the true internal state of the lightning arrester.

3. Strengthen anti-interference ability and adapt to complex environments

Live testing is often conducted in strong electromagnetic environments, and interference sources such as corona, arc, and harmonics from surrounding equipment may seriously affect the measurement results, resulting in data jumping and poor repeatability. Therefore, it is necessary to choose equipment with the following anti-interference technologies:

① Multi level digital filtering technology: effectively suppresses background interference.

② Automatically identify and suppress interference: improve measurement stability.

③ High signal-to-noise ratio acquisition circuit: ensures data accuracy.

④ Support multiple measurements to take the average: reduce random errors.

4. Pay attention to operational convenience and improve work efficiency

The on-site inspection time is tight, and whether the equipment is “easy to use” directly affects work efficiency. It is recommended to choose a device with the following functions:

① Equipped with high-definition color touch screen: real-time display of full current, resistive current, phase angle, waveform diagram.

② Support one click testing: automatically calculate and annotate key parameters.

③ Built in storage function: can save multiple sets of test data.

④ Support USB export: Generate standard format reports (PDF/Excel) for easy archiving and inspection.

Meanwhile, wireless current clamps should be lightweight and durable, with stable clamping, suitable for high-altitude operations or use in densely populated equipment areas.

5. Improve safety protection and ensure personal safety

Live detection involves high voltage environments, and safety protection must be in place. It is recommended to choose equipment with the following safety designs:

① Wireless transmission design: Avoid high voltage leads.

② Overvoltage and overcurrent protection: prevent equipment damage.

③ Low battery reminder: Avoid data loss caused by battery depletion.

④ The insulation protection level of the shell is high, such as IP54 or above, to prevent the risk of electric shock.

6. Inspecting manufacturer services to reduce long-term costs

The service capability of the manufacturer is related to the long-term user experience of the equipment. Suggest choosing a manufacturer that provides the following services:

① Operation training: Help users quickly master the operation methods.

② Software upgrade: Continuously optimize device performance.

③ Regular calibration service: Ensure measurement accuracy.

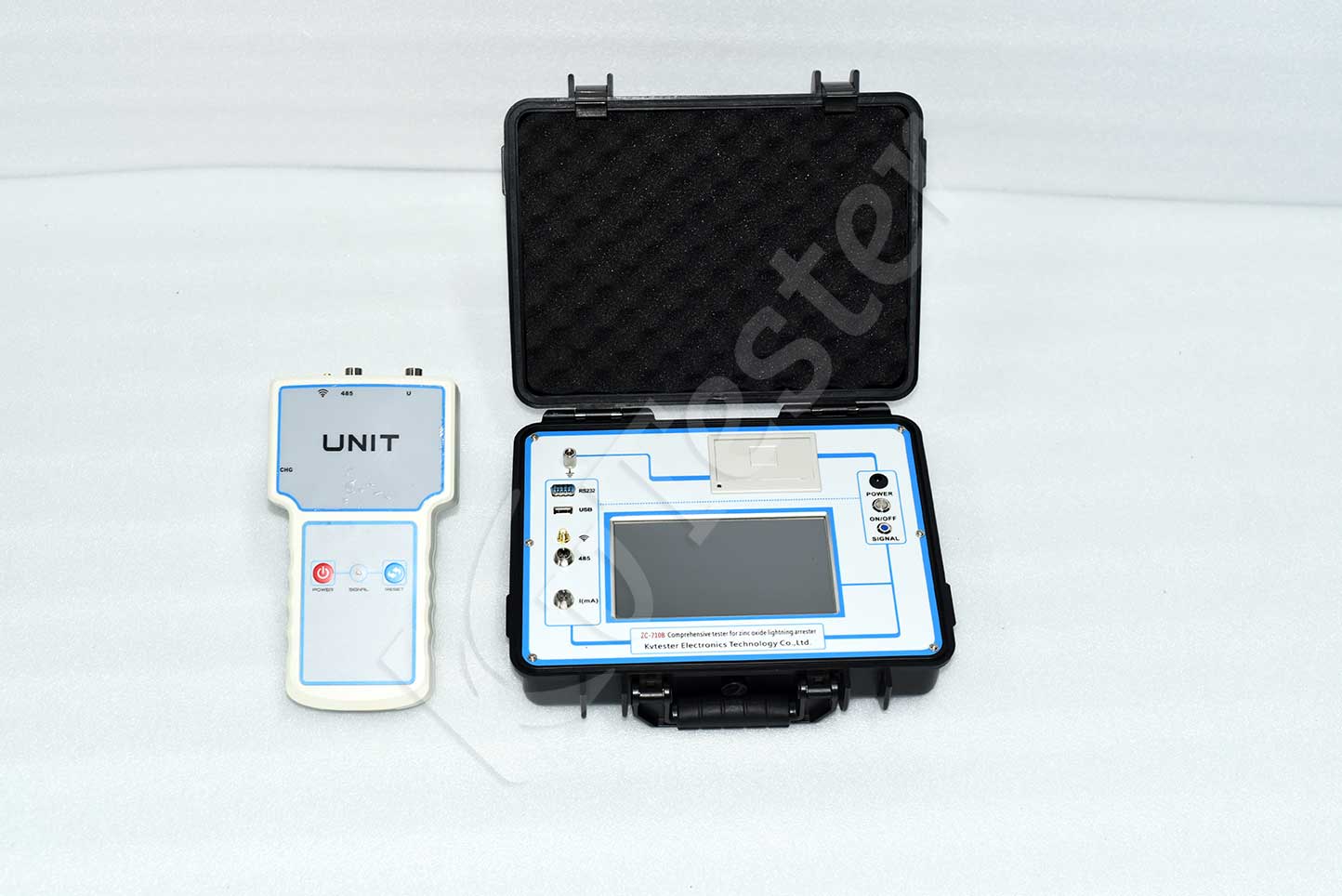

The ZC-710B zinc oxide lightning arrester tester is a specialized instrument used to test the electrical performance of zinc oxide lightning arresters. This instrument is suitable for live or power outage detection of zinc oxide lightning arresters of various voltage levels, so as to timely detect dangerous defects such as insulation moisture and valve aging inside the equipment.

The instrument is easy to operate and easy to use, and the entire measurement process is controlled by the human-machine interface. It can measure the full current, resistive current and its harmonics, power frequency reference voltage and its harmonics, active power and phase difference of the zinc oxide arrester. The large screen can display the true waveform of voltage and current. The instrument utilizes digital waveform analysis technology and software anti-interference methods such as harmonic analysis and digital filtering to ensure accurate and stable measurement results. It can accurately analyze the content of fundamental and 3rd to 9th harmonics, overcome the influence of phase interference, and accurately measure the resistive current of the side phase lightning arrester.
