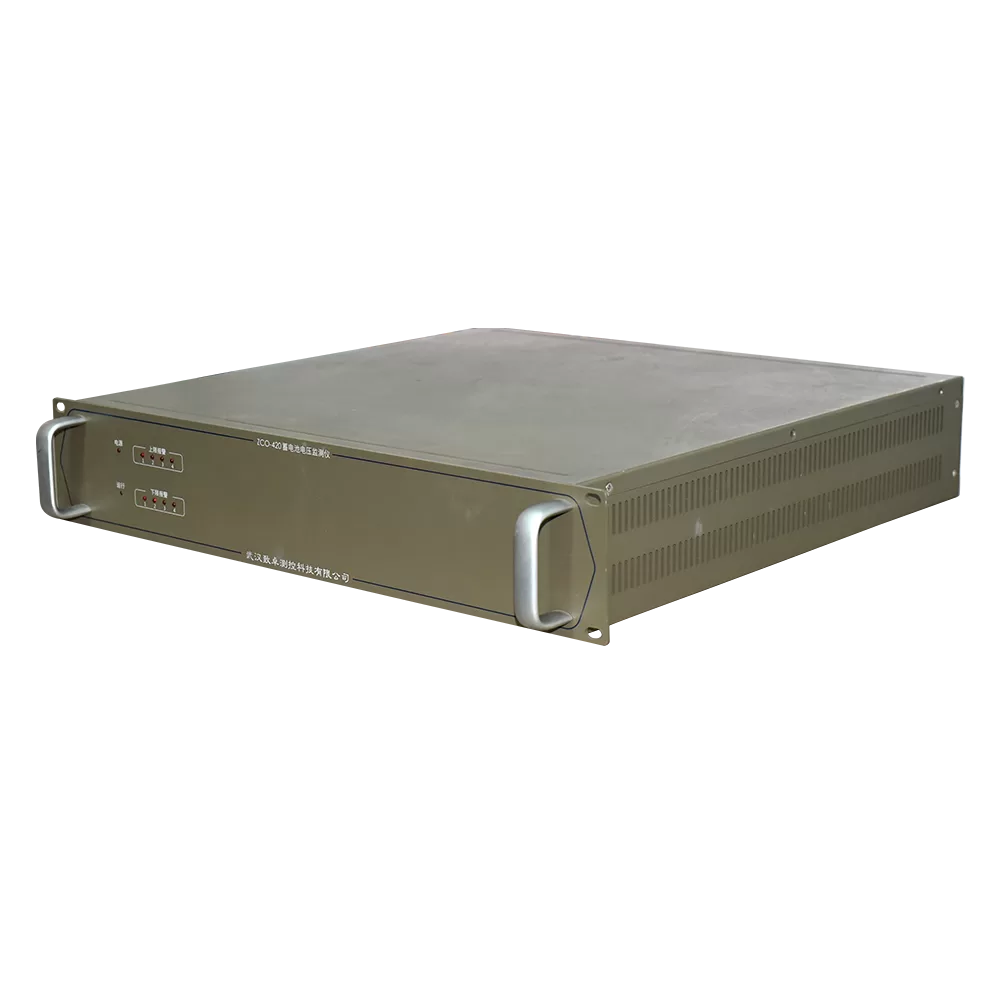

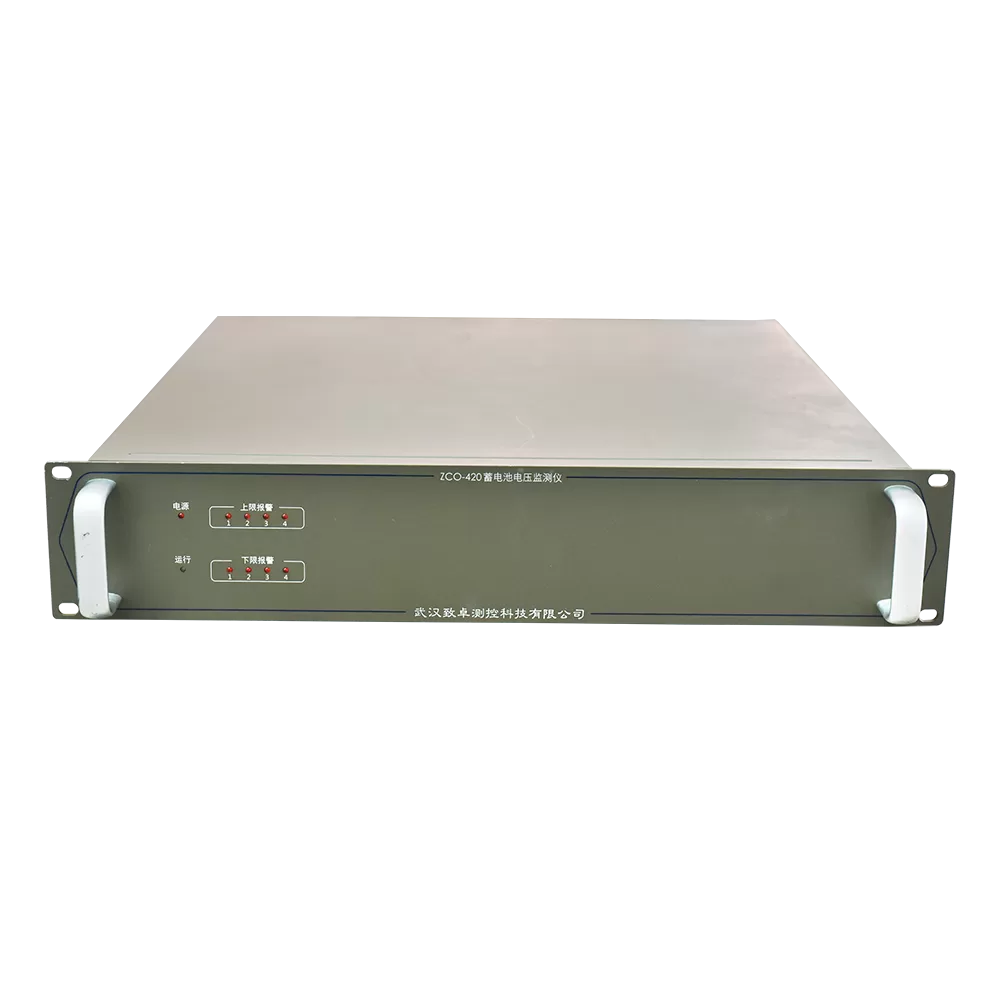

Features and Advantages
Real online internal resistance measurement
The internal resistance test of ZCO-420 series battery monitoring and management system is completed automatically. There is no need to change the operating state of the battery pack. At the same time, in the process of internal resistance test, there is no need to discharge, which is a really safe internal resistance measurement method.
Modular structure design to meet various battery configurations
ZCO-420 series battery monitoring and management system adopts modular structure design. Each ZCO420-S module can connect up to 128 batteries in series. It can satisfy various battery system configurations through different module combinations.

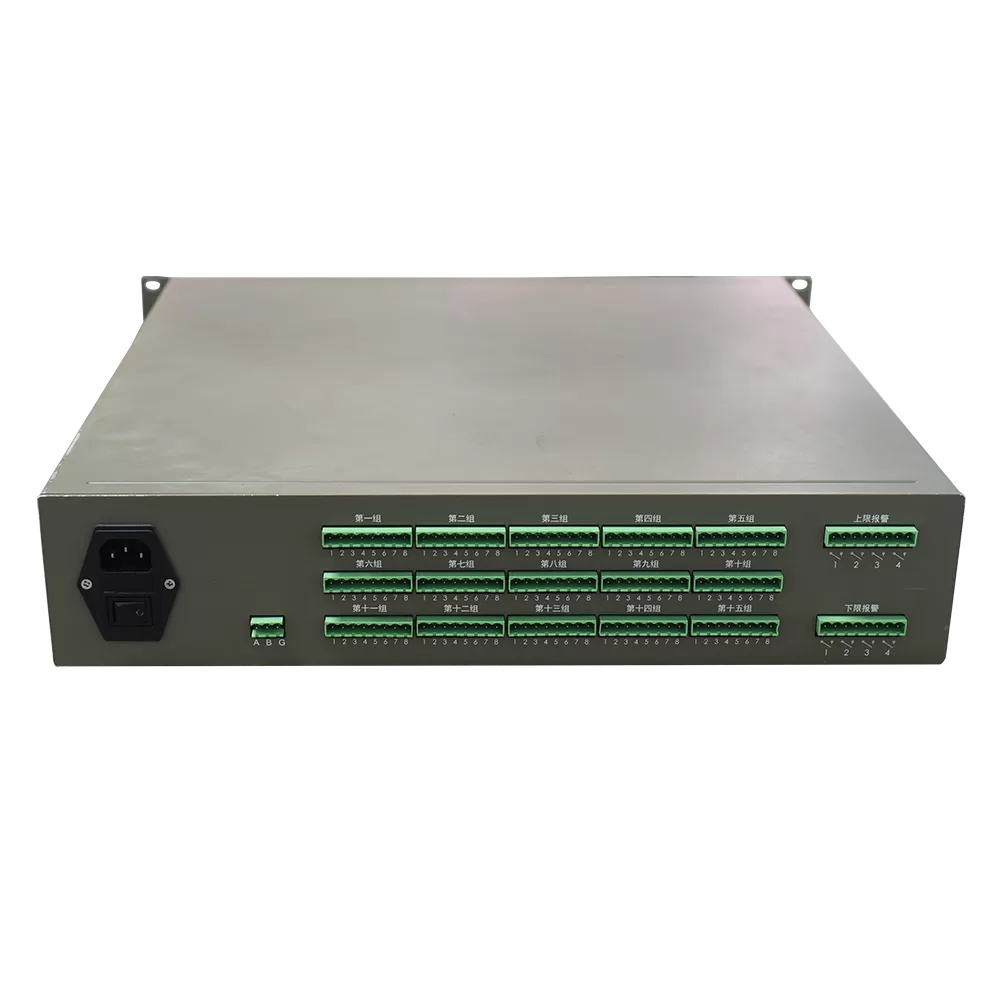

System composition
ZCO420-S: battery monitoring and acquisition host, RS485 communication interface, supporting MODBUS communication protocol;
ZCM-CP-E: Ethernet module, which converts data into Ethernet communication protocol and transmits through Ethernet;
ZCM-CP-F: optical fiber module, which converts data into optical fiber protocol. And through optical fiber transmission;
ZCM-CP-G: GPRS module, which transmits data in the way of SMS, and sends the alarm information to the designated mobile phone at the first time.
Parameter
| Module basic control parameters | Module model | |
| ZCO-420-S-12V | ZCO-420-S-2V | |
| Single cell voltage measurement range | 0~ 16V | 0~ 4V |
| Voltage Measurement accuracy of single cell | 5% | 5% |
| Internal resistance Measurement range of single cell | 99mΩ Max | 10mΩ maximum |
| internal resistance Repeat accuracy of single cell | 2% | 2% |
| Battery pack current measurement range (current sensor optional) | 200A (related to current sensor) | 500A (related to current sensor) |
| Accuracy of battery current measurement | Nominal accuracy of current sensor | Nominal accuracy of current sensor |
| Ambient temperature measurement range | 0~ 100ºC | 0~ 100ºC |
| Ambient temperature measurement accuracy | 1 ºC (at 25 º C) | 1 ºC (at 25ºC) |
| number of testing batteries | 21 / module | 60 pieces / module |
| Operating voltage range | AC 220V or DC 180V ~ 390v or DC 90V ~ 195v | |
| working temperature | 0 ~ 60 º C (with good ventilation function) | |
| Communication excuse | RS 485 | |
