Features and Advantages
1.Two operation ways : operation by colorful touch LCD screen and button . It is easy to operate to meet users with different usage habits.
2.Data storage method : internal storage and external storage. It can save 300 sets of test data and each groups 500 cell battery data for search and analysis.
3.Automatical identification measurement function of postive connection and reverse connection.
4.It has the data record and qury function of voltage , internal resistance , conductance, capacity . It can directly estimate and analyze the battery remain capacity .
5.Powerful data management software, friendly interface. It has the function of data management, print , analysis , report statistics, automatic generation of test reports.

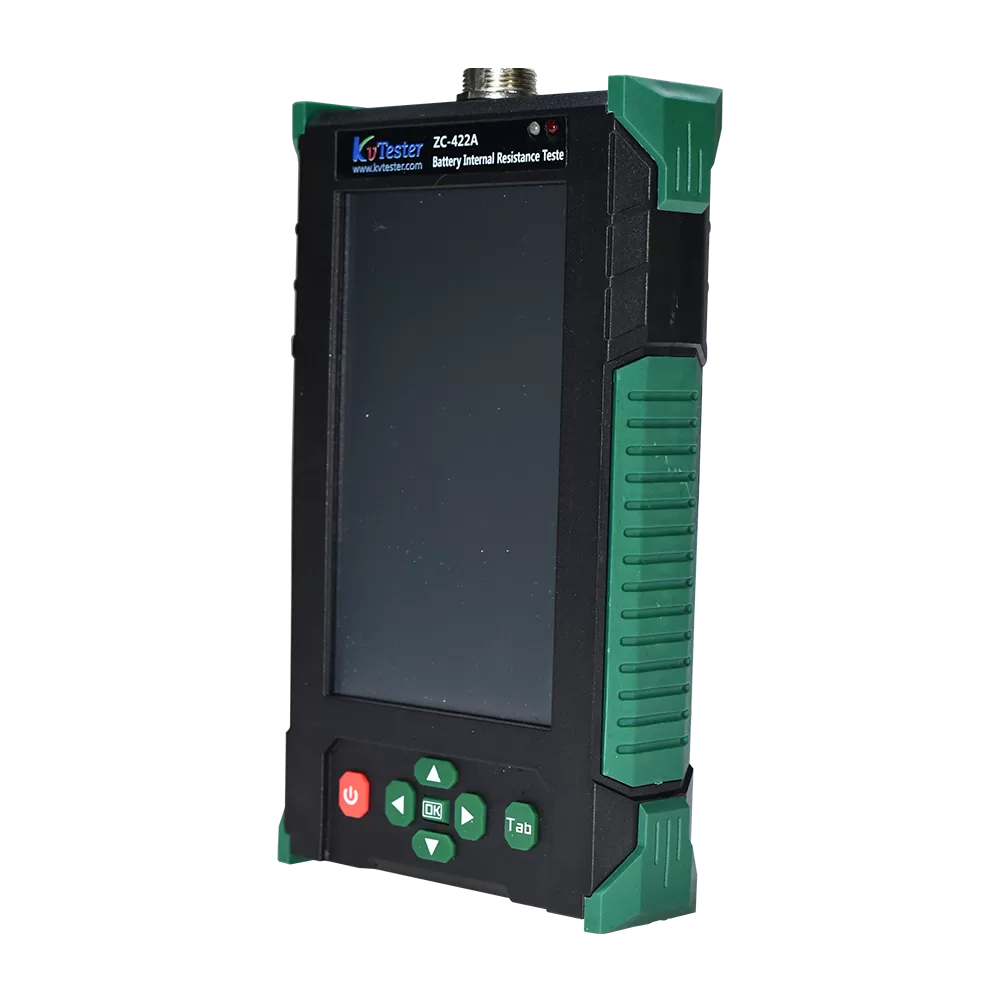

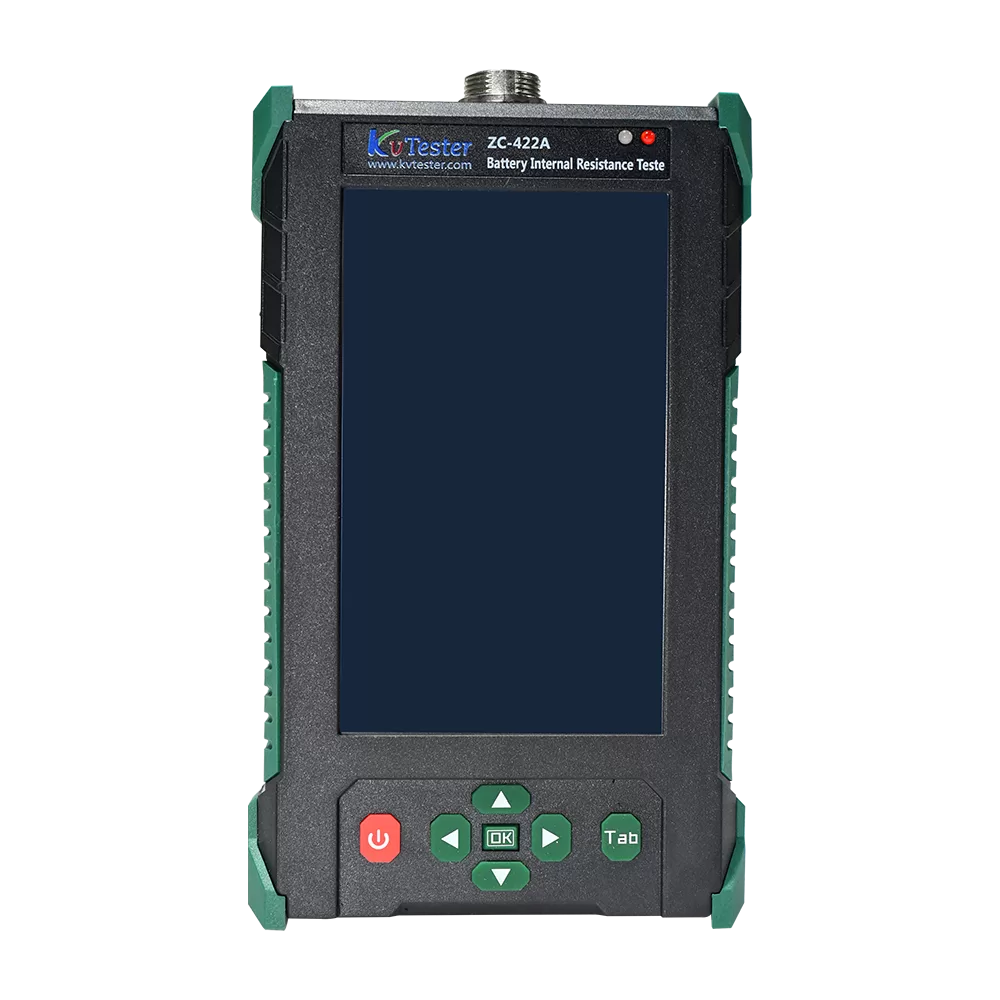

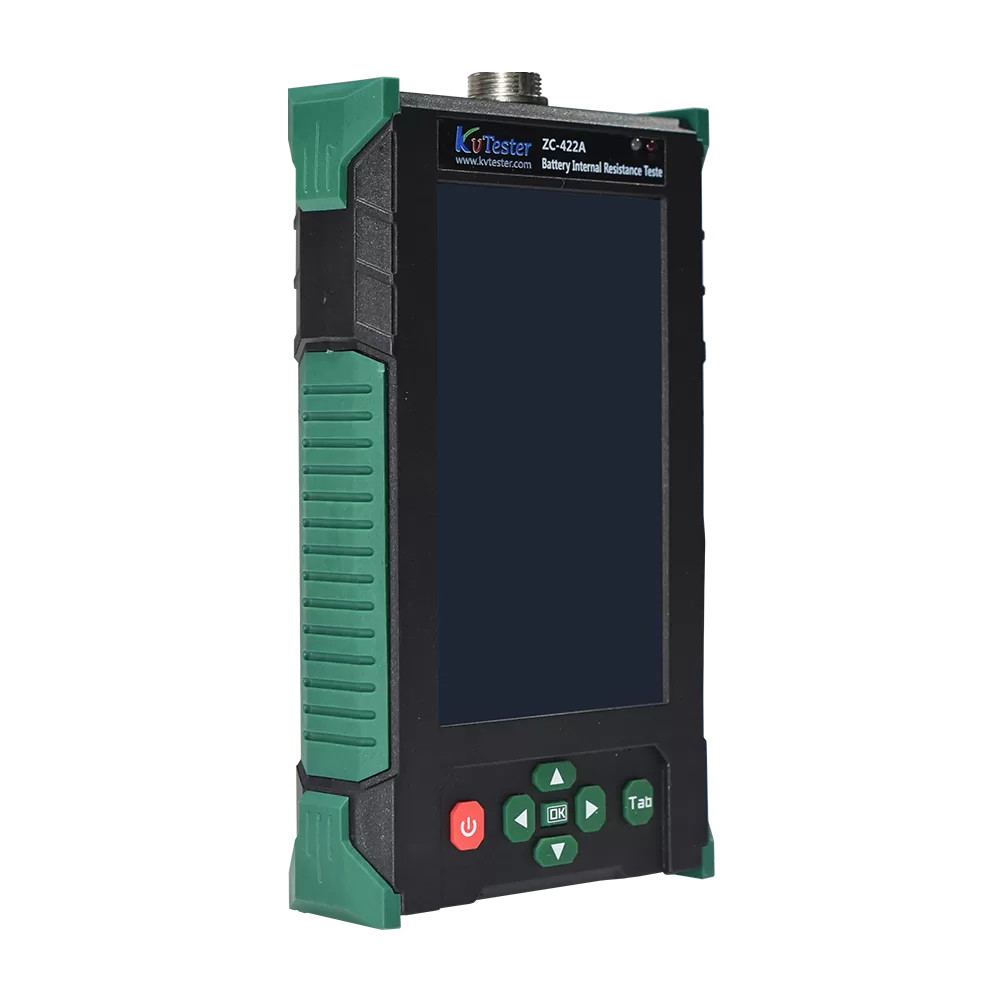

6.Less than 0.5kg , Handheld design, automatic measurement in the whole process.
7.Large capacity lithumn battery for power supply and long time measurement
8.Compact size, Easy carry ; Exquisite appearance , excellent struction ; Beautiful interface, smooth operation.
Parameter
| Measurement Range | Conductance : 20～19,990S |
| Internal Resistance: 0.01mΩ-120mΩ | |
| Voltage：0.000v–16v | |
| Min Measurement resolution | Conductance ：1S |
| Internal Resistance ：0.01mΩ | |
| Voltage ：1mV | |
| Measurement Accuracy | Conductance：±0.5%rdg ±6dgt |
| Internal Resistance：±0.5%rdg ±6dgt | |
| Voltage ：±0.2%rdg ±6dgt | |
| Working Power Supply | 5V, Recharge lithium battery |
| Continuous working for 10 hours | |
| Storage | 8G TF card |
| LCD Display | 800*480 Colorful , 5 inch colorful toch screen |
| Size | 160 x 110 x 42mm |
| Weight | 0.5Kg |
