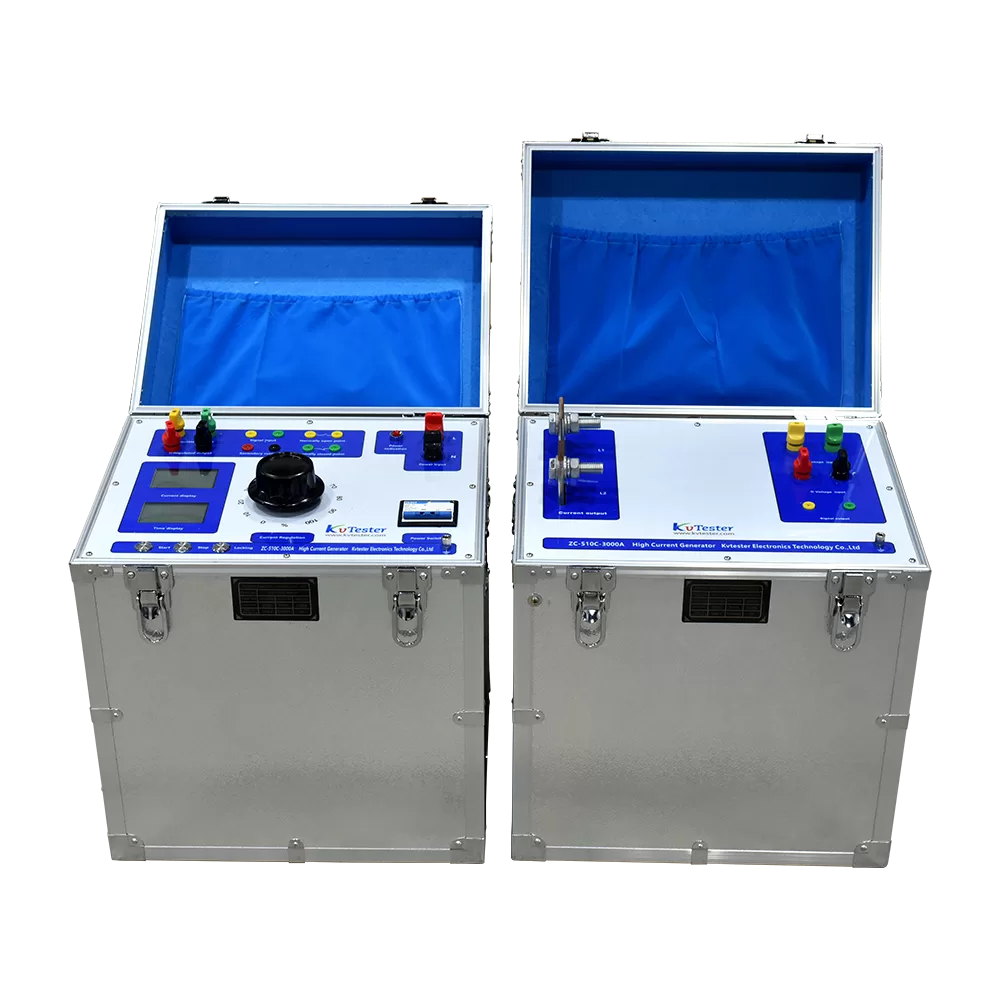

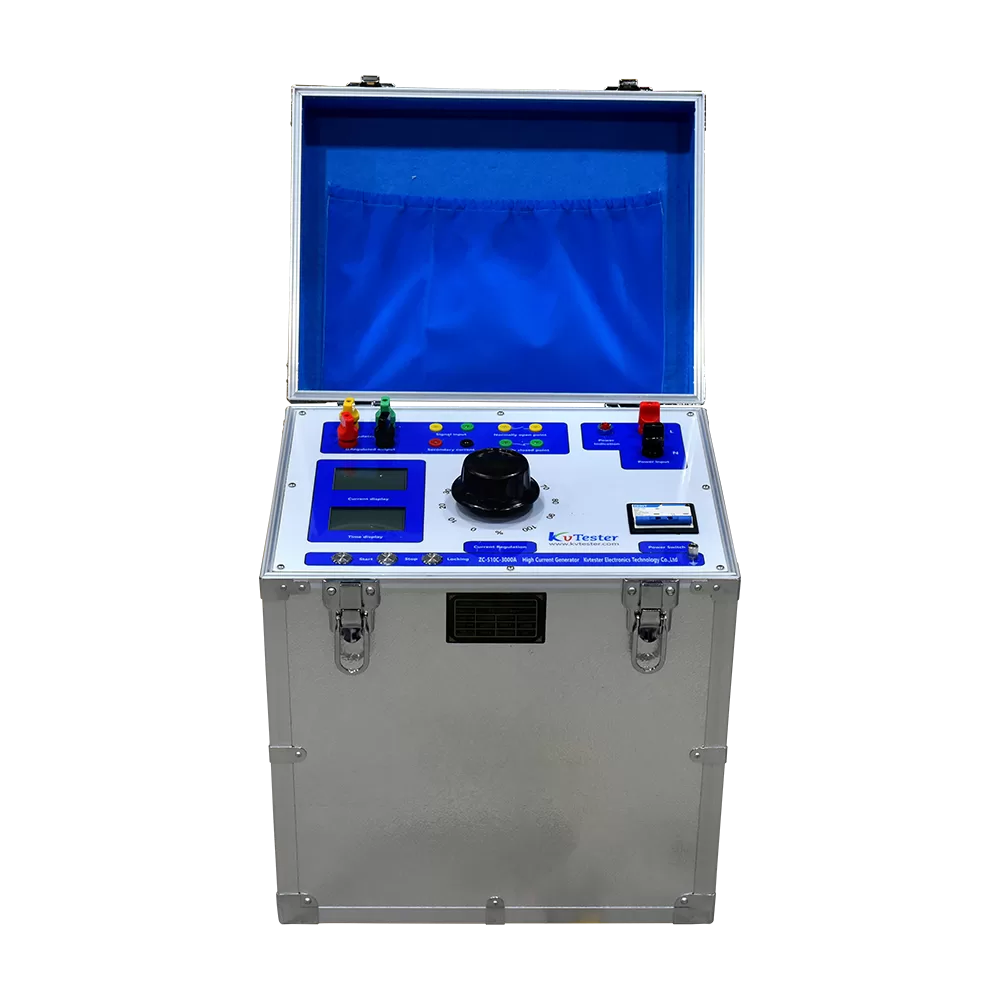

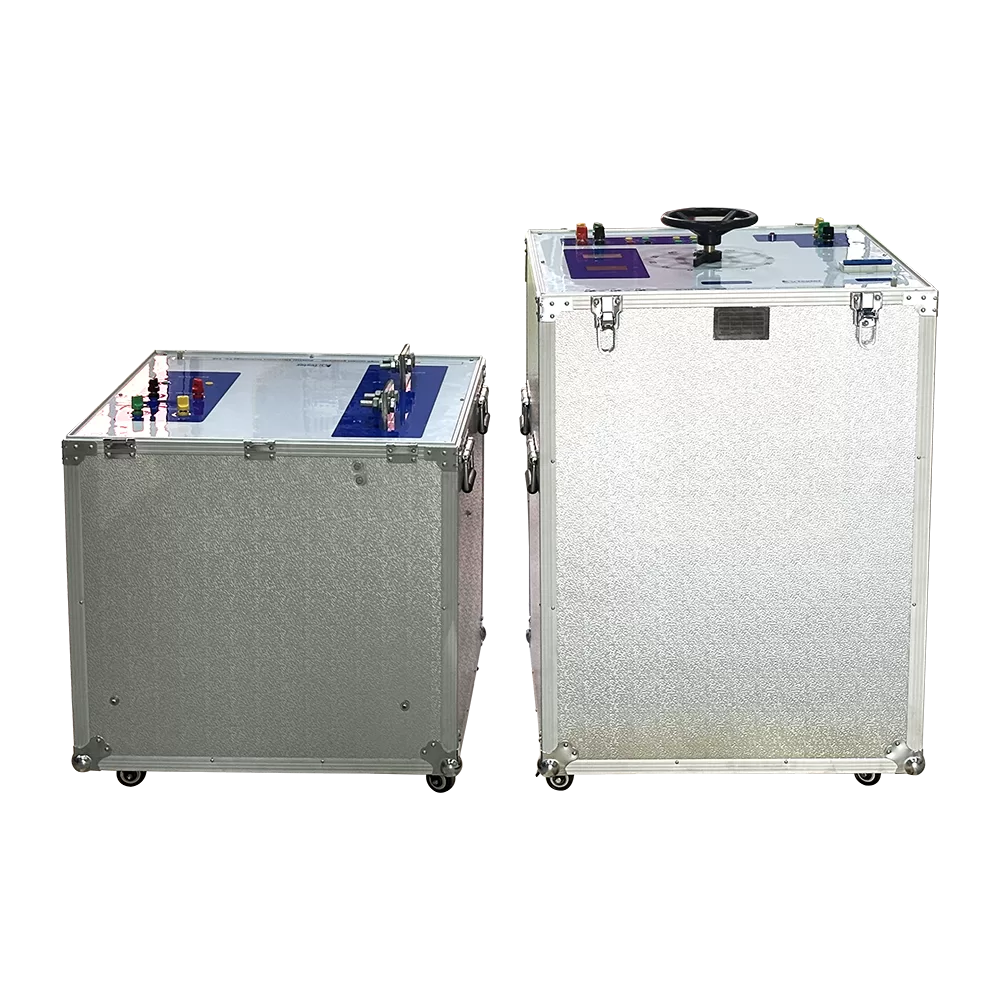

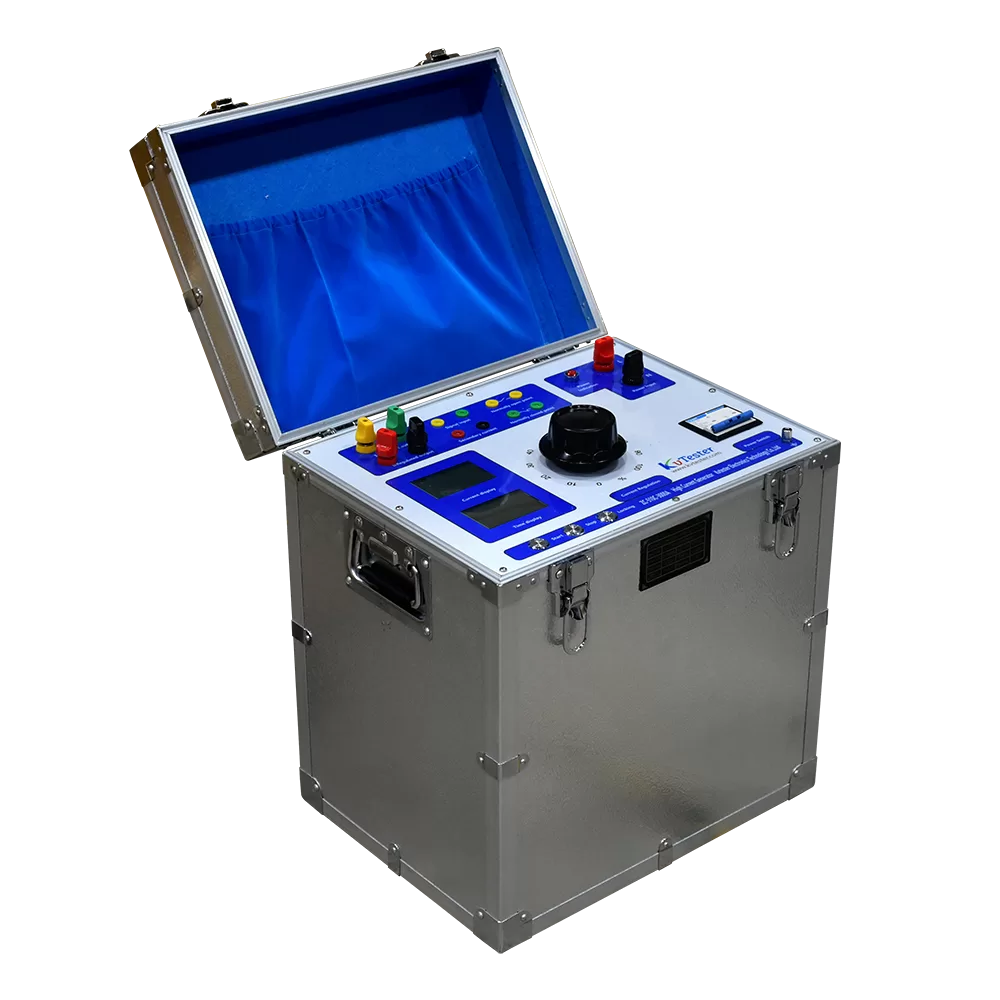

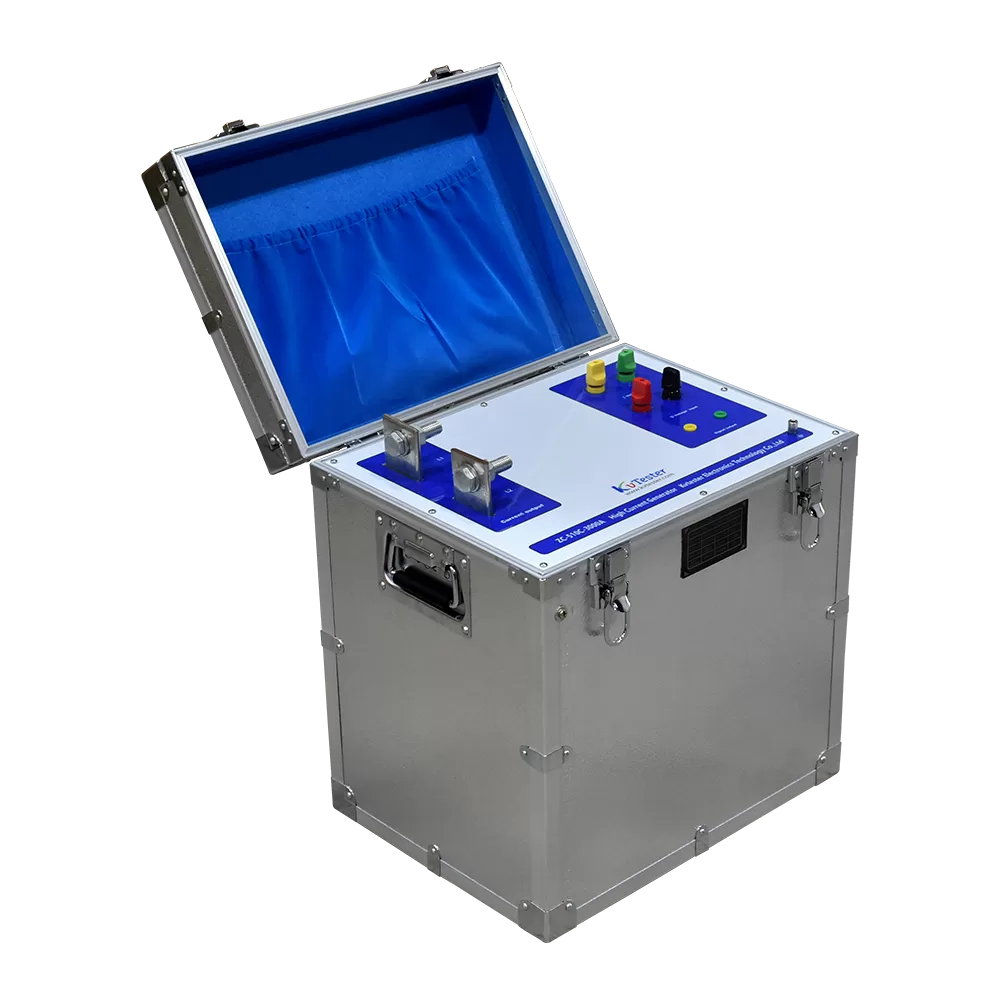

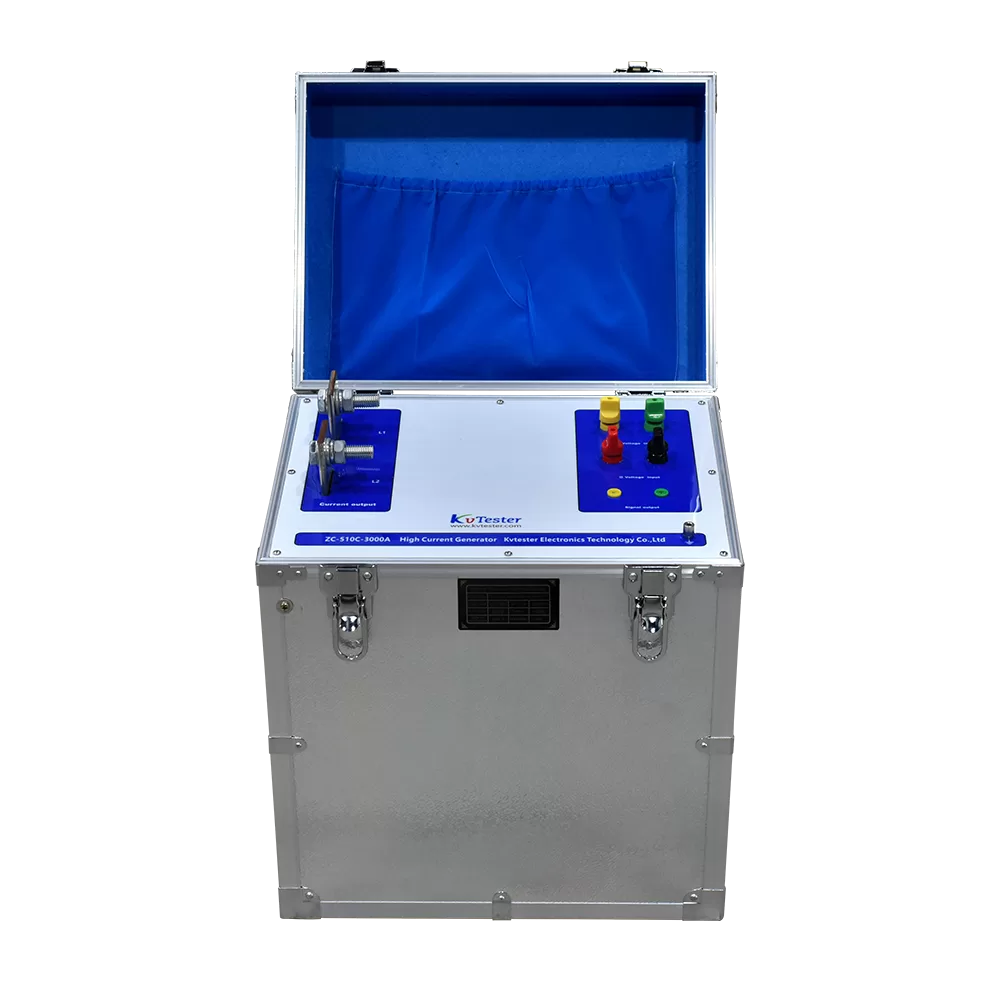

High Current GeneratorZC-510C-3000A

ZC-510C-3000A High Current Generator , referred to as “(riser), test equipment developed by our company, Uses the numerical control technology, strong anti-jamming capability, compared with the generation of heat flow device with low power consumption, large capacity of the lotus root voltage regulator and high permeability core current transformer, has big output power, small volume, light weight, etc. It is mainly used for the test project of primary bus protection and the conversion ratio of various current transformers. It is widely used in the scientific research, production and electrical test field of electric power, railway, petrochemical, metallurgy and mining enterprises.

Send inquiry

Features and Advantages

1.Adopt beautiful and generous PVC panel
2.Display the test value of primary current and secondary current directly, easy to observe and record the test.
3.Second measurement of current transformer, change ratio, polarity display at the same time
4.The measurement accuracy is 0.5
5.High power, small volume, strong load capacity
6.Small in size, light in weight, only 30% to 70% of the volume of similar products, very convenient to carry.

Parameter

Input voltage	AC220V plus or minus 10%
Work rate:	15KVA
Output current	AC 0–3000 A (continuously adjustable); the panel is equipped with a digital ammeter
Output voltage	5V
Output waveform	The output current is a standard sine wave with tiny burrs, which is better than the standard index standard of power system and has small ripple coefficient At 0.3%. Standard sine waves.
Measurement accuracy	(using 0.2s material) is actually about 0.3; Each current can be smooth, smooth and continuously adjustable with high precision
Output current mode	True effective value is continuously adjustable
Current stability	0.2%
Structure	Fission
Connection mode	As required
Protection Settings	Overcurrent, overvoltage
