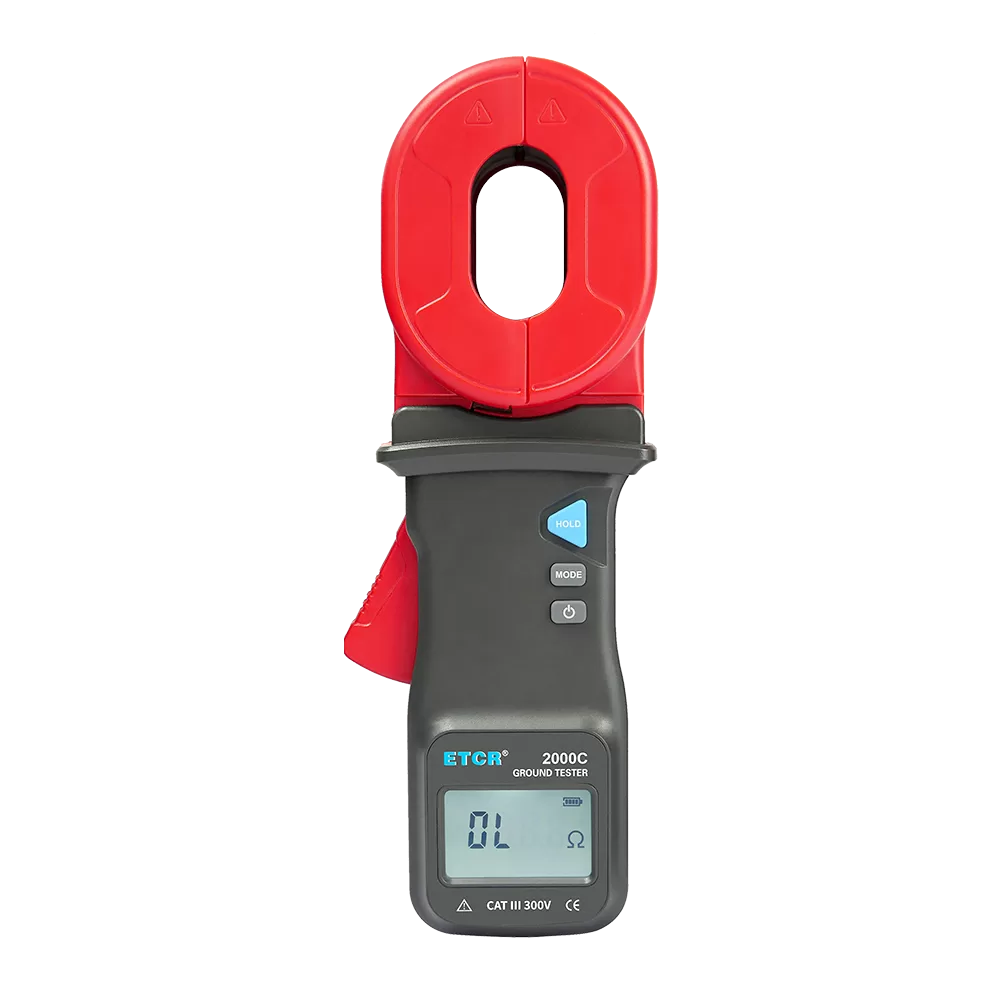

  • Clamp Earth Resistance Tester detail 4

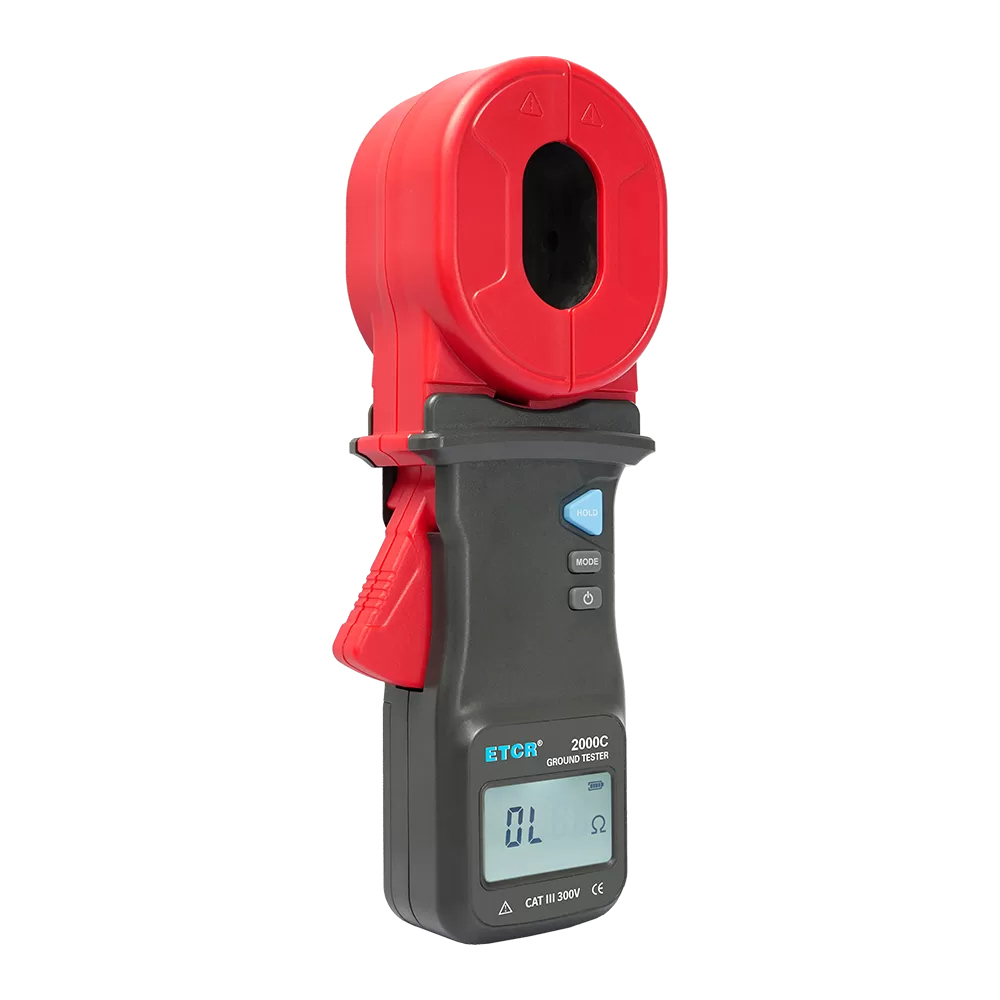

  • Clamp Earth Resistance Tester detail 5

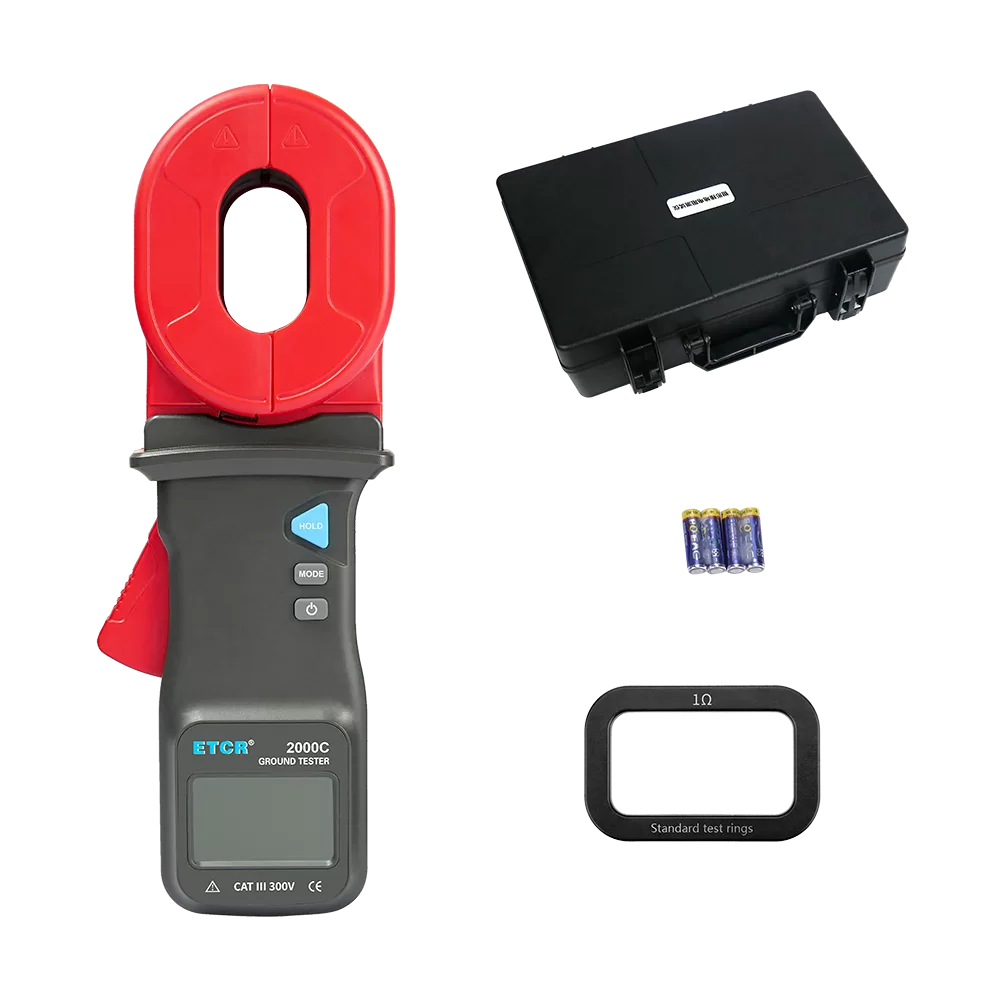

  • Clamp Earth Resistance Tester detail 2

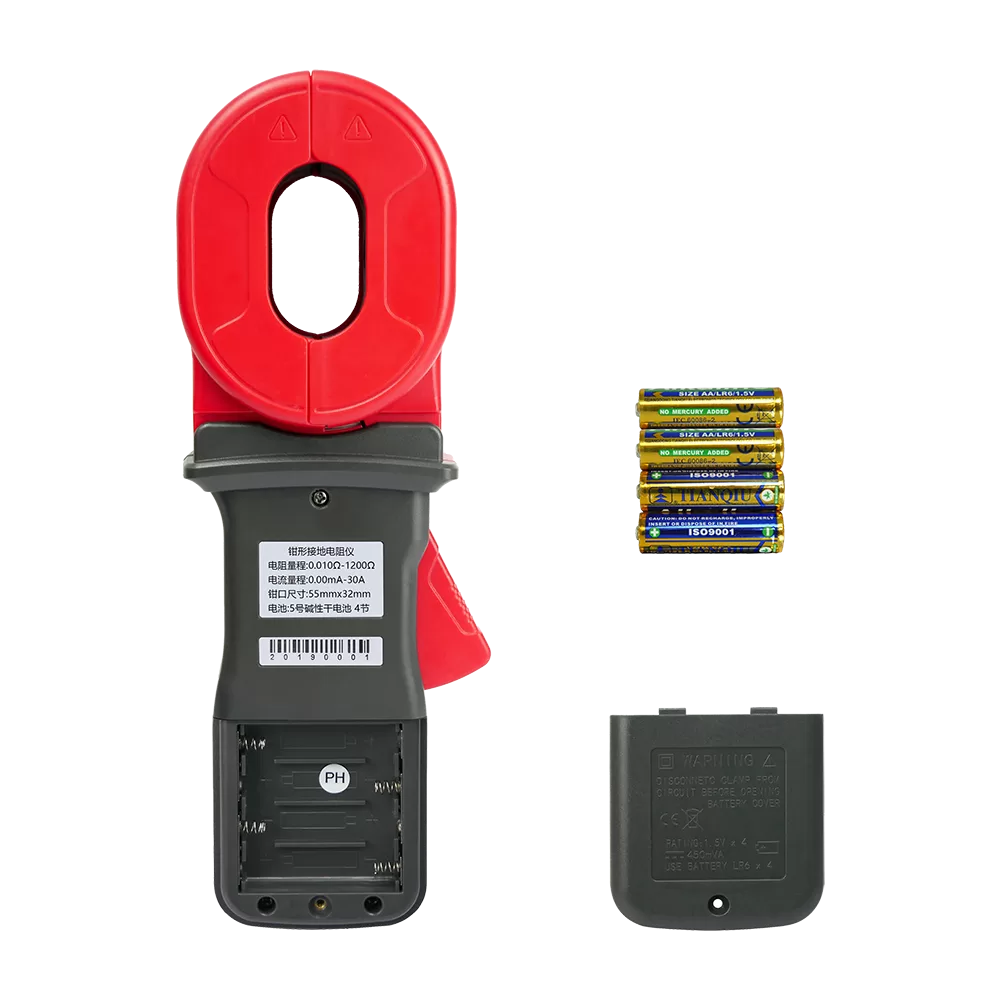

  • Clamp Earth Resistance Tester detail 1

Clamp Earth Resistance TesterZC-411

ZC-411 series of Clamp Earth Resistance Tester is a major breakthrough in traditional grounding resistance measurement. It is widely used in the grounding resistance measurement of the power, telecommunications, meteorology, oilfield, construction and the industrial and electrical equipment. In the measurement of a grounding system with loop, does not require breaking down the grounding down lead, and no need the auxiliary grounding electrode. It is safe, fast and simple in use.

ZC-411 series clamp grounding resistance meter can measure ground faults which cannot be measured by traditional methods. It can be used in applications where traditional methods cannot be measured, because the ZC-411 series clamp grounding resistance meter measures the combined value of grounding body resistance and grounding lead resistance.In addition, the C type Clamp Grounding Resistance Tester is also able to measure the leakage current and the neutral current in the grounding system.
Send inquiry

Parameter

  • Ranges & Accuracy
  • Technical Specifications
ModeRangeResolutionAccuracy
Resistance Range0.010Ω~0.099Ω0.001Ω±(1%rdg＋0.01Ω)
0.10Ω~0.99Ω0.01Ω±(1%rdg＋0.01Ω)
1.0Ω~49.9Ω0.1Ω±(1%rdg＋0.1Ω)
50.0Ω~99.5Ω0.5Ω±(1.5%rdg＋0.5Ω)
100Ω~199Ω1Ω±(2%rdg＋1Ω)
200Ω~395Ω5Ω±(5%rdg＋5Ω)
400~590Ω10Ω±(10%rdg＋10Ω)
600Ω~1000Ω20Ω±(20%rdg＋20Ω)
Current Range0.00mA~9.99mA0.01mA±(2.5%rdg＋1mA)
10.0mA~99.9mA0.1mA±(2.5%rdg＋5mA)
100mA ~299mA1mA±(2.5%rdg+10mA)
0.30A~2.99A0.01A±(2.5%rdg＋0.1A)
3.0A~9.9A0.1 A±(2.5%rdg＋0.3A)
10.0A~19.9A0.1 A±(2.5%rdg＋0.5A)
20.0A~30.0A0.1 A±(3%rdg＋1A)
Power SourceDC 6V  Alkaline dry battery (LR6 1.5VX4PCS)
LCD4-digital LCD, 47mm (L)X28.5mm (W)
Structural FeatureClamp and jaw type
Resistance Measurement Range0.01Ω ~1000 Ω
Maximum Resistance Measurement Resolution0.001 Ω
*Current Measuring Range0.00mA~30.0A(C type)*
Measured Current Frequency50/60Hz
Range ShiftAutomatic
Single Measuring Time0.5 second
Measurement Resistance Frequency＞1KHz
Alarm Value SettingResistance: 1~199Ω; Current: *1~499mA
Storable Measurement Data99 groups, display “MEM” symbol indicates that the memory is full
Data HoldData hold function: “HOLD” symbol display
Data ReviewData review function: “MR” symbol display
Overflow DisplayOver-range overflow function: “OL” symbol display
Alarm FunctionAlarm symbol “    ” will flash When the measured value exceeds the alarm setting value
Battery VoltageWhen the battery voltage drops to about 4.8V, the low battery voltage symbol ““ is displayed, remind to replace the battery.
Working Current40 Max
Meter Weight Meter weight about 880g(include battery); Total weight: about 2.03kg(include battery)
Meter Size277mm X100mmX57mm
Working Temperature-10 ° ~55 ° C
Relative Humidity10%-90%
Protection LevelDouble insulation
External Electromagnetic Fields＜1V/m ＜40A/m
Safety RegulationsIEC61010-1, IEC1010-2-31, IEC61557-1, Pollution Degree 2, CAT Ⅲ 300V, JJG 1054-2009 Clamp-on Earth Resistance Tester
