Product parameters of three-phase harmonic analyze

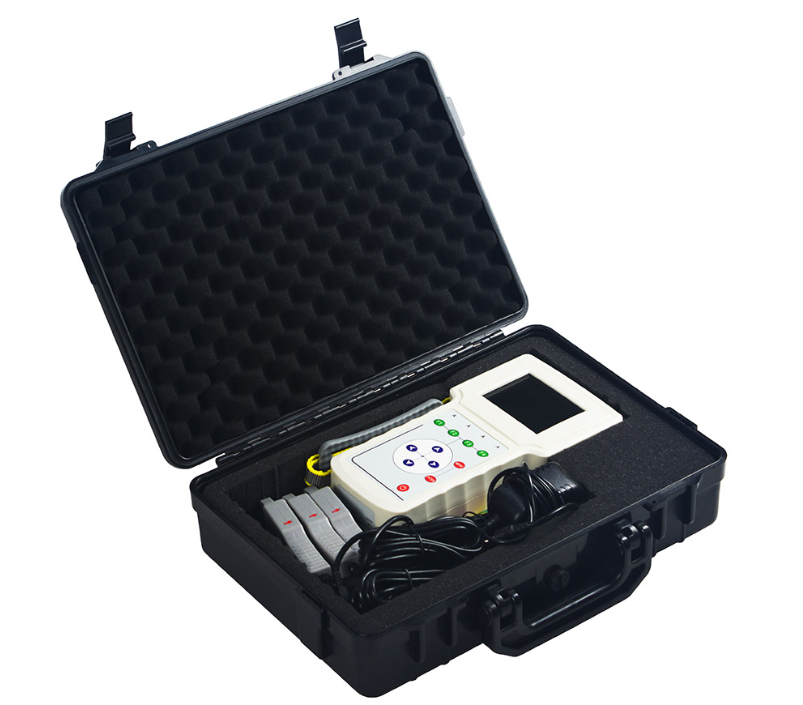

Zc-630 three-phase harmonic analyzer is a multi-functional power measuring instrument developed and manufactured by our company with the latest technology. It can measure three-phase voltage and three-phase current 1-63 times harmonic, and display odd or even harmonic separately with list or spectrum diagram.

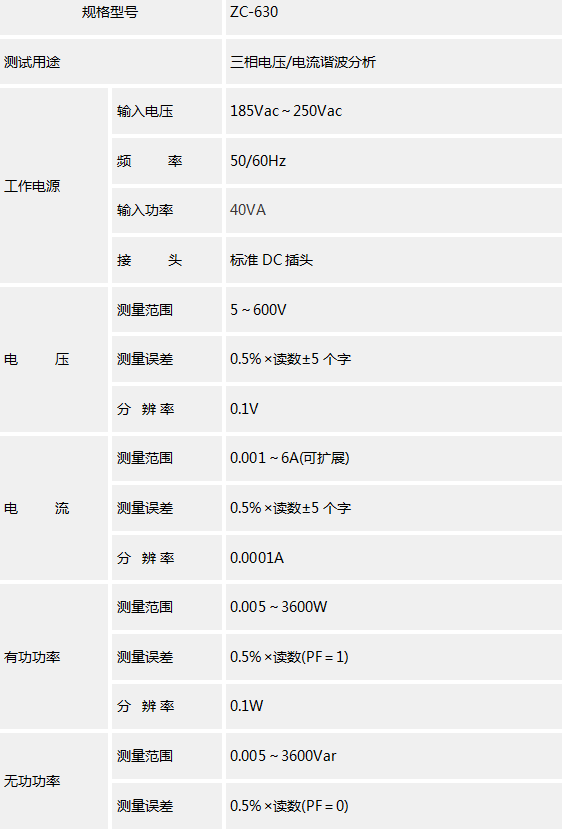

Zc-630 three-phase harmonic analyzer adopts the button type operation, can automatically switch the range, maintain the measured data, store the measured data, realize the large capacity storage, and output the vector diagram. It has powerful functions and convenient operation, and is at the leading level in China. The following are its specific product parameters:







It can be seen from the parameters that zc-630 three-phase harmonic analyzer has the advantages of small volume, light weight, convenient operation, accurate test, etc., and has more powerful functions and higher security than other products on the market. In the setting interface of zc-630 three-phase harmonic analyzer, the LCD backlight brightness when the battery is powered, the LCD backlight brightness when the external power supply is connected, the LCD backlight time when the battery is turned off, the LCD backlight brightness when the battery is powered off and the LCD backlight time when the battery is turned off can also be set, which not only greatly improves the battery standby time of the instrument, but also improves the working efficiency of the user.



Therefore, zc-630 three-phase harmonic analyzer is very suitable for the field use of differential detection and start-up test, such as electric energy measurement, electric power inspection, transformer maintenance, relay protection, etc., as well as the use of wiring discrimination training tools and teaching instruments in various electric power colleges and universities and large-scale electric power enterprises such as chemical industry, metallurgy, mining, railway, etc.



As for zc-630 three-phase harmonic analyzer, if you don’t understand, you can consult our online customer service at any time and serve you with your heart.



(add the difference between parameters and other instruments)
