Introduction to common microcomputer relay protection tester algorithms

Microcomputer relay protection tester algorithm refers to the algorithm used when testing and evaluating the performance of microcomputer relay protection devices. These algorithms are designed to simulate real power system working conditions and test the correctness, reliability and response speed of microcomputer relay protection devices under various faults and abnormal conditions.

The following is a common microcomputer relay protection tester algorithm:

1. Action time measurement algorithm:

It is used to measure the action time of the microcomputer relay protection device, that is, the time from the occurrence of the fault to the action of the protection device. Usually, the same period comparison method is used to compare the protection device under test with the standard device to calculate the action time error.

2. Protection trigger condition algorithm:

According to different types of fault conditions and the setting parameters of the protection device, the tester will generate corresponding fault waveforms to determine whether the protection device can be triggered correctly to protect the power system.

3. Fault location algorithm:

By injecting virtual fault signals into the power system, the tester can accurately locate the fault location based on the operating data of the protection device and the characteristics of the fault signal. Commonly used algorithms include timing method, distance method and variable ratio method.

4. Non-electrical quantity test algorithm:

Used to test non-electrical protection related to power systems, such as differential protection and transformer thermal protection. By simulating and injecting corresponding non-electrical signals, the tester can verify the protection device’s ability to process and respond to these signals.

5. Communication performance test algorithm:

Used to evaluate the communication functionality and performance of protective devices. The tester can simulate various communication protocols and communication network conditions, and check the communication connection, data transmission and response time of the protection device by sending data packets and receiving responses.

These algorithms play an important role in microcomputer relay protection testers, capable of comprehensively evaluating the performance of protective devices and discovering potential problems and defects. Users of the tester can select appropriate algorithms based on specific needs to ensure that the protection device can reliably protect the safe and stable operation of the power system in actual operation.

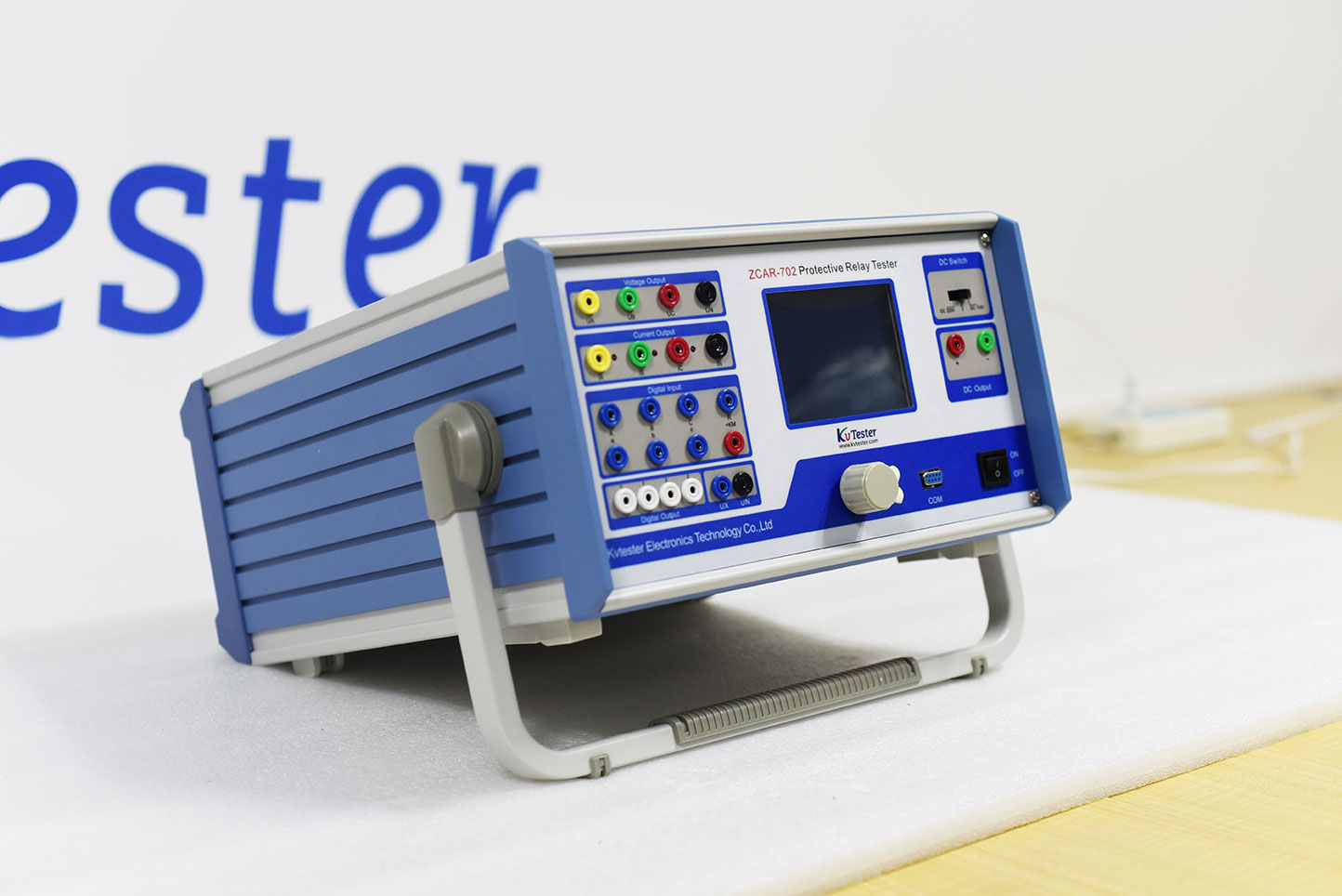

ZCAR-702 three-phase relay protection tester comes with a large-screen LCD display and a flexible and convenient rotating mouse controller. The stand-alone machine has a strong function when operated independently and can be used for most experiments. When connected to a computer, it has more powerful operation functions. Small size and high precision. It not only has the superior performance and advanced functions of large-scale testers, but also has the advantages of small-scale testers such as compactness, flexibility, easy operation, high reliability, etc., with high performance-price ratio. It is a good tool for relay care workers.

In addition to testing various relays (such as current, voltage, inverse time, power direction, impedance, differential, low cycle, synchronization, frequency, DC, intermediate, time, etc.) and microcomputer protection, it can also simulate single-phase to A complete set of tests is carried out for three-phase transient, permanent and switching faults. It can also complete various large-scale and complex calibration tasks with a high degree of automation. It can automatically test and scan various protection settings, store test data in real time, display vector graphics, and print reports online.

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase. Service hotline: 0086-27-81778799, to learn more, visit the official website: www.kvtester.com
