How to accurately evaluate the power capacity required for a series resonant withstand voltage testing system?

Accurately evaluating the power capacity required for the series resonant withstand voltage testing system is crucial in the testing of high-voltage electrical equipment. This not only relates to the accuracy and reliability of the testing, but also ensures the safe and efficient conduct of the testing process. The following will provide a detailed explanation on how to accurately evaluate the power capacity required for a series resonant withstand voltage testing system.

1. Consider the capacitance characteristics of the tested equipment

The capacitance of the tested equipment is one of the important factors affecting the power capacity of the series resonant withstand voltage testing system. Electrical equipment of different types and specifications have different capacitance values. For example, for long-distance high-voltage cables, their capacitance values are usually large. When evaluating power capacity, it is necessary to accurately measure the capacitance value of the tested equipment. The capacitance of the equipment can be determined through theoretical calculations or actual measurements. Theoretical calculations can be estimated based on the geometric dimensions, insulation materials, and other parameters of the equipment, but this method may have certain errors. In actual measurement, the capacitance value of the tested equipment can be directly measured using devices such as capacitance testers, which is a more accurate method.

2. Determine the resonant frequency

The determination of resonant frequency is also crucial for evaluating the power capacity of a series resonant withstand voltage testing system. In a series resonant circuit, when the frequency of the power supply is equal to the resonant frequency of the circuit, the impedance in the circuit is minimized and the current is maximized. Therefore, in order to reduce the power capacity, it is necessary to operate the testing system in a resonant state. Resonant state can be achieved by adjusting the frequency of the power supply or changing the inductance and capacitance values in the circuit. When determining the resonant frequency, it is necessary to consider the capacitance and inductance characteristics of the tested equipment, as well as other parameters of the testing system. Generally speaking, the resonant frequency can be determined through theoretical calculations or experimental debugging methods.

3. Calculate resonant current

Resonant current is one of the important parameters for evaluating the power capacity of a series resonant withstand voltage testing system. According to Ohm’s Law, current is equal to voltage divided by impedance. In a series resonant circuit, the impedance is the smallest, so at the same voltage, the resonant current is the largest. The resonant current can be calculated using the following formula: I=U/Z

Among them, I is the resonant current, U is the test voltage, and Z is the impedance of the circuit. The impedance of a circuit can be calculated using the following formula:

Z=√R²+(X-Xe)

Among them, R is the resistance in the circuit, Xz is the inductance of the inductor, and Xc is the capacitance of the capacitor. Sensory impedance and capacitive impedance can be calculated separately using the following formulas:

X= 2πfL

Xc=1/2πfC

Among them, f is the frequency of the power supply, L is the inductance value, and C is the capacitance value. By using the above formula, the resonant voltage of the series resonant withstand voltage testing system can be calculated

Flow. When evaluating power capacity, it is necessary to consider the magnitude of the resonant current to ensure that the power supply can provide sufficient current.

4. Consider the efficiency of the testing system

The efficiency of the testing system is also an important factor affecting the evaluation of power capacity. In actual testing, the efficiency of the testing system is usually less than 100%, which means that only a portion of the energy provided by the power supply is used for testing, while the rest is lost. The efficiency of the testing system is affected by various factors, such as the losses of resistors, inductors, and capacitors in the circuit, as well as the efficiency of the power supply. To improve the efficiency of the testing system, the following measures can be taken:

Choose low loss inductance and capacitance components to reduce losses in the circuit.

Optimize circuit design to reduce losses in resistors and inductors.

Choose a high-efficiency power supply to improve its efficiency.

Reasonably adjust testing parameters, such as testing voltage and frequency, to improve the efficiency of the testing system.

5. Consider safety margin

When evaluating the power capacity of a series resonant withstand voltage testing system, a certain safety margin also needs to be considered. Safety margin is to ensure the safety and reliability of the testing process, and to prevent insufficient or overloaded power capacity caused by various factors. Generally speaking, the size of the safety margin can be determined based on factors such as the importance of the tested equipment and the complexity of the testing environment. For important electrical equipment and complex testing environments, the size of the safety margin can be appropriately increased.

In summary, accurately evaluating the power capacity required for a series resonant withstand voltage testing system requires considering factors such as the capacitance characteristics of the tested equipment, determining the resonant frequency, calculating the resonant current, and considering the efficiency and safety margin of the testing system. By comprehensively considering these factors, it is possible to accurately evaluate the power capacity required for the series resonant withstand voltage testing system, ensuring the safe and efficient conduct of the testing process.

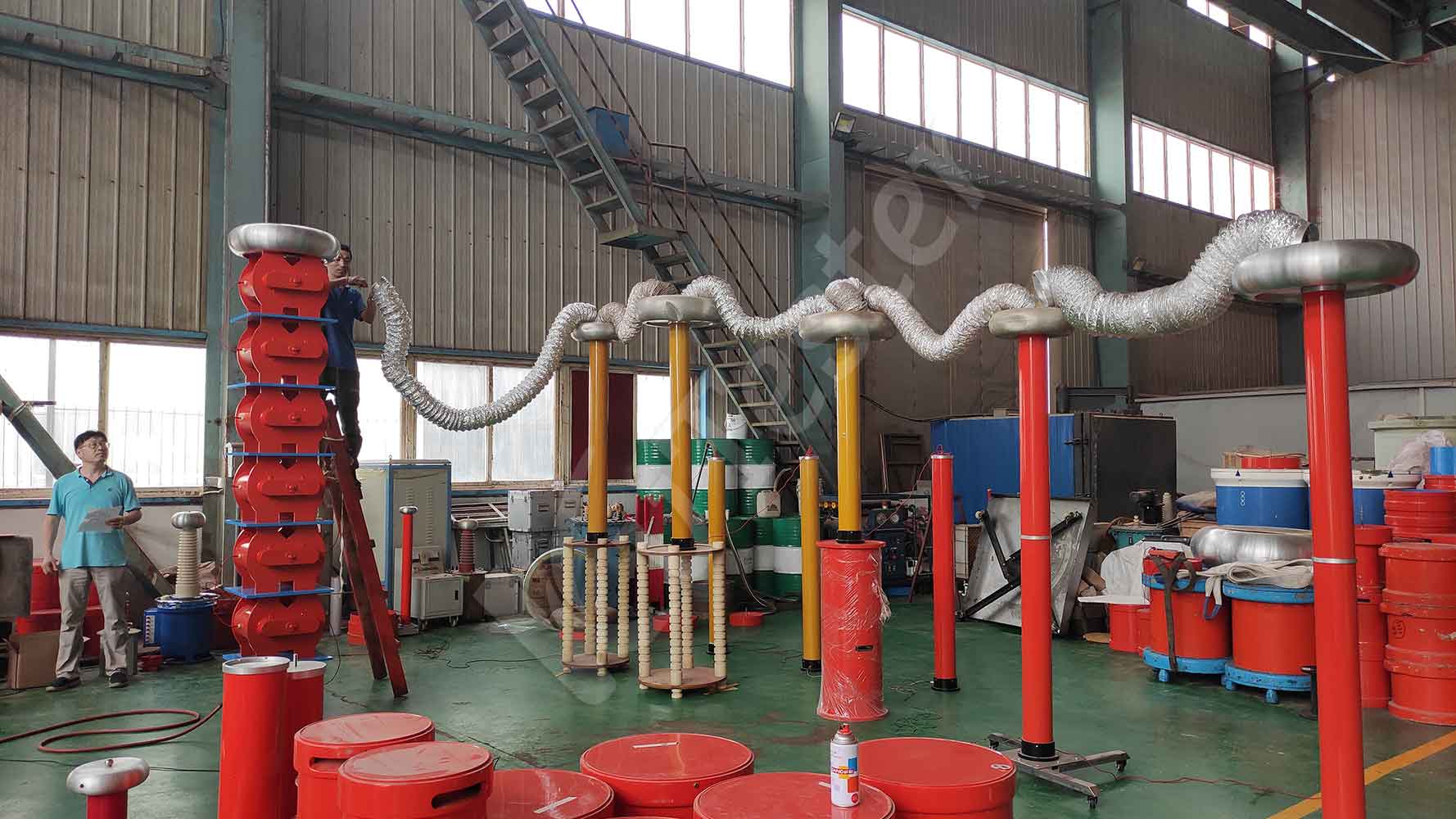

The ZCVF-A series variable frequency series resonant withstand voltage test device adopts the method of adjusting the power supply frequency to achieve resonance between the reactor and the tested capacitor, thereby obtaining high voltage and high current on the tested object. Due to its low required power supply, light weight and small size, it has been widely praised and applied at home and abroad, and is a new method and trend of high voltage testing. This device is mainly designed for AC withstand voltage testing of cross-linked cables, hydroelectric generators, main transformers, busbars, GIS, etc. It has a wide range of applications and is an ideal withstand voltage equipment for high-voltage testing departments and power installation and maintenance engineering units at the local, municipal, and county levels. The equipment mainly consists of a variable frequency control power supply, an excitation transformer, a reactor, a capacitive voltage divider, and a compensation capacitor (optional).
