How is the frequency of the series resonance test device estimated?

The series resonance test device is a device used to measure the series resonance frequency in a circuit. When conducting series resonance tests, it is necessary to accurately estimate the resonant frequency to ensure the accuracy and effectiveness of the experiment. This article will discuss how to estimate the frequency of a series resonance test device.

Firstly, to estimate the frequency of the series resonance test device, it is necessary to understand the component parameters in the circuit. Specifically, it is necessary to know the values of inductance (L) and capacitance (C). These parameters can be measured using measuring instruments or obtained through the specifications provided during circuit design.

Once the values of inductance and capacitance are obtained, the following formula can be used to estimate the series resonant frequency: f=1/(2 π√ (LC)), where f represents the resonant frequency, π represents the pi, L represents the value of inductance, and C represents the value of capacitance. By substituting these values into the formula, the estimated frequency of the series resonance test device can be obtained. In addition to using the above formula, the estimated frequency can also be verified through actual series resonance tests. In the experiment, the accuracy of the estimated value can be verified by changing the value of capacitance or inductance and observing the change in resonant frequency.

When conducting series resonance tests, attention should be paid to maintaining the stability and safety of the circuit. Ensure that the components in the circuit meet the specifications and be careful when turning on the power to avoid accidents. In summary, estimating the frequency of the series resonance test device is crucial as it directly affects the accuracy of the experimental results. By understanding the component parameters in the circuit and using corresponding formulas for calculation, accurate frequency estimates can be obtained. At the same time, attention should also be paid to maintaining the stability and safety of the circuit in the experiment to ensure the smooth progress of the experiment.

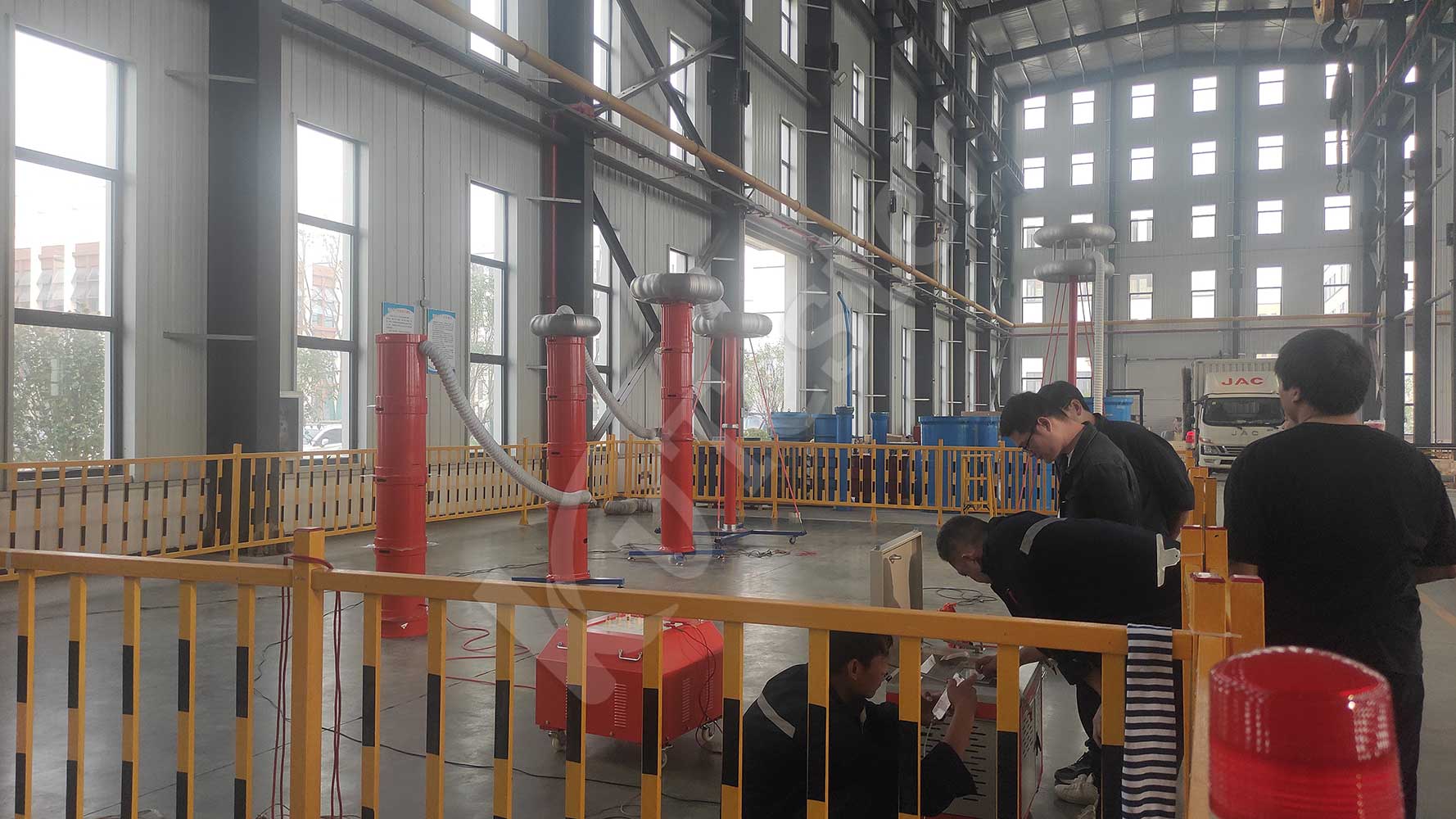

ZCVF-A series frequency conversion series resonant AC withstand voltage device is suitable for AC withstand voltage test of transformer, circuit breaker, switch, GIS system, cable, bushing, insulator and other equipment. It has the functions of high voltage over-voltage protection, low voltage over-current protection, detuning protection, zero position protection, flashover protection, emergency shutdown, under-voltage protection and so on. It not only meets the requirements of equipment test conditions for high voltage and small current, but also meets the requirements of equipment test conditions for low voltage and large current, and has a wide application range.

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase. Service hotline: 0086-27-81778799, to learn more, visit the official website: www.kvtester.com
