How does the high-voltage switch characteristic tester operate

The operation of a high-voltage switch characteristic tester is a process that integrates multiple modules and technologies, with the main purpose of evaluating the performance and characteristics of high-voltage switches through precise measurement and analysis. The following is the basic operation process of the high-voltage switch characteristic tester:

1. Initialization and settings:

① Before starting the test, users need to set the parameters of the tester, such as test voltage, current range, etc., to adapt to different models and specifications of high-voltage switches.

② The internal module of the tester is initialized and ready to enter the testing state.

2. Applying power and signal:

① The tester generates specific pulse signals through a signal generator, which are used to simulate the current and voltage changes that high-voltage switches may encounter in actual working environments.

② The generated signal is amplified by a power amplifier to drive the high-voltage switch for testing.

3. Data collection and processing:

① During the testing process, the tester uses a high-speed data acquisition card to record real-time response data of the high-voltage switch, including current, voltage, opening and closing time, etc.

② The collected data is converted into digital signals through a high-speed AD converter for subsequent processing and analysis.

4. Characteristic analysis and evaluation:

① The built-in data processing module of the tester conducts in-depth analysis of the collected data, calculates the mechanical characteristic parameters of the high-voltage switch, such as action speed, contact resistance, etc.

② Based on preset standards and algorithms, the tester evaluates the performance of the high-voltage switch to determine whether it meets design requirements or whether there are potential issues.

5. Result output and display:

① The tester will output the analysis results in the form of graphics and data tables, making it easy for users to intuitively understand the performance status of high-voltage switches.

② Users can connect the tester to a PC as needed to further process and analyze test data.

6. Communication and storage:

① Testers usually have RS232 standard serial port or other communication interfaces, which can transmit and communicate data with other devices or systems.

② Test data can be stored in the internal memory of the tester or backed up and saved through external storage devices.

7. Security and Protection:

① The tester has strong anti-interference ability during operation to ensure the accuracy and reliability of test results.

② For possible abnormal situations such as overvoltage and overcurrent, the tester will take corresponding protective measures, such as automatic power outage or alarm prompts, to ensure the safety of the testing process.

Through this series of operation processes, the high-voltage switch characteristic tester can comprehensively and accurately evaluate the performance and characteristics of high-voltage switches, providing strong support for the stable operation of the power system.

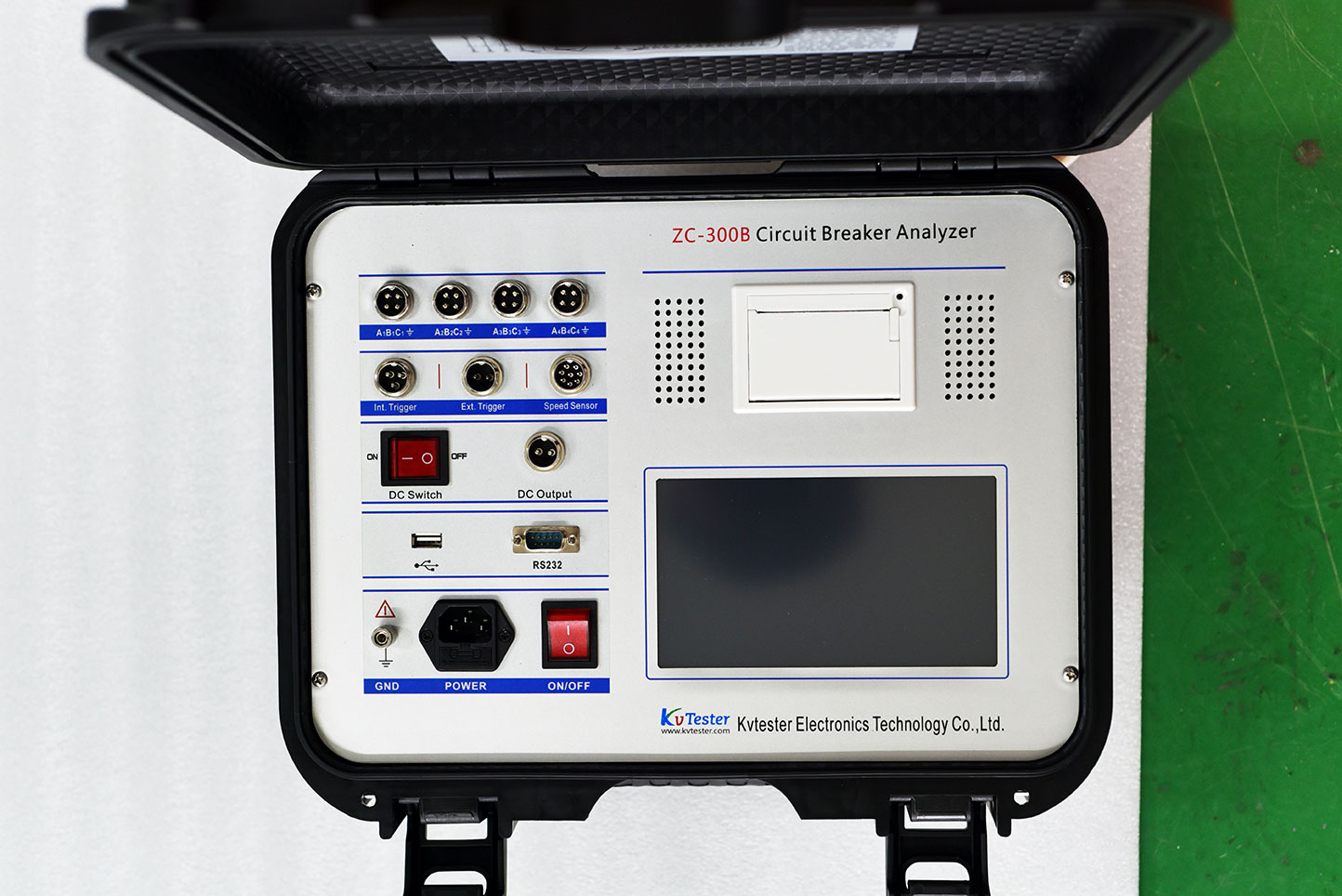

ZC-300B circuit breaker analyzer can be used to test and measure the mechanical characteristic parameters of high voltage switch ( such as vacuum, six fluoride, less oil, oil and other power systems. The measurement data is stable, strong anti-interference ability, can be in the 500KV level and below the power station to do experiments, wiring is convenient, simple operation, is the most convenient tool for high-voltage switch maintenance test.

Kvtester Electronics Technology Co.,Ltd. is a high-tech enterprise specializing in power testing, testing, research and development, production, and sales of testing equipment. It has been engaged in the electrical testing industry for many years, and its products are of high quality. We welcome customers to come and purchase. Service hotline: 0086-27-81778799, to learn more, visit the official website: www.kvtester.com
